Isolate Deployment Environments with vcluster: Multi-Cluster CD Without a Second Cluster

Every platform team hits the same wall: the qa environment needs a different CRD version than dev, a teammate's experiment needs cluster-admin, or a preview environment needs to be disposable without a change-advisory meeting. Kubernetes namespaces don't isolate any of that - CRDs, admission webhooks, and cluster-scoped RBAC are shared by every namespace on the cluster. The textbook answer is a second cluster, but a second cluster means a second control plane to pay for, patch, and secure.

vcluster sits exactly in that gap: a certified Kubernetes distribution that runs inside a namespace of your existing cluster, with its own API server, its own CRDs, and its own RBAC - while the pods it schedules land on the host nodes you already own. That makes it a perfect deployment target for a CI/CD platform: real cluster isolation, zero new hardware.

This post walks through the complete flow on KubeRocketCI: create a vcluster, register it through the Portal, wire Argo CD, and promote an application into it. Everything below - every command, screenshot, and error message - is from a real run on the local try-kuberocketci testbed.

Why a Virtual Cluster Instead of a Namespace or a Real Cluster?

	Namespace	vcluster	Separate cluster
Workload isolation	Yes	Yes	Yes
Own CRDs & API versions	No - shared	Yes	Yes
Own RBAC / cluster-admin	No - shared cluster scope	Yes	Yes
Blast radius of a bad operator	Whole cluster	The vcluster	The other cluster
Extra infrastructure cost	None	~1 pod (control plane)	Full control plane + nodes
Setup time	Seconds	Minutes	Hours to days
Teardown	kubectl delete ns	vcluster delete	Ticket to infra team

If you need hard isolation of the control plane - separate cloud account, separate failure domain, compliance boundary - use a real cluster. For everything else (per-team sandboxes, qa environments with diverging CRDs, disposable preview targets like the ones in our ephemeral environments post), a vcluster gives you cluster-grade isolation at namespace-grade cost.

Spin Up the vcluster and Mint a Deployer Token

Two commands stand up the virtual cluster next to the platform (the testbed runs KubeRocketCI in a kind cluster, but the flow is identical on any Kubernetes):

vcluster create dev2 --namespace vcluster-dev2 --connect=false

The vcluster's API server is now reachable from inside the host cluster at a stable Service URL: https://dev2.vcluster-dev2.svc:443. That in-cluster address is all the platform needs - no ingress, no load balancer.

Next, create a ServiceAccount inside the vcluster for the platform to deploy with, following the remote cluster via token guide:

vcluster connect dev2 --namespace vcluster-dev2 -- bash -c '
kubectl create sa krci-deployer -n kube-system
kubectl create clusterrolebinding krci-deployer-admin \
  --clusterrole=cluster-admin --serviceaccount=kube-system:krci-deployer
kubectl apply -f - <<EOF
apiVersion: v1
kind: Secret
metadata:
  name: krci-deployer-token
  namespace: kube-system
  annotations:
    kubernetes.io/service-account.name: krci-deployer
type: kubernetes.io/service-account-token
EOF
kubectl -n kube-system get secret krci-deployer-token \
  -o jsonpath="{.data.token}" | base64 -d'

One detail that makes vcluster unusually friendly for CI/CD: pods scheduled in the vcluster are synced to the host nodes, so image pulls reuse the host's registry access. No new registry credentials, mirrors, or CA bundles to configure on a "new" cluster.

Add the Cluster Through the Portal

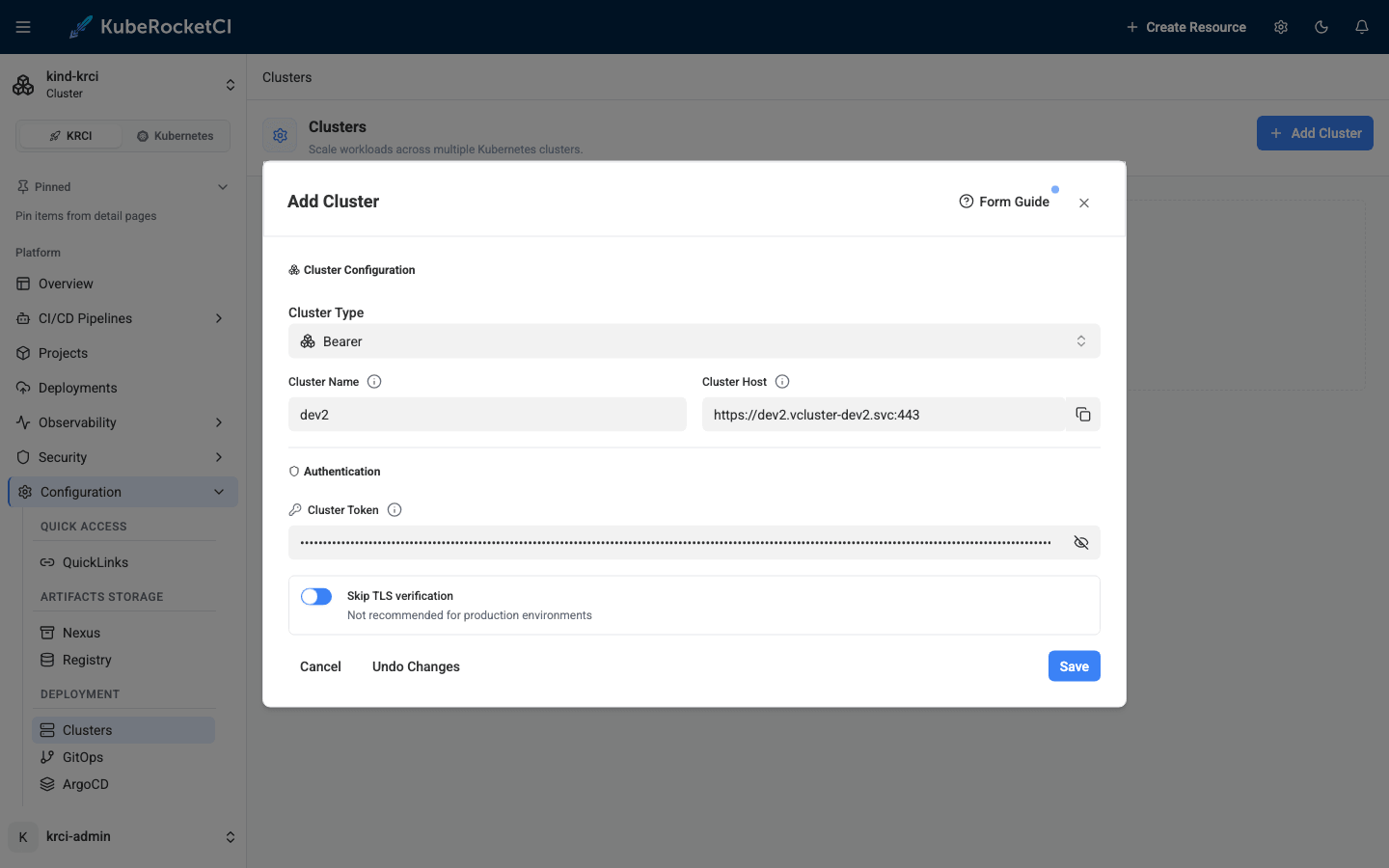

In the Portal, navigate to Configuration -> Deployment -> Clusters, click + Add Cluster, and fill in the Bearer form: name dev2, host https://dev2.vcluster-dev2.svc:443, the token from above, and Skip TLS verification for the first pass (you can wire the CA properly later).

Here is what actually happens when you click Save - understanding it will save you a debugging session later:

1. The Portal creates one Secret named dev2-cluster (your name plus a -cluster suffix) in the platform namespace, containing a kubeconfig.
2. The cd-pipeline-operator picks it up, performs a live connectivity probe against the API endpoint, and stamps the result on the Secret as annotations (app.edp.epam.com/cluster-connected, app.edp.epam.com/cluster-error).
3. Only after the probe succeeds, it generates a ready-to-use Argo CD cluster secret next to it, named dev2-cluster-argocd-cluster.

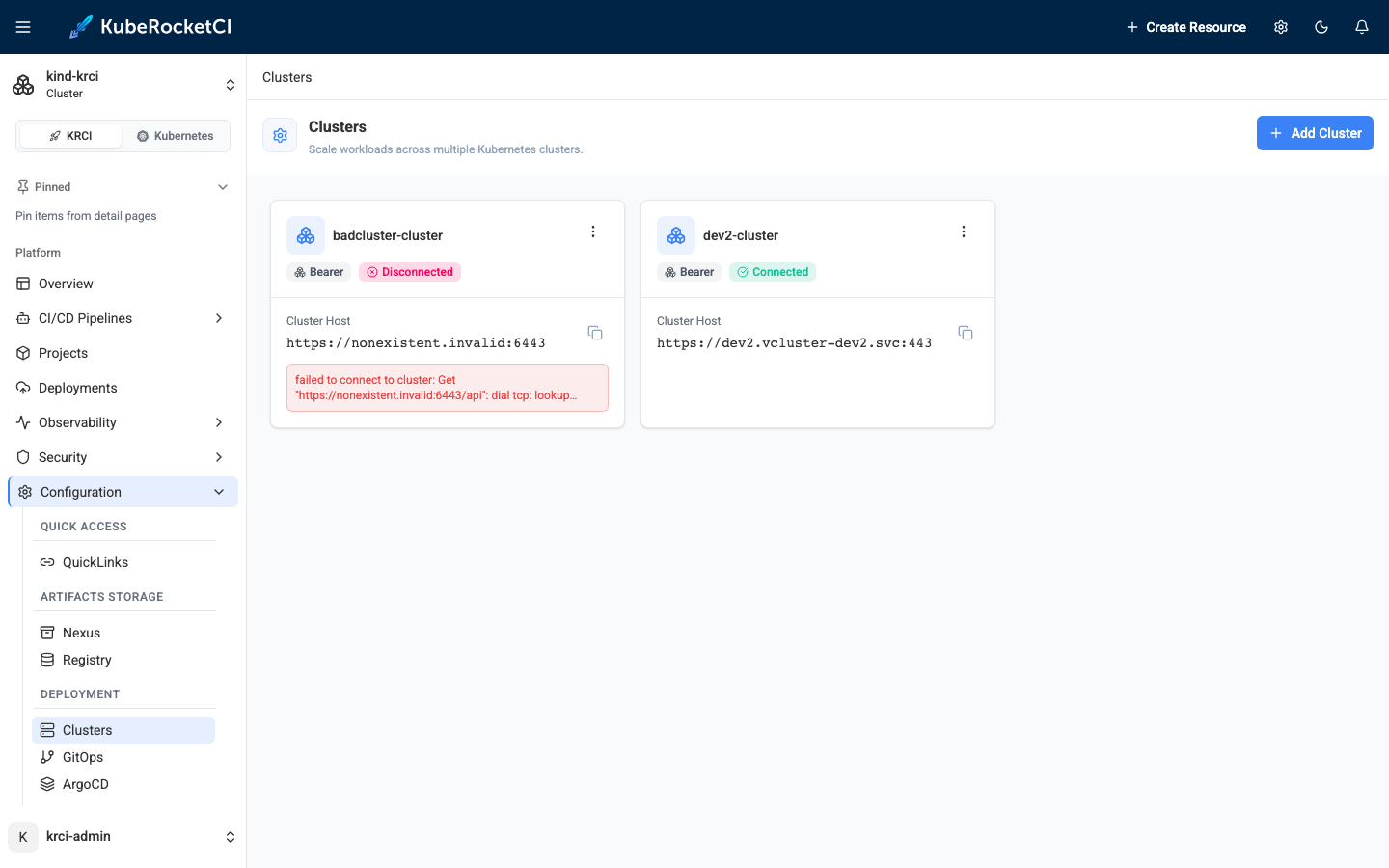

The "Secret has been created" toast therefore does not mean your credentials work. The truth is on the cluster card, which flips to Connected or Disconnected about a minute later:

That Disconnected card on the left is a deliberate demo - a cluster registered with an unreachable host. The Portal accepts it silently; the badge and error text are the only signals. Always wait for Connected before moving on.

Wire Argo CD: Three Steps and One Golden Rule

The Portal registration alone is not enough to deploy. Three pieces of glue connect the new cluster to the delivery machinery, and all three must agree on one string: the cluster Secret name (dev2-cluster). This is the part where most integrations go sideways, so here is the full naming chain from our live run:

Step	Object	Value
You type in the Portal	form field	dev2
Portal creates	Secret (platform ns)	dev2-cluster
Operator generates	Argo CD Secret (platform ns)	dev2-cluster-argocd-cluster, data.name: dev2-cluster
You add	krci-config ConfigMap	available_clusters: dev2-cluster
Environment wizard writes	Stage.spec.clusterName	dev2-cluster
Operator renders	Argo CD Application destination	name: dev2-cluster
Deploy pipeline receives	KUBECONFIG_SECRET_NAME param	dev2-cluster

The clusterName is resolved as a Secret name by the operator and as a destination name by Argo CD - one string, two lookups. With that in mind, the three steps:

1. Offer the cluster to the Environment wizard - add the Secret name to the krci-config ConfigMap:

kubectl -n krci patch configmap krci-config --type merge \
  -p '{"data":{"available_clusters":"dev2-cluster"}}'

2. Let Argo CD see the cluster. Argo CD only discovers cluster secrets in its own control-plane namespace, so copy the generated secret there (keep the argocd.argoproj.io/secret-type: cluster label):

kubectl -n krci get secret dev2-cluster-argocd-cluster -o json \
  | jq '.metadata = {"name":"dev2-cluster","namespace":"argocd",
        "labels":{"argocd.argoproj.io/secret-type":"cluster"}}' \
  | kubectl apply -f -

3. Allow the destination in the Argo CD AppProject - without this, the first deploy fails (we will meet the exact error below):

kubectl -n argocd patch appproject krci --type json \
  -p '[{"op":"add","path":"/spec/destinations/-",
        "value":{"name":"dev2-cluster","namespace":"krci-*"}}]'

Full reference for these steps lives in the Add Cluster guide.

Create the Environment on the Virtual Cluster

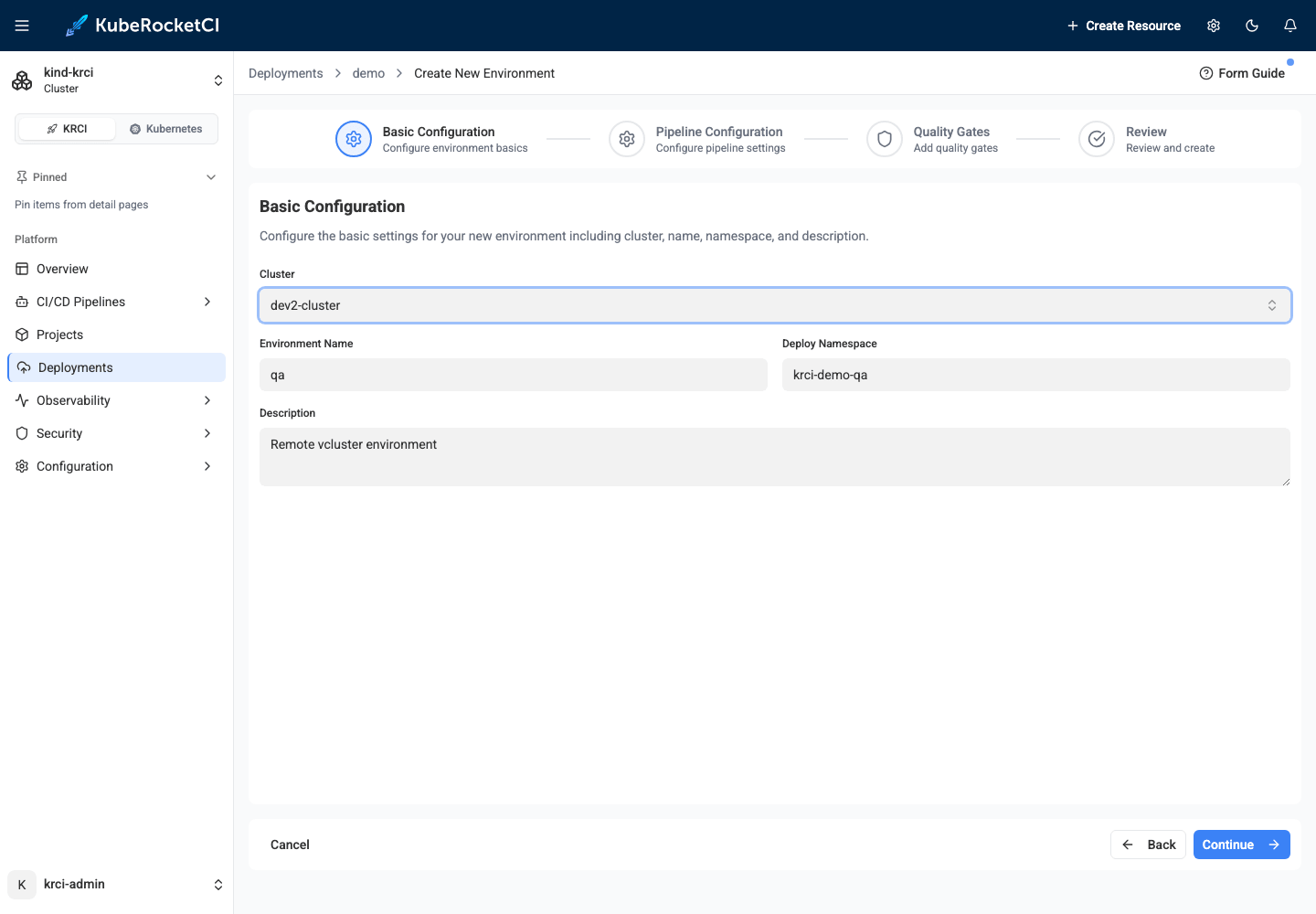

Back in the Portal, open your Deployment Flow and create a new Environment. The Cluster dropdown now offers dev2-cluster next to in-cluster - pick it, and the wizard derives the deploy namespace as usual:

The moment the Environment is created, the operator reaches into the vcluster and prepares everything a tenant needs: the namespace (labelled with the tenant name), a tenant-admin RoleBinding, and a copy of the registry pull secret. You can verify from outside:

vcluster connect dev2 --namespace vcluster-dev2 -- \
  kubectl -n krci-demo-qa get rolebinding,secret

NAME                                                 ROLE                AGE
rolebinding.rbac.authorization.k8s.io/tenant-admin   ClusterRole/admin   24s

NAME             TYPE                             DATA   AGE
secret/regcred   kubernetes.io/dockerconfigjson   1      24s

Deploy and Prove the Isolation

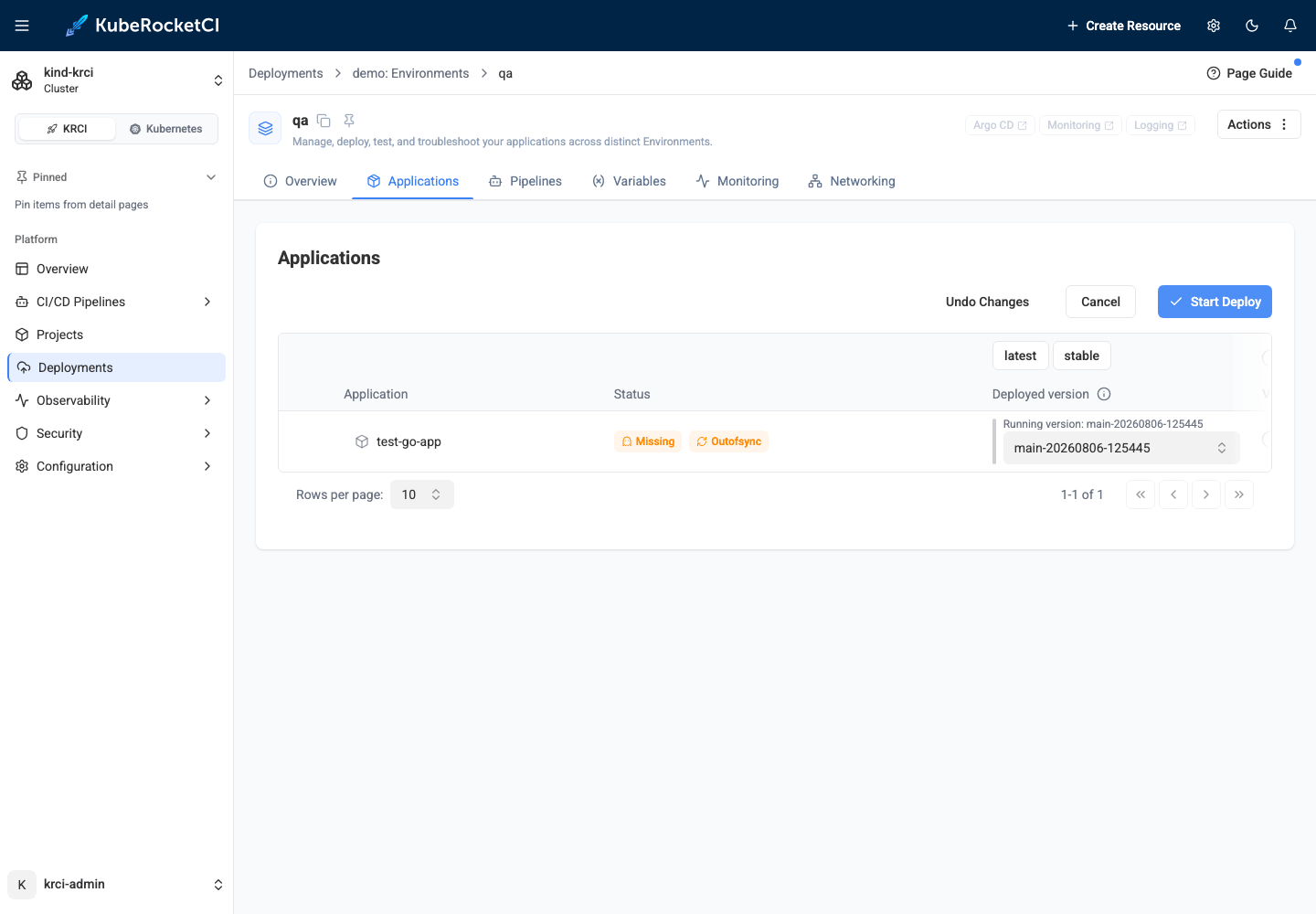

Open the environment's Applications tab, click Configure Deploy, pick the image version, and hit Start Deploy:

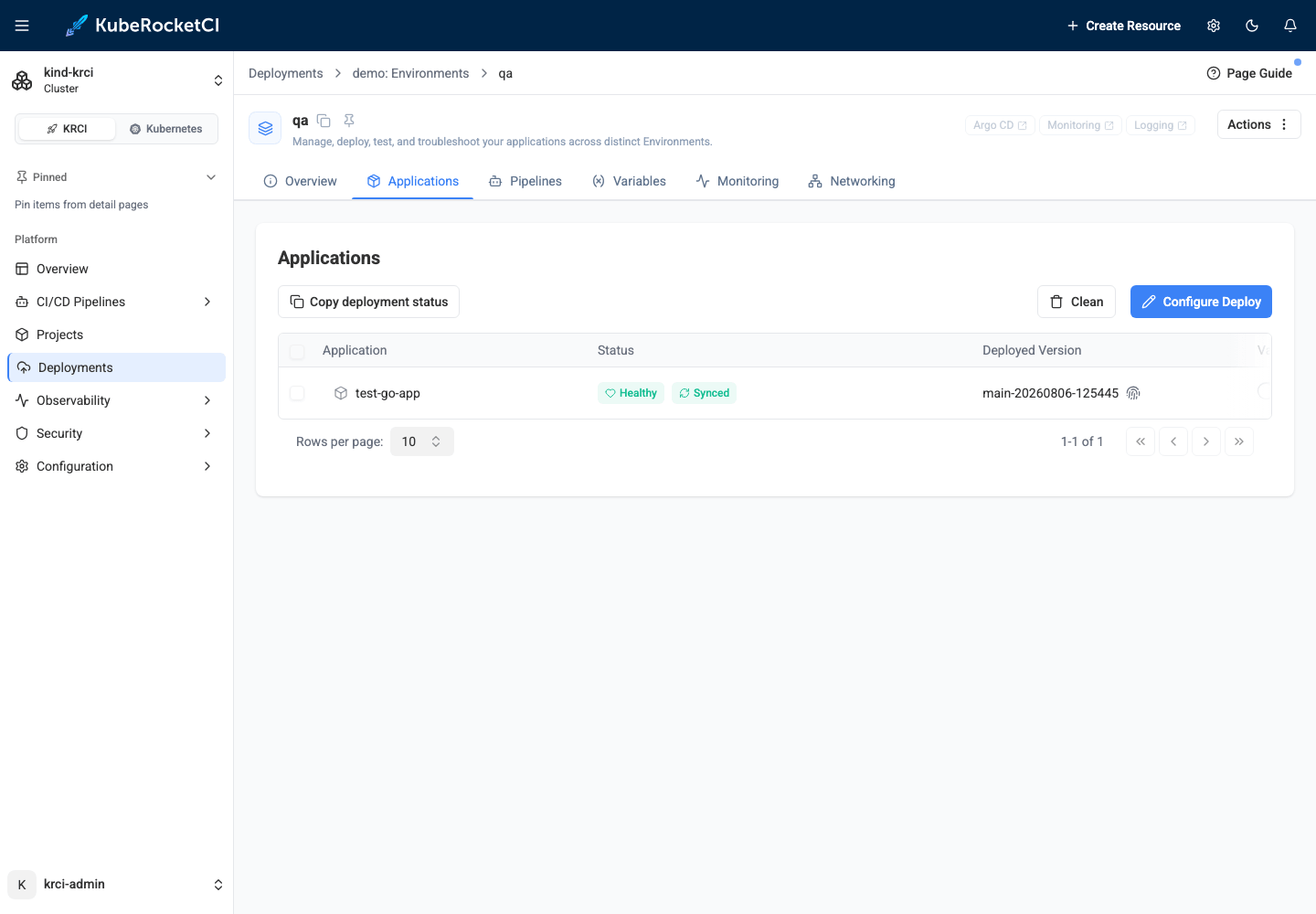

The regular deploy pipeline runs, Argo CD resolves the destination by name, and the application lands inside the virtual cluster:

vcluster connect dev2 --namespace vcluster-dev2 -- \
  kubectl -n krci-demo-qa get deploy,pods

NAME                          READY   UP-TO-DATE   AVAILABLE
deployment.apps/test-go-app   1/1     1            1

NAME                              READY   STATUS    RESTARTS
pod/test-go-app-84cd86f69-5xj4c   1/1     Running   0

From the host cluster's point of view, this workload lives in the vcluster's namespace under synthetic names; from the vcluster's point of view, it is a normal Deployment in a normal namespace with its own RBAC universe around it. Install a conflicting CRD version in there, grant someone cluster-admin, delete the whole thing - the host cluster and every other environment never notice.

The Three Errors You Will Actually Hit

Every one of these appeared during our validation run - deliberately or not. Search engines love exact error strings, and so do humans at 2 a.m.

failed to get cluster secret: secrets "dev2" not found

The Environment's clusterName does not match the cluster Secret name. Almost always this means available_clusters contains the plain name you typed in the Portal (dev2) instead of the Secret name (dev2-cluster). Fix the ConfigMap value; the Environment reconciles on the next loop.

InvalidSpecError: application destination server 'dev2-cluster' ... do not match any of the allowed destinations in project 'krci'

The Argo CD AppProject does not allow the new cluster as a destination - step 3 above was skipped. Patch the AppProject, then re-run the deploy; the Application resolves immediately.

The cluster card stays "Disconnected" (or "Unknown" forever)

Read the error on the card - it is the operator's live probe result. Wrong token, unreachable host, and TLS failures all surface there within a minute. If the badge never changes at all, check that the Secret was created in the platform namespace: the Portal writes it to whatever namespace is currently selected, and the operator only watches its own.

Tear It Down in the Right Order

Order matters, because the operator needs the cluster Secret to clean up the remote side:

1. Delete the Environments that target the cluster.
2. Remove the name from available_clusters.
3. Delete the cluster in the Portal (the generated Argo CD secret is owned by it and goes too).
4. Delete your copy in the argocd namespace and the AppProject destination.
5. vcluster delete dev2 --namespace vcluster-dev2

Delete the Secret before the Environments and the operator silently skips the remote cleanup, leaving orphaned namespaces inside the vcluster - harmless here, since step 5 vaporizes the whole thing, but a real remote cluster would keep the litter.

Wrap-Up

A vcluster turns "we need another environment" from an infrastructure request into a two-command operation - and to KubeRocketCI it is just another remote cluster: registered in the Portal, deployed to by the same pipelines, governed by the same GitOps machinery. The only real tax is the naming chain, and now you have the map.

Try the whole flow yourself on the local testbed, and check the Add Cluster guide for the reference procedure, including IRSA-based clusters on EKS.
