GitLab CI Integration in KubeRocketCI

June 8, 2026 · 17 min read

Systems Architect and DevOps Advocate, Open Source Enthusiast and Contributor

GitLab CI integration in KubeRocketCI lets a single application run its CI pipeline in GitLab CI - on a GitLab Runner - instead of Tekton, while still being managed as a first-class Codebase on the platform. You set one field on the Codebase (spec.ciTool: gitlab), and KubeRocketCI generates a .gitlab-ci.yml in the repository; GitLab then runs the pipeline, with no Tekton involved. From then on, every merge request runs a review pipeline and every merge runs a build pipeline - all native GitLab CI, all on your own cluster.

This is part three of my hands-on series on the local try-kuberocketci testbed. In part one I stood up the full platform in two commands; in part two I built ephemeral preview environments from a feature branch. Both ran their CI in Tekton. This post takes the same kind cluster running KubeRocketCI 3.13 and shows the multi-CI path: how GitLab CI integration works, the three things you must set up before you enable it - a Runner, the onboarded CI/CD components, and a ConfigMap - and a full review-to-build run with real output.

What "GitLab CI Integration" Means in KubeRocketCI

By default, KubeRocketCI runs your CI in Tekton. Version 3.13 added multi-CI: a per-Codebase choice of engine, set with one field - spec.ciTool: tekton (the default) or spec.ciTool: gitlab (see the 3.13 notes and Codebase API). Choosing gitlab is what this post is about.

When you set ciTool: gitlab, KubeRocketCI handles the wiring. Instead of the Tekton EventListener and webhook it would normally create, it generates a .gitlab-ci.yml and commits it to the repository; GitLab CI then runs the pipeline. The file is generated rather than written by hand, and no Tekton is involved - the build runs as native GitLab CI jobs on a GitLab Runner, and the logs reside in GitLab.

Other aspects are unchanged: the application remains a first-class Codebase, with the same Portal, branches, and GitOps deployment as a Tekton application. GitLab-CI and Tekton applications can run side by side on the same platform; only the CI execution moves to GitLab (see the comparison below).

On a real codebase the file lands in the repo, and there is no project webhook - GitLab CI does not need one:

$ kubectl -n krci get codebase java-gitlabci-app -o jsonpath='{.spec.ciTool}'
gitlab
# .gitlab-ci.yml is committed to the repo; project webhooks: 0

The generated .gitlab-ci.yml is intentionally minimal: it contains no build logic of its own and instead references reusable GitLab CI/CD components. Those components must be in place first.

Before You Enable It: Three Things to Set Up First

GitLab CI integration has three prerequisites that the Tekton path does not - a one-time platform setup, not something you repeat per app. Skip any one and the first pipeline fails to start or cannot resolve its components; complete them once, and subsequent GitLab-CI Codebases require no additional setup.

1. Install a GitLab Runner (KubeRocketCI Does Not Bundle One)

Tekton ships with KubeRocketCI; a GitLab Runner does not. GitLab CE already serves CI, but with no runner registered, jobs sit pending forever. On the testbed, make gitlab-ci installs the official gitlab/gitlab-runner Helm chart with the Kubernetes executor and registers it.

$ kubectl -n gitlab-runner get pods
NAME                            READY   STATUS    RESTARTS   AGE
gitlab-runner-f655c776c-xr9cm   1/1     Running   0          26m

# the runner reports online as an instance runner
runner: krci-kubernetes   online=True   executor=kubernetes

The Kubernetes executor runs each job as a pod in the cluster - the same model Tekton uses, so your CI capacity scales with the cluster. The testbed uses Helm for simplicity, but on a real cluster you install the runner the GitOps way, like every other platform component: KubeRocketCI ships a gitlab-runner add-on in the edp-cluster-add-ons repository that Argo CD reconciles, with the runner's registration token supplied through External Secrets. Either way you end up with one registered runner, sized to your job volume, ready to execute GitLab CI jobs.

2. Onboard the KubeRocketCI CI/CD Components Into Your Instance

This prerequisite is easy to overlook. The injected .gitlab-ci.yml does not contain the build steps directly; it references a GitLab CI/CD component - the kuberocketci/ci-java17-mvn library, which exposes review and build entry points over a 7-stage flow (prepare → test → build → verify → package → publish → release).

The catch: GitLab CI/CD components only resolve on the same GitLab instance ($CI_SERVER_FQDN). A component reference like $CI_SERVER_FQDN/kuberocketci/ci-java17-mvn/build@0.1.1 will not reach out to gitlab.com - it resolves against your GitLab. So you must onboard (mirror) the components into your instance before enabling GitLab CI, and tag them at the version your template pins.

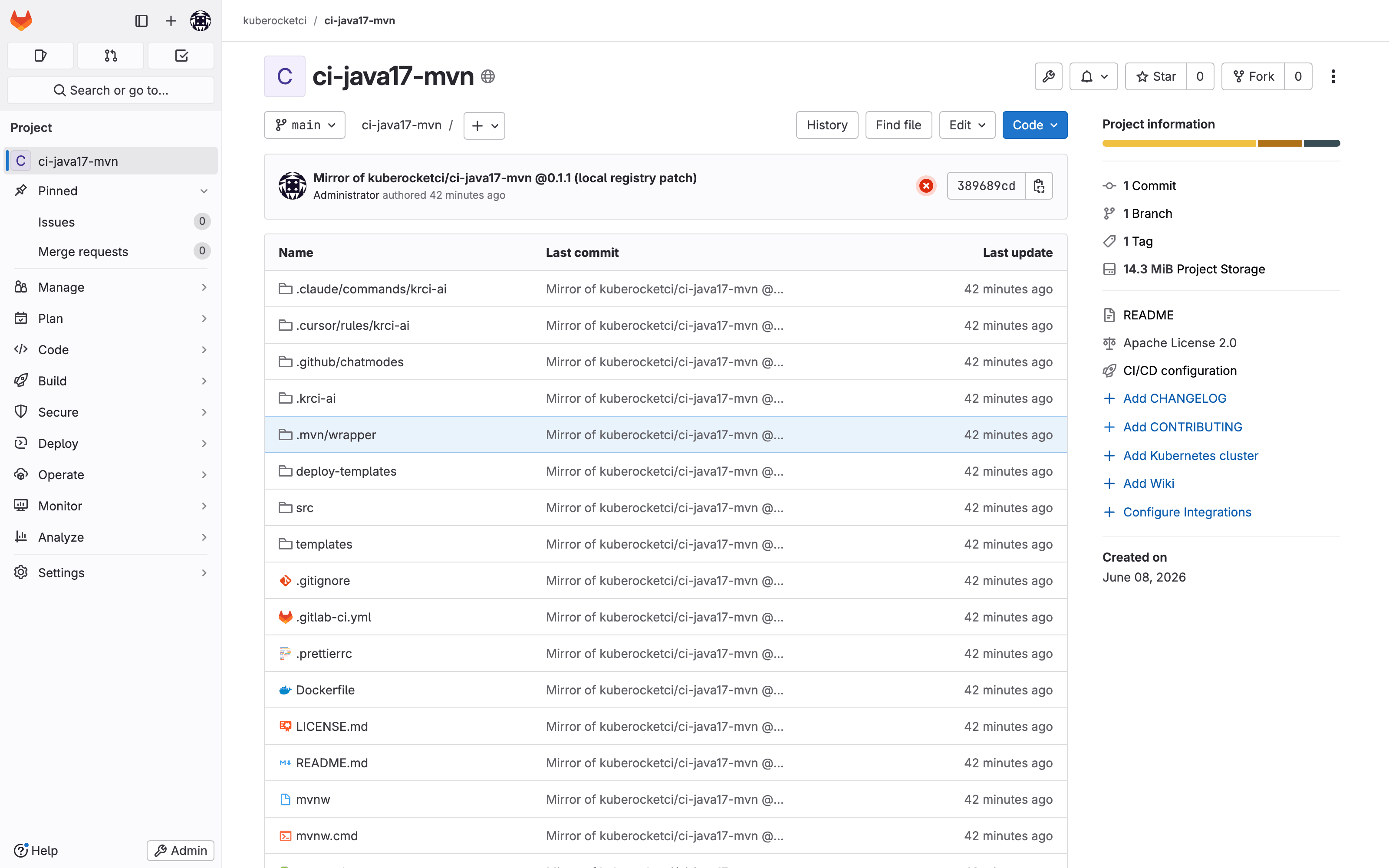

Mirrored KubeRocketCI ci-java17-mvn CI/CD component in the self-hosted GitLab - review and build templates at tag 0.1.1

On the testbed, make gitlab-ci mirrors the component into the local GitLab as kuberocketci/ci-java17-mvn at tag 0.1.1 (with two local-only patches: native arm64 builds and pushing to the in-cluster GitLab Container Registry instead of Docker Hub). In your own environment, this is where you publish the KubeRocketCI components - or your own forked components - to your GitLab CI/CD Catalog so every project can include them.

Onboard the components first, enable the Codebase second

If you set ciTool: gitlab before the component exists at the pinned tag on your instance, KubeRocketCI still injects .gitlab-ci.yml, but the very first pipeline fails at the include: stage with an unresolved-component error. Mirror and tag the components first.

3. Create the `.gitlab-ci.yml` Template ConfigMap

KubeRocketCI does not invent the pipeline - it fills in a template stored in a ConfigMap, one per tech stack. The Codebase points at the template with an annotation (or KubeRocketCI falls back to a gitlab-ci-{lang}-{buildtool} naming convention), and your codebase name is substituted in before the file is committed.

The ConfigMap for Java/Maven contains only orchestration - a workflow rule set, variables, and two included component entry points (review and build) gated by rules:

manifests/gitlab-ci-java-maven-configmap.yaml (excerpt)
apiVersion: v1
kind: ConfigMap
metadata:
  name: gitlab-ci-java-maven
  namespace: krci
data:
  .gitlab-ci.yml: |
    workflow:
      rules:
        - if: $CI_PIPELINE_SOURCE == "merge_request_event"
        - if: $CI_COMMIT_REF_PROTECTED == "true"
        - if: $CI_COMMIT_TAG =~ /^\d+\.\d+\.\d+$/

    variables:
      CODEBASE_NAME: "{{.CodebaseName}}"
      CONTAINER_IMAGE: "maven:3.9-eclipse-temurin-17"
      IMAGE_REGISTRY: "$CI_REGISTRY_IMAGE"
      CHART_DIR: "deploy-templates"

    include:
      # REVIEW - merge-request validation (test/build/lint/sonar/dockerbuild-verify; no push)
      - component: $CI_SERVER_FQDN/kuberocketci/ci-java17-mvn/review@0.1.1
        inputs: { codebase_name: ${CODEBASE_NAME}, container_image: ${CONTAINER_IMAGE}, chart_dir: ${CHART_DIR} }
        rules:
          - if: $CI_PIPELINE_SOURCE == "merge_request_event"

      # BUILD - protected/default branch: build, push image, deploy/tag
      - component: $CI_SERVER_FQDN/kuberocketci/ci-java17-mvn/build@0.1.1
        inputs: { codebase_name: ${CODEBASE_NAME}, container_image: ${CONTAINER_IMAGE}, image_registry: ${IMAGE_REGISTRY}, chart_dir: ${CHART_DIR} }
        rules:
          - if: $CI_COMMIT_BRANCH == $CI_DEFAULT_BRANCH || $CI_COMMIT_REF_PROTECTED == "true"

    stages: [prepare, test, build, verify, package, publish, release]

Apply it once:

$ kubectl apply -f manifests/gitlab-ci-java-maven-configmap.yaml
configmap/gitlab-ci-java-maven created

These two rules are the entire control flow: the review component runs on merge_request_event, and the build component runs on the protected/default branch. That split produces the "MR → review, merge → build" behavior, with no webhook required.

Enable GitLab CI on a Codebase (`spec.ciTool: gitlab`)

With the Runner online, the components onboarded, and the ConfigMap applied, enabling GitLab CI is one Codebase manifest. The ciTool: gitlab field selects the engine; the annotation selects the template:

manifests/sample-gitlabci-codebase.yaml (excerpt)
apiVersion: v2.edp.epam.com/v1
kind: Codebase
metadata:
  name: java-gitlabci-app
  namespace: krci
  annotations:
    app.edp.epam.com/gitlab-ci-template: gitlab-ci-java-maven   # pick the ConfigMap
spec:
  type: application
  lang: java
  framework: java17
  buildTool: maven
  ciTool: gitlab            # <-- run CI in GitLab CI, not Tekton
  strategy: import
  gitServer: gitlab
  gitUrlPath: /krci/java-gitlabci-app
  disablePutDeployTemplates: true

In the KubeRocketCI Portal, the component is a normal Codebase - same lifecycle, same branches, same deployment story as a Tekton app - but its CI Tool reads GitLab. That is the platform side of the integration: you manage the app on KubeRocketCI, even though its pipeline executes in GitLab.

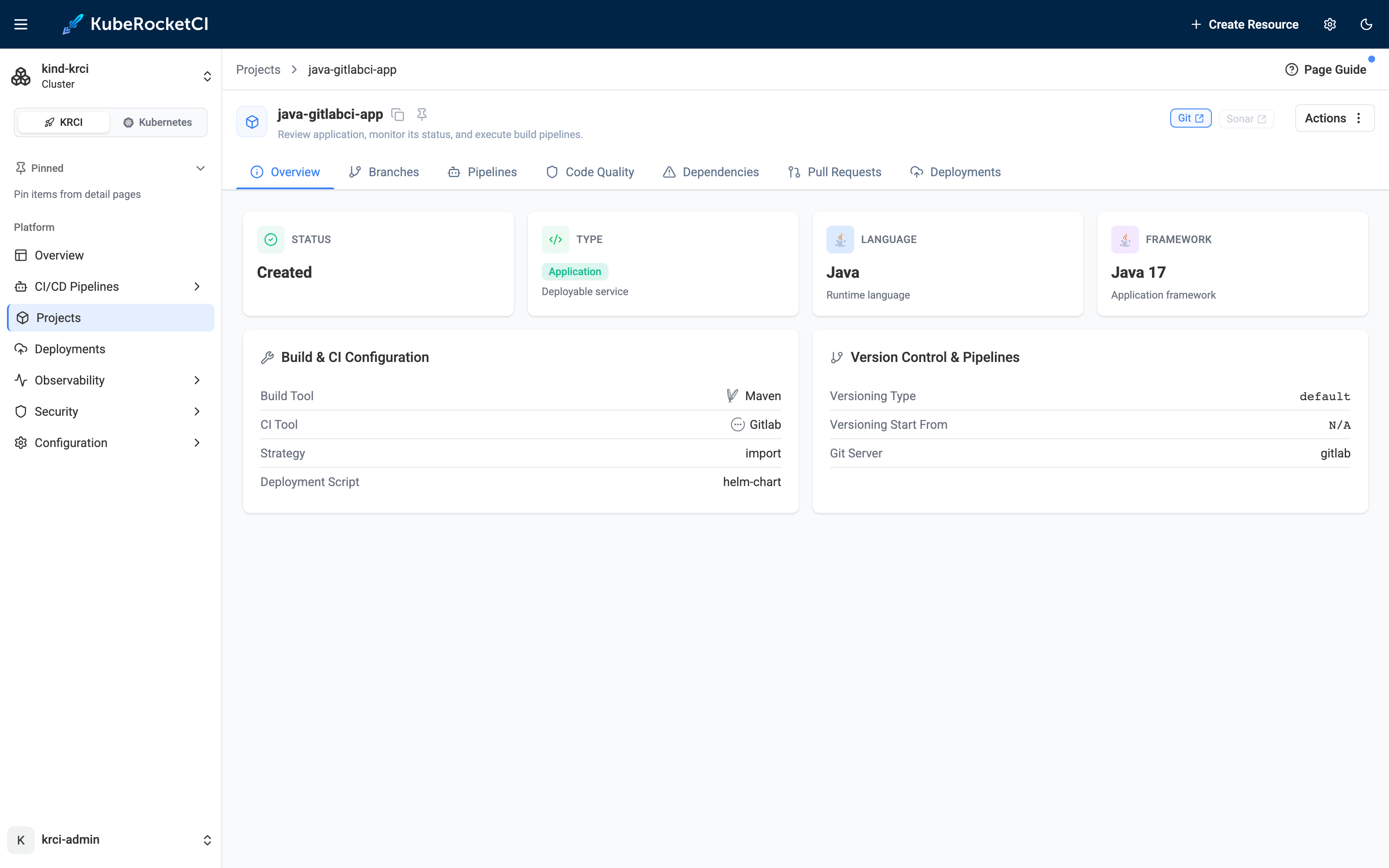

KubeRocketCI Portal overview for java-gitlabci-app: CI Tool set to GitLab, language Java, build tool Maven

Once KubeRocketCI finishes, the injected .gitlab-ci.yml is visible in the GitLab project - the {{.CodebaseName}} placeholder now reads java-gitlabci-app, and the two component includes are wired and ready:

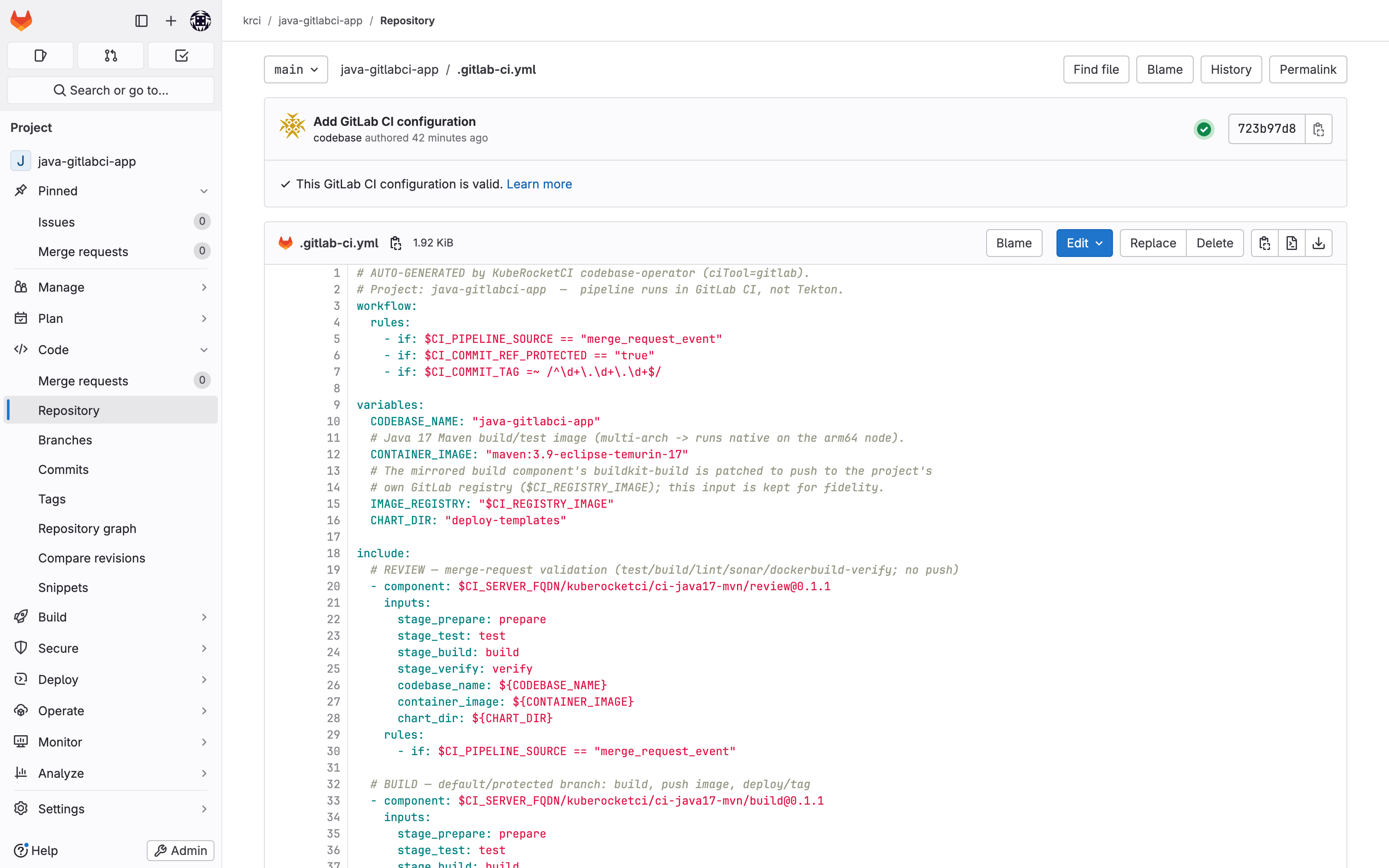

.gitlab-ci.yml injected by the KubeRocketCI codebase-operator in GitLab, including the review and build CI/CD components

The Pipeline in Action: Review on MR, Build on Merge

The flow mirrors the Tekton path from the previous posts - open a merge request to validate, merge to build and publish - but every job runs in GitLab CI on the Runner.

In the GitLab project, both pipelines show green - one triggered by the merge request, one by the merge to main:

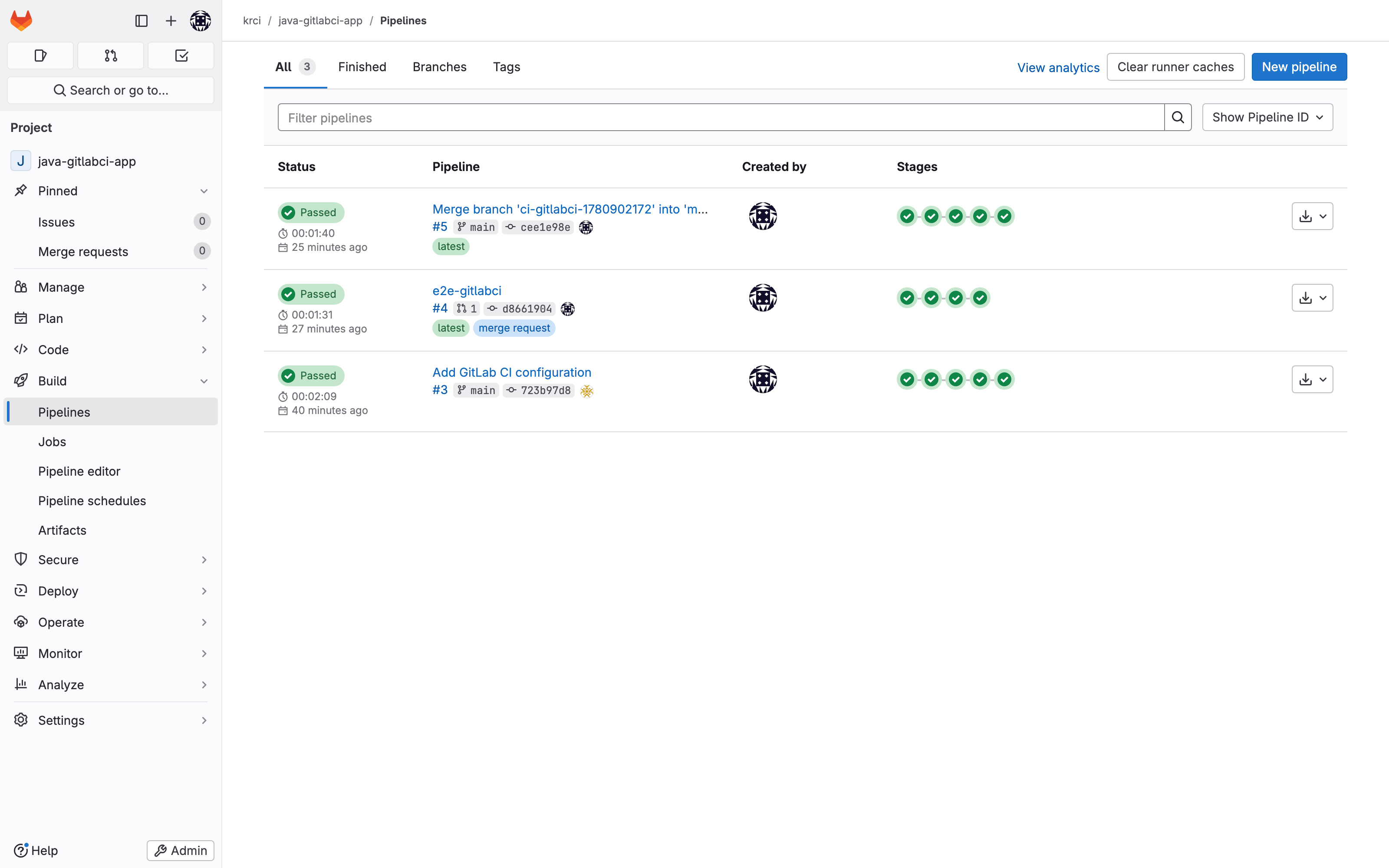

GitLab Pipelines list for java-gitlabci-app: review (merge request) and build (push) pipelines passed on the GitLab Runner

Review Pipeline (Merge Request)

Opening a merge request triggers a merge_request_event pipeline that runs the review component - validation only, no image push. On the live run it finished green in 91 seconds, 10 jobs across four stages:

review pipeline #4 (merge_request_event) - 91s - GREEN
  prepare   init-values
  test      test            compile-check   lint
  test      helm-docs       helm-lint       dockerfile-lint
  build     build           sonar
  verify    dockerbuild-verify        # buildkit builds the image but does NOT push

The sonar job is a real SonarQube quality gate - the same engine the Tekton pipelines use - and dockerbuild-verify proves the image builds without publishing it. GitLab renders the MR with its pipeline result attached:

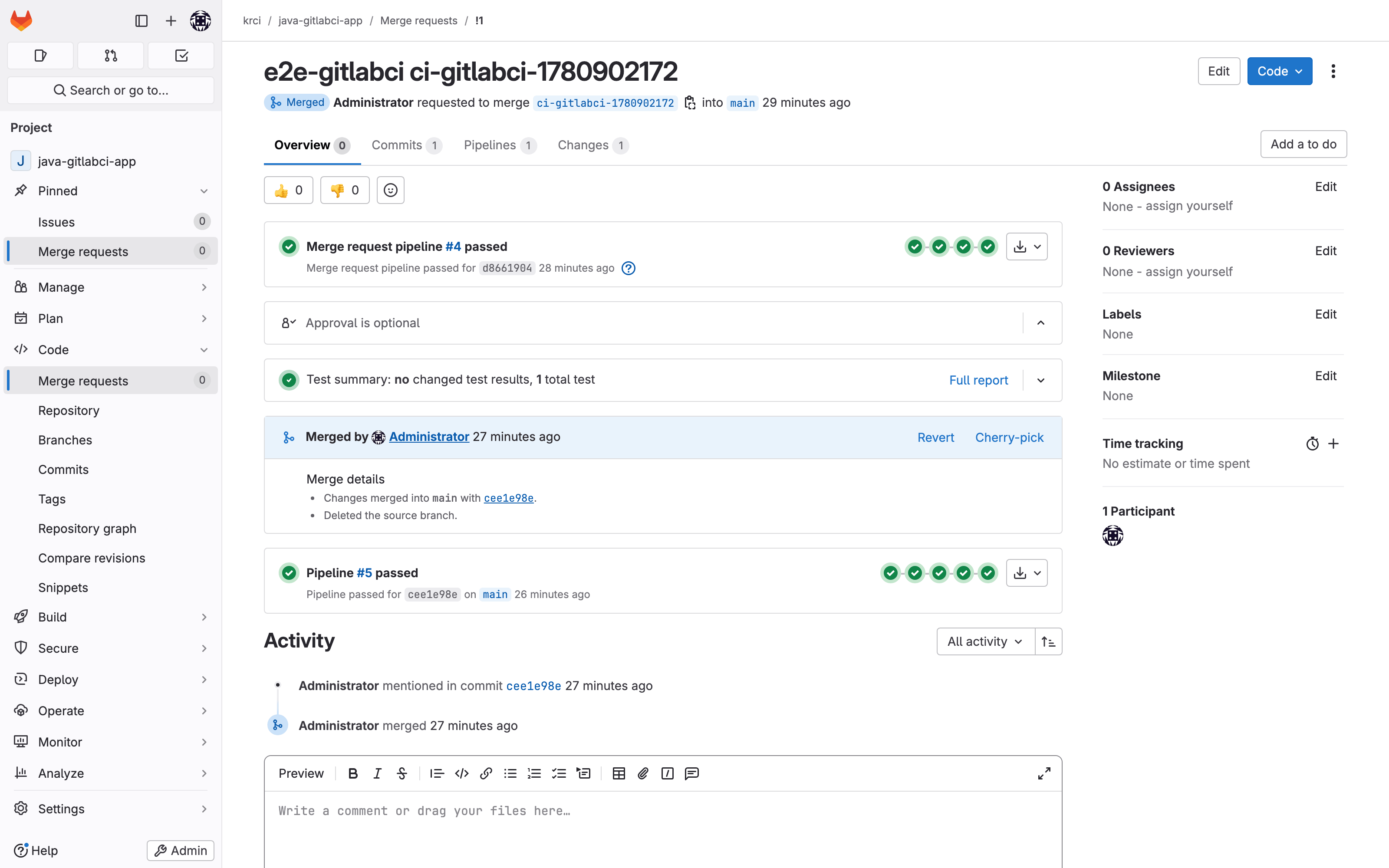

GitLab merge request for java-gitlabci-app with the merge_request_event review pipeline passing before merge

Build Pipeline (Protected Branch)

Merging the MR pushes to the protected main branch, which trips the second workflow rule and runs the build component. It is the review jobs plus the publishing stages - buildkit-build (build and push), maven-deploy, and git-tag. On the live run it finished green in 100 seconds, 12 jobs:

build pipeline #5 (push, protected main) - 100s - GREEN
  prepare   init-values
  test      test            compile-check   lint
  test      helm-docs       helm-lint       dockerfile-lint
  build     build           sonar
  package   buildkit-build  maven-deploy    # build+push image, publish artifact
  publish   git-tag                         # tag the release

The build pipeline graph in GitLab shows the stages fanning out - the same DAG model you get in Tekton, rendered by GitLab:

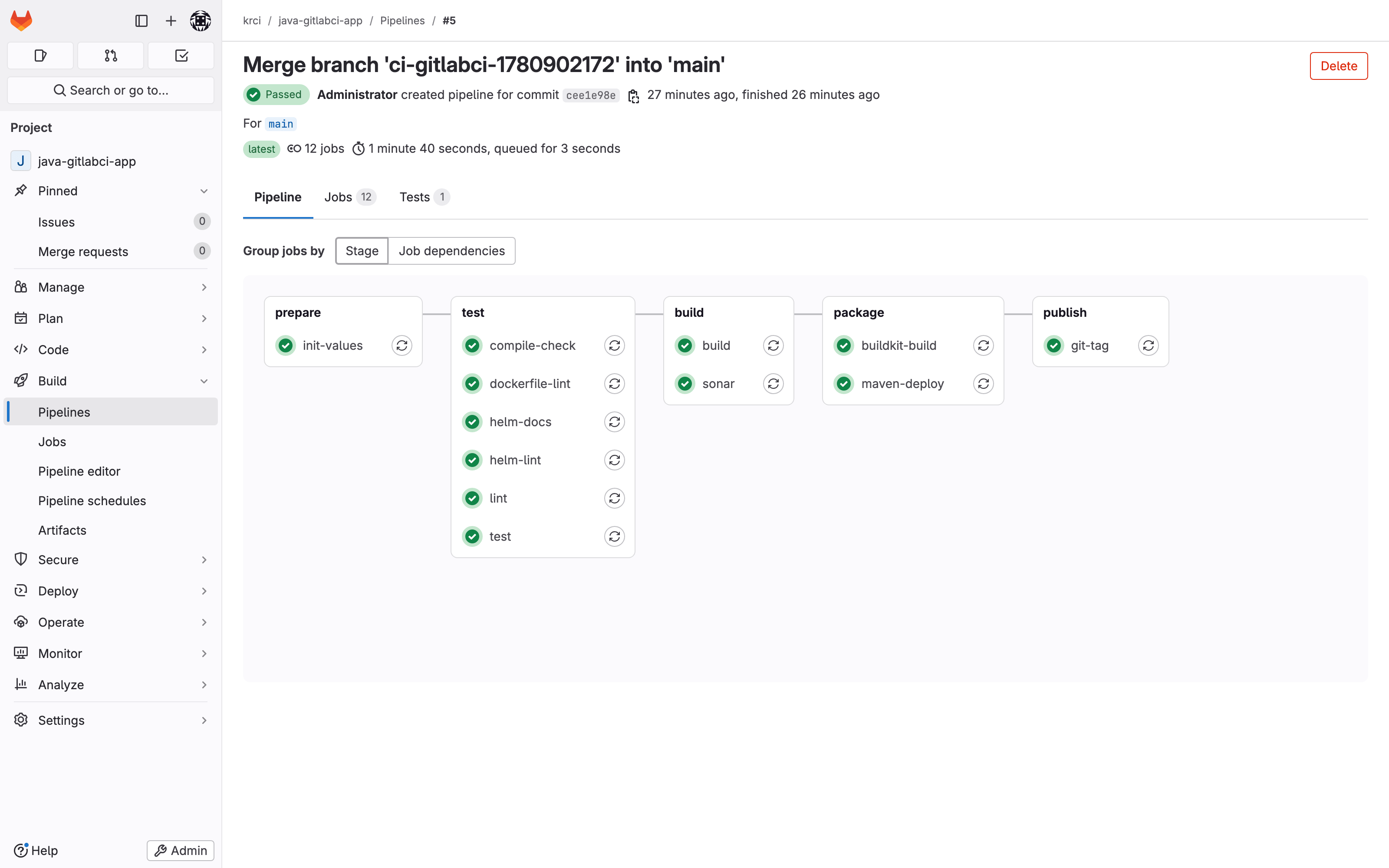

GitLab CI build pipeline graph for java-gitlabci-app: prepare to publish stages, all 12 jobs green

The Image Lands in GitLab's Container Registry

The buildkit-build job builds the container image and pushes it to GitLab's bundled Container Registry using the CI job token - no external registry, no Docker Hub credentials. After the build pipeline, the image is published with a content-addressed tag, and git-tag has created the matching release tag:

# image published by the build pipeline
image: krci/java-gitlabci-app   tags: [723b97d8, cee1e98e]

# release tags created by the git-tag job
tag: v0.1.0-cee1e98e
tag: v0.1.0-723b97d8

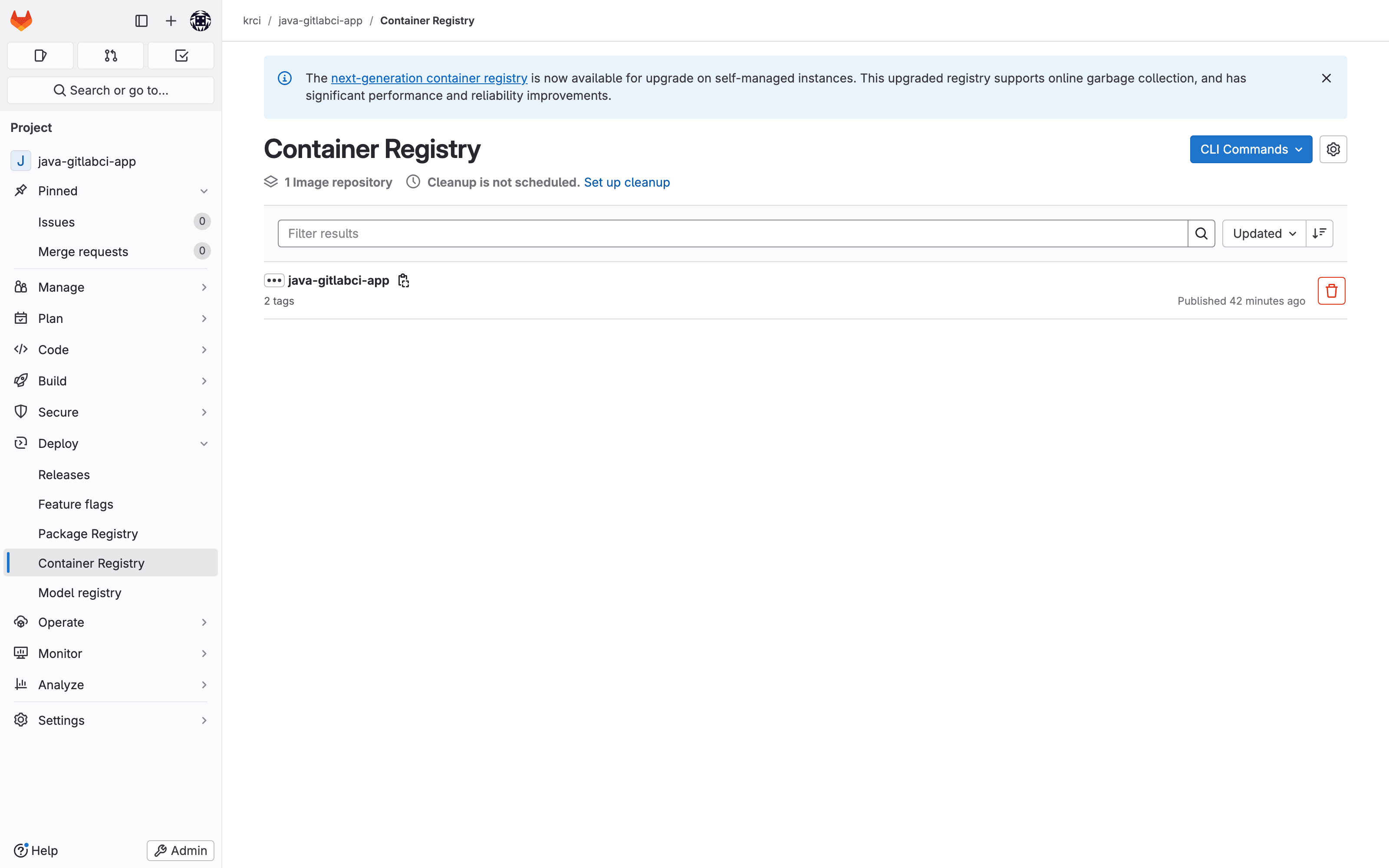

GitLab Container Registry for java-gitlabci-app: image pushed by the buildkit-build job of the build pipeline

From here, the GitOps delivery story is identical to the Tekton path - the published image feeds the same CodebaseImageStream and Argo CD deployment flow covered in part two of this series.

GitLab CI vs Tekton: When to Use Which

Both engines are first-class. The choice is about where your team already lives and what you want to own.

Dimension	Tekton (default)	GitLab CI (`ciTool: gitlab`)
Pipeline definition	Tekton `PipelineRun` (KRCI-managed)	`.gitlab-ci.yml` (operator-injected, GitLab-native)
Trigger mechanism	Tekton webhook	GitLab `workflow` rules (no webhook)
Where job logs live	KubeRocketCI Portal / Tekton	GitLab CI UI
Reusable build logic	Tekton tasks / pipeline library	GitLab CI/CD components (must be on your instance)
Image build	kaniko	buildkit
Runner needed	No (Tekton bundled)	Yes - install a GitLab Runner
Best when	you want a unified, K8s-native CI surface in the Portal	your org standardizes on GitLab CI and its component catalog

Use Tekton when you want every Codebase to share one Kubernetes-native CI surface inside the Portal, with pipeline history in Tekton Results. Use GitLab CI when your organization has standardized on GitLab CI/CD components and wants pipeline authoring and logs to stay in GitLab - while still getting the KubeRocketCI Codebase lifecycle, Portal, and GitOps deployment around them. And because the choice is per-Codebase, you can migrate one application at a time.

Frequently Asked Questions

What does `ciTool: gitlab` do in KubeRocketCI?

It switches a Codebase's CI engine from Tekton to GitLab CI. Instead of wiring the pipeline into Tekton, KubeRocketCI generates a .gitlab-ci.yml in the repository, and the pipeline runs as native GitLab CI jobs on a GitLab Runner. The only valid values for the field are tekton and gitlab.

Does KubeRocketCI replace GitLab CI, or run on top of it?

It runs on top of it. With GitLab CI integration, KubeRocketCI manages the Codebase lifecycle, owns the injected .gitlab-ci.yml, and provides the Portal and GitOps deployment - but the pipeline itself executes in GitLab CI, and the job logs live in GitLab. There is no Tekton in the pipeline path at all.

Do I need a GitLab Runner for the GitLab CI path?

Yes. KubeRocketCI bundles Tekton but not a GitLab Runner. With ciTool: gitlab, jobs run as GitLab CI and need a registered runner to execute. The testbed installs the official gitlab/gitlab-runner Helm chart with the Kubernetes executor, registered via a GitLab 17.x runner authentication token. Without a runner, pipelines stay pending.

Why do I have to onboard the CI/CD components into my own GitLab instance?

Because GitLab CI/CD components only resolve on the same instance ($CI_SERVER_FQDN). A reference like $CI_SERVER_FQDN/kuberocketci/ci-java17-mvn/build@0.1.1 is looked up on your GitLab, not gitlab.com. So you must mirror (onboard) the KubeRocketCI components - or your own forks - into your instance and tag them at the version your template pins, before enabling GitLab CI on any Codebase.

What is the ConfigMap for in GitLab CI integration?

The ConfigMap holds the .gitlab-ci.yml template that KubeRocketCI injects. You create one per tech stack (for example gitlab-ci-java-maven), and the Codebase points at it with an annotation. KubeRocketCI substitutes your codebase name and commits the result. The template is thin orchestration - it includes the onboarded CI/CD components and gates them with workflow rules.

How does the MR-to-build flow work without a webhook?

GitLab CI integration relies on GitLab's own workflow rules instead of a webhook. The injected .gitlab-ci.yml includes the review component gated on $CI_PIPELINE_SOURCE == "merge_request_event" and the build component gated on the protected/default branch. Opening a merge request runs review; merging pushes to the protected branch and runs build. GitLab triggers both natively, so no project webhook is created.

Can Tekton and GitLab CI codebases coexist on the same cluster?

Yes. The choice is per-Codebase, and the same gitlab GitServer is reused for both engines. On the testbed, Tekton codebases (the Go app from parts one and two) run side by side with the GitLab-CI Java app on the same KubeRocketCI platform. You can adopt GitLab CI for one application without touching the rest.

Where does the container image go in the GitLab CI build pipeline?

The buildkit-build job builds and pushes the image to GitLab's bundled Container Registry using the CI job token - no external registry or Docker Hub credentials required. On the testbed it pushes to the in-cluster GitLab registry, and the git-tag job creates a matching release tag. From there the image feeds the same CodebaseImageStream and Argo CD deployment flow as the Tekton path.

Summary

GitLab CI integration in KubeRocketCI lets a Codebase run its pipeline in GitLab CI instead of Tekton by setting spec.ciTool: gitlab. KubeRocketCI then generates a .gitlab-ci.yml that pulls in reusable GitLab CI/CD components, gated so that a merge request runs a review pipeline and a merge runs a build pipeline. There is no webhook and no Tekton in the path - the proof is zero PipelineRuns for the Codebase.

Before you enable it, set up three things: a GitLab Runner (KubeRocketCI does not bundle one), the onboarded CI/CD components in your own instance (they only resolve on the same GitLab), and the template ConfigMap KubeRocketCI injects. Complete these once, and subsequent GitLab-CI Codebases require no additional setup.

I ran the full flow on the local try-kuberocketci testbed: review pipeline green in 91s (10 jobs), build pipeline green in 100s (12 jobs), image pushed to GitLab's Container Registry, release tags created, and zero Tekton PipelineRuns - every command and result above is from that run.

The most useful next steps from here:

Spin up the testbed with Try KubeRocketCI Locally, then run make gitlab-ci and make e2e-gitlabci to reproduce this flow.
Read the 3.13 upgrade notes for the multi-CI ciTool enum and the Codebase API for the field reference.
Compare the Tekton path in Kubernetes-native CI/CD with Tekton and the GitOps delivery in Ephemeral Preview Environments.
Browse the KubeRocketCI documentation and the basic concepts for Codebases, CodebaseImageStreams, and deployment flows.

KubeRocketCI is open source under Apache License 2.0. The platform, Helm charts, and the testbed are all on GitHub.
