Upgrade KubeRocketCI v3.11 to 3.12

This section provides detailed instructions for upgrading KubeRocketCI to version 3.12. Follow the steps and requirements outlined below:

important

We suggest backing up the KubeRocketCI environment before starting the upgrade procedure.

(Optional) Update Tekton Custom Pipelines

note

For more information about using Tekton custom pipelines in KubeRocketCI, refer to the Create and Use Custom Tekton Pipelines use case.

In case of using Tekton custom pipelines, it is necessary to update them to ensure compatibility with the new version of KubeRocketCI.

Branch Name Validation Update

Starting from version 3.12, the KubeRocketCI portal supports adding branches with long names (more than 30 characters), including support for special characters and uppercase letters. Due to this change, it is necessary to update the passing parameters for the update-cbis task in the Tekton custom build pipelines to ensure compatibility with the new version of KubeRocketCI.

The update-cbis Tekton task now accepts the CODEBASEBRANCH_NAME parameter instead of CBIS_NAME. Update the update-cbis passing parameters in the Tekton custom build pipelines as follows:

3.11
3.12

Pipeline
apiVersion: tekton.dev/v1
kind: Pipeline
metadata:
  labels:
    app.edp.epam.com/pipelinetype: build
    app.edp.epam.com/triggertemplate: github-build-template
  name: custom-build-pipeline
spec:
  ...
  tasks:
    - name: update-cbis
      params:
        - name: CBIS_NAME
          value: $(tasks.init-values.results.RESULT_IMAGE_NAME)
        - name: IMAGE_TAG
          value: $(tasks.get-version.results.IS_TAG)
      runAfter:
        - git-tag
      taskRef:
        kind: Task
        name: update-cbis

Pipeline
apiVersion: tekton.dev/v1
kind: Pipeline
metadata:
  labels:
    app.edp.epam.com/pipelinetype: build
    app.edp.epam.com/triggertemplate: github-build-template
  name: custom-build-pipeline
spec:
  ...
  tasks:
    - name: update-cbis
      params:
        - name: CODEBASEBRANCH_NAME
          value: $(params.CODEBASEBRANCH_NAME)
        - name: IMAGE_TAG
          value: $(tasks.get-version.results.IS_TAG)
      runAfter:
        - git-tag
      taskRef:
        kind: Task
        name: update-cbis

Updated update-cbis task in the KubeRocketCI version 3.12 is provided below for reference:

update-cbis

Updated update-cbis task in KubeRocketCI version 3.12:

apiVersion: tekton.dev/v1
kind: Task
metadata:
  name: update-cbis
spec:
  description: >-
    This task updates a Codebase ImageStream (CBIS) with a new image tag. It checks for the presence of tags in the specified CBIS and adds the new tag if it doesn't already exist.
    The task utilizes kubectl commands and is customizable with parameters for CBIS
  params:
    - name: CODEBASEBRANCH_NAME
      type: string
      description: "CodebaseBranch name with only letters and dashes"
    - name: IMAGE_TAG
      type: string
    - name: BASE_IMAGE
      description: The base image for the task.
      type: string
      default: {{ include "edp-tekton.registry" . }}/bitnami/kubectl:1.25.4
  steps:
    - name: update-cbis
      image: $(params.BASE_IMAGE)
      env:
        - name: CODEBASEBRANCH_NAME
          value: "$(params.CODEBASEBRANCH_NAME)"
        - name: IMAGE_TAG
          value: "$(params.IMAGE_TAG)"
      script: |
        #!/usr/bin/env bash
        set -e

        cbisName=$(kubectl get cbis.v2.edp.epam.com -l app.edp.epam.com/codebasebranch="${CODEBASEBRANCH_NAME}" -o jsonpath='{.items[0].metadata.name}')
        if [ -z "${cbisName}" ]; then
            echo "[TEKTON][ERROR] No CBIS found with label app.edp.epam.com/codebasebranch=${CODEBASEBRANCH_NAME}"
            exit 1
        fi

        cbisCrTags=$(kubectl get cbis.v2.edp.epam.com ${cbisName} --output=jsonpath={.spec.tags})
        dateFormat=$(date -u '+%Y-%m-%dT%H:%M:%SZ')
        newcbisTag="{\"name\":\"${IMAGE_TAG}\",\"created\":\"${dateFormat}\"}"

        if [ "${cbisCrTags}" = "" ] ; then
            echo "[TEKTON][DEBUG] There're no tags in imageStream ${cbisName} ... the first one will be added."
            kubectl patch cbis.v2.edp.epam.com ${cbisName} --type=merge -p "{\"spec\":{\"tags\":[${newcbisTag}]}}"
        fi

        cbisTagsList=$(kubectl get cbis.v2.edp.epam.com ${cbisName} --output=jsonpath={.spec.tags[*].name})
        if [[ ! ${cbisTagsList} == *"${IMAGE_TAG}"* ]]; then
            echo "[TEKTON][DEBUG] ImageStream ${cbisName} doesn't contain ${IMAGE_TAG} tag ... it will be added."
            kubectl patch cbis.v2.edp.epam.com ${cbisName} --type json -p="[{\"op\": \"add\", \"path\": \"/spec/tags/-\", \"value\": ${newcbisTag} }]"
        fi

Build Pipeline Task Condition Update

note

This change is relevant only for build pipelines with semver versioning type.

In version 3.12, the execution condition for the update-cbb Tekton task has been updated to ensure that the Successful build field for the Component branch is properly updated in the KubeRocketCI portal. Now, the update-cbb task will also be executed if build pipelines are triggered manually and have the Completed status.

Update the update-cbb task condition in the Tekton custom build pipelines as follows:

3.11
3.12

Pipeline
apiVersion: tekton.dev/v1
kind: Pipeline
metadata:
  labels:
    app.edp.epam.com/pipelinetype: build
    app.edp.epam.com/triggertemplate: github-build-template
  name: custom-build-semver
spec:
  ...
  finally:
    - name: update-cbb
      params:
        - name: CODEBASEBRANCH_NAME
          value: $(params.CODEBASEBRANCH_NAME)
        - name: CURRENT_BUILD_NUMBER
          value: $(tasks.get-version.results.BUILD_ID)
      taskRef:
        kind: Task
        name: update-cbb
      when:
        - input: $(tasks.status)
          operator: in
          values:
            - Succeeded

Pipeline
apiVersion: tekton.dev/v1
kind: Pipeline
metadata:
  labels:
    app.edp.epam.com/pipelinetype: build
    app.edp.epam.com/triggertemplate: github-build-template
  name: custom-build-semver
spec:
  ...
  finally:
    - name: update-cbb
      params:
        - name: CODEBASEBRANCH_NAME
          value: $(params.CODEBASEBRANCH_NAME)
        - name: CURRENT_BUILD_NUMBER
          value: $(tasks.get-version.results.BUILD_ID)
      taskRef:
        kind: Task
        name: update-cbb
      when:
        - input: $(tasks.status)
          operator: in
          values:
            - Succeeded
            - Completed

Deploy Pipeline Parameters Renaming

note

For detailed information about parameter changes in Tekton tasks, refer to the edp-tekton repository.

In version 3.12, the deprecated parameters PIPELINE and STAGE were renamed in the Tekton tasks used in deployment pipelines to align with the KubeRocketCI portal naming conventions. Due to this change, it is necessary to update the passing parameters for the custom deploy pipelines that use the following Tekton tasks such as init-autotests, clean, deploy-ansible-awx, deploy-ansible, deploy-applicationset-cli, run-quality-gate, run-clean-gate, sync-app, and promote-images.

For tasks such as run-clean-gate, clean, run-quality-gate, deploy-ansible-awx, deploy-ansible, sync-app, and deploy-applicationset-cli, it is necessary to rename the passing parameters from PIPELINE to DEPLOYMENT_FLOW and from STAGE to ENVIRONMENT in the Tekton custom deploy pipelines as follows:

3.11
3.12

Pipeline
apiVersion: tekton.dev/v1
kind: Pipeline
metadata:
  labels:
    app.edp.epam.com/pipelinetype: deploy
    app.edp.epam.com/triggertemplate: deploy
  name: custom-deploy-pipeline
spec:
  ...
  tasks:
    - name: deploy-app
      params:
        - name: PIPELINE
          value: $(params.CDPIPELINE)
        - name: STAGE
          value: $(params.CDSTAGE)
        ...
      taskRef:
        kind: Task
        name: deploy-applicationset-cli

Pipeline
apiVersion: tekton.dev/v1
kind: Pipeline
metadata:
  labels:
    app.edp.epam.com/pipelinetype: deploy
    app.edp.epam.com/triggertemplate: deploy
  name: custom-deploy-pipeline
spec:
  ...
  tasks:
    - name: deploy-app
      params:
        - name: DEPLOYMENT_FLOW
          value: $(params.CDPIPELINE)
        - name: ENVIRONMENT
          value: $(params.CDSTAGE)
        ...
      taskRef:
        kind: Task
        name: deploy-applicationset-cli

For the init-autotests task, it is necessary to rename the passing parameters from cd-pipeline-name to DEPLOYMENT_FLOW and from stage-name to ENVIRONMENT in the Tekton custom deploy pipelines as follows:

3.11
3.12

Pipeline
apiVersion: tekton.dev/v1
kind: Pipeline
metadata:
  labels:
    app.edp.epam.com/pipelinetype: deploy
    app.edp.epam.com/triggertemplate: deploy
  name: custom-deploy-pipeline
spec:
  ...
  tasks:
    - name: init-autotests
      params:
        - name: cd-pipeline-name
          value: $(params.CDPIPELINE)
        - name: stage-name
          value: $(params.CDSTAGE)
        ...
      taskRef:
        kind: Task
        name: init-autotests

Pipeline
apiVersion: tekton.dev/v1
kind: Pipeline
metadata:
  labels:
    app.edp.epam.com/pipelinetype: deploy
    app.edp.epam.com/triggertemplate: deploy
  name: custom-deploy-pipeline
spec:
  ...
  tasks:
    - name: init-autotests
      params:
        - name: DEPLOYMENT_FLOW
          value: $(params.CDPIPELINE)
        - name: ENVIRONMENT
          value: $(params.CDSTAGE)
        ...
      taskRef:
        kind: Task
        name: init-autotests

For the promote-images task, it is necessary to rename the passing parameters from CDPIPELINE_CR to DEPLOYMENT_FLOW and from CDPIPELINE_STAGE to ENVIRONMENT in the Tekton custom deploy pipelines as follows:

3.11
3.12

Pipeline
apiVersion: tekton.dev/v1
kind: Pipeline
metadata:
  labels:
    app.edp.epam.com/pipelinetype: deploy
    app.edp.epam.com/triggertemplate: deploy
  name: custom-deploy-pipeline
spec:
  ...
  tasks:
    - name: promote-images
      params:
        - name: CDPIPELINE_CR
          value: $(params.CDPIPELINE)
        - name: CDPIPELINE_STAGE
          value: $(params.CDSTAGE)
        ...
      taskRef:
        kind: Task
        name: promote-images

Pipeline
apiVersion: tekton.dev/v1
kind: Pipeline
metadata:
  labels:
    app.edp.epam.com/pipelinetype: deploy
    app.edp.epam.com/triggertemplate: deploy
  name: custom-deploy-pipeline
spec:
  ...
  tasks:
    - name: promote-images
      params:
        - name: DEPLOYMENT_FLOW
          value: $(params.CDPIPELINE)
        - name: ENVIRONMENT
          value: $(params.CDSTAGE)
        ...
      taskRef:
        kind: Task
        name: promote-images

(Optional) Enable Repository Discovery

note

For more information about the GitFusion microservice, refer to the GitFusion repository.

note

For more details about KrakenD integration with KubeRocketCI, refer to the KrakenD installation guide.

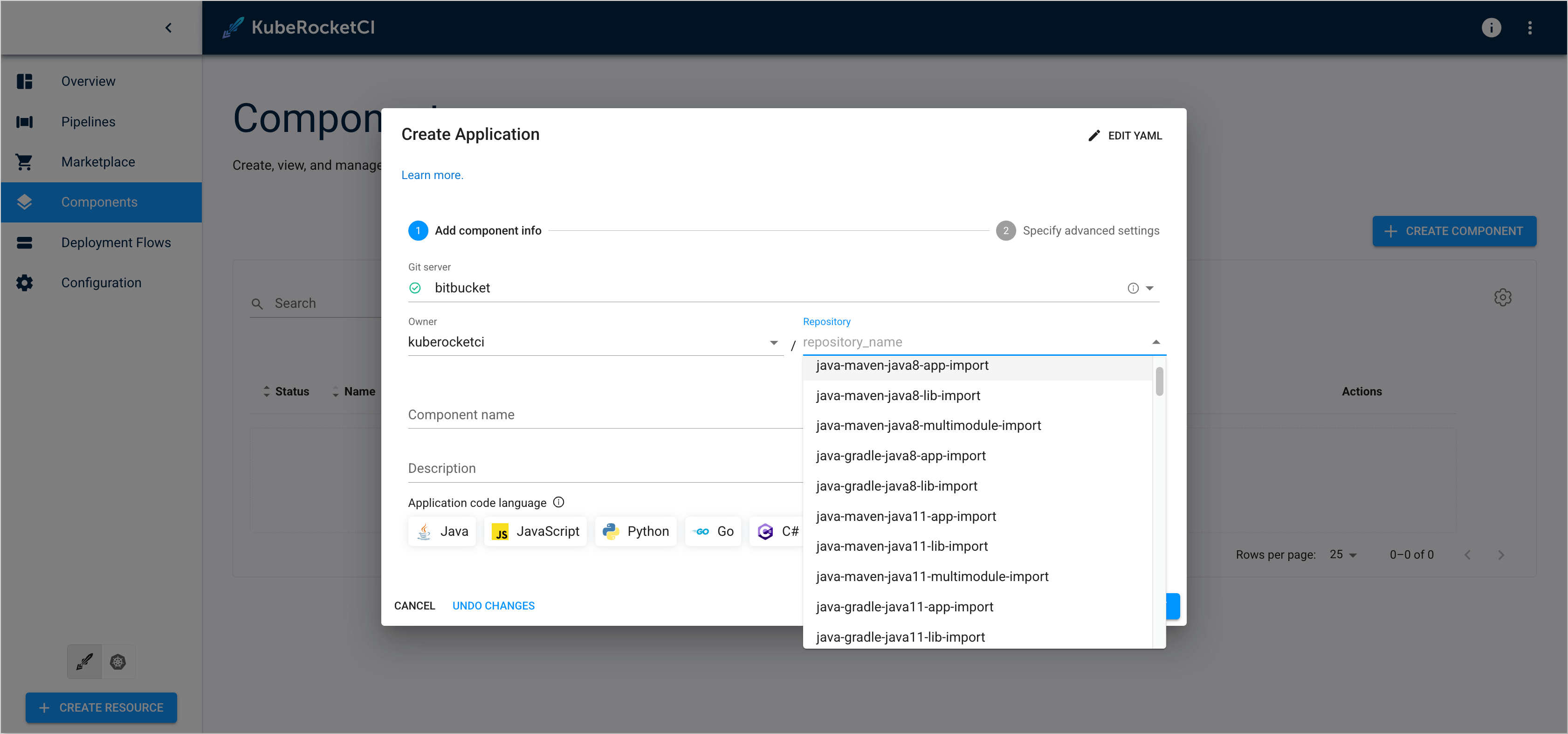

Starting from version 3.12, KubeRocketCI supports integration with the GitFusion microservice. This integration enables automatic discovery of repositories, branches, and organizations from various Git providers during the component or branch creation process in the KubeRocketCI portal. GitFusion act as a bridge between the KubeRocketCI portal and the Git provider, allowing the portal to access repository-related information without requiring direct access to the Git provider.

To enable the GitFusion integration in KubeRocketCI, follow the steps below:

Enable the GitFusion dependency in the values.yaml file for edp-install Helm chart by setting the gitfusion.enabled parameter to true:
values.yaml
```
gitfusion:
  enabled: true
```

Update the KrakenD configuration to include the GitFusion API endpoints.

note

The latest KrakenD configuration can be found in the edp-cluster-add-ons repository.

Clone the forked edp-cluster-add-ons repository.

Navigate to the clusters/core/addons/krakend directory and update the values.yaml file to include the GitFusion API endpoints:

values.yaml

Add new GitFusion API endpoints to the krakend.config section:

krakend:
  config: |
    {
      "$schema": "https://www.krakend.io/schema/krakend.json",
      "version": 3,
      "name": "KrakenD - API Gateway",
      "timeout": "6000ms",
      "cache_ttl": "300s",
      "output_encoding": "json",
      "client_tls": {
        "@comment": "Skip SSL verification when connecting to backends",
        "allow_insecure_connections": true
      },
      "extra_config": {
        "router": {
          "logger_skip_paths": [
            "/__health"
          ]
        },
        "auth/jwk-client": {
            "@comment": "Enable a JWK shared cache amongst all endpoints of 60 minutes",
            "shared_cache_duration": 3600
        }
      },
      "endpoints": [
        {
          "endpoint": "/widgets/sonarqube/measures/component",
          "method": "GET",
          "output_encoding": "json",
          "input_query_strings": [
            "component",
            "metricKeys"
          ],
          "extra_config": {
            "auth/validator": {
              "alg": "RS256",
              "cache_duration": 3600,
              "cache": true,
              "disable_jwk_security": false,
              "jwk_url": "{{ env "JWK_URL" }}"
            }
          },
          "backend": [
            {
              "url_pattern": "/api/measures/component",
              "encoding": "json",
              "sd": "static",
              "method": "GET",
              "host": [
                "{{ env "SONARQUBE_URL" }}"
              ],
              "extra_config": {
                "qos/http-cache": {},
                "modifier/martian": {
                  "header.Append": {
                    "scope": [
                      "request"
                    ],
                    "name": "Authorization",
                    "value": "Basic {{ env "SONARQUBE_TOKEN" }}"
                  }
                }
              }
            }
          ]
        },
        {
          "endpoint": "/widgets/deptrack/project",
          "method": "GET",
          "output_encoding": "json",
          "input_query_strings": [
            "name"
          ],
          "extra_config": {
            "auth/validator": {
              "alg": "RS256",
              "cache_duration": 3600,
              "cache": true,
              "disable_jwk_security": false,
              "jwk_url": "{{ env "JWK_URL" }}"
            }
          },
          "backend": [
            {
              "url_pattern": "/api/v1/project",
              "encoding": "json",
              "sd": "static",
              "method": "GET",
              "host": [
                "{{ env "DEPTRACK_URL" }}"
              ],
              "is_collection": true,
              "extra_config": {
                "qos/http-cache": {},
                "modifier/martian": {
                  "header.Append": {
                    "scope": [
                      "request"
                    ],
                    "name": "X-Api-Key",
                    "value": "{{ env "DEPTRACK_TOKEN" }}"
                  }
                }
              }
            }
          ]
        },
        {
          "endpoint": "/widgets/deptrack/metrics/project/{uuid}/current",
          "method": "GET",
          "output_encoding": "json",
          "input_query_strings": [
            "name"
          ],
          "extra_config": {
            "auth/validator": {
              "alg": "RS256",
              "cache_duration": 3600,
              "cache": true,
              "disable_jwk_security": false,
              "jwk_url": "{{ env "JWK_URL" }}"
            }
          },
          "backend": [
            {
              "url_pattern": "/api/v1/metrics/project/{uuid}/current",
              "encoding": "json",
              "sd": "static",
              "method": "GET",
              "host": [
                "{{ env "DEPTRACK_URL" }}"
              ],
              "is_collection": false,
              "extra_config": {
                "qos/http-cache": {},
                "modifier/martian": {
                  "header.Append": {
                    "scope": [
                      "request"
                    ],
                    "name": "X-Api-Key",
                    "value": "{{ env "DEPTRACK_TOKEN" }}"
                  }
                }
              }
            }
          ]
        },
        {
          "endpoint": "/search/logs",
          "method": "POST",
          "output_encoding": "json",
          "extra_config": {
            "auth/validator": {
              "alg": "RS256",
              "cache_duration": 3600,
              "cache": true,
              "disable_jwk_security": false,
              "jwk_url": "{{ env "JWK_URL" }}"
            }
          },
          "backend": [
            {
              "url_pattern": "/logstash-edp-*/_search",
              "method": "POST",
              "host": [
                "{{ env "OPENSEARCH_URL" }}"
              ],
              "encoding": "json",
              "extra_config": {
                "qos/http-cache": {},
                "modifier/martian": {
                  "header.Append": {
                    "scope": [
                      "request"
                    ],
                    "name": "Authorization",
                    "value": "Basic {{ env "OPENSEARCH_CREDS" }}"
                  }
                }
              }
            }
          ]
        },
        {
          "endpoint": "/gitfusion/repositories",
          "method": "GET",
          "input_query_strings": ["*"],
          "output_encoding": "json",
          "extra_config": {
            "auth/validator": {
              "alg": "RS256",
              "cache_duration": 3600,
              "cache": true,
              "disable_jwk_security": false,
              "jwk_url": "{{ env "JWK_URL" }}"
            }
          },
          "backend": [
            {
              "url_pattern": "/api/v1/repositories",
              "encoding": "json",
              "sd": "static",
              "method": "GET",
              "host": [
                "{{ env "GITFUSION_URL" }}"
              ],
              "extra_config": {
                "qos/http-cache": {}
              }
            }
          ]
        },
        {
          "endpoint": "/gitfusion/repository",
          "method": "GET",
          "input_query_strings": ["*"],
          "output_encoding": "json",
          "extra_config": {
            "auth/validator": {
              "alg": "RS256",
              "cache_duration": 3600,
              "cache": true,
              "disable_jwk_security": false,
              "jwk_url": "{{ env "JWK_URL" }}"
            }
          },
          "backend": [
            {
              "url_pattern": "/api/v1/repository",
              "encoding": "json",
              "sd": "static",
              "method": "GET",
              "host": [
                "{{ env "GITFUSION_URL" }}"
              ],
              "extra_config": {
                "qos/http-cache": {}
              }
            }
          ]
        },
        {
          "endpoint": "/gitfusion/organizations",
          "method": "GET",
          "input_query_strings": ["*"],
          "output_encoding": "json",
          "extra_config": {
            "auth/validator": {
              "alg": "RS256",
              "cache_duration": 3600,
              "cache": true,
              "disable_jwk_security": false,
              "jwk_url": "{{ env "JWK_URL" }}"
            }
          },
          "backend": [
            {
              "url_pattern": "/api/v1/user/organizations",
              "encoding": "json",
              "sd": "static",
              "method": "GET",
              "host": [
                "{{ env "GITFUSION_URL" }}"
              ],
              "extra_config": {
                "qos/http-cache": {}
              }
            }
          ]
        },
        {
          "endpoint": "/gitfusion/branches",
          "method": "GET",
          "input_query_strings": ["*"],
          "output_encoding": "json",
          "extra_config": {
            "auth/validator": {
              "alg": "RS256",
              "cache_duration": 3600,
              "cache": true,
              "disable_jwk_security": false,
              "jwk_url": "{{ env "JWK_URL" }}"
            }
          },
          "backend": [
            {
              "url_pattern": "/api/v1/branches",
              "encoding": "json",
              "sd": "static",
              "method": "GET",
              "host": [
                "{{ env "GITFUSION_URL" }}"
              ],
              "extra_config": {
                "qos/http-cache": {}
              }
            }
          ]
        },
        {
          "endpoint": "/gitfusion/invalidate",
          "method": "POST",
          "input_query_strings": ["*"],
          "output_encoding": "json",
          "extra_config": {
            "auth/validator": {
              "alg": "RS256",
              "cache_duration": 3600,
              "cache": true,
              "disable_jwk_security": false,
              "jwk_url": "{{ env "JWK_URL" }}"
            }
          },
          "backend": [
            {
              "url_pattern": "/api/v1/cache/invalidate",
              "encoding": "json",
              "sd": "static",
              "method": "DELETE",
              "host": [
                "{{ env "GITFUSION_URL" }}"
              ],
              "extra_config": {
                "qos/http-cache": {}
              }
            }
          ]
        }
      ]
    }

Update the KrakenD secret with the GitFusion URL variable.

note

The GITFUSION_URL variable should point to the GitFusion service URL, e.g., http://gitfusion.<krci-namespace>:8080.

Update the krakend secret to include the GITFUSION_URL variable:

KrakenD secret
kind: Secret
apiVersion: v1
metadata:
  name: krakend
  namespace: krakend
data:
  ...
  GITFUSION_URL: http://gitfusion.<krci-namespace>:8080
type: Opaque

In case of using the External Secrets Operator with AWS Parameter Store, update the Parameter Store object to include the GITFUSION_URL variable:

AWS Parameter Store
{
  "SONARQUBE_URL": "http://sonar.sonar:9000",
  "SONARQUBE_TOKEN": "<sonarqube-token",
  "DEPTRACK_URL": "http://dependency-track-api-server.dependency-track:8080",
  "DEPTRACK_TOKEN": "<dependency-track-token>",
  "JWK_URL": "https://keycloak.example.com/realms/<realmName>/protocol/openid-connect/certs",
  "OPENSEARCH_URL": "https://opensearch-cluster-master.logging:9200",
  "OPENSEARCH_CREDS": "opensearch-base64-encoded-credentials",
  "GITFUSION_URL": "http://gitfusion.<krci-namespace>:8080"
}

Commit and push the changes to the edp-cluster-add-ons repository. After the changes are pushed, navigate to the Argo CD and sync the KrakenD application to apply the updated configuration.

After upgrading KubeRocketCI to version 3.12, the GitFusion microservice will be automatically used for repository discovery in the KubeRocketCI portal.

Example of repository discovery in the KubeRocketCI portal during the component onboarding process:

GitFusion

To upgrade KubeRocketCI to the v3.12, run the following commands:

note
To verify the installation, it is possible to test the deployment before applying it to the cluster with the --dry-run key: helm upgrade krci epamedp/edp-install -n krci --values values.yaml --version=3.12.0 --dry-run
```
helm repo update epamedp
helm upgrade krci epamedp/edp-install -n krci --values values.yaml --version=3.12.0
```
