SonarQube Integration
This documentation offers detailed guidance on seamlessly integrating SonarQube into KubeRocketCI. It covers essential steps to ensure a robust connection between SonarQube's code quality and security analysis capabilities with the platform's continuous delivery ecosystem, facilitating enhanced code inspection and improvement practices within your development workflow.
Prerequisitesβ
Before proceeding, ensure the following prerequisites are in place:
- Kubectl version 1.26.0+ is installed. Please refer to the Kubernetes official website for details.
- Helm version 3.14.0+ is installed. Please refer to the Helm page on GitHub for details.
Installationβ
To install SonarQube in environment, it's recommended to use the resources provided in the Cluster Add-Ons repository. This approach involves installing both the sonarqube and the sonar-operator. Leveraging the Cluster Add-Ons simplifies the deployment and management process, providing a streamlined method to integrate SonarQube into infrastructure.
-
Navigate to the forked cluster Add-Ons repository and align the sonar values.yaml and sonar-operator values.yaml files. Follow the instructions to deploy sonarqube, ensuring it's correctly configured to serve as artifact repository.
-
Update the configuration to enable sonar and sonar-operator in Add-Ons repository:
clusters/core/apps/values.yamlsonar:
createNamespace: true
enable: true
sonar-operator:
createNamespace: true
enable: true -
Sync resources and wait till the all sonar and sonar-operator resources is created:
-
Sign In into sonarqube using the default credentials Username:
admin
and Password:admin
and update the default password for better security for that click on profile icon in the upper right corner, click on Security, enter a new password and click Update button:
Applying GitOps approach installation changesβ
To update SonarQube configurations:
- Modify the relevant configuration files in the forked add-ons repository.
- Commit and push the changes to the forker Git repository.
- Synchronize the changes with ArgoCD.
Configurationβ
With Add-ons approach add predefined SonarQube plugins and sonar-operator create the necessary groups, users, permission templates, quality profiles, quality gates automatically by deploy preconfigured custom resources. Manage these configurations centrally through a GitOps-based workflow.
Configuration SonarQube with sonar-operatorβ
- Create a Kubernetes Secret that the sonar-operator will use to connect to the sonarqube and create all resources:
- Manifests
- External Secrets Operator
apiVersion: v1
kind: Secret
metadata:
name: sonar-admin-password
namespace: sonar
type: Opaque
data:
user: YWRtaW4= # base64-encoded value of "admin"
password: cGFzcw== # base64-encoded value of "pass"
"sonarqube":
{
"user": "XXXXXXX",
"password": "XXXXXXX"
}
- Create a secret using
manifests
or withExternal Secrets Operator
to enable the sonar-operator to connect to the sonarqube for provisioning:
- Manifests
- External Secrets Operator
apiVersion: v1
kind: Secret
metadata:
name: ci-sonar
namespace: sonar
type: Opaque
stringData:
password: <sonar-ci-password>
"sonarqube-ci-user":
{
"password": "XXXXXXX"
}
SonarQube configuration overview with sonar-operatorβ
Plugin Managementβ
The SonarQube instance includes pre-installed plugins to meet common project needs. Additional plugins, if required, can be installed by updating the SonarQube values.yaml file in the forked add-ons repository.
Group Permissionsβ
Access control in SonarQube is organized through predefined groups:
-
sonar-administrators: System administrators with full access to manage the instance.
-
sonar-developers: Developers who can view and edit project settings (managed by the Sonar Operator).
-
sonar-users: Default group for all authenticated users with basic project viewing rights.
-
view-group: Grants browsing access for users requiring read-only permissions.
Permission Templatesβ
Permissions in SonarQube are associated with projects through permission templates:
- edp-default: The default template applied to all projects, ensuring consistent group-level access management across the platform.
Quality Gatesβ
Quality Gates are used to ensure that code quality standards are met before further development or deployment proceeds:
-
EDP way (default): KuberocketCI quality gates are defined in the SonarQube instance, specifically tailored for the KubeRocketCI project.
-
Sonar way (built-in): These are predefined quality gates available directly in SonarQube, not customized for any specific project but rather standardized for general use.
Quality Profilesβ
Quality Profiles define the rules used during code analysis. The Sonar Operator manages quality profiles with the following default setup:
- EDP way (default): A Java quality profile based on KubeRocketCI best practices, offering tailored rule sets.
Configuration SonarQube ci-user without sonar-operatorβ
To establish robust authentication and precise access control, generating a SonarQube token is essential. This token is a distinct identifier, enabling effortless integration between SonarQube and KubeRocketCI. To generate the SonarQube token, proceed with the following steps:
-
Open the SonarQube UI and navigate to Administration -> Security -> User. Create a new user or select an existing one. Click the
Options List
icon to create a token: -
Type the
ci-user
username, define an expiration period, and click theGenerate
button to create the token: -
Click the
Copy
button to copy the generated<Sonarqube-token>
:
Integration SonarQube with KubeRocketCIβ
For provision secret using manifest, KubeRocketCI portal or with the externalSecrets operator:
- KubeRocketCI portal
- Manifests
- External Secrets Operator

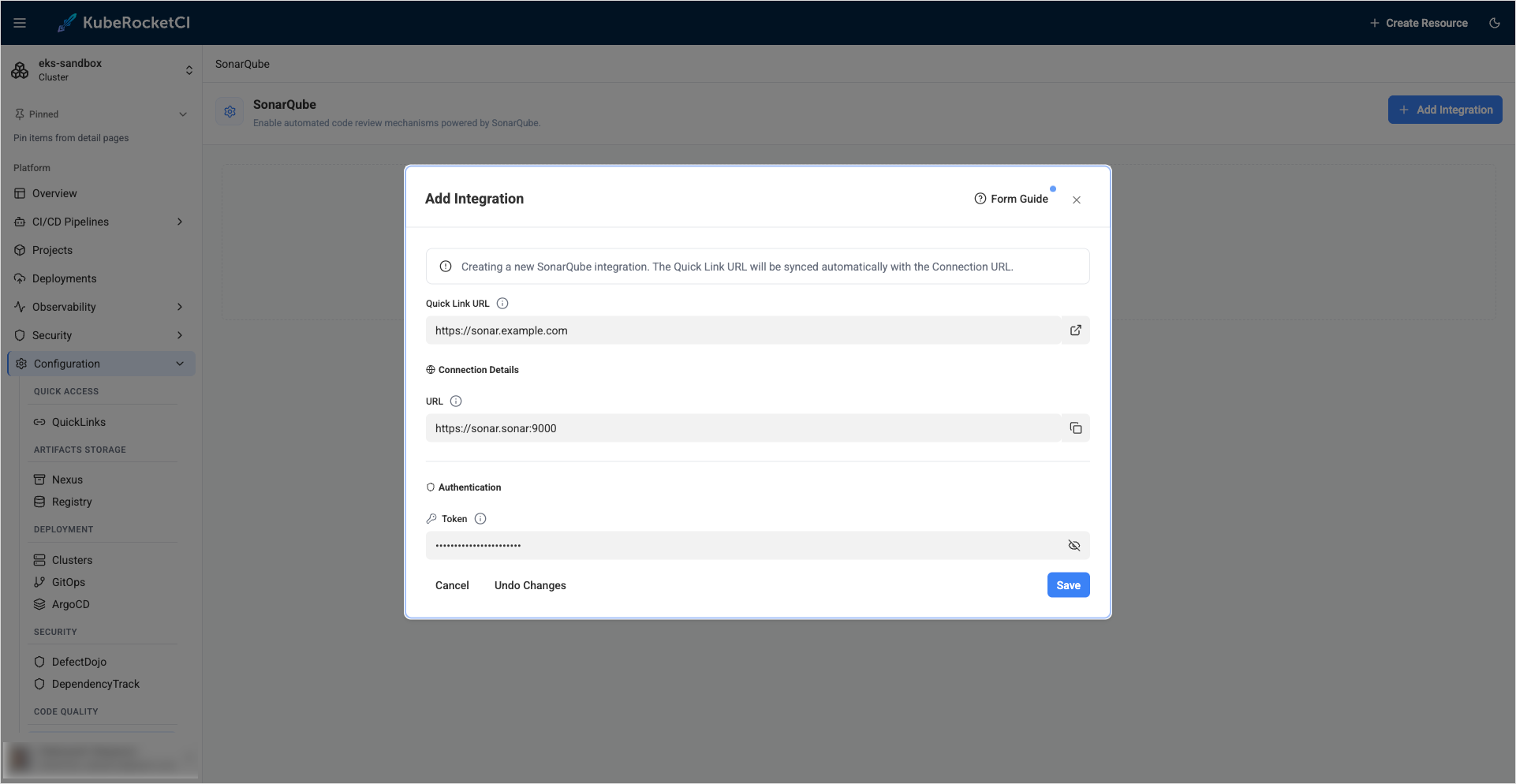

Go to the Portal open Configuration -> CODE QUALITY -> SONARQUBE. Update or click + ADD INTEGRATION fill in the URL
and Token
fields and click the Save
button:
apiVersion: v1
kind: Secret
metadata:
name: ci-sonarqube
namespace: edp
labels:
app.edp.epam.com/secret-type: sonar
app.edp.epam.com/integration-secret: "true"
type: Opaque
stringData:
url: https://sonarqube.example.com
token: <sonarqube-token>
"ci-sonarqube":
{
"url": "https://sonarqube.example.com",
"token": "XXXXXXXXXXXX"
},

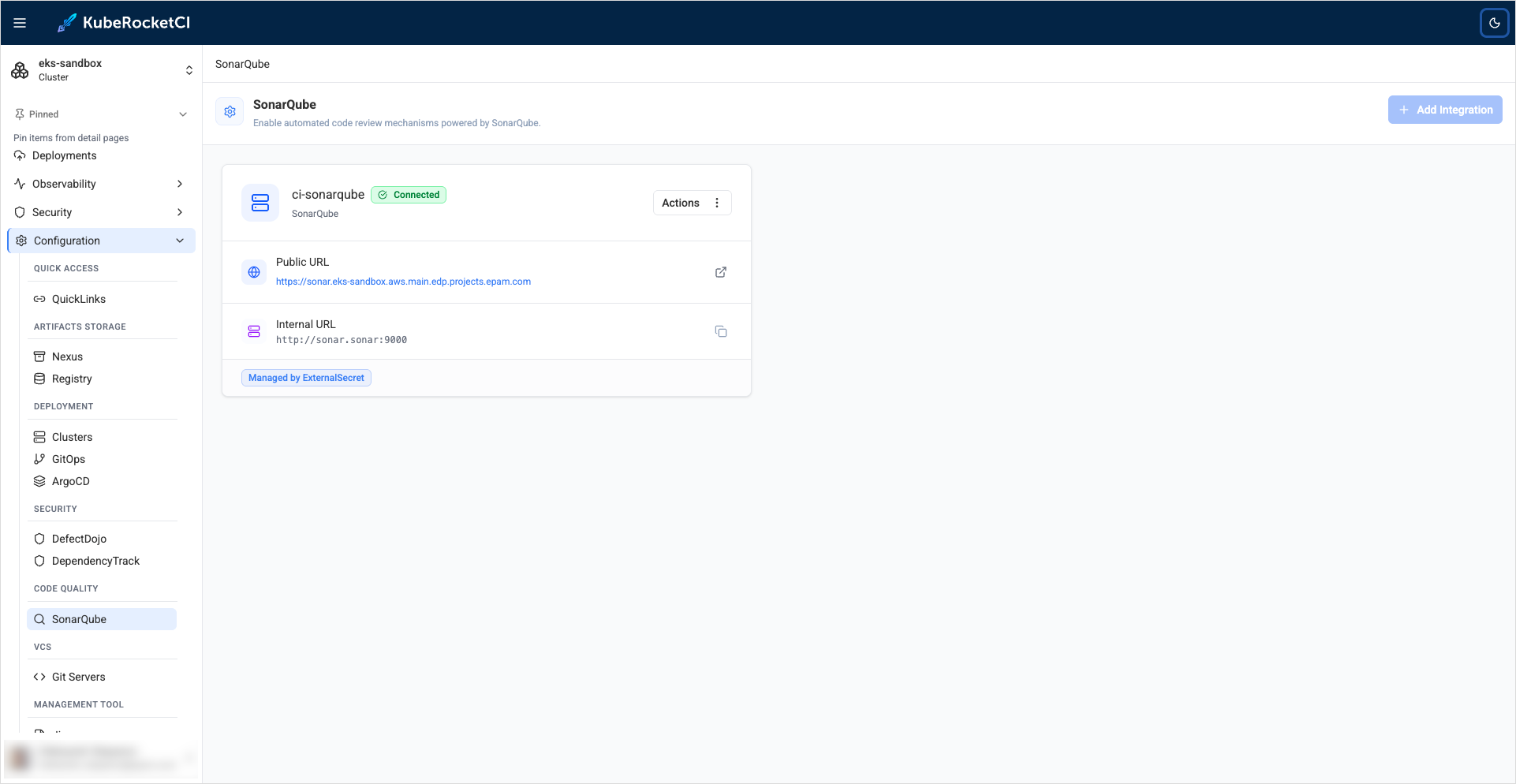

Go to the Portal open Configuration -> CODE QUALITY -> SONARQUBE and see the Managed by External Secret
message:
More details about External Secrets Operator integration can be found in the External Secrets Operator Integration page.
Project Analysis Flowβ
- SonarQube analysis is seamlessly integrated into KubeRocketCI pipelines, triggered during both review and build pipelines:
- Review Pipeline: Analyzes only the changes made in a pull request.
- Build Pipeline: Analyzes the main branch codebase to ensure overall project quality.
-

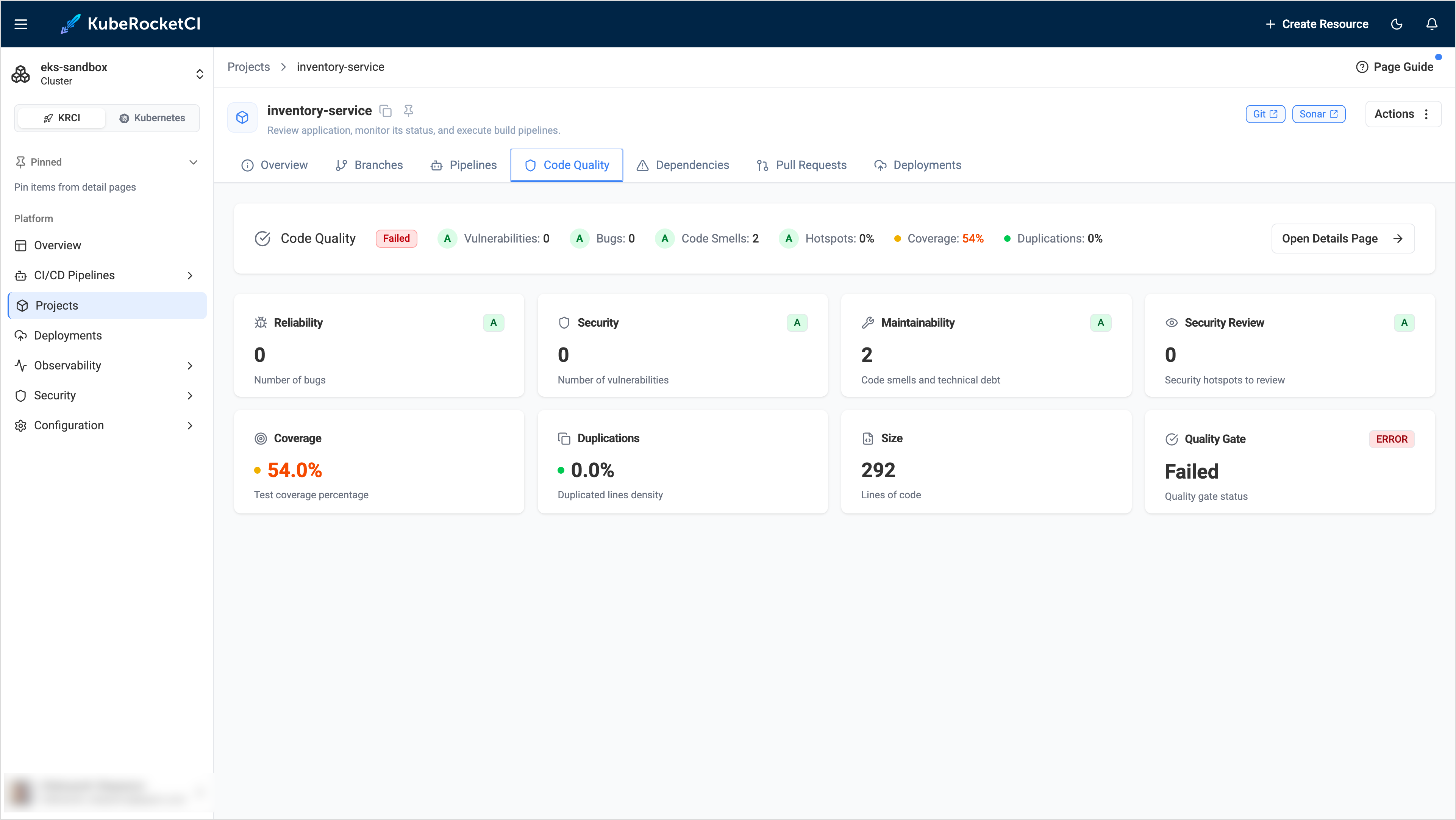

SonarQube projects are named based on the corresponding KubeRocketCI project names, making it easy to navigate analysis results in the SonarQube UI mode details how to configure repo project-project.settings:
