Secured Secrets Management for Application Deployment

This use case demonstrates the secure management of sensitive data, such as passwords, API keys, and other credentials used by an application during development or production runtime. The process involves storing sensitive data in an external secret store within a demo-vault namespace. The confidential information is then transmitted from the demo-vault namespace to the namespace where the application is deployed. This ensures that the application can utilize these credentials to establish a secure connection to the database. In this scenario, the KubeRocketCI platform leverages capabilities of the External Secret Operator. Developers can use another external secret store (Hashicorp Vault, AWS Secret Store, or another provider) to ensure that confidential information is securely stored and accessed only when necessary.

To follow this approach, the next steps are involved:

  1. Configure the KubeRocketCI platform with the external secret store provider, namespace will be used for the below scenario.

  2. Create a separate namespace, with the name demo-vault, to store the sensitive data.

  3. Keep sensitive data, such as passwords, API keys, and credentials, in the demo-vault namespace.

  4. Establish a connection between the deployed namespace and the vault namespace to securely access the sensitive data when required.

By following these steps, developers can ensure that sensitive data is protected and accessed securely within the KubeRocketCI platform. This approach enhances the overall security of the application and reduces the risk of unauthorized access to confidential information.

Roles​

This documentation is tailored for the Platform Team, Developers and Team Leads.

Goals​

  • Ensure secure handling of confidential information within the deployment environment.

Preconditions​

  • KubeRocketCI instance is configured with GitOps repo (to be able to create components);
  • External Secrets Operator is installed;
  • Developer has access to the KubeRocketCI instances using the Single-Sign-On approach;
  • Developer has merge permissions in the one of the Git Server repository, e.g. GitHub;
  • Developer has permissions to create resources such as namespace, roles, and role bindings.

Scenario​

To utilize External Secrets in the KubeRocketCI platform, follow the steps outlined below:

Add Application​

To begin, you will need an application first. Here are the steps to create it:

  1. Open the UI Portal. Use the Sign In option:

    Logging Page

  2. In the top right corner, enter the Account settings and ensure that both Default namespace and Allowed namespaces are set:

    Settings

  3. Create the new component with the Application type using the Create from template strategy. Select the Components section and press the Create component button:

    Cluster Overview

  4. Choose the Application component type. Click the Next button:

    Component Type

  5. Opt for the Create from template strategy to scaffold our application from the template provided by the KubeRocketCI and press the Create button:

    Component Strategy

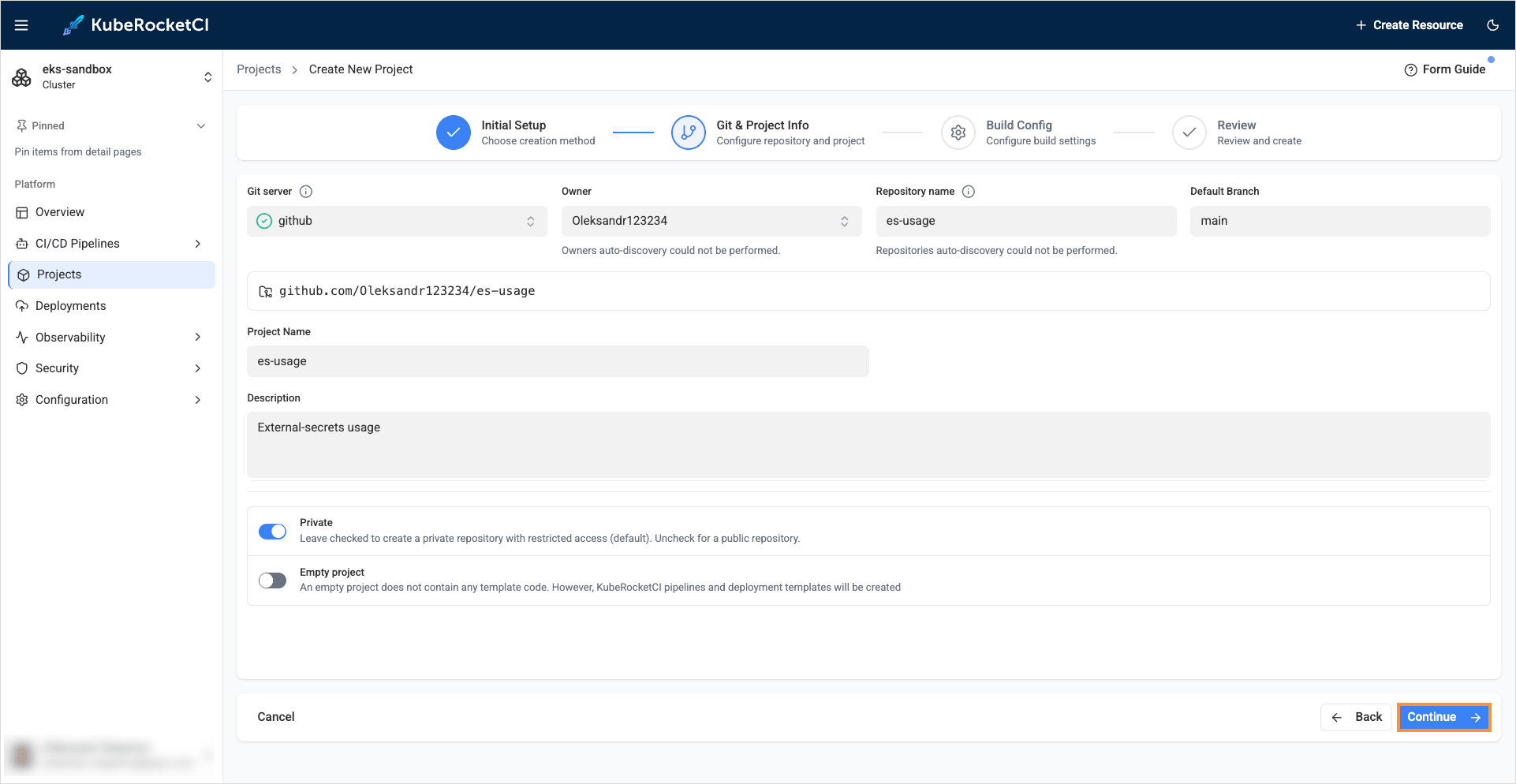

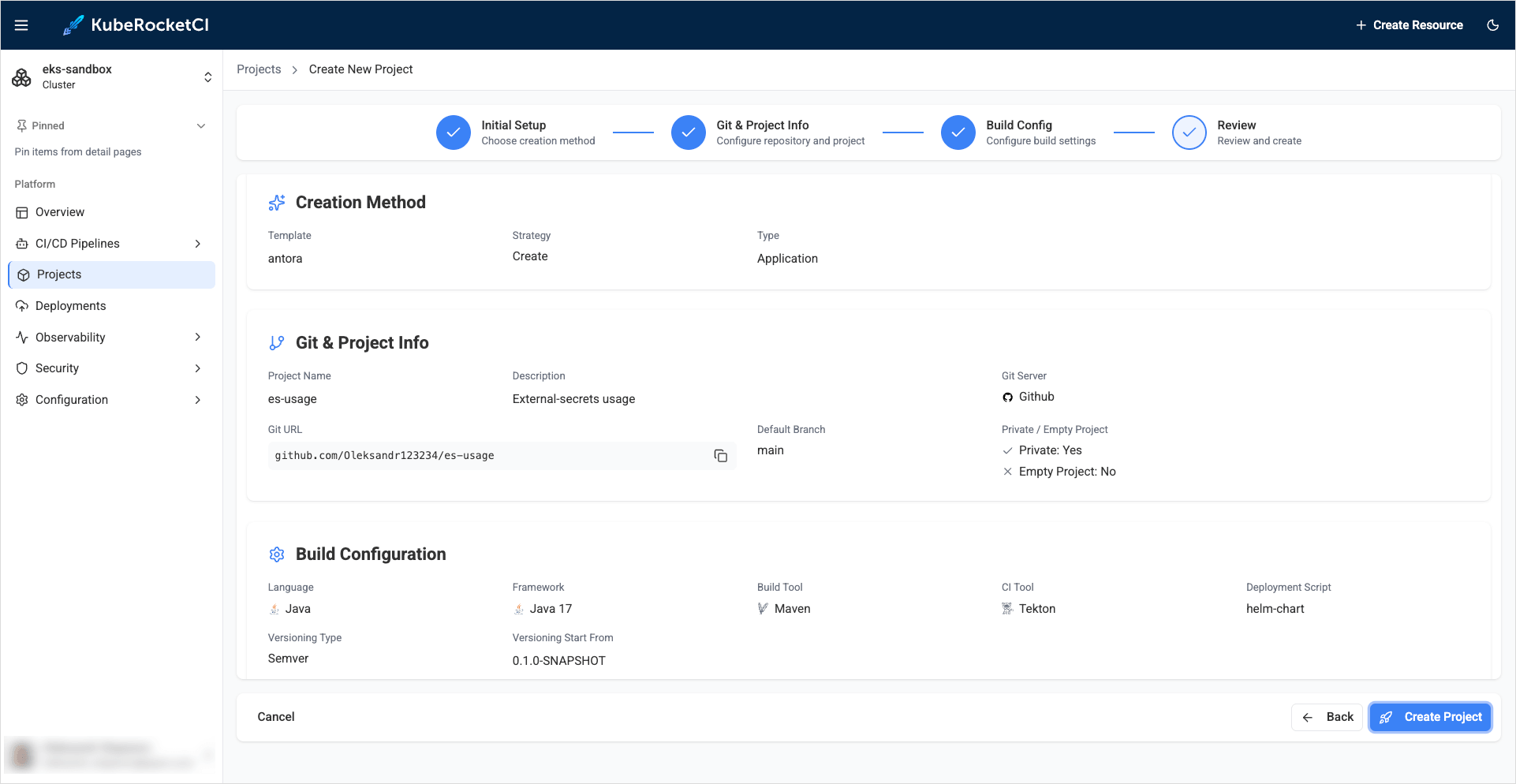

  6. On the Add component info tab, define the following values and press the Next button:

    • Git server: github
    • Repository name: {github_account_name}/es-usage
    • Component name: es-usage
    • Description: external-secrets usage
    • Application code language: Java
    • Language version/framework: Java 17
    • Build tool: Maven

    Application Info

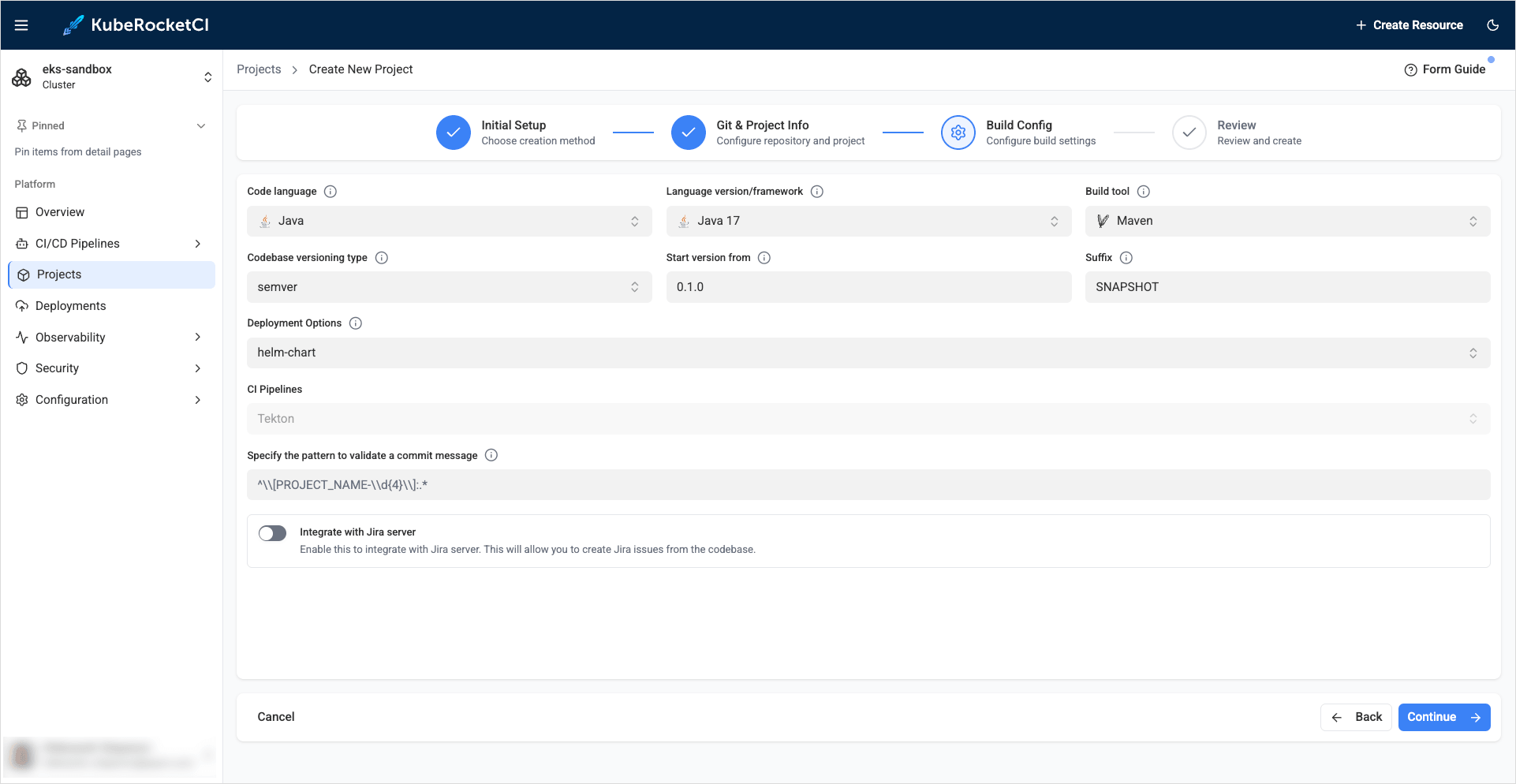

  7. On the Specify advanced settings tab, define the below values and push the Create button:

    • Default branch: main
    • Codebase versioning type: default

    Advanced Settings

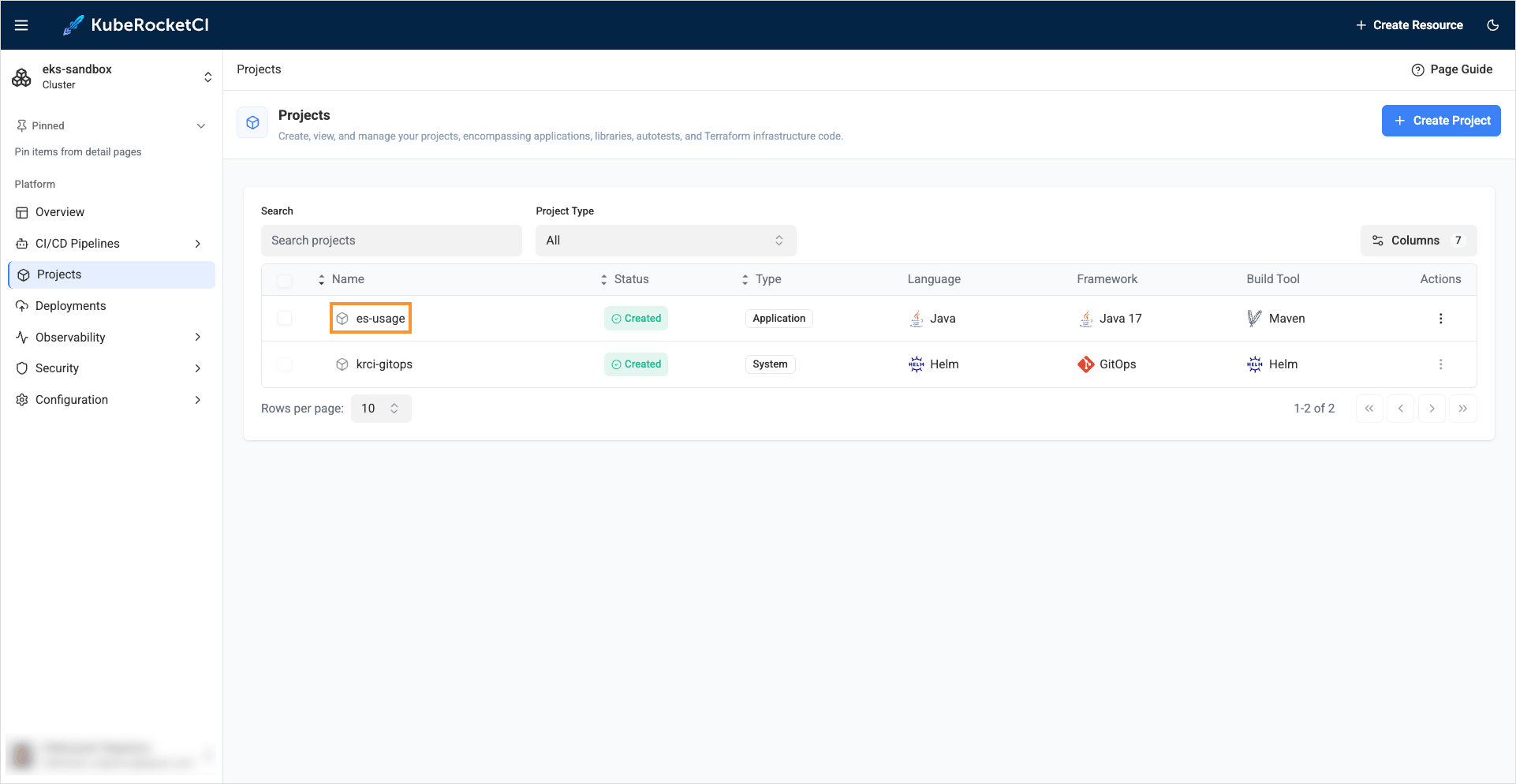

  8. Check the application status. It should be green:

    Application Status

Create CD Pipeline​

This section outlines the process of establishing a CD pipeline within UI Portal. There are two fundamental steps in this procedure:

  • Create a CD pipeline;
  • Configure the CD pipeline stage.
note

Ensure GitOps repository is connected to the KubeRocketCI instance.

Follow the instructions below to complete the process successfully:

  1. In the UI Portal, navigate to Environments tab and push the Create environment button to create pipeline:

    CD-Pipeline Overview

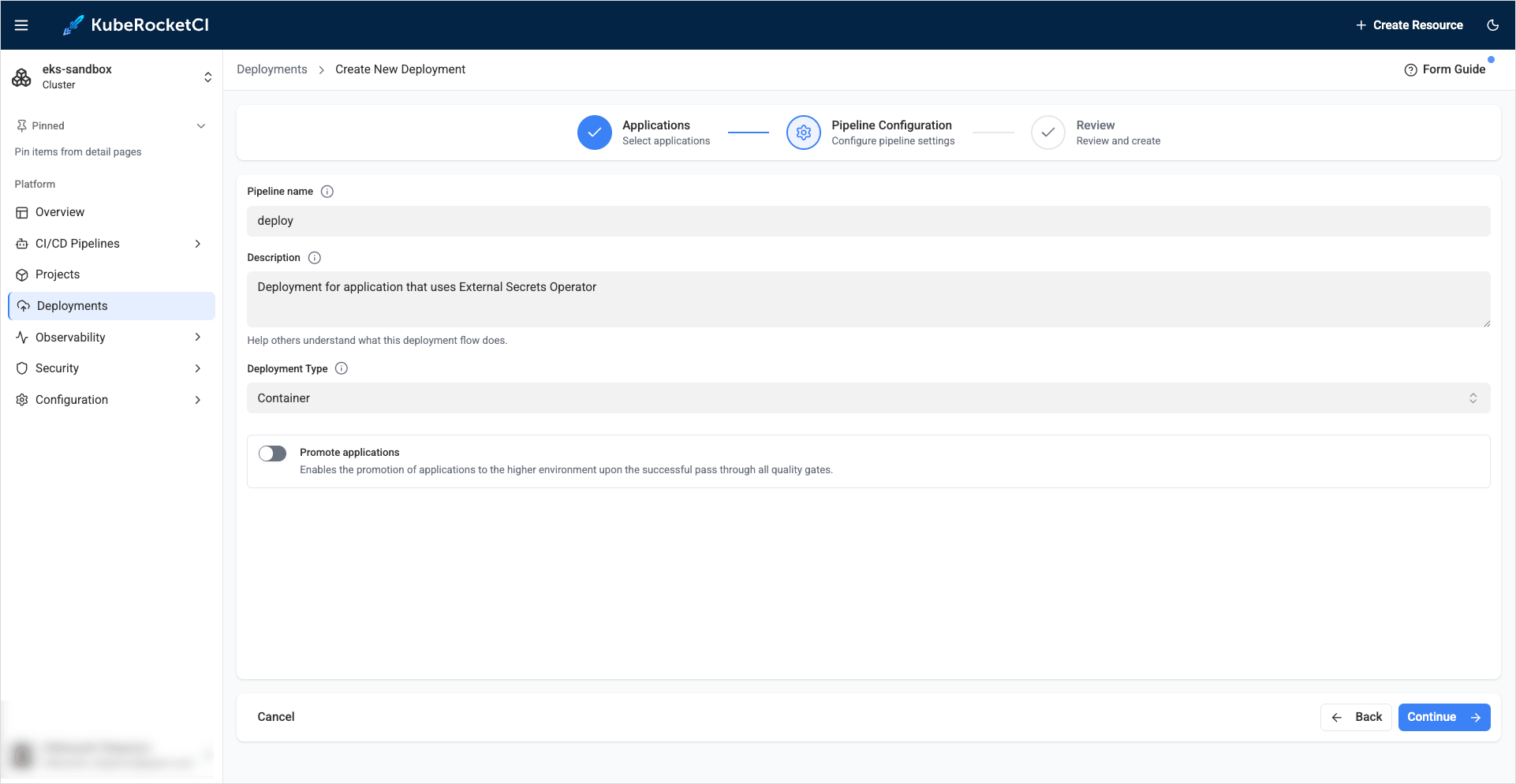

  2. In the Create environment dialog, define the below values:

    • Enter name:

      • Pipeline name: deploy

        CD Pipeline name

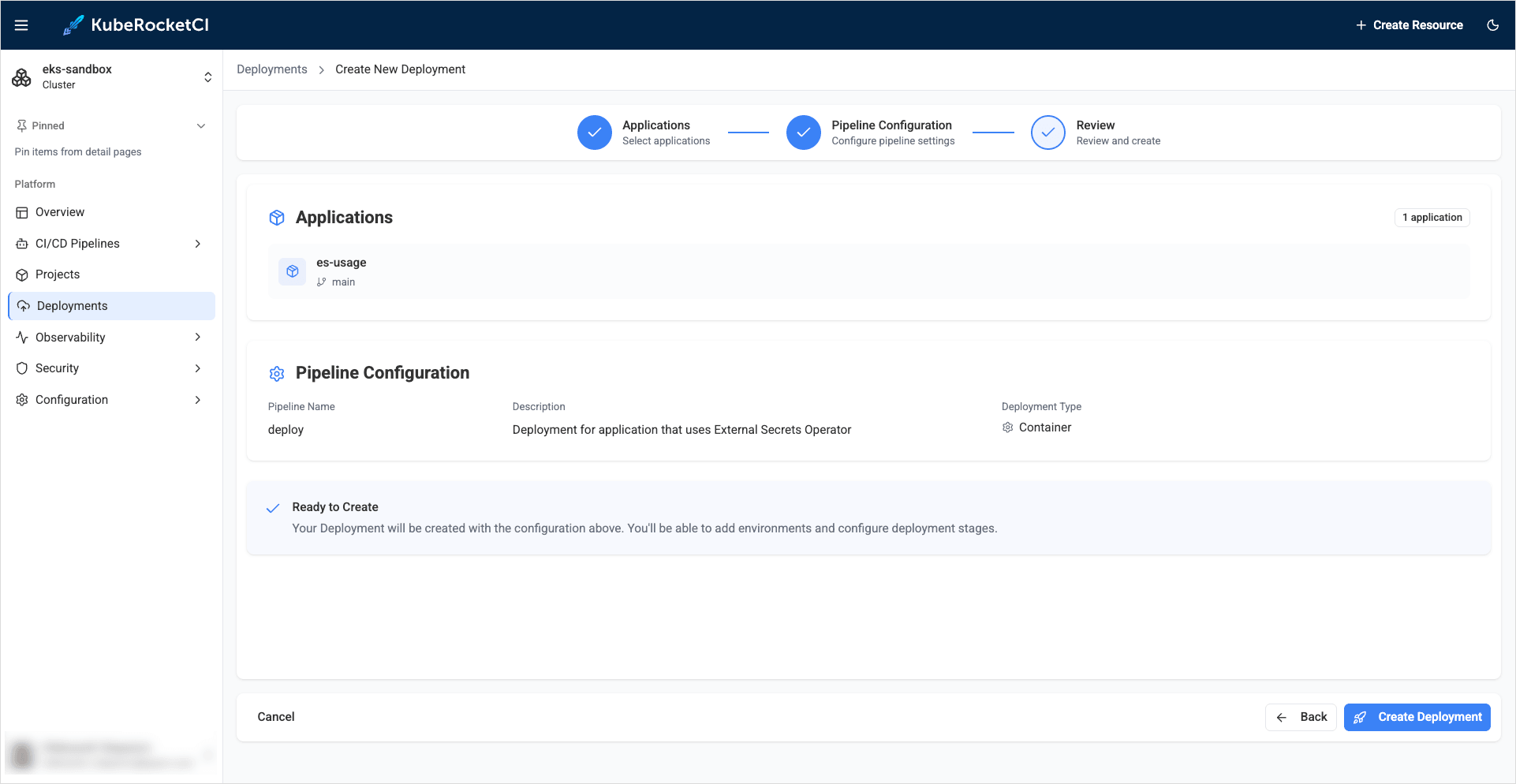

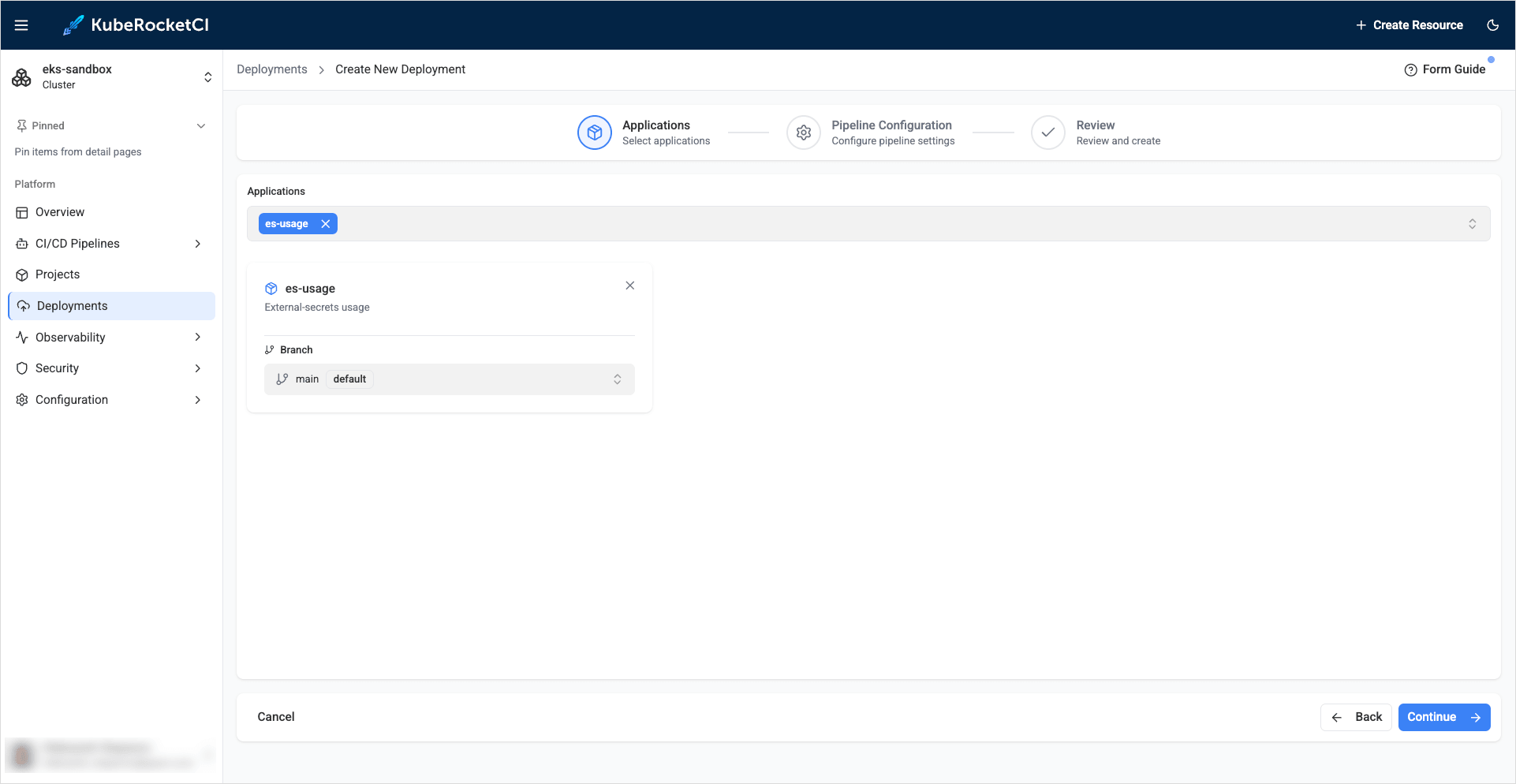

    • Add components. Add es-usage application, select main branch, and leave Promote in pipeline unchecked. Click the Create button:

      CD Pipeline Add Application

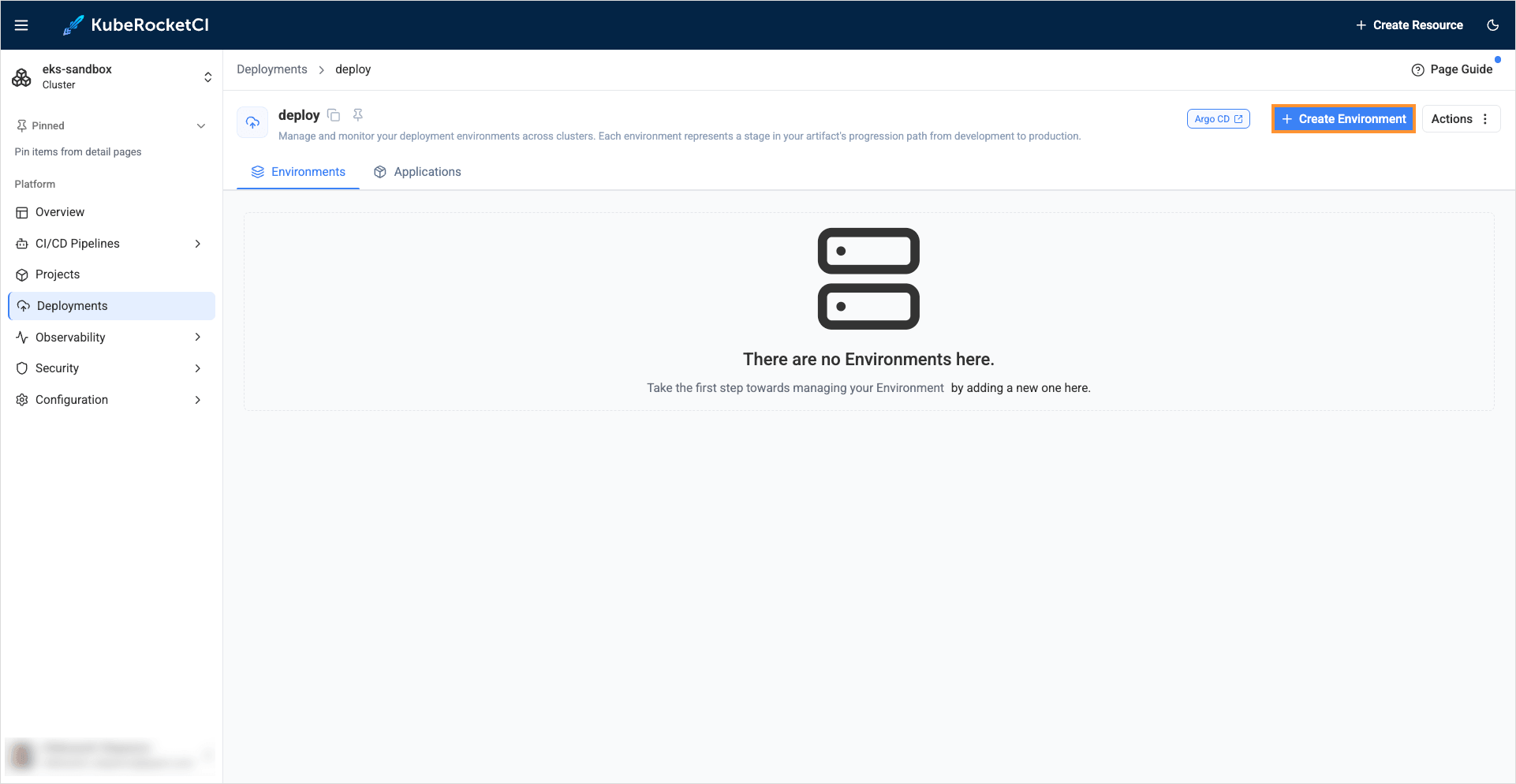

  3. Navigate to the created deploy CD pipeline and click the Create Stage button.

    Create Stage Button

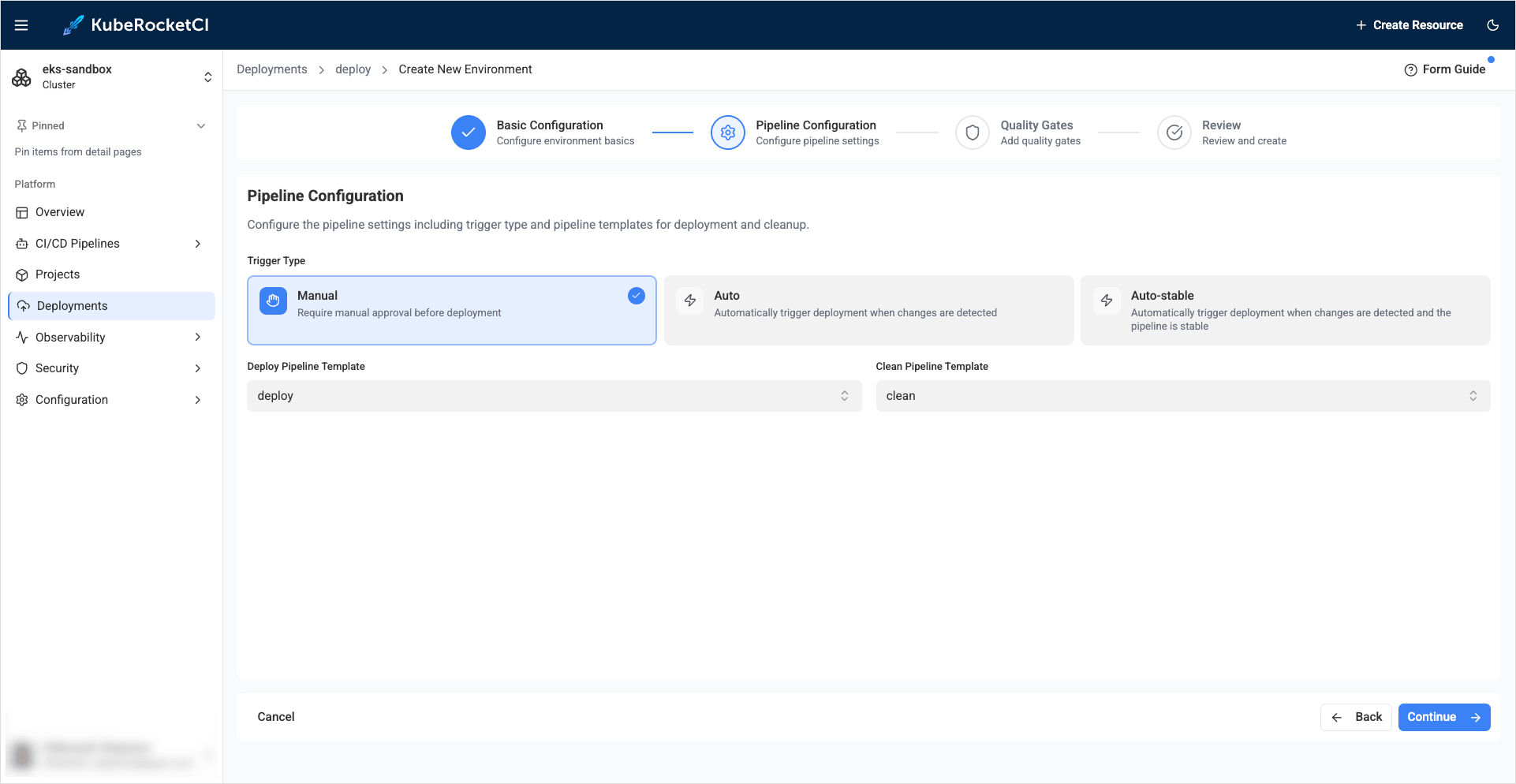

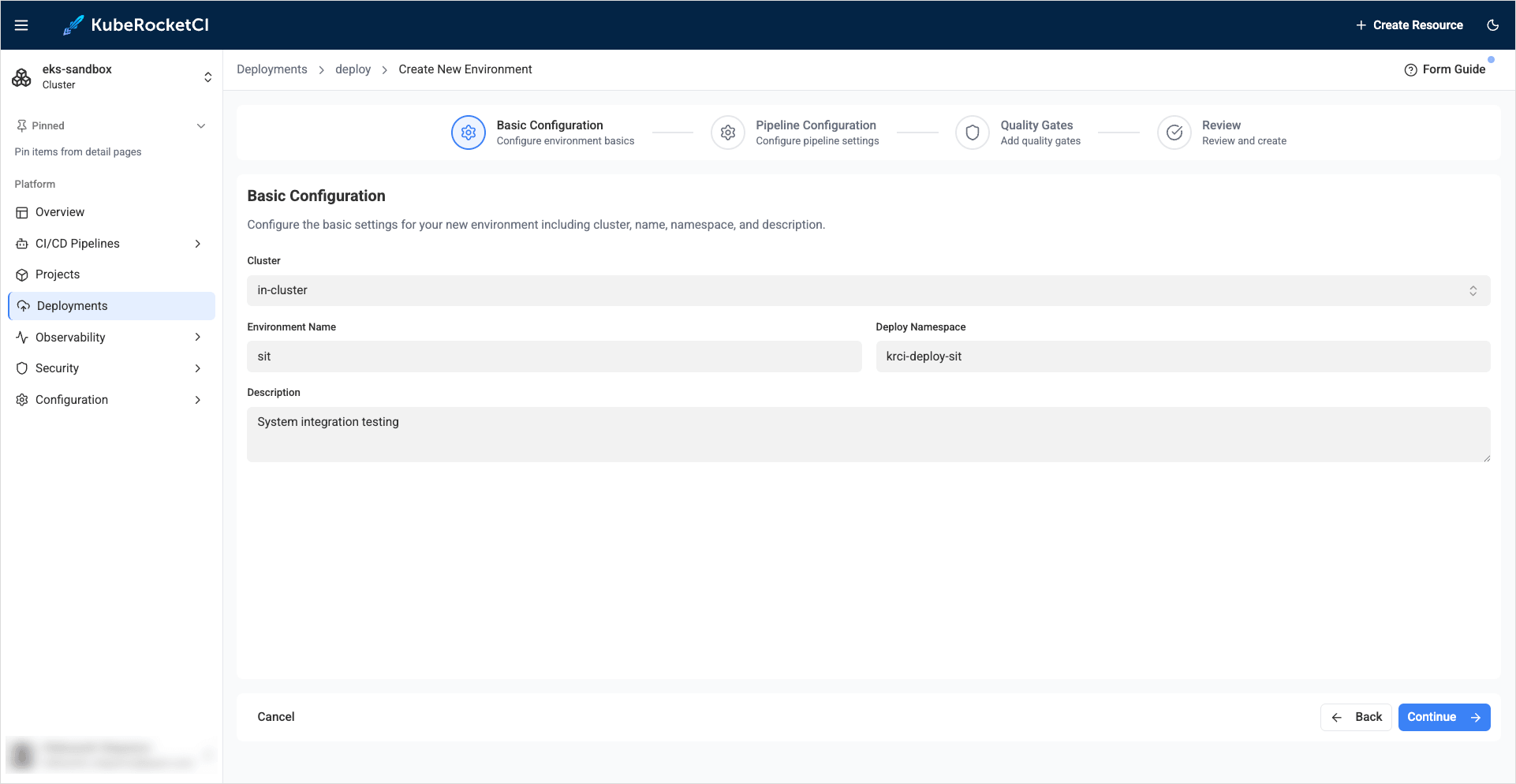

  4. In the Create stage dialog add the sit stage with the values below:

    • Configure stage:

      • Cluster: in cluster
      • Stage name: sit
      • Description: System integration testing
      • Trigger type: Manual
      • Pipeline template: deploy

      Pipeline tab

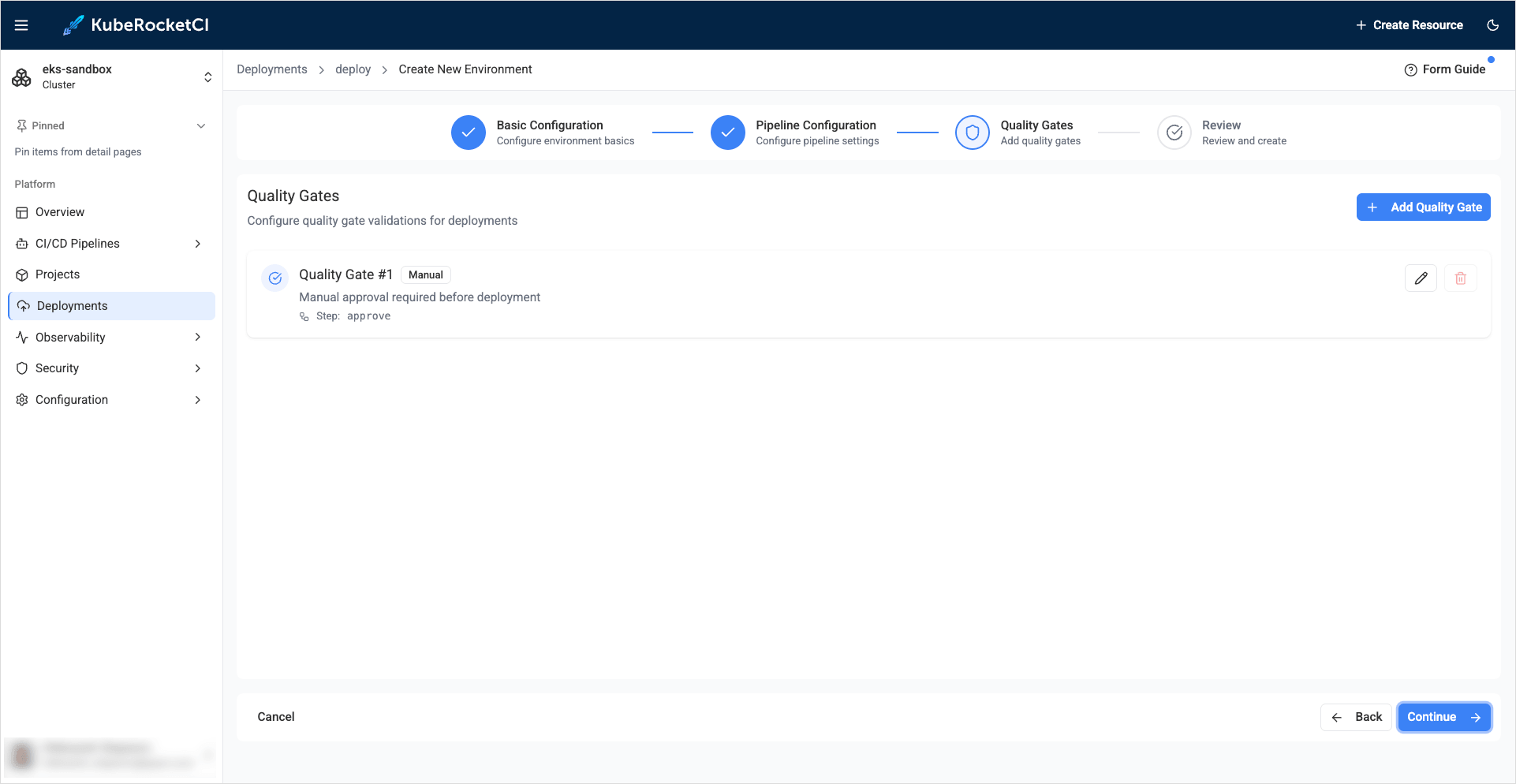

    • Add quality gates:

      • Quality gate type: Manual
      • Step name: approve

      Pipeline tab

Configure RBAC for External Secret Store​

note

In this scenario, three namespaces are used:

  • demo, the namespace where KubeRocketCI is deployed,
  • demo-vault, the vault namespace, where sensitive data is stored, and
  • demo-<cd_pipeline_name>-<stage_name>, the namespace used for deploying the application (demo-deploy-sit for this scenario).

To ensure the proper functioning of the system, it is crucial to create the following resources:

  1. Create namespace demo-vault to store secrets:

    kubectl create namespace demo-vault
  2. Create Secret:

    apiVersion: v1
    kind: Secret
    metadata:
    name: mongo
    namespace: demo-vault
    stringData:
    password: pass
    username: user
    type: Opaque
  3. Create Role to access the secret:

    apiVersion: rbac.authorization.k8s.io/v1
    kind: Role
    metadata:
    namespace: demo-vault
    name: external-secret-store
    rules:
    - apiGroups: [""]
    resources:
    - secrets
    verbs:
    - get
    - list
    - watch
    - apiGroups:
    - authorization.k8s.io
    resources:
    - selfsubjectrulesreviews
    verbs:
    - create
  4. Create RoleBinding:

    apiVersion: rbac.authorization.k8s.io/v1
    kind: RoleBinding
    metadata:
    name: eso-from-krci
    namespace: demo-vault
    subjects:
    - kind: ServiceAccount
    name: secret-manager
    namespace: demo-deploy-sit
    roleRef:
    apiGroup: rbac.authorization.k8s.io
    kind: Role
    name: external-secret-store

Add External Secret to Helm Chart​

Now that RBAC is configured properly, it is time to add external secrets templates to application Helm chart. Follow the instructions provided below:

  1. Navigate to one of the Git Servers where the es-usage application was created during the Add Application step. In this example, it is GitHub:

    Github Repository

  2. Create a commit in the es-usage repository and add the following configuration files to the helm chart:

    1. deploy-templates/templates/sa.yaml:

      apiVersion: v1
      kind: ServiceAccount
      metadata:
      name: secret-manager
      namespace: demo-deploy-sit
    2. deploy-templates/templates/secret-store.yaml:

      apiVersion: external-secrets.io/v1beta1
      kind: SecretStore
      metadata:
      name: demo
      namespace: demo-deploy-sit
      spec:
      provider:
      kubernetes:
      remoteNamespace: demo-vault
      auth:
      serviceAccount:
      name: secret-manager
      server:
      caProvider:
      type: ConfigMap
      name: kube-root-ca.crt
      key: ca.crt
    3. deploy-templates/templates/external-secret.yaml:

      apiVersion: external-secrets.io/v1beta1
      kind: ExternalSecret
      metadata:
      name: mongo # target secret name
      namespace: demo-deploy-sit # target namespace
      spec:
      refreshInterval: 1h
      secretStoreRef:
      kind: SecretStore
      name: demo
      data:
      - secretKey: username # target value property
      remoteRef:
      key: mongo # remote secret key
      property: username # value will be fetched from this field
      - secretKey: password # target value property
      remoteRef:
      key: mongo # remote secret key
      property: password # value will be fetched from this field
    4. deploy-templates/templates/deployment.yaml. Add the environment variable for mongodb to the existing deployment configuration that used the secret:

      env:
      - name: MONGO_USERNAME
      valueFrom:
      secretKeyRef:
      name: mongo
      key: username
      - name: MONGO_PASSWORD
      valueFrom:
      secretKeyRef:
      name: mongo
      key: password
  3. Push the changes made to the es-usage repository.

Deploy Application​

Deploy the application by following the steps below:

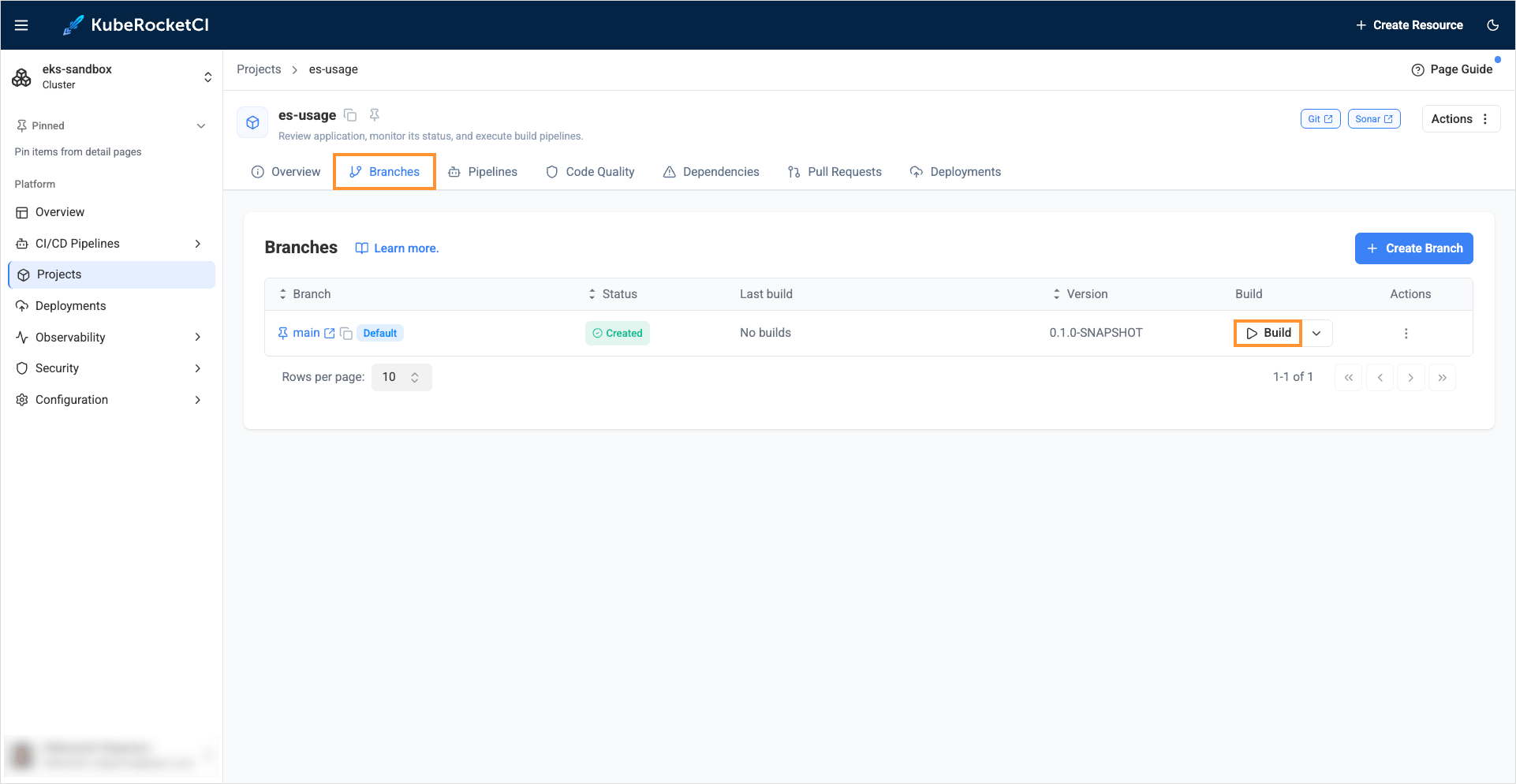

  1. Build Container from the latest branch commit. To build the initial version of the application's main branch, go to the Components -> es-usage -> Branches -> main and press the Trigger build pipeline run button.

    Build Pipeline

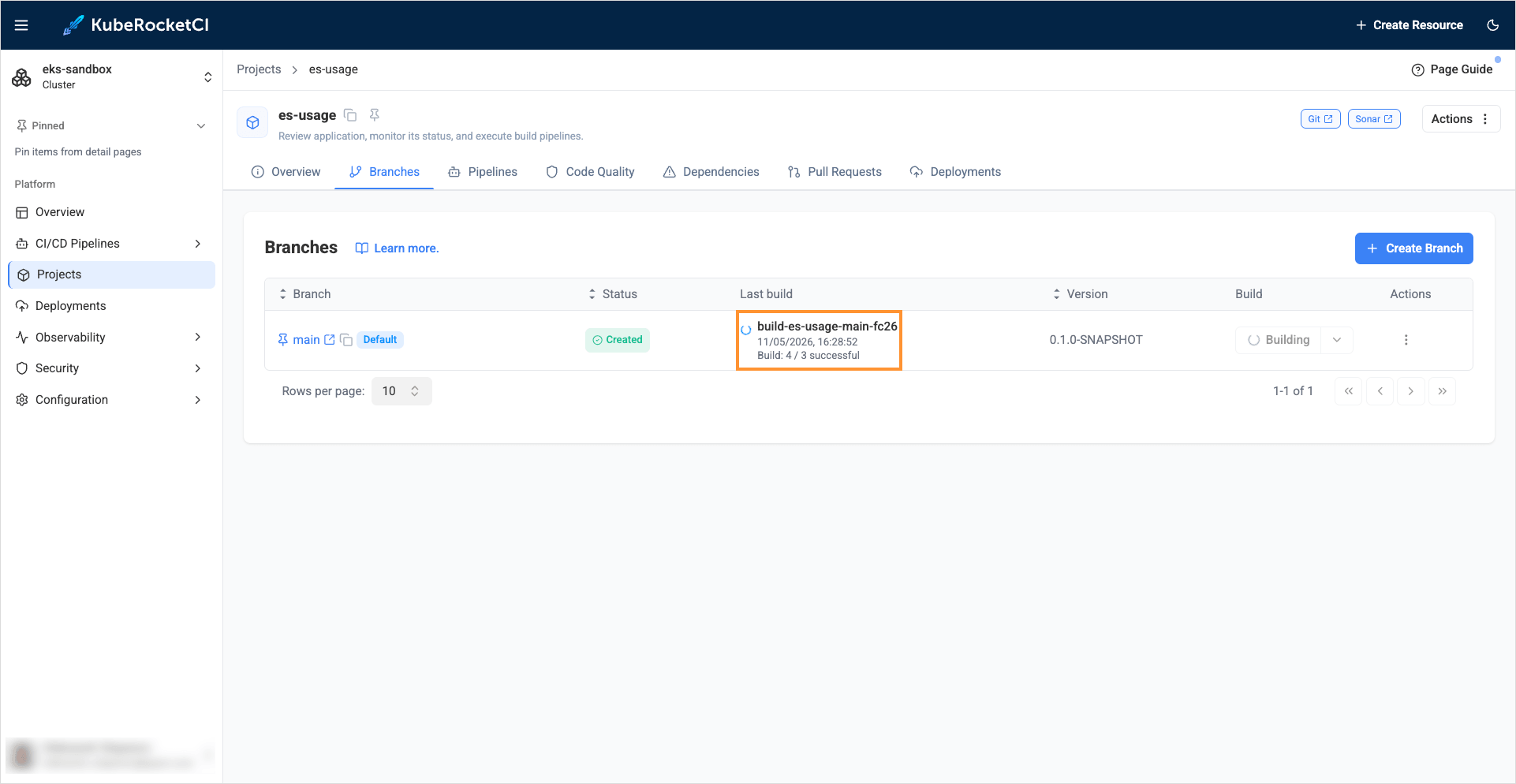

  2. Build pipeline for the es-usage application starts.

    Build Status

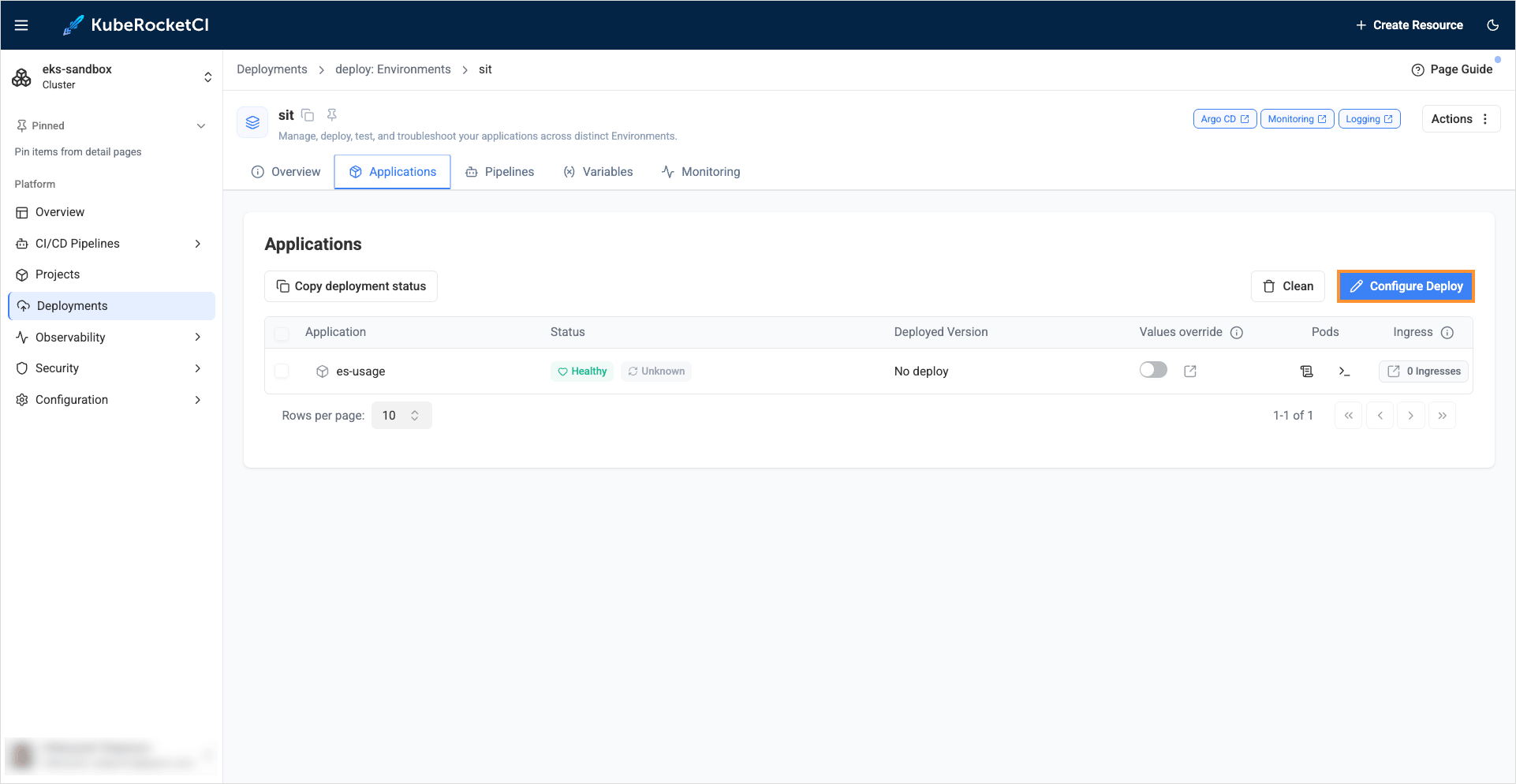

  3. Once the build pipeline has successfully completed, navigate to the Environments tab and select the deploy pipeline. Choose the SIT stage and click on the Configure deploy button:

    Configure Deploy

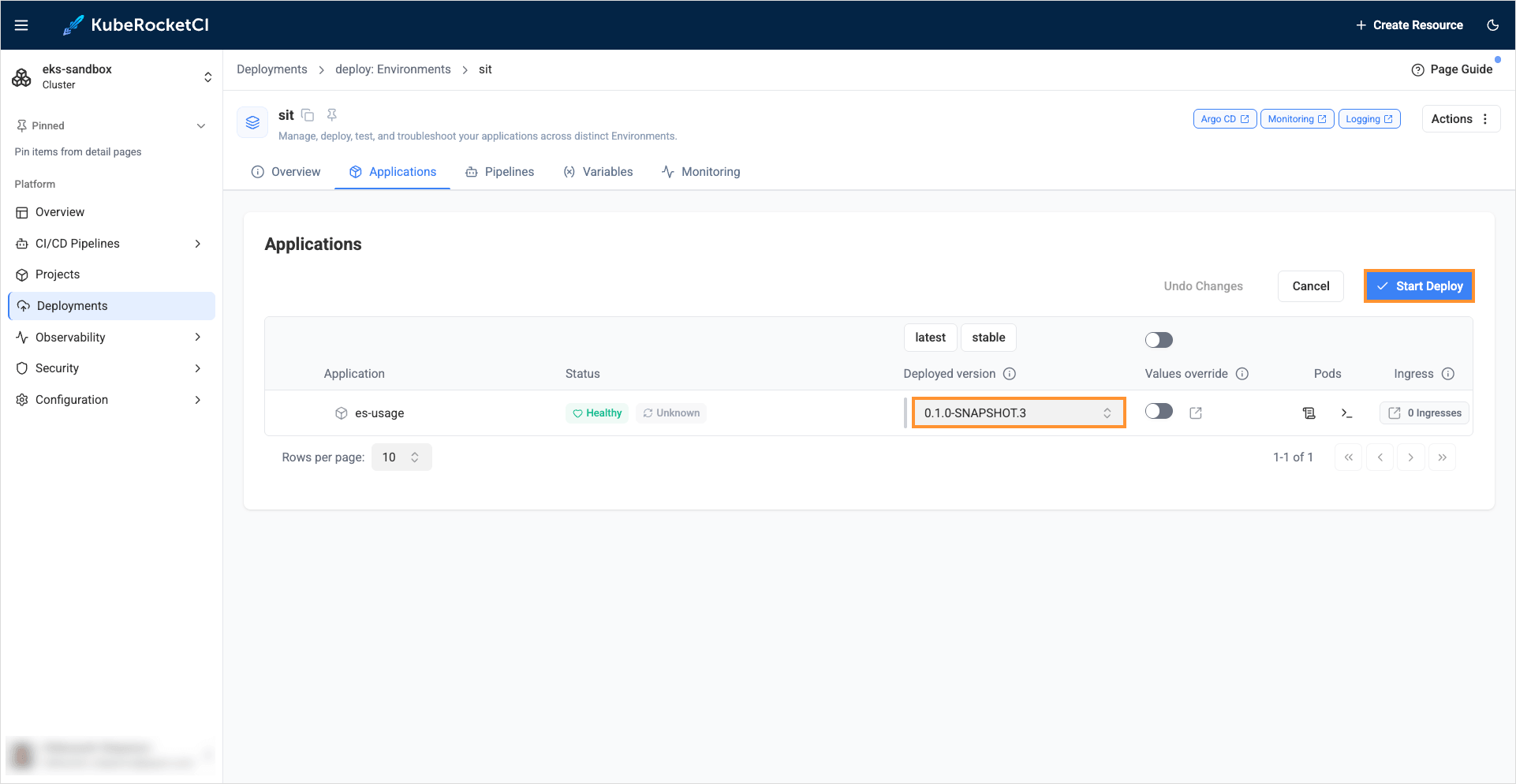

  4. In the Image stream version, select latest version and push the Start deploy button.

    Start Deploy

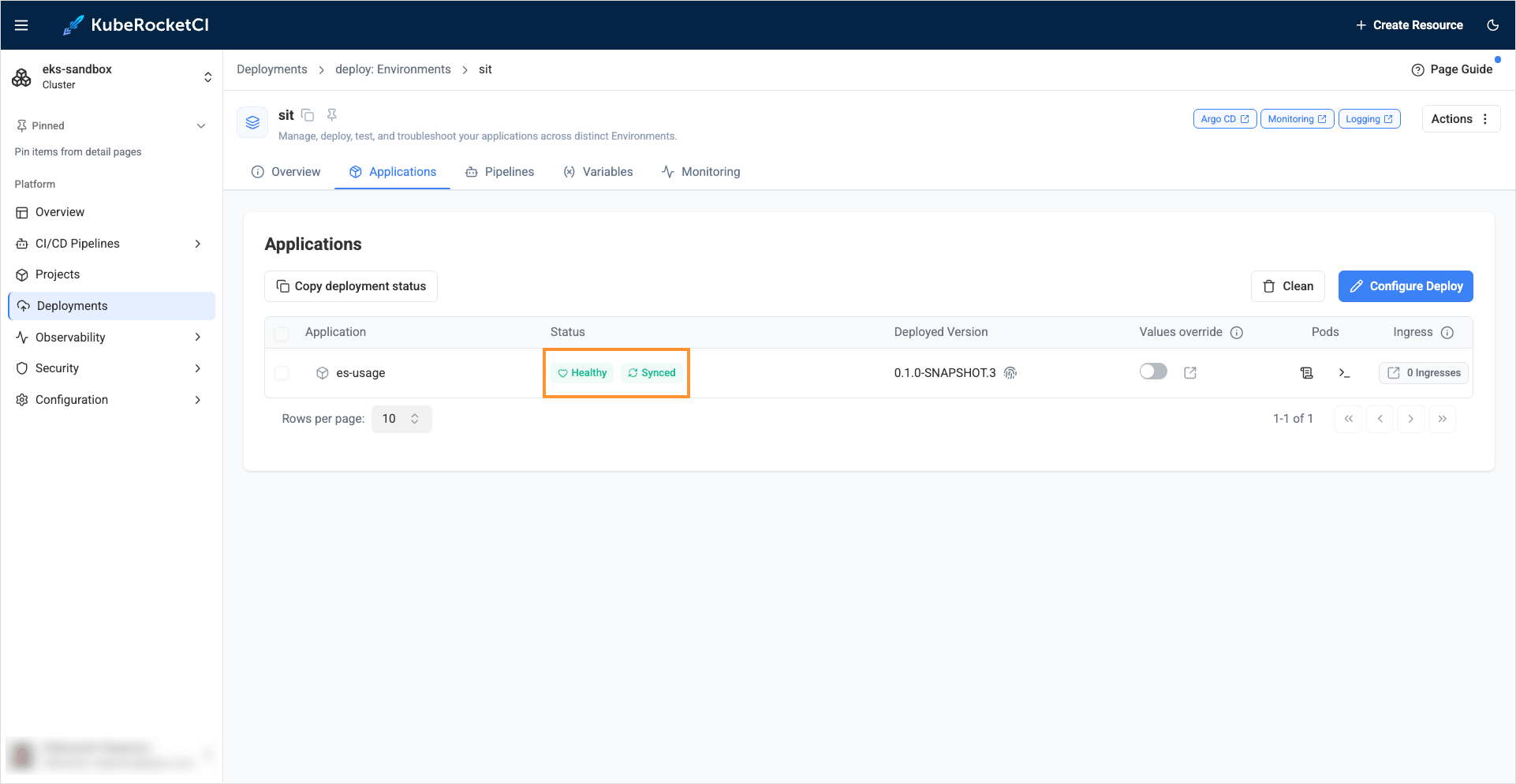

  5. Ensure application status is Healthy and Synced:

    App Synced

Check Application Status​

To ensure the application is deployed successfully, do the following:

  1. Check that the resources are deployed:

    kubectl get secretstore -n demo-deploy-sit
    NAME AGE STATUS CAPABILITIES READY
    demo 4m38s Valid ReadWrite True
    kubectl get externalsecret -n demo-deploy-sit
    NAME STORE REFRESH INTERVAL STATUS READY
    mongo demo 1h SecretSynced True
  2. In the top right corner, enter the Account settings and add demo-deploy-sit to the Allowed namespaces.

  3. Navigate to the Kubernetes tab in the bottom left corner, then go to Configuration -> Secrets and ensure that the mongo secret has been successfully created:

    Secrets

  4. Navigate to Workloads -> Pods and access the pod for the es-usage application, e.g. es-usage-7fdb577994-pwjps. Ensure that the environment variables for mongo have been successfully applied:

    Pod information
