Creating and Using Custom Tekton Pipelines

This use case explains how to create and use custom Tekton pipelines on the KubeRocketCI Platform. While KubeRocketCI offers pre-configured Tekton pipelines for common use cases, custom pipelines allow you to adapt workflows to meet unique project requirements. It also provides guidance on integrating and using these custom Tekton pipelines within your development processes.

Goals​

  • Provide a clear method for creating and configuring custom Tekton tasks and pipelines for build, review, deployment, and clean processes within KubeRocketCI.
  • Offer a detailed guide on integrating custom pipelines with the KubeRocketCI platform, ensuring seamless connection and functionality.
  • Clarify the process for replacing existing build, review, deployment, and clean pipelines with custom pipelines, highlighting necessary steps and considerations.
  • Demonstrate the benefits of using custom Tekton pipelines in KubeRocketCI, such as improved flexibility, scalability, and efficiency in development workflows.

Prerequisites​

Before proceeding with this use case, ensure the following prerequisites are met:

  • Access to a KubeRocketCI instance with permissions to create and edit Components and Environments.
  • A configured KubeRocketCI instance with at least one active GitServer (e.g., GitHub, GitLab or Bitbucket).
  • Configured Argo CD instance with the Add-ons repository added.

Scenario​

  • Create a Tekton library in KubeRocketCI for storing and managing custom Tekton resources.
  • Define custom Tekton pipelines for build, review, deployment, or clean processes based on specific project requirements.
  • Integrate custom Tekton pipelines with the KubeRocketCI platform to automate build, review, and deployment workflows using Argo CD and the add-ons repository.
  • Replace existing build, review, deploy, or clean pipelines with custom pipelines.

Creating a Tekton Library for Custom Pipelines​

The first step in creating and using custom Tekton pipelines is to set up a Tekton library in KubeRocketCI. This library acts as a central repository for storing and managing custom Tekton tasks, pipelines, and trigger templates.

To create a Tekton library, follow these steps:

  1. Open the KubeRocketCI portal. Use the Sign-In option:

    Logging Page

  2. In the top-right corner, click the three dots (â‹®) menu. From the dropdown, select your profile name to access additional options:

    Settings

  3. Ensure that both Default namespace and Allowed namespaces are set to the same namespace where you want to create the Tekton library:

    Namespace

  4. Click the Components tab in the left-hand navigation menu. Then, click the Create Component button. Choose the Component type as Library:

    Create Component

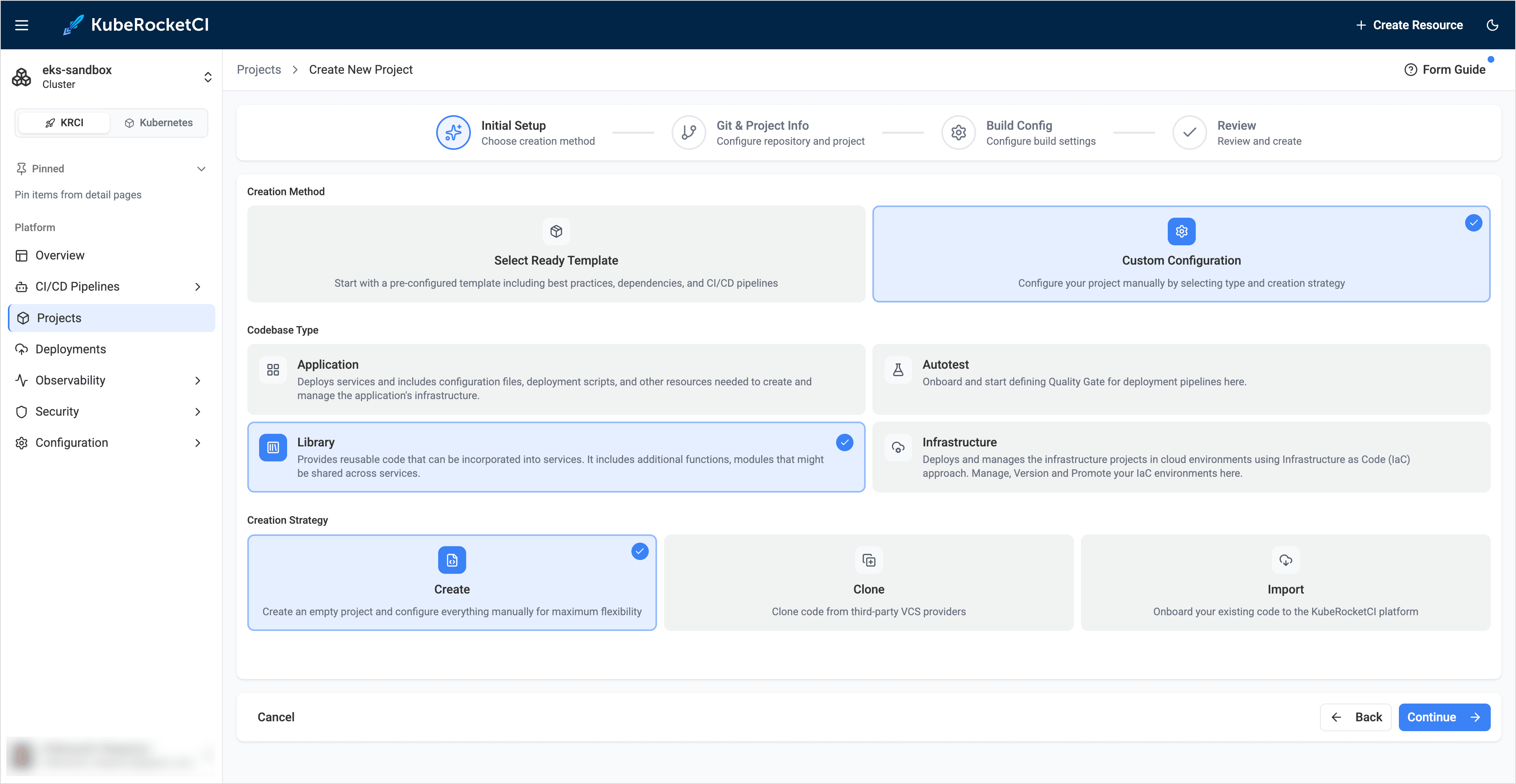

  5. Select the Strategy type as Create from template:

    Strategy type

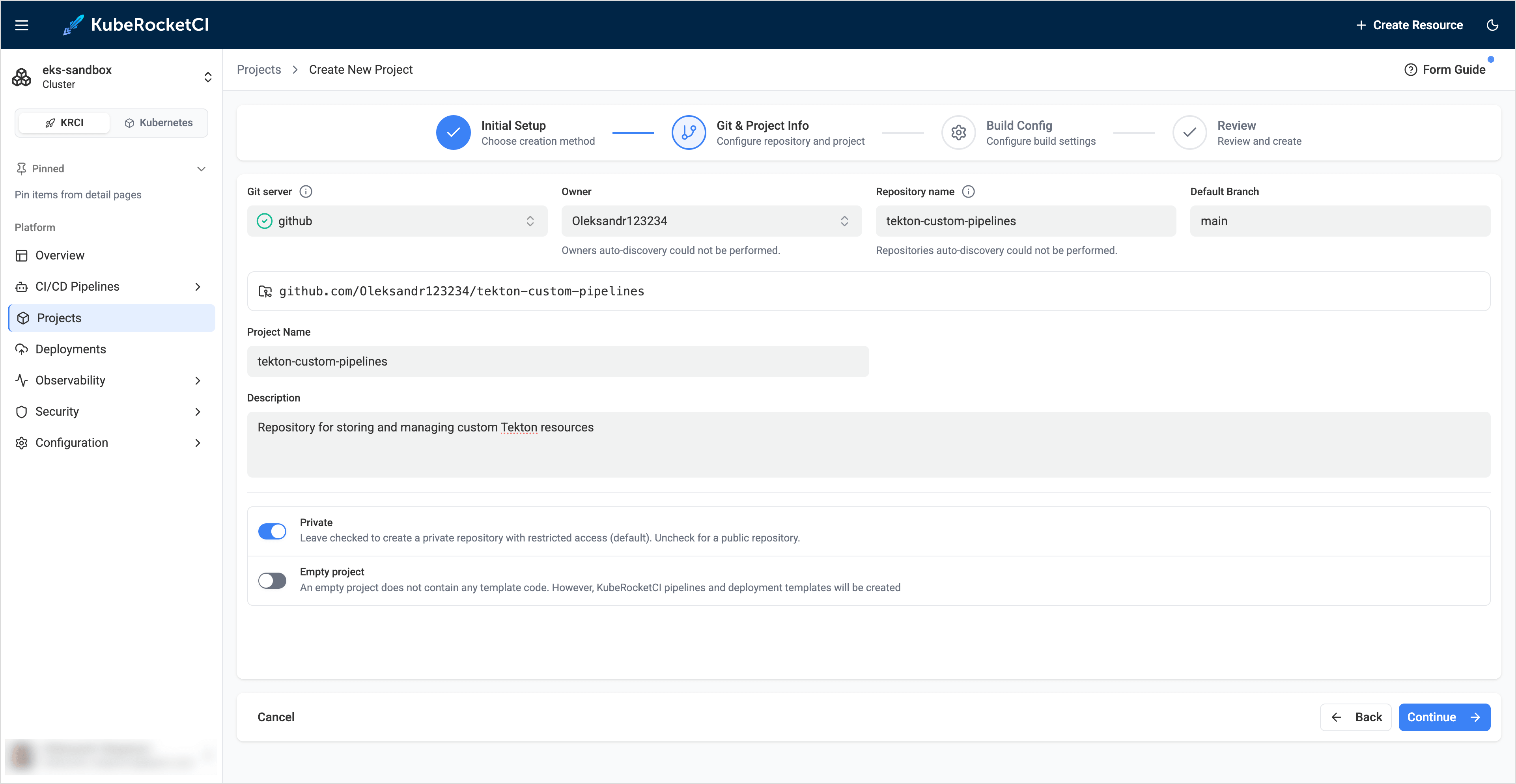

  6. In the Add Component Info section, enter the following values:

    • Repository Name: tekton-custom-pipelines
    • Component name: tekton-custom-pipelines
    • Description: Repository for storing and managing custom Tekton resources
    • Library code language: Helm
    • Language version/framework: Pipeline
    • Build tool: Helm

    Component Info

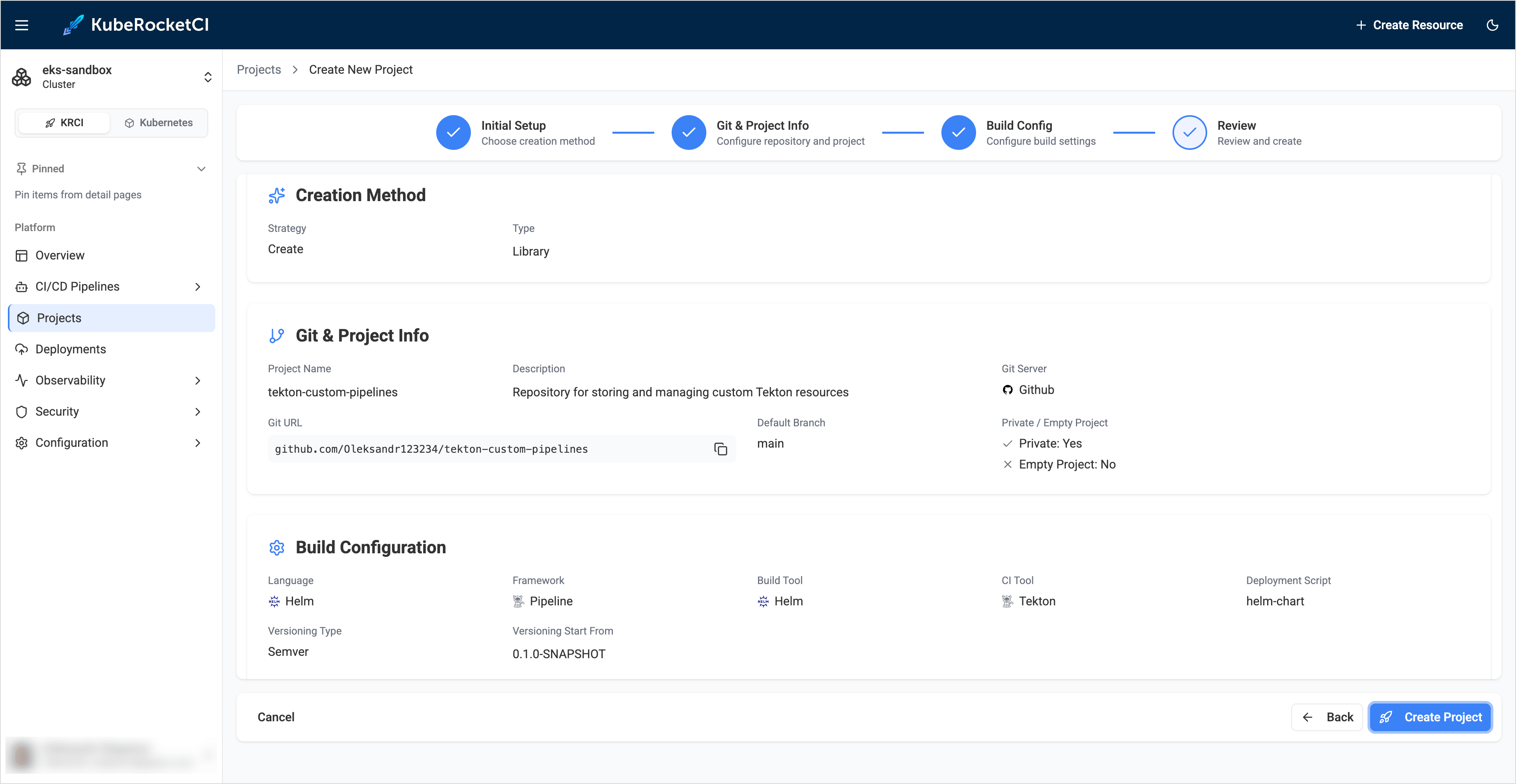

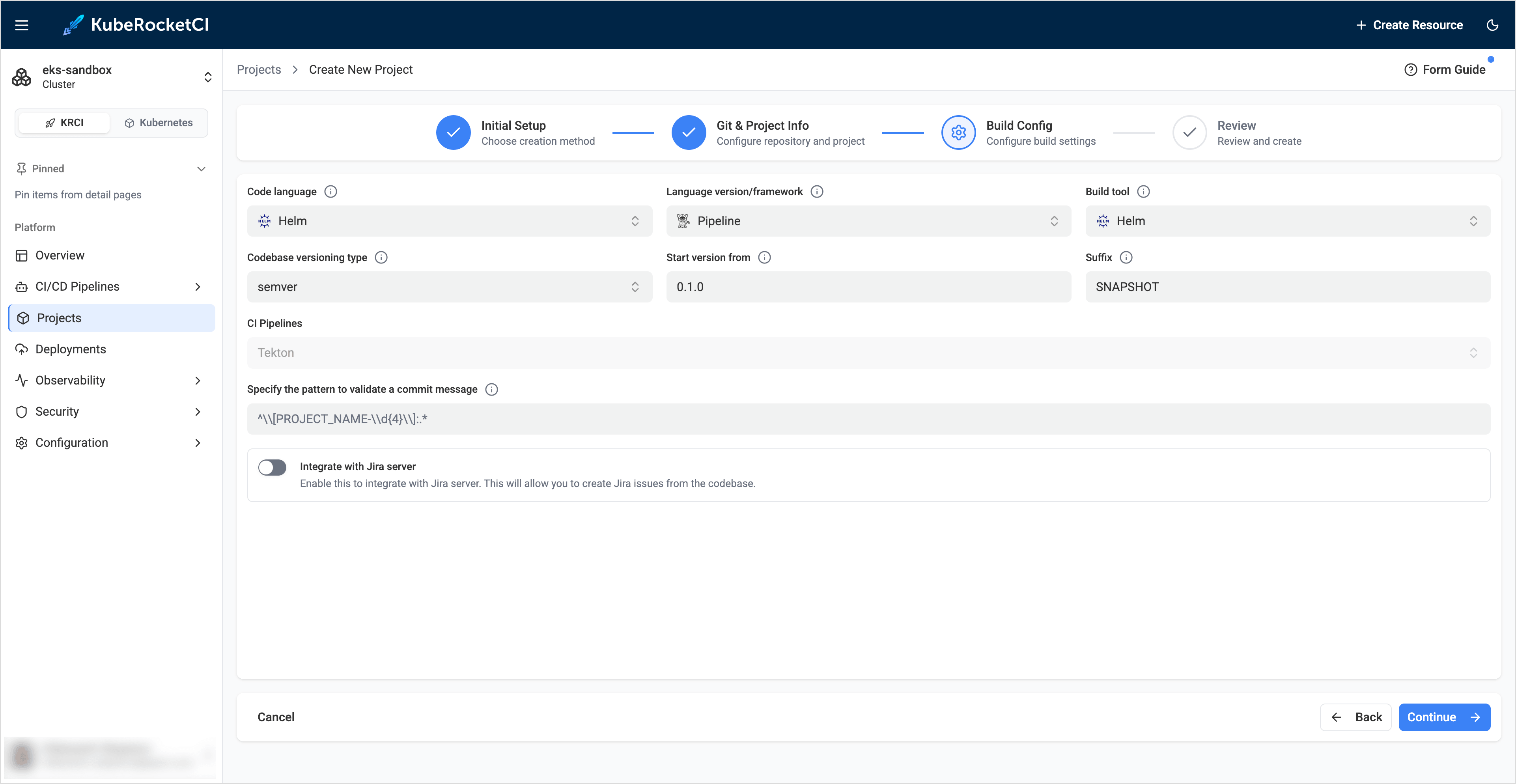

  7. In the Specify Advanced Settings section, you can leave all fields at their default values. Click the Create button to create the Tekton library:

    Advanced Settings

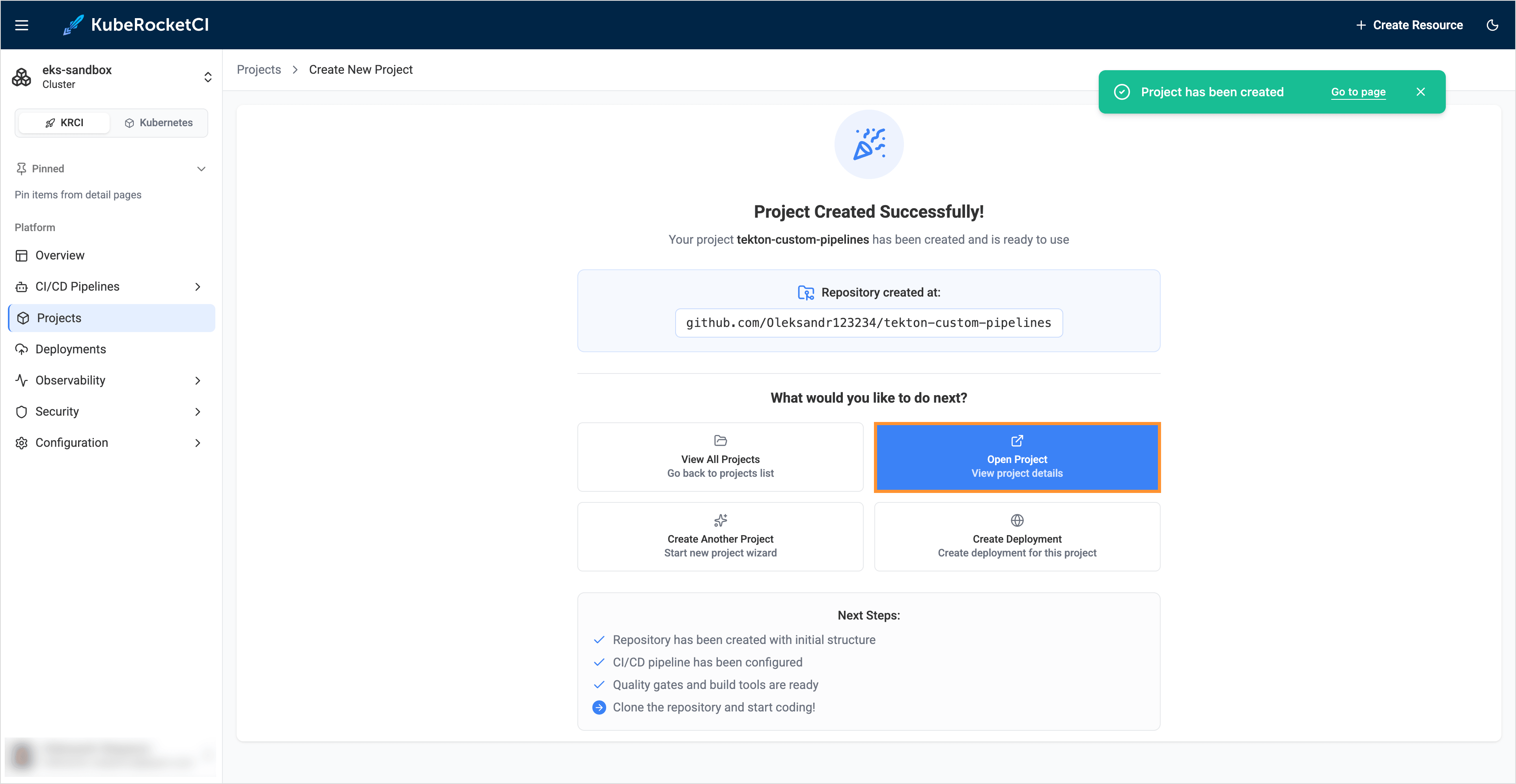

  8. Once the library is created, you can start adding custom Tekton tasks, pipelines, and trigger templates to the library.

Defining Custom Tekton Pipelines​

After creating the Tekton library, the next step is to define custom Tekton pipelines for build, review or deployment processes based on your project requirements.

To define custom Tekton pipelines, follow these steps:

  1. In the KubeRocketCI portal, navigate to the Components tab and select the newly created tekton-custom-pipelines library:

    Tekton Library

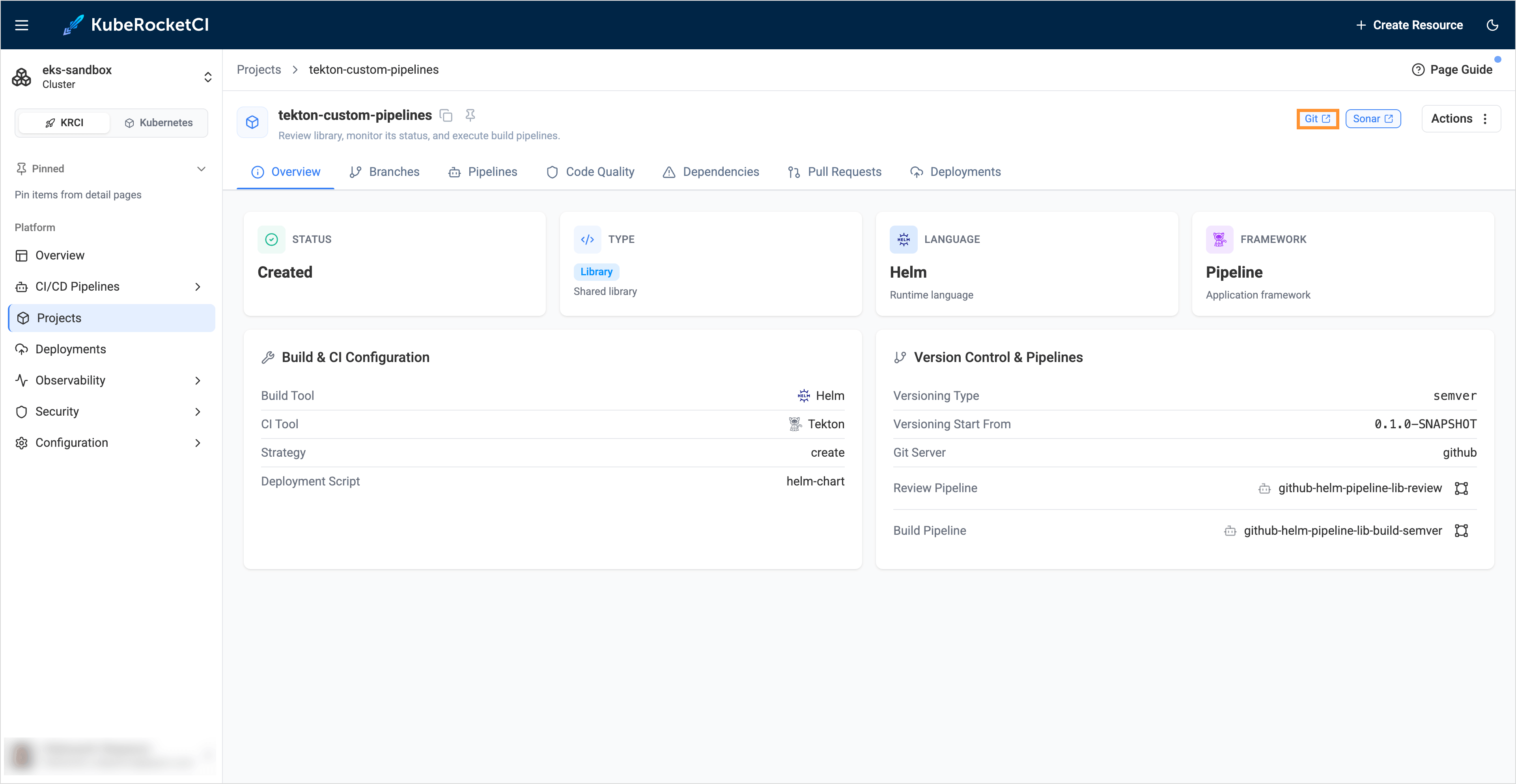

  2. In the top-right corner, click the Git button to open the Git repository for the tekton-custom-pipelines library:

    Git Repository

  3. Clone the repository to your local machine:

    Clone Repository

    You can use the following command to clone the repository:

    git clone <git-repo-url>
  4. Examine the repository structure.

    By default, the repository structure looks as follows:

    tekton-custom-pipelines
    ├── Chart.yaml
    ├── templates
    │   ├── pipelines
    │   │   ├── deploy
    │   │   │   ├── custom-clean.yaml
    │   │   │   └── custom-deploy.yaml
    │   │   ├── bitbucket-build-default.yaml
    │   │   ├── bitbucket-build-edp.yaml
    │   │   ├── bitbucket-build-lib-default.yaml
    │   │   ├── bitbucket-build-lib-edp.yaml
    │   │   ├── bitbucket-review.yaml
    │   │   ├── gerrit-build-default.yaml
    │   │   ├── gerrit-build-edp.yaml
    │   │   ├── gerrit-build-lib-default.yaml
    │   │   ├── gerrit-build-lib-edp.yaml
    │   │   ├── gerrit-review.yaml
    │   │   ├── github-build-default.yaml
    │   │   ├── github-build-edp.yaml
    │   │   ├── github-build-lib-default.yaml
    │   │   ├── github-build-lib-edp.yaml
    │   │   ├── github-review.yaml
    │   │   ├── gitlab-build-default.yaml
    │   │   ├── gitlab-build-edp.yaml
    │   │   ├── gitlab-build-lib-default.yaml
    │   │   ├── gitlab-build-lib-edp.yaml
    │   │   └── gitlab-review.yaml
    │   ├── resources
    │   │   └── npm-settings.yaml
    │   ├── tasks
    │   │   ├── deploy
    │   │   │   └── hello-world-deploy.yaml
    │   │   └── hello-world.yaml
    │   └── triggers
    │   ├── custom-clean.yaml
    │   └── custom-deploy.yaml
    └── values.yaml
    • The templates directory is a main directory that contains templates for custom Tekton resources. This directory is divided into subdirectories for pipelines, tasks, triggers, and resources.

    • The templates/pipelines directory contains Tekton pipeline templates for build and review processes. For each Git server (e.g., GitHub, GitLab, Bitbucket, or Gerrit), there are specific templates, organized by component and versioning type.

      • The appropriate template should be selected based on the configuration of your component. For example:

        • If the component is created in GitHub, has the Application component type, and uses edp versioning, you should use the github-build-edp.yaml template.
        • If the component is created in Bitbucket, has the Library component type, and uses the default versioning, you should use the bitbucket-build-lib-default.yaml template.

        Here is an example illustrating the naming conventions used in template filenames:

        Pipeline Templates

    • The templates/pipelines/deploy directory contains Tekton pipeline templates for deploy and clean processes. Select the appropriate template based on the deployment process requirements.

    • The templates/tasks directory contains Tekton task templates for specific tasks that are part of the build, review, or deployment processes.

    • The templates/triggers directory contains Tekton trigger templates for triggering the deployment or clean processes.

    • The templates/resources directory is intended for various templates, such as config maps and secrets, which can be mounted into custom Tekton tasks as needed.

  5. Modify the existing pipeline and task templates or create new ones based on your project requirements.

    Result: This step will demonstrate an example of creating custom Tekton resources. After completing this step, you will have a custom Tekton task, pipeline, and trigger template.

    Usage: The created custom Tekton resources can be used later for components on the KubeRocketCI platform. This flow serves as an example that can be used when creating your own, specific custom Tekton resources for your project's needs

    Consider the scenario where a custom task hello-world needs to be created and used in a custom Tekton pipeline. Follow the steps below to achieve this:

    1. Create a custom Tekton task.

      Create a custom Tekton task called hello-world to be used in a custom build pipeline. This task should be created in the templates/tasks directory with the name hello-world.yaml. The task will accept two parameters: BASE_IMAGE and username. The BASE_IMAGE parameter specifies the base Docker image to be used for the task, while the username parameter is used to personalize the task's output.

      Here is an example of the hello-world.yaml task template:

      apiVersion: tekton.dev/v1beta1
      kind: Task
      metadata:
      name: hello-world
      labels:
      {{- include "edp-tekton.labels" . | nindent 4 }}
      spec:
      params:
      - name: BASE_IMAGE
      type: string
      default: "alpine"
      description: "The base Docker image to use for the task"
      - name: username
      type: string
      description: "The username to personalize the task's output"
      workspaces:
      - description: A workspace that contains fetched git repo.
      name: source
      steps:
      - name: hello-world
      image: $(params.BASE_IMAGE)
      workingDir: $(workspaces.source.path)
      script: |
      #!/bin/sh
      echo "Hello $(params.username), the repository contains the following files:"
      ls -al
    2. Create a Custom Tekton Pipeline.

      Define a custom Tekton pipeline that uses the hello-world custom task. Since the application for which this pipeline will be used is located in GitHub, has the component type Application, and has the versioning type edp, use the template github-build-edp.yaml in the templates/pipelines directory. First, set the parameters in the spec.params field that will be used in the custom task:

      spec:
      params:
      - default: "World"
      description: "Example parameter"
      name: username
      type: string
      - default: 'alpine:3.18.9'
      name: image-version
      type: string

      Then, in the spec.tasks field, after the get-version task, describe the custom hello-world task. Also, in the subsequent git-tag task, specify the runAfter: hello-world field to maintain the sequence of execution.

      Here is an example of part of the github-build-edp.yaml pipeline template:

      apiVersion: tekton.dev/v1
      kind: Pipeline
      metadata:
      name: custom-deploy
      labels:
      app.edp.epam.com/pipelinetype: deploy
      spec:
      tasks:
      ...
      - name: hello-world
      taskRef:
      name: hello-world
      runAfter:
      - get-version
      params:
      - name: BASE_IMAGE
      value: "$(params.image-version)"
      - name: username
      value: "$(params.username)"
      workspaces:
      - name: source
      workspace: shared-workspace
      subPath: source

      - name: git-tag
      params:
      - name: GIT_USER_EMAIL
      value: edp-ci@edp.ci-user
      - name: GIT_USER_NAME
      value: edp-ci
      - name: GIT_SCRIPT
      value: |
      git tag -a "$(tasks.get-version.results.VCS_TAG)" -m "Tag is added automatically by CI user"
      git push --tags
      runAfter:
      - hello-world
      taskRef:
      kind: Task
      name: git-cli
      ...
    3. Create a Custom Tekton Trigger Template.

      Create a Tekton Trigger Template to invoke the custom github-build-edp pipeline. Use the custom-deploy.yaml template in the templates/triggers directory. Modify the .spec.resourcetemplates.spec.pipelineRef.name field to reference the custom pipeline that uses the hello-world custom Tekton task, in this case, custom-deploy.

      Here is the relevant part of the custom-deploy.yaml trigger template:

      spec:
      resourcetemplates:
      - apiVersion: tekton.dev/v1beta1
      kind: PipelineRun
      ...
      spec:
      pipelineRef:
      name: custom-deploy
      ...
    4. Optional: Specify the dnsWildCard field in the values.yaml file.

      If custom Tekton review pipelines have been created, it is necessary to specify the dnsWildCard field in the values.yaml file. This field will be used to form the pipelineUrl variable, which is utilized in merge and pull requests to navigate to the KubeRocketCI Portal.

      Here is an example of the values.yaml file:

      dnsWildCard: "example.com"
  6. Commit and push the changes to the Git repository.

    After modifying the pipeline and task templates, commit and push the changes to the Git repository. Use the following commands to commit and push the changes:

    git add .
    git commit -m "Add custom task and pipeline templates"
    git push origin main

Deliver Custom Tekton Pipelines to the cluster​

To deploy custom pipelines to the cluster, you can use Argo CD, which includes a repository with add-ons.

To deliver custom Tekton pipelines to the cluster, follow these steps:

  1. Clone the forked repository with add-ons and make the following changes. In the clusters/core/apps/values.yaml file, set the repoUrl and namespace fields to specify the Git URL of the tekton-custom-pipelines repository and the namespace where the KubeRocketCI platform is deployed. Also, set the kuberocketci-pipelines.enabled field to true to enable the deployment of the tekton-custom-pipelines Argo CD Application:

    kuberocketci-pipelines:
    enable: true
    namespace: <krci-namespace>
    repoUrl: ssh://git@github.com:22/<account-name>/tekton-custom-pipelines.git
  2. Commit and push the changes to the repository.

    After making the necessary changes, commit and push the changes to the repository. Use the following commands to commit and push the changes:

    git add .
    git commit -m "Enable custom Tekton pipelines deployment"
    git push origin main
  3. After pushing the changes, access Argo CD, navigate to the Application that corresponds to the repository with the add-ons, and initiate the Sync process. This will apply the tekton-custom-pipelines Helm Chart to the cluster within the specified namespace.

    Argo CD Sync

Replace existing pipelines for components with custom pipelines​

This section demonstrates how to replace existing build, review, deploy, and clean pipelines with custom pipelines in KubeRocketCI. Two cases are covered: replacing build and review pipelines for a created component, and replacing deploy and clean pipelines for an existing deployment flow.

  1. To replace existing review or build pipelines for a component with custom pipelines, follow these steps:

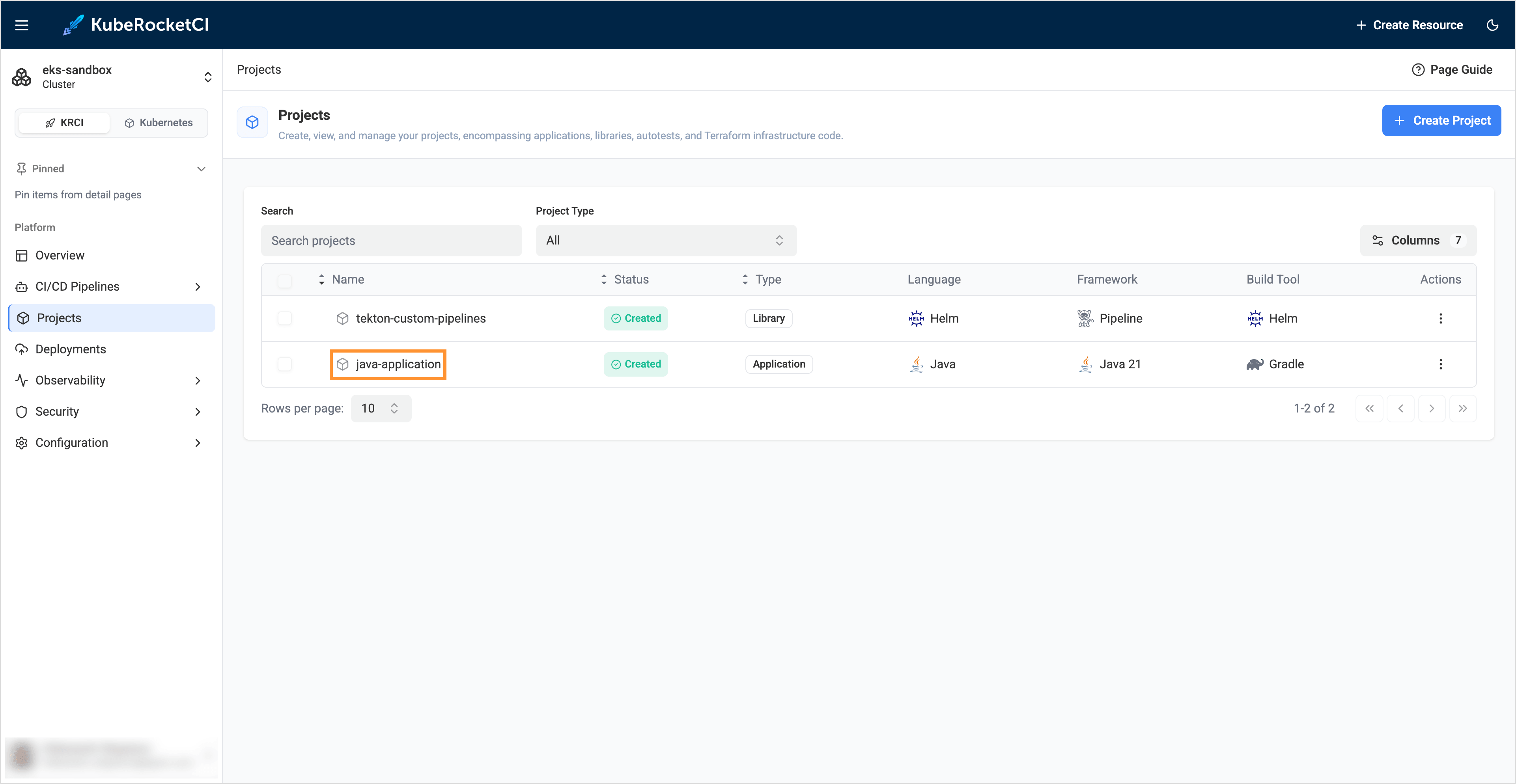

    1. Open the KubeRocketCI portal. Navigate to the Components tab and select the component for which you want to replace the build or review pipeline:

      Component

    2. In the Branches tab, select the branch for which you want to replace the pipeline. Click the three dots (â‹®) menu and click Edit:

      Edit Branch

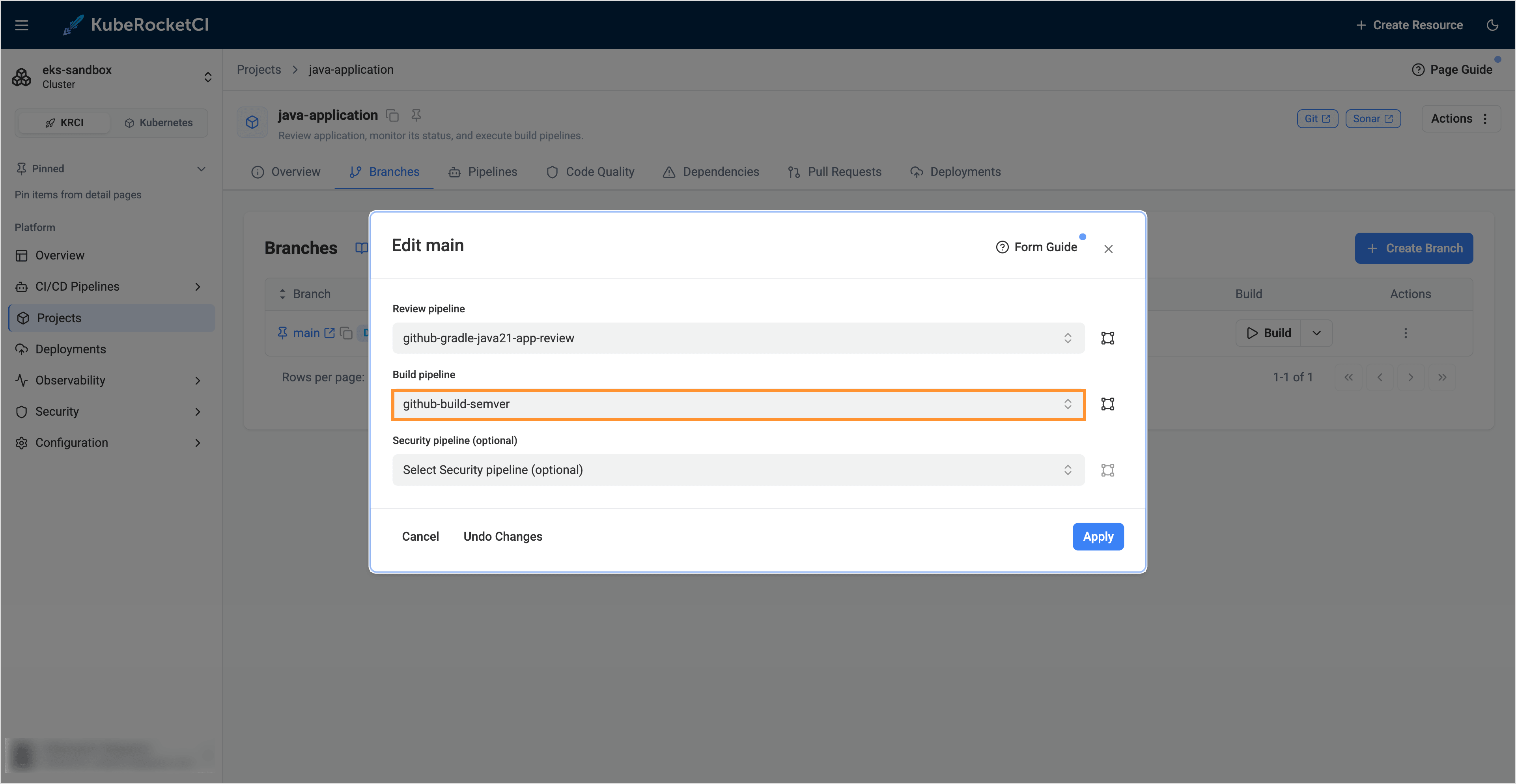

    3. In the Edit branch dialog, select the required build or review pipeline from the dropdown list:

      Select Pipeline

  2. To replace existing deploy or clean pipelines for a deployment flow with custom pipelines, follow these steps:

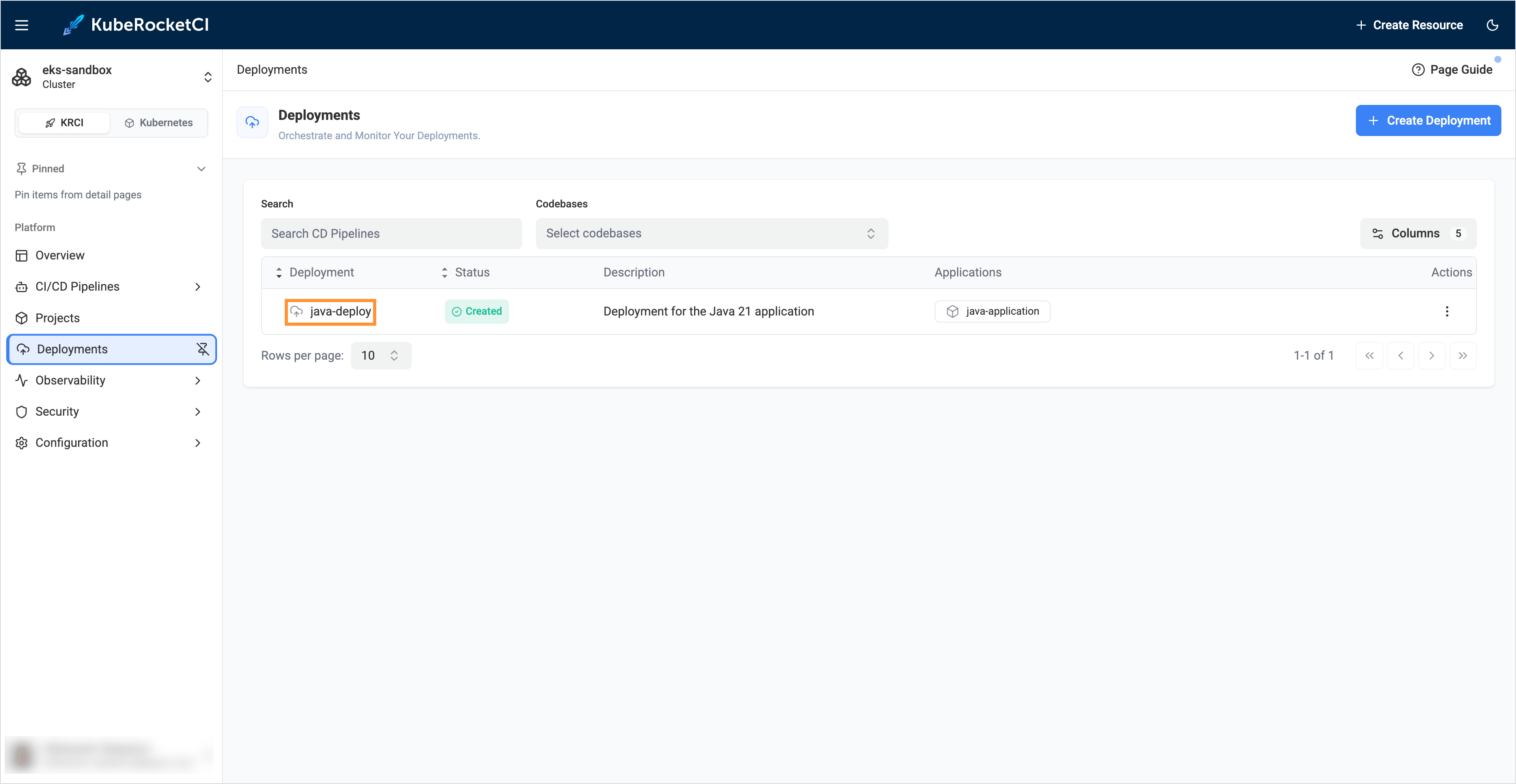

    1. Open the KubeRocketCI portal. Navigate to the Deployment Flows tab and select the deployment flow for which you want to replace the deploy or clean pipeline:

      Deployment Flow

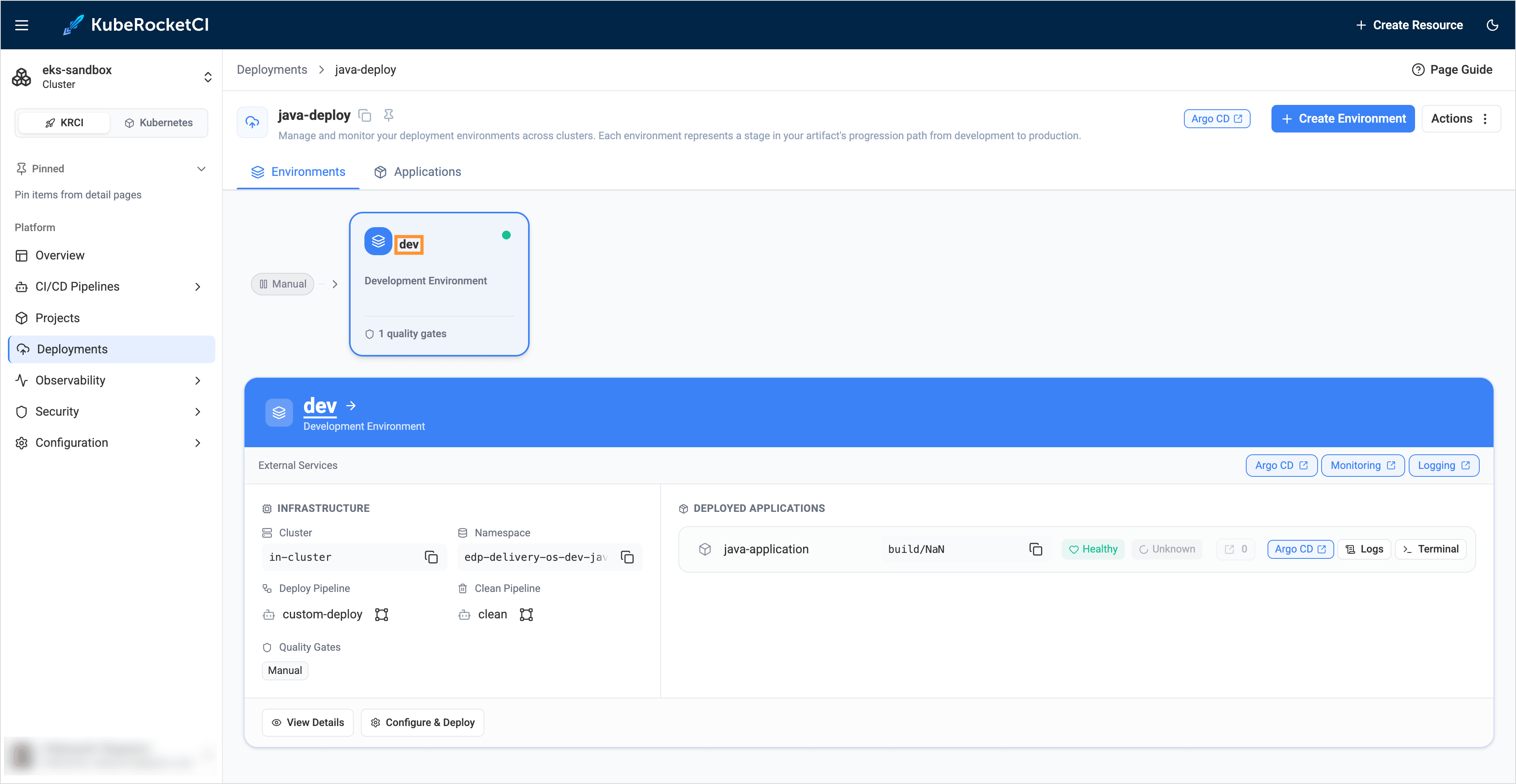

    2. Choose the required Environment:

      Environment

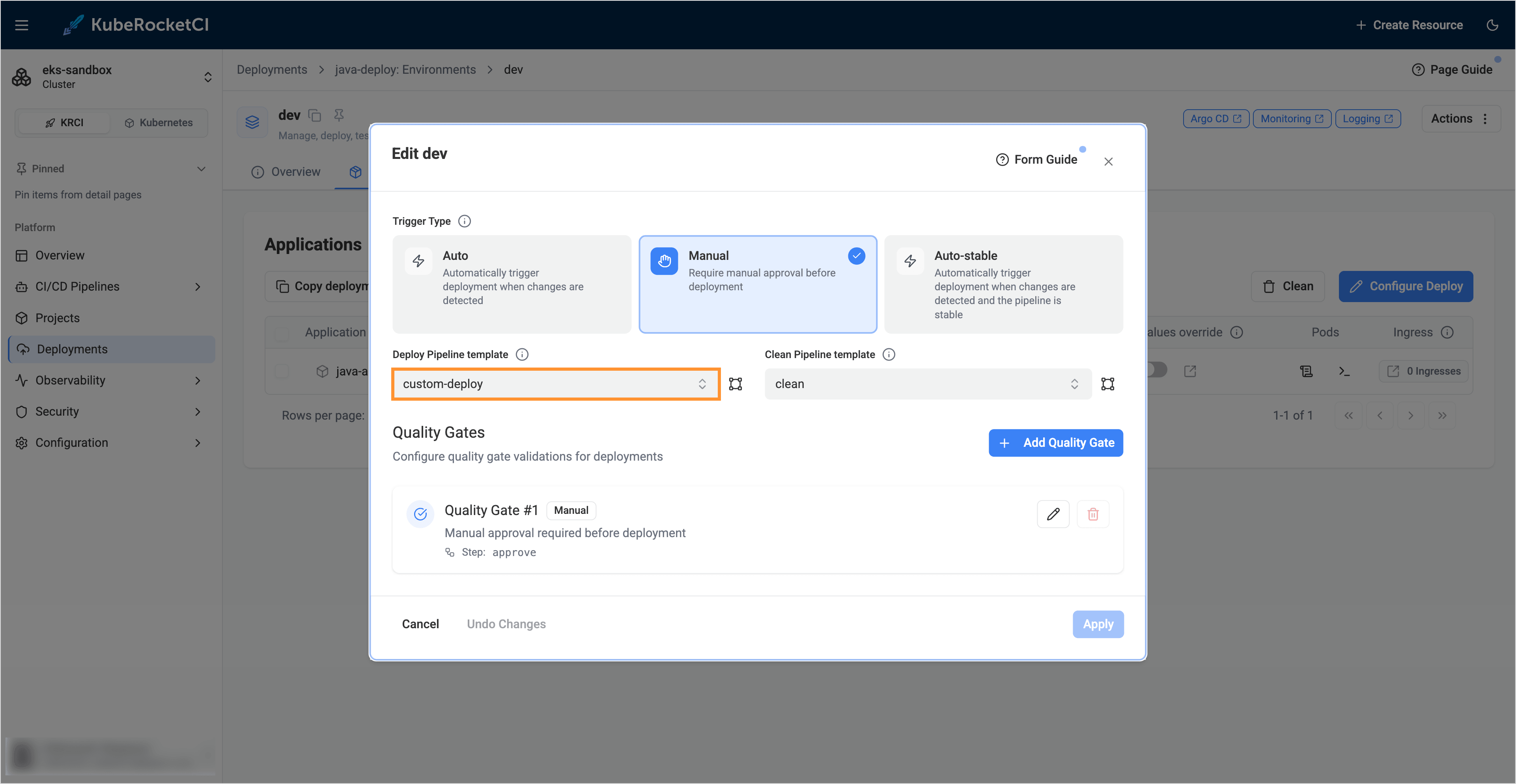

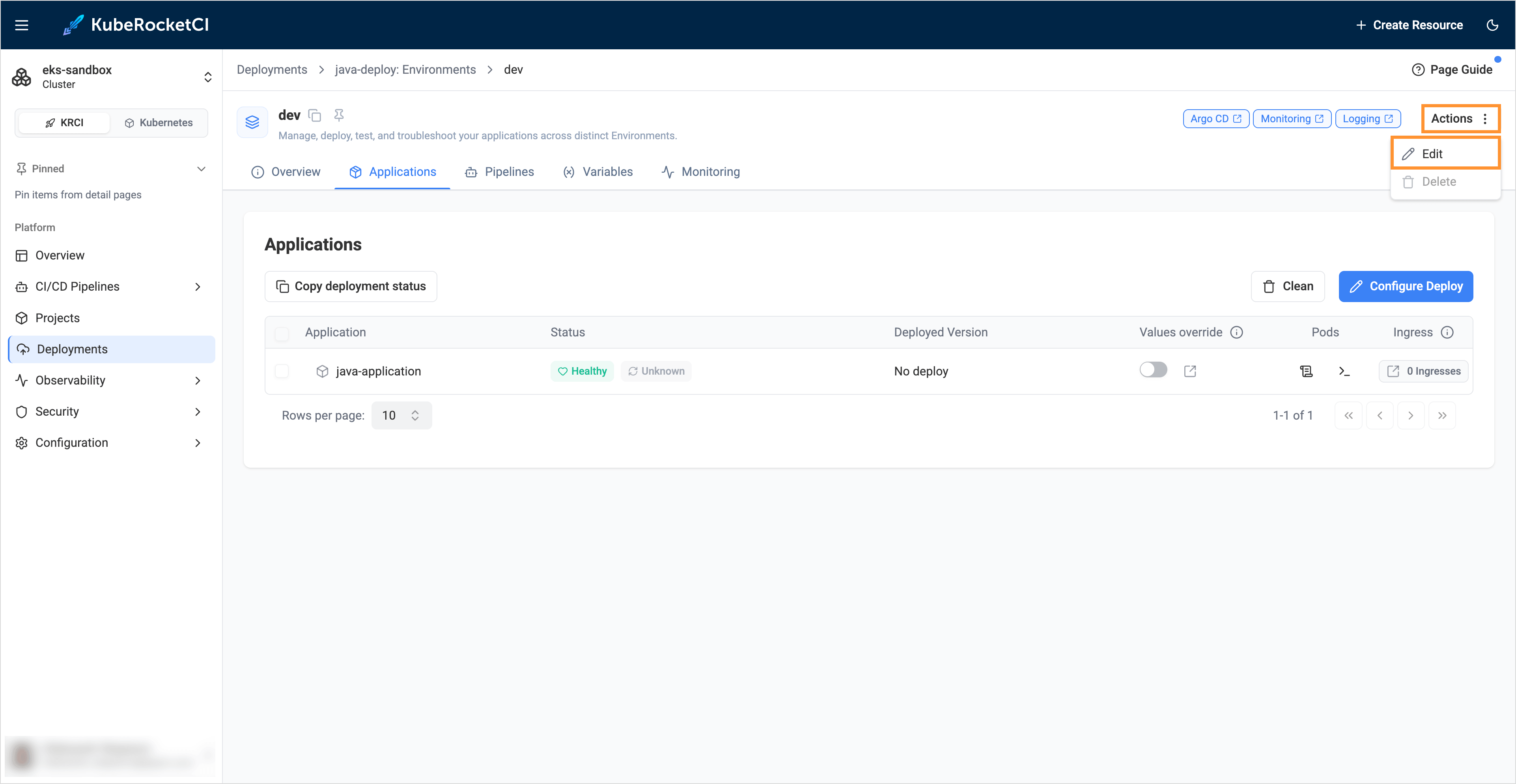

    3. In the Edit Environment dialog, select the required deploy or clean pipeline from the dropdown list:

      Select Pipeline
