Integrate DefectDojo

Inspect the main steps to perform for installing DefectDojo via Helm Chart.

info

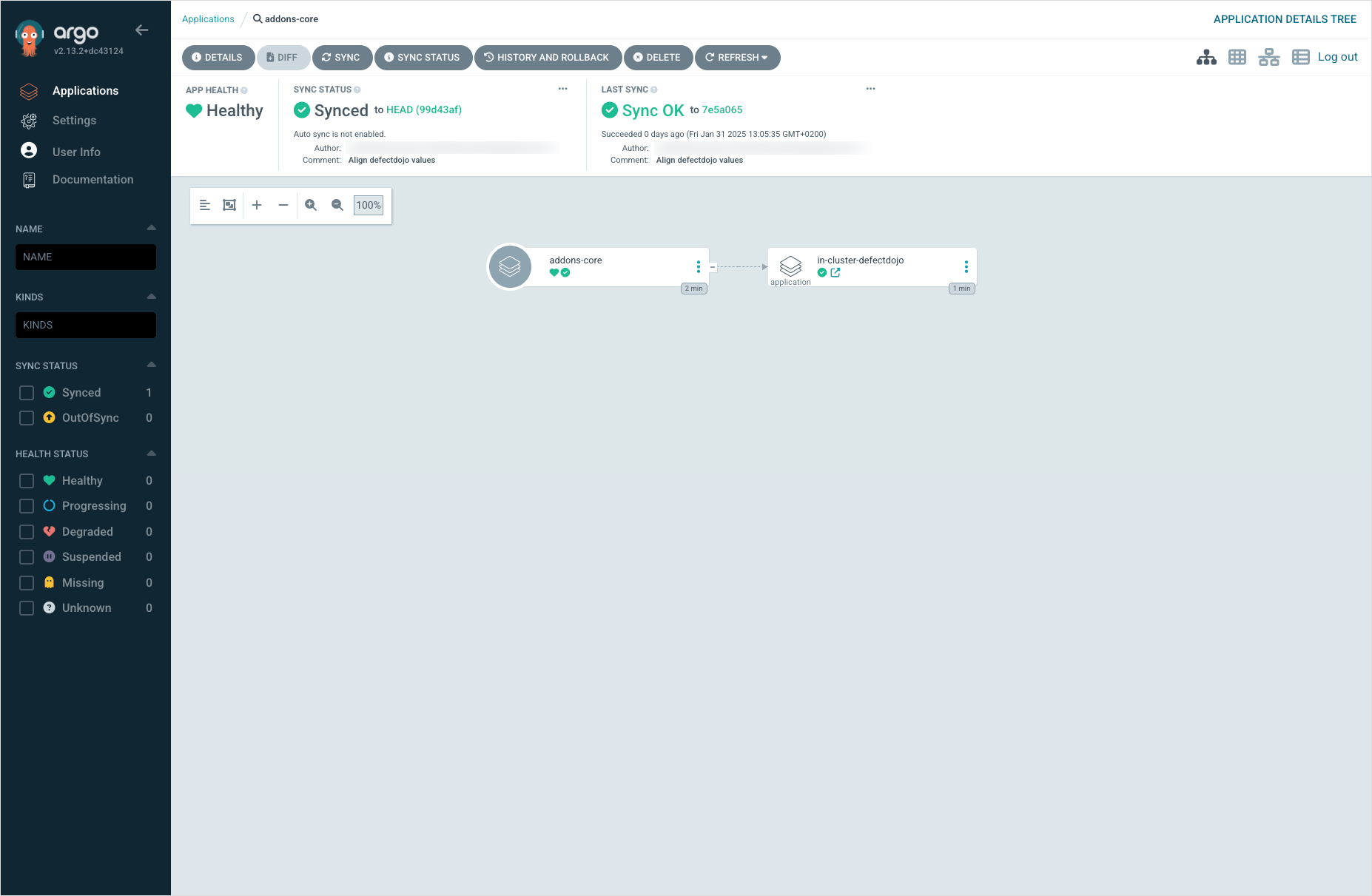

It is also possible to install DefectDojo using the add-ons approach. For details, please refer to the KubeRocketCI addons approach.

Prerequisites

• Kubectl version 1.26.0+ is installed. Please refer to the Kubernetes official website for details.
• Helm version 3.14.0+ is installed. Please refer to the Helm page on GitHub for details.

Installation

info

Please refer to the DefectDojo Helm Chart and Deploy DefectDojo into the Kubernetes cluster sections for details.

To install DefectDojo, follow the steps below:

1. Check that a security namespace is created. If not, run the following command to create it:

   kubectl create namespace defectdojo
   For the OpenShift users

   When using the OpenShift platform, install the SecurityContextConstraints resource. In case of using a custom namespace for defectdojo, change the namespace in the users section.

   View: defectdojo-scc.yaml

   allowHostDirVolumePlugin: false
   allowHostIPC: false
   allowHostNetwork: false
   allowHostPID: false
   allowHostPorts: false
   allowPrivilegeEscalation: true
   allowPrivilegedContainer: false
   allowedCapabilities: null
   apiVersion: security.openshift.io/v1
   allowedFlexVolumes: []
   defaultAddCapabilities: []
   fsGroup:
     type: MustRunAs
     ranges:
       - min: 999
         max: 65543
   groups: []
   kind: SecurityContextConstraints
   metadata:
     annotations:
         "helm.sh/hook": "pre-install"
     name: defectdojo
   priority: 1
   readOnlyRootFilesystem: false
   requiredDropCapabilities:
   - KILL
   - MKNOD
   - SETUID
   - SETGID
   runAsUser:
     type: MustRunAsRange
     uidRangeMin: 1
     uidRangeMax: 65543
   seLinuxContext:
     type: MustRunAs
   supplementalGroups:
     type: RunAsAny
   users:
   - system:serviceaccount:defectdojo:defectdojo
   - system:serviceaccount:defectdojo:defectdojo-rabbitmq
   - system:serviceaccount:defectdojo:default
   volumes:
   - configMap
   - downwardAPI
   - emptyDir
   - persistentVolumeClaim
   - projected
   - secret

2. Add a chart repository:

   helm repo add defectdojo 'https://raw.githubusercontent.com/DefectDojo/django-DefectDojo/helm-charts'
   helm repo update

3. Create PostgreSQL admin secret:

   kubectl -n defectdojo create secret generic defectdojo-postgresql-specific \
   --from-literal=postgresql-password=<postgresql_password> \
   --from-literal=postgresql-postgres-password=<postgresql_postgres_password>
   note

   The postgresql_password and postgresql_postgres_password passwords must be 16 characters long.

4. Create Rabbitmq admin secret:

   kubectl -n defectdojo create secret generic defectdojo-rabbitmq-specific \
   --from-literal=rabbitmq-password=<rabbitmq_password> \
   --from-literal=rabbitmq-erlang-cookie=<rabbitmq_erlang_cookie>
   note

   The rabbitmq_password password must be 10 characters long.

   The rabbitmq_erlang_cookie password must be 32 characters long.

5. Create DefectDojo admin secret:

   kubectl -n defectdojo create secret generic defectdojo \
   --from-literal=DD_ADMIN_PASSWORD=<dd_admin_password> \
   --from-literal=DD_SECRET_KEY=<dd_secret_key> \
   --from-literal=DD_CREDENTIAL_AES_256_KEY=<dd_credential_aes_256_key> \
   --from-literal=METRICS_HTTP_AUTH_PASSWORD=<metric_http_auth_password>
   note

   The dd_admin_password password must be 22 characters long.

   The dd_secret_key password must be 128 characters long.

   The dd_credential_aes_256_key password must be 128 characters long.

   The metric_http_auth_password password must be 32 characters long.

6. Install DefectDojo v.2.22.4 using defectdojo/defectdojo Helm chart v.1.6.69:

   helm upgrade --install \
   defectdojo \
   --version 1.6.69 \
   defectdojo/defectdojo \
   --namespace defectdojo \
   --values values.yaml

   Check out the values.yaml file sample of the DefectDojo customization:

   View: values.yaml

   tag: 2.22.4
   fullnameOverride: defectdojo
   host: defectdojo.<ROOT_DOMAIN>
   site_url: https://defectdojo.<ROOT_DOMAIN>
   alternativeHosts:
     - defectdojo-django.defectdojo

   initializer:
     # should be false after initial installation was performed
     run: true
   django:
     ingress:
       enabled: true # change to 'false' for OpenShift
       activateTLS: false
     uwsgi:
       livenessProbe:
         # Enable liveness checks on uwsgi container. Those values are use on nginx readiness checks as well.
         # default value is 120, so in our case 20 is just fine
         initialDelaySeconds: 20

7. For the OpenShift platform, install a Route:

   View: defectdojo-route.yaml

   kind: Route
   apiVersion: route.openshift.io/v1
   metadata:
     name: defectdojo
     namespace: defectdojo
   spec:
     host: defectdojo.<ROOT_DOMAIN>
     path: /
     tls:
       insecureEdgeTerminationPolicy: Redirect
       termination: edge
     to:
       kind: Service
       name: defectdojo-django
     port:
       targetPort: http
     wildcardPolicy: None


Configuration

To prepare DefectDojo for integration with KubeRocketCI, follow the steps below:

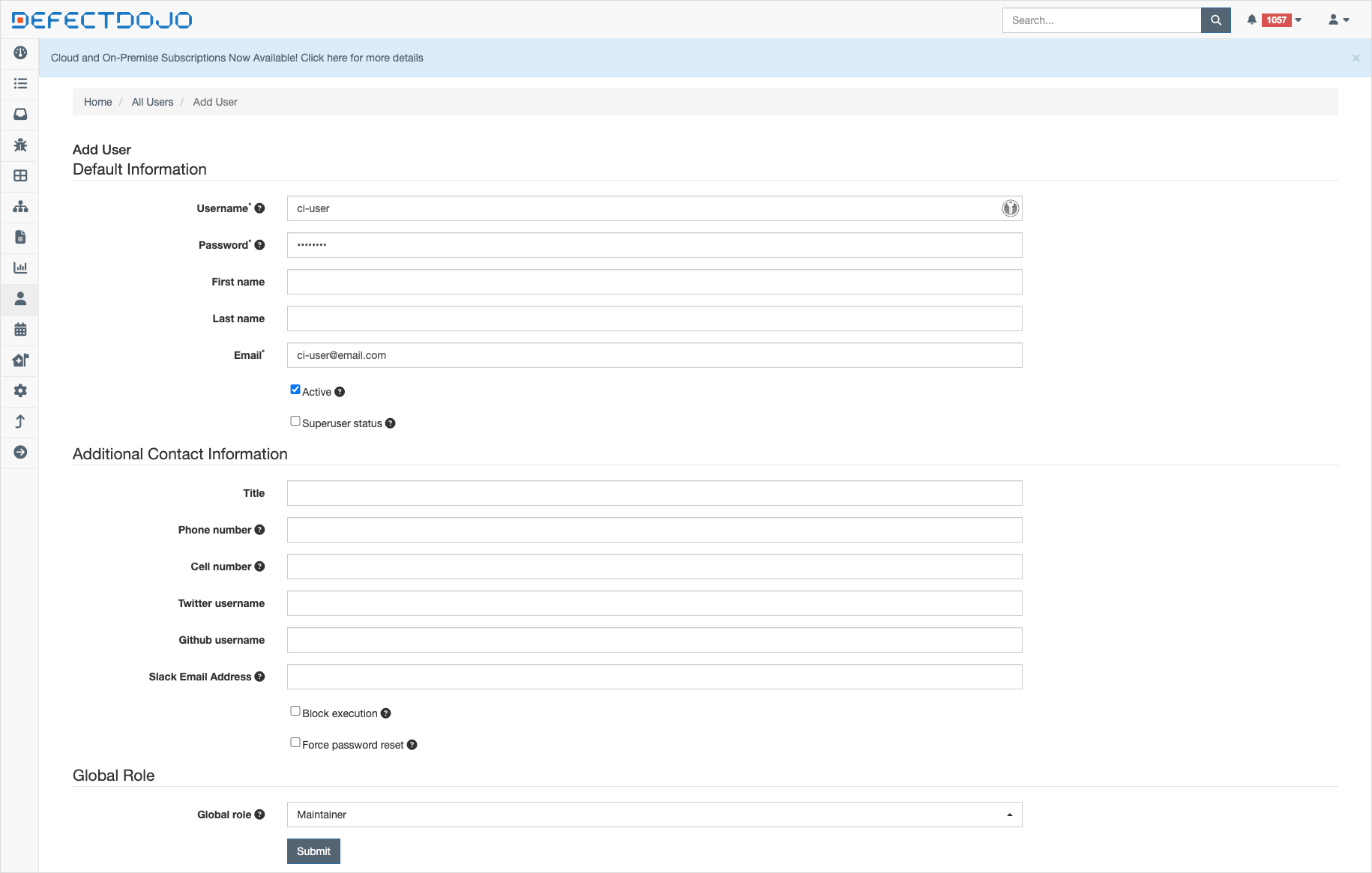

1. Create ci user in DefectDojo UI:

   • Login to DefectDojo UI using admin credentials:

     echo "DefectDojo admin password: $(kubectl \
     get secret defectdojo \
     --namespace=defectdojo \
     --output jsonpath='{.data.DD_ADMIN_PASSWORD}' \
     | base64 --decode)"

   • Go to User section

   • Create new user with write permission:

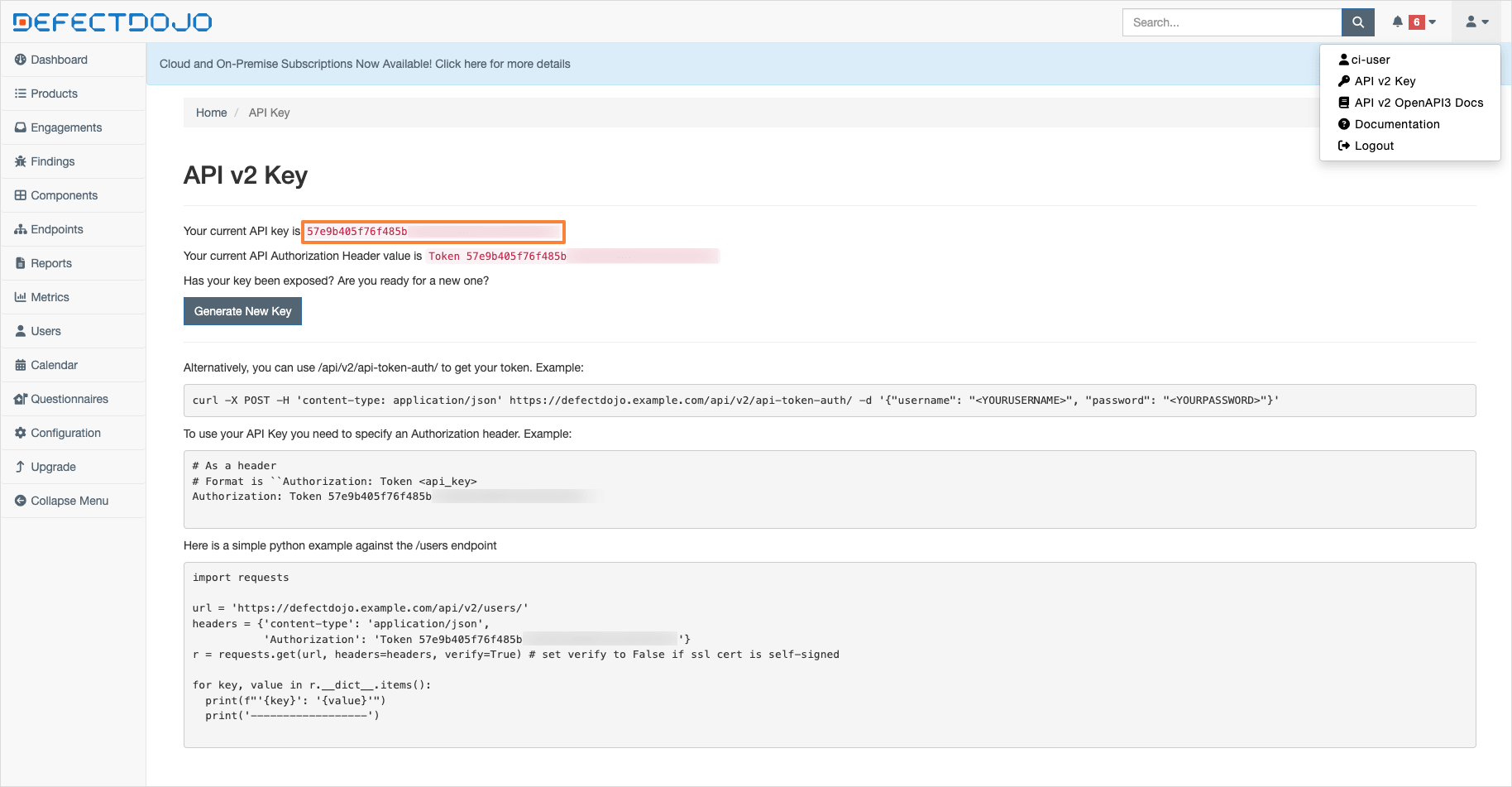

2. Get a token of the DefectDojo user:

   • Login to the DefectDojo UI using the credentials from previous steps.

   • Go to the API v2 key (token).

   • Copy the API key.

3. Provision the secret using UI Portal, Manifest or with the externalSecrets operator:

   EDP Portal

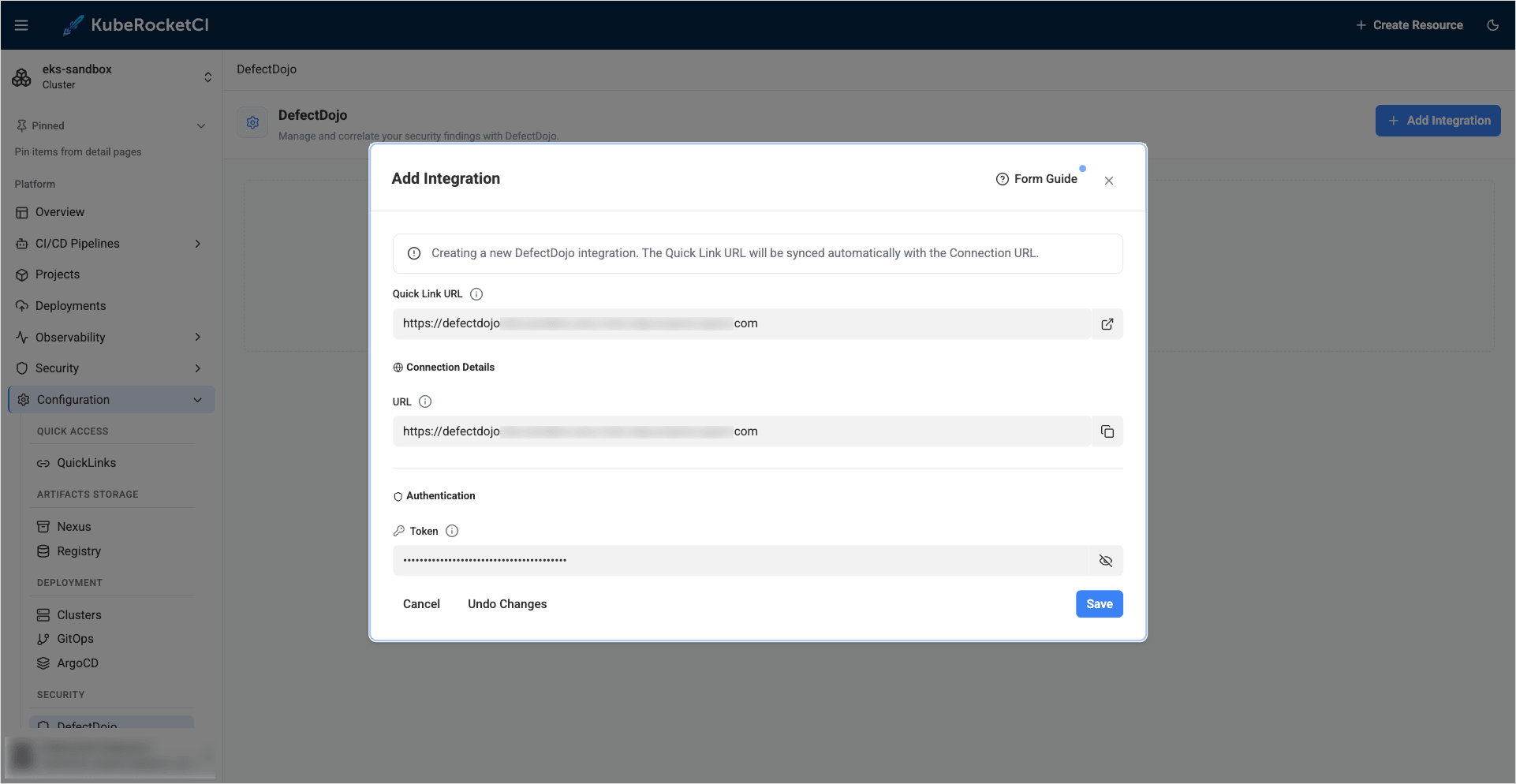

   Go to EDP Portal -> EDP -> Configuration -> DefectDojo. Update or fill in the URL and Token and click the Save button.



   Manifest

   apiVersion: v1
   kind: Secret
   metadata:
     name: ci-defectdojo
     namespace: edp
     labels:
       app.edp.epam.com/secret-type: defectdojo
       app.edp.epam.com/integration-secret: "true"
   stringData:
     url: https://defectdojo.example.com
     token: <token>

   External Secrets Operator

   Store defectdojo URL and Token in AWS Parameter Store with following format:

   "ci-defectdojo":
   {
     "url": "https://defectdojo.example.com",
     "token": "XXXXXXXXXXXX"
   }

   Go to EDP Portal -> EDP -> Configuration -> DefectDojo and see the Managed by External Secret message.

   More details about the External Secrets Operator integration procedure can be found in the External Secrets Operator Integration page.

After following the instructions provided, you should be able to integrate your DefectDojo with the KubeRocketCI using one of the available scenarios.
