Deploy Application

Now, let's proceed to deploy our first application. This page offers detailed instructions on how to create an environment and deploy the application within it.

Create GitOps Repository​

As a prerequisite, create a GitOps repository in your GitHub account. KubeRocketCI Portal adheres to the GitOps approach when working with environments. In a GitOps repository, values are saved to redefine the default behavior (parameters) of deployment for each environment. The creation of a GitOps repository involves the following two steps:

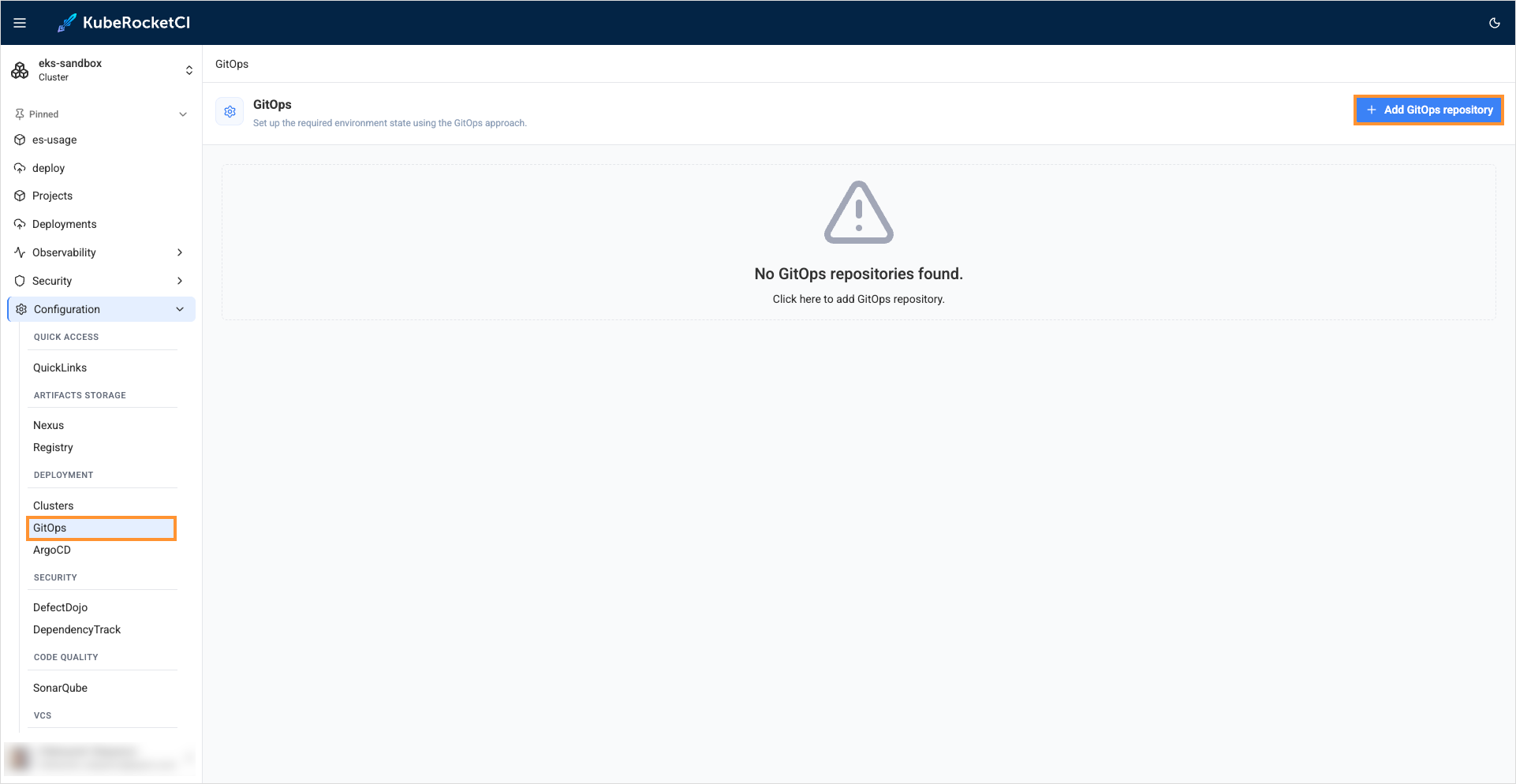

  1. In the UI Portal, navigate to Configuration -> Deployment -> GitOps and click + Add GitOps repository:

    GitOps tab

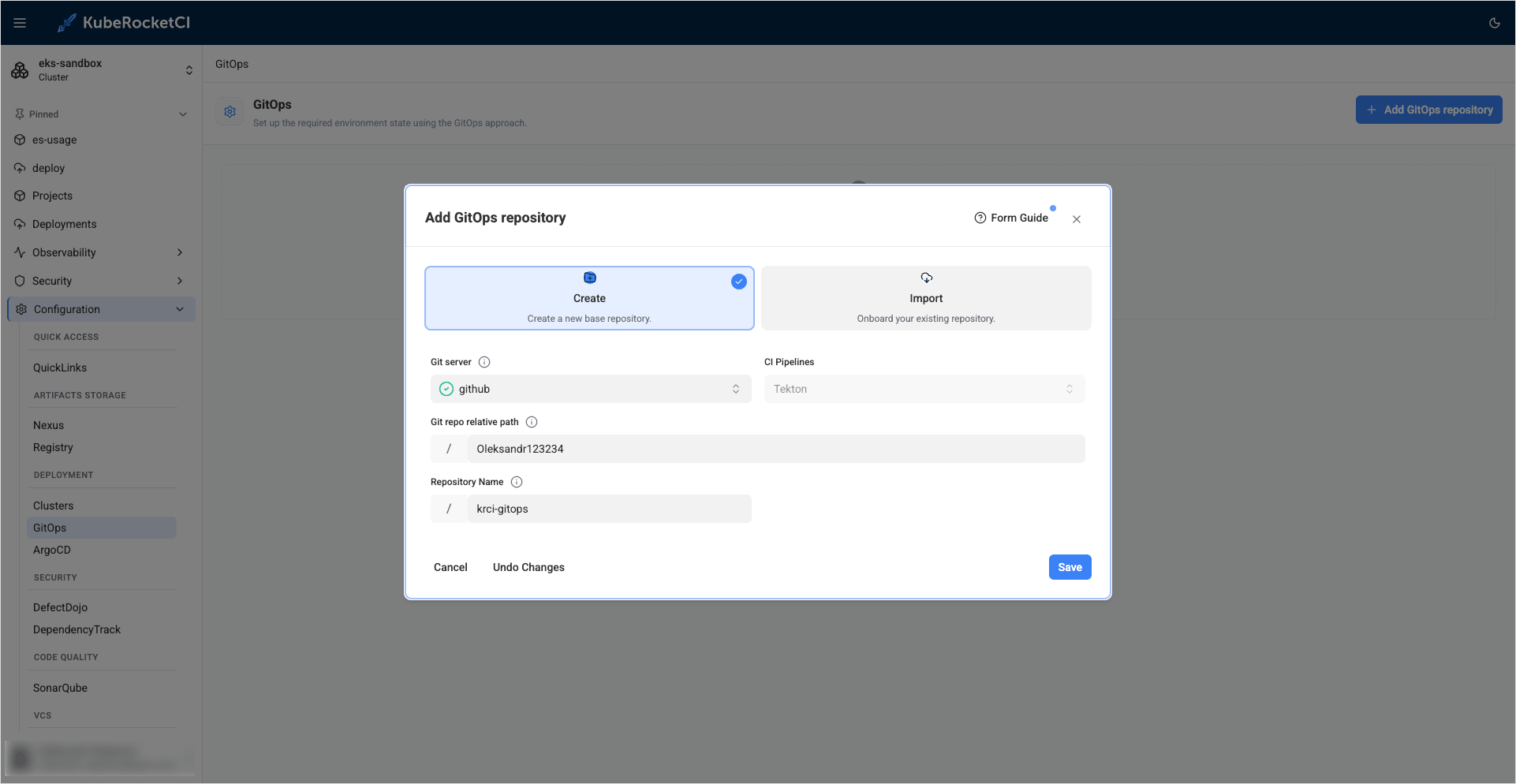

  2. Define the following values and click Save:

    • Git server: github
    • Git repo relative path: github_account_name
    • Repository Name: edp-gitops

    GitOps tab

Create Deployment Flow​

To create a deployment flow, follow the steps below:

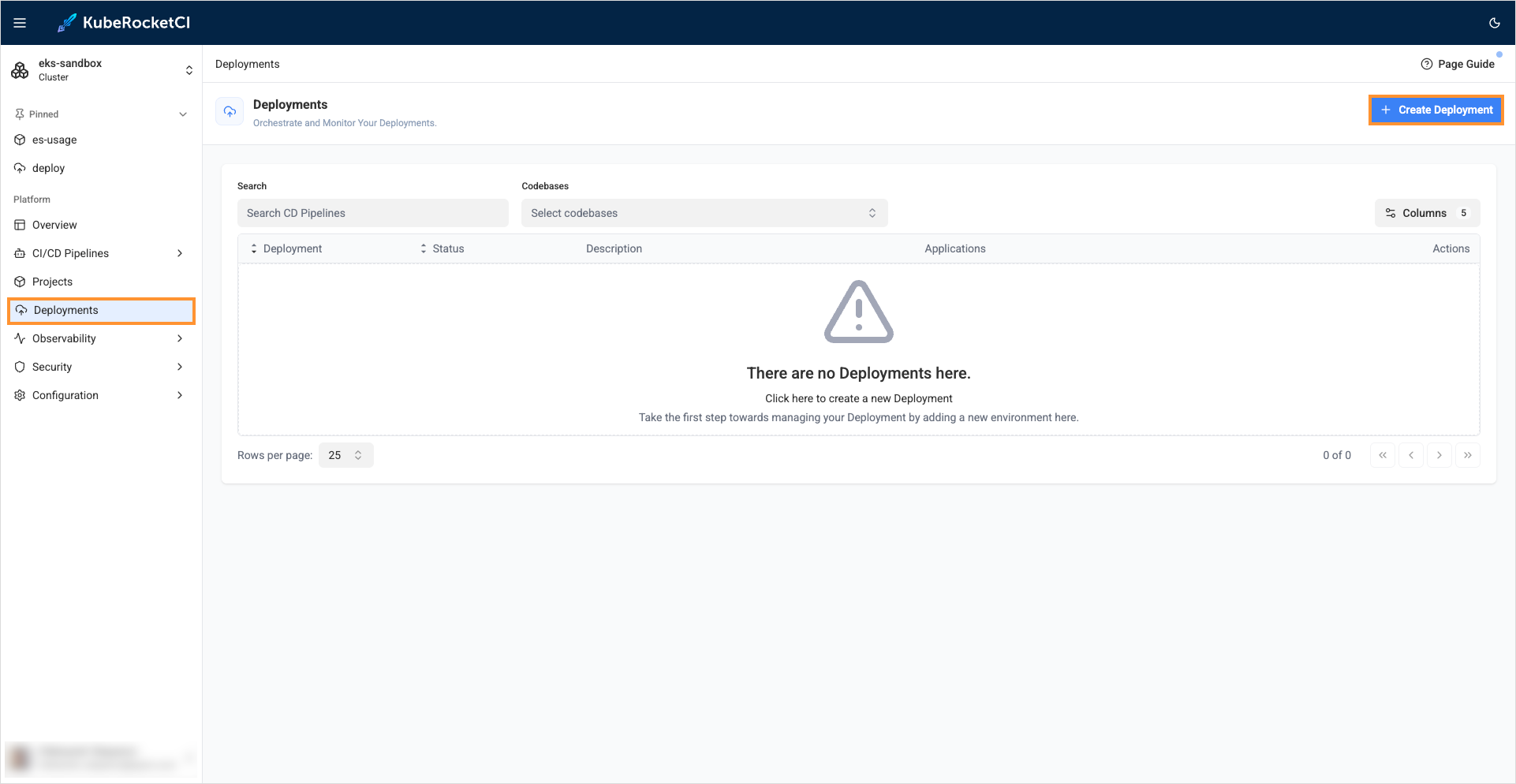

  1. In the UI Portal, navigate to Deployment Flows and click the + Create deployment flow button:

    Deployment flows section

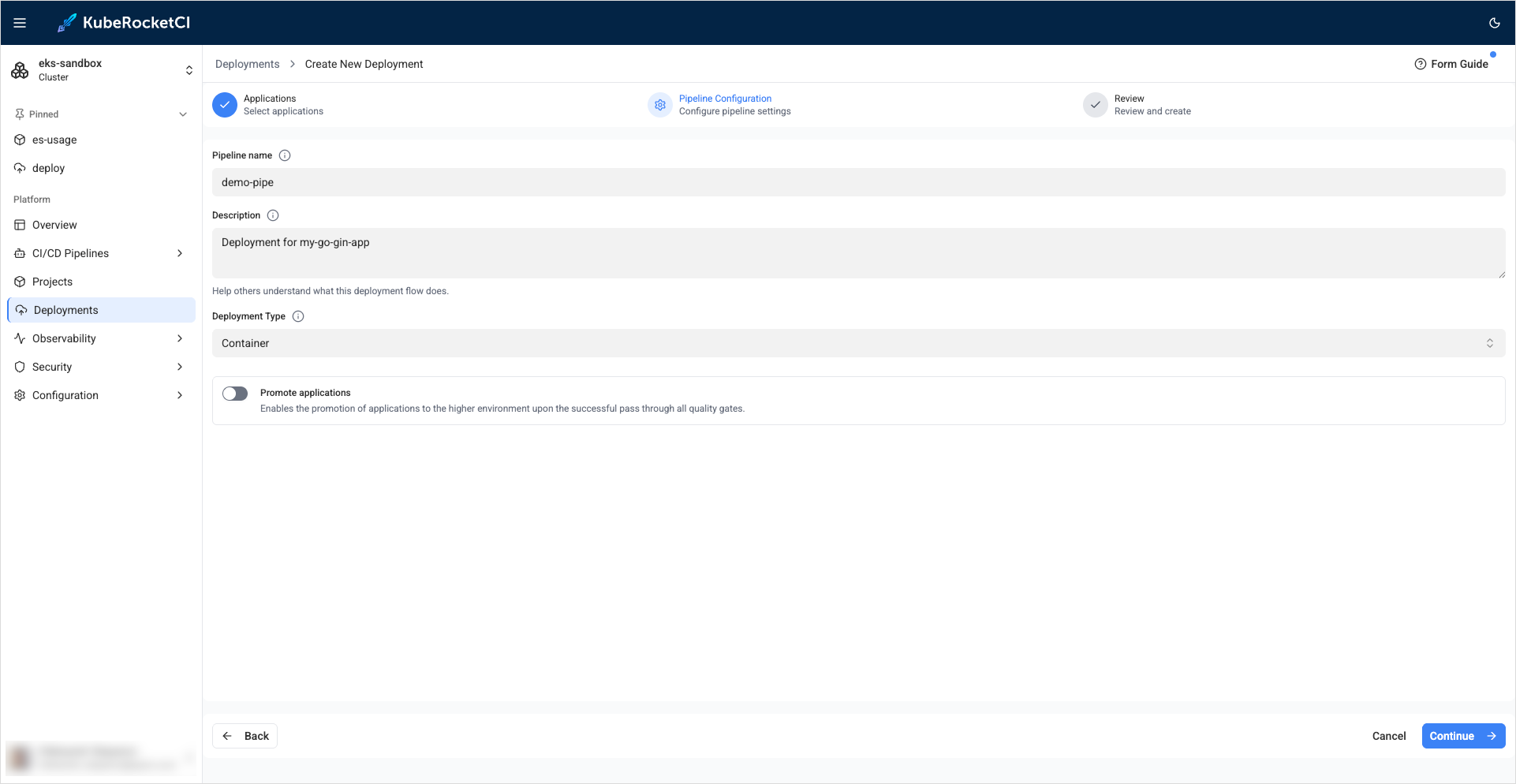

  2. In the Create deployment flow window, enter the pipeline name and click the Next button:

    Enter name tab

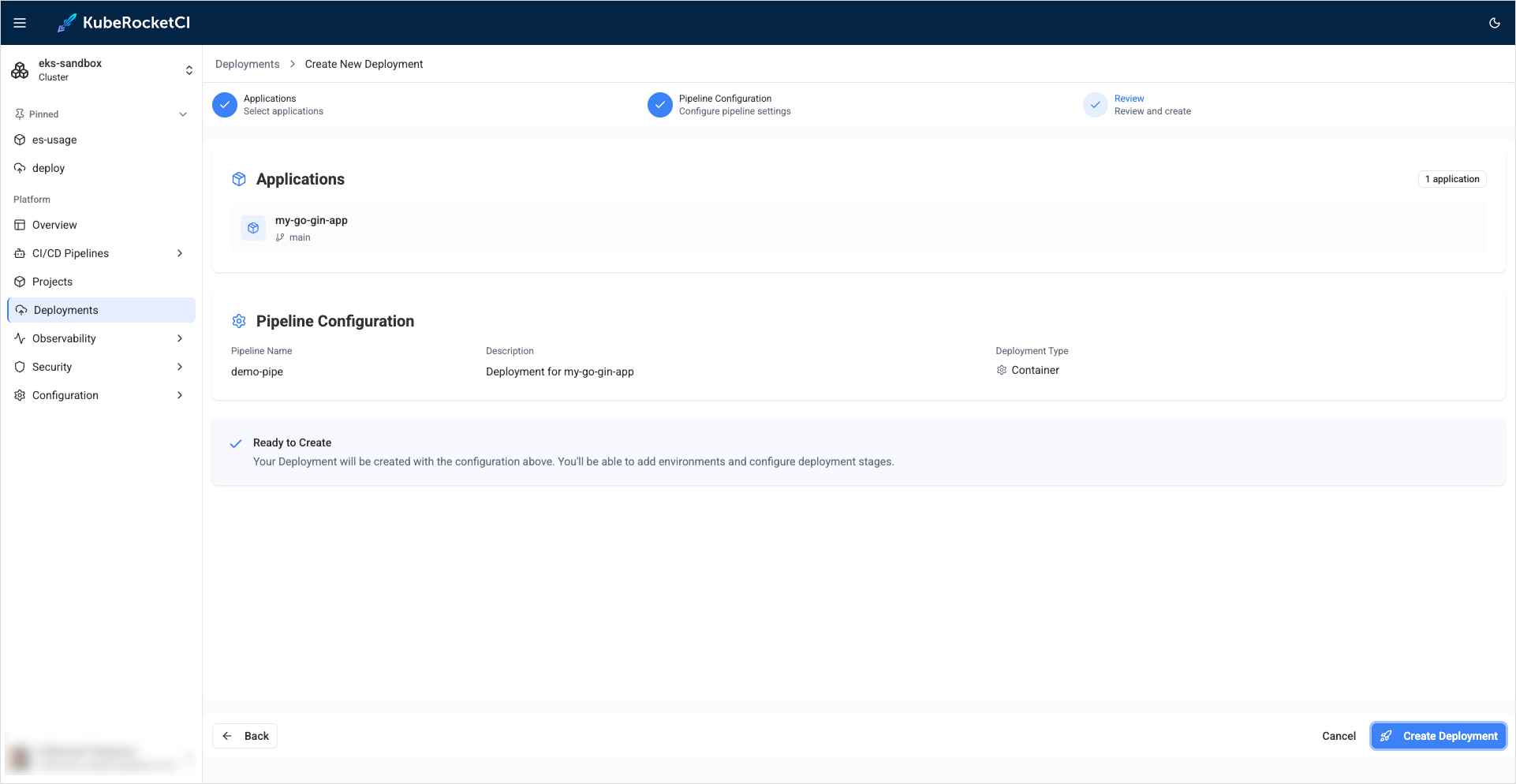

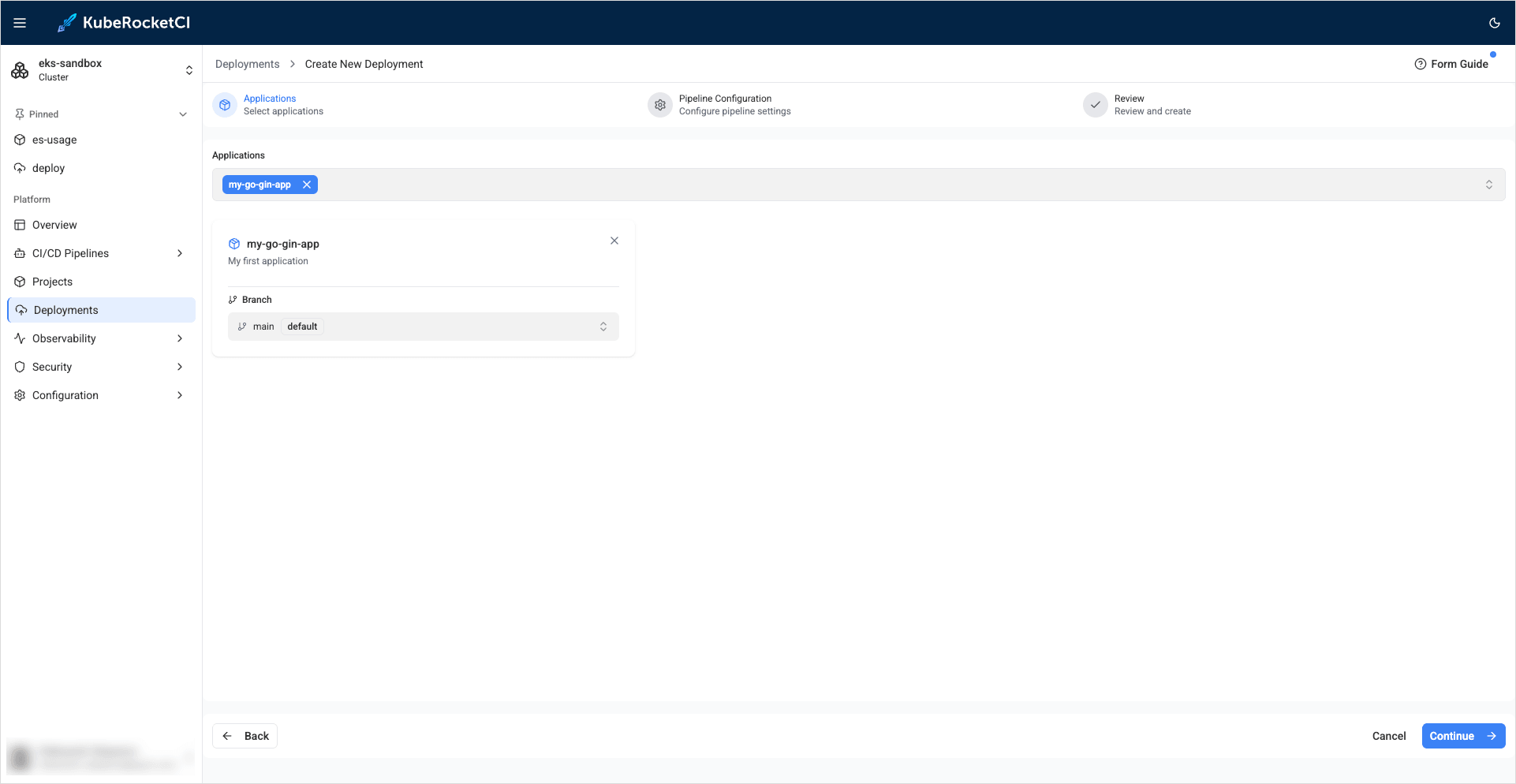

  3. In the Add applications tab, select the my-go-gin-app application, main branch, and click Create:

    Applications tab

  4. Once the deployment flow is created, click the Go to deployment flow button on the congratulations window:

    Congratulations window

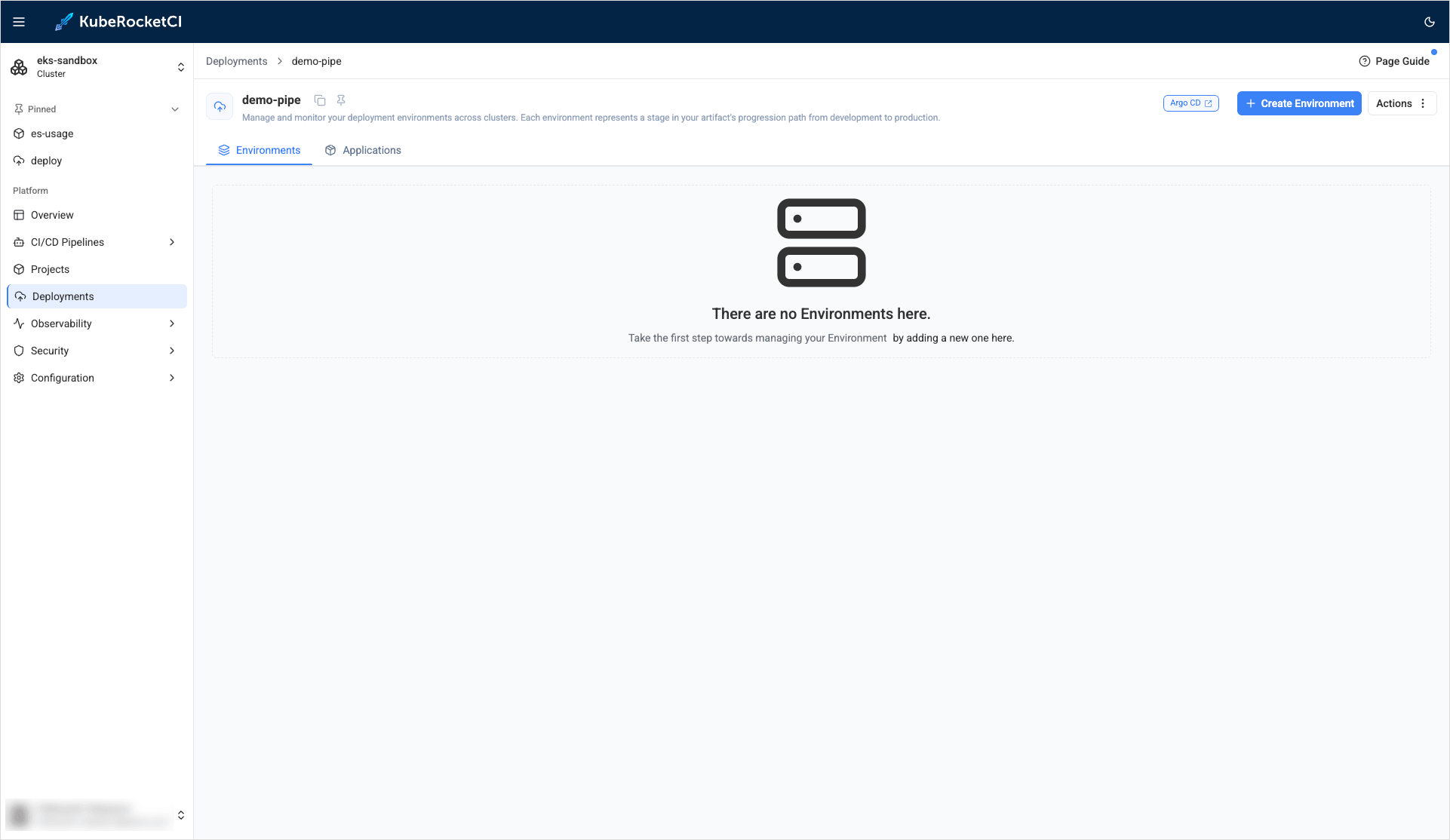

  5. In the Deployment flows section, click the Create environment button:

    Create environment

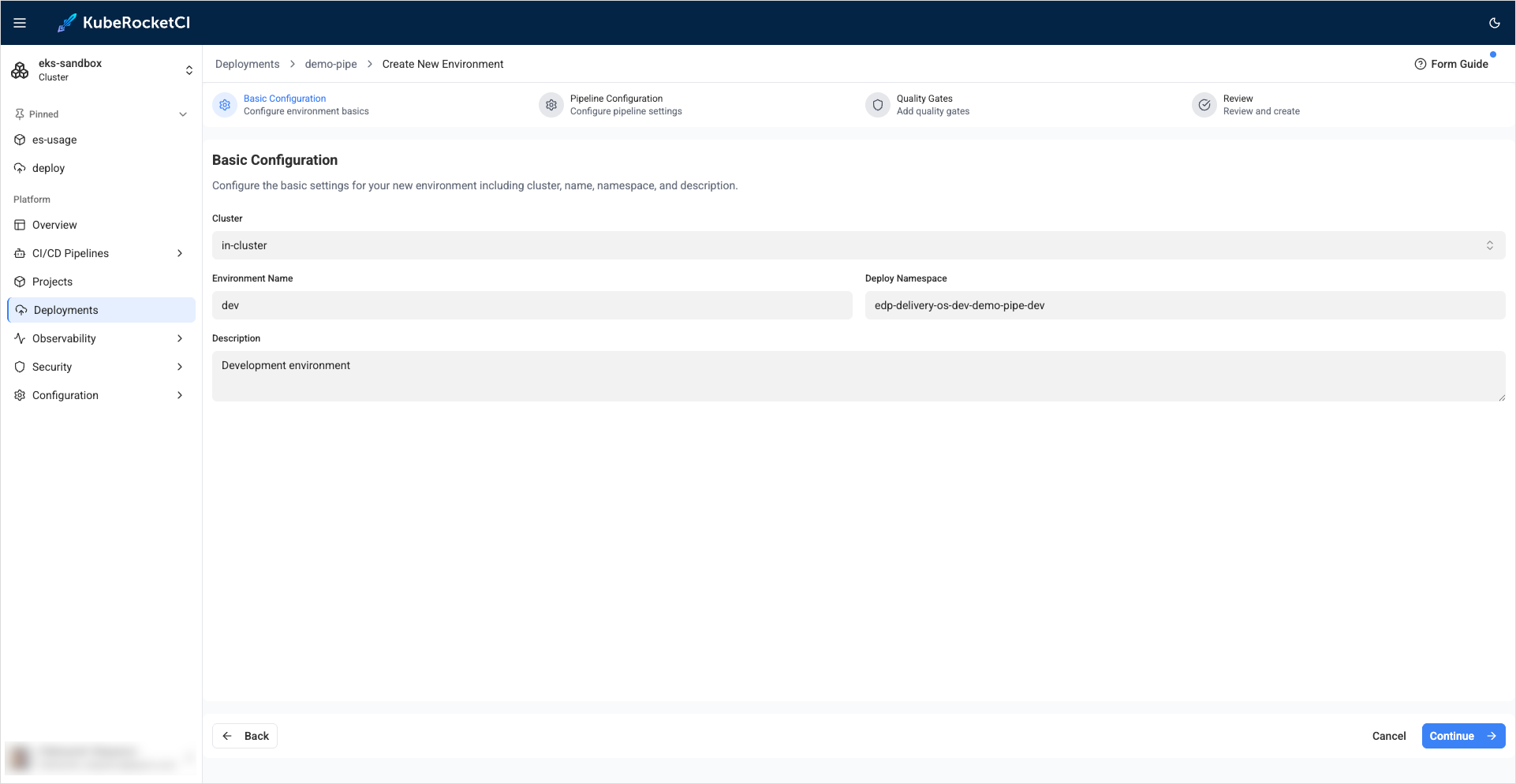

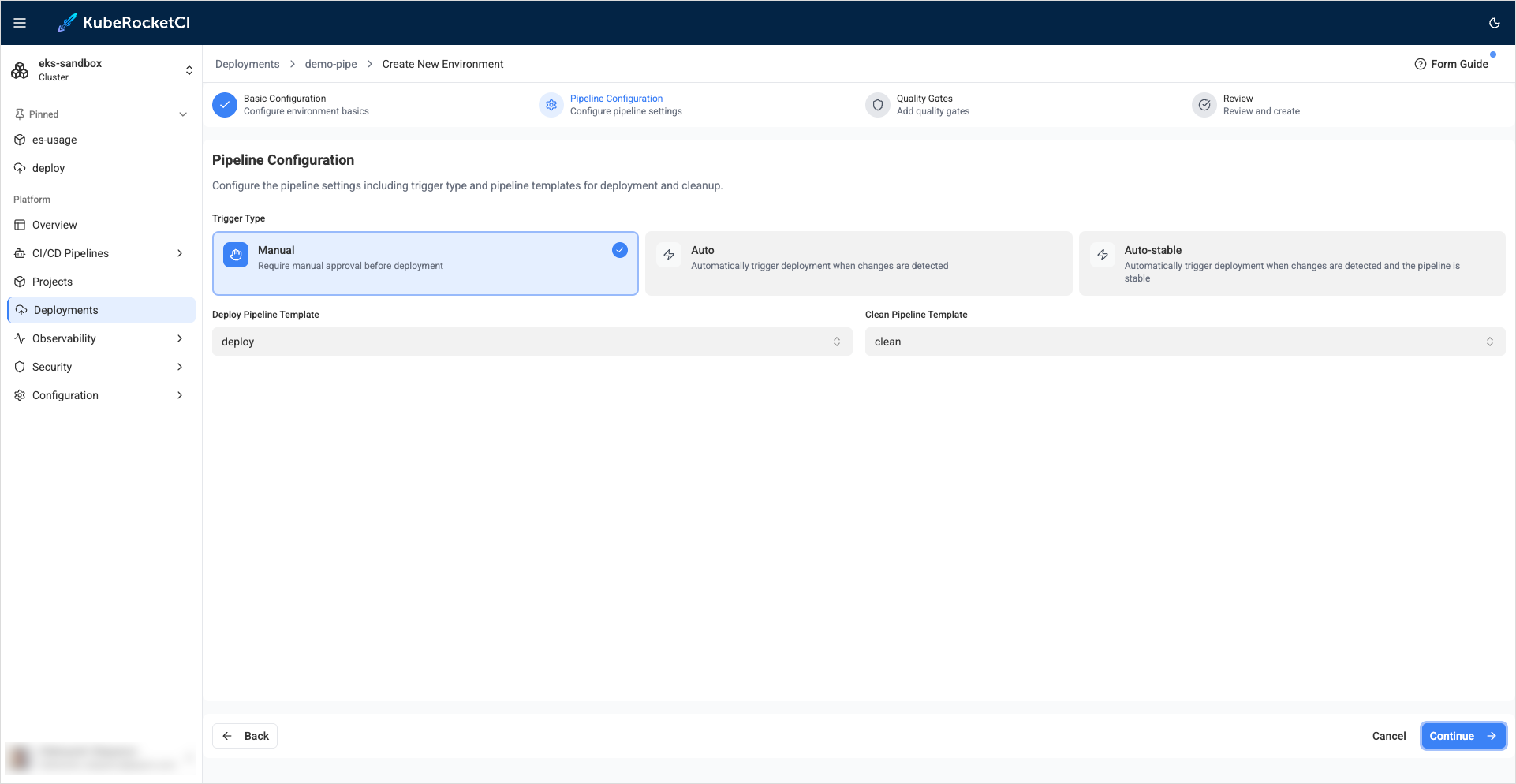

  6. On the Configure stages tab, define the following values and click Next:

    • Cluster: in-cluster
    • Environment name: dev
    • Namespace: edp-my-go-gin-app-dev
    • Description: Development stage
    • Trigger type: Manual
    • Deploy Pipeline template: deploy
    • Clean Pipeline template: clean

    Create environment window

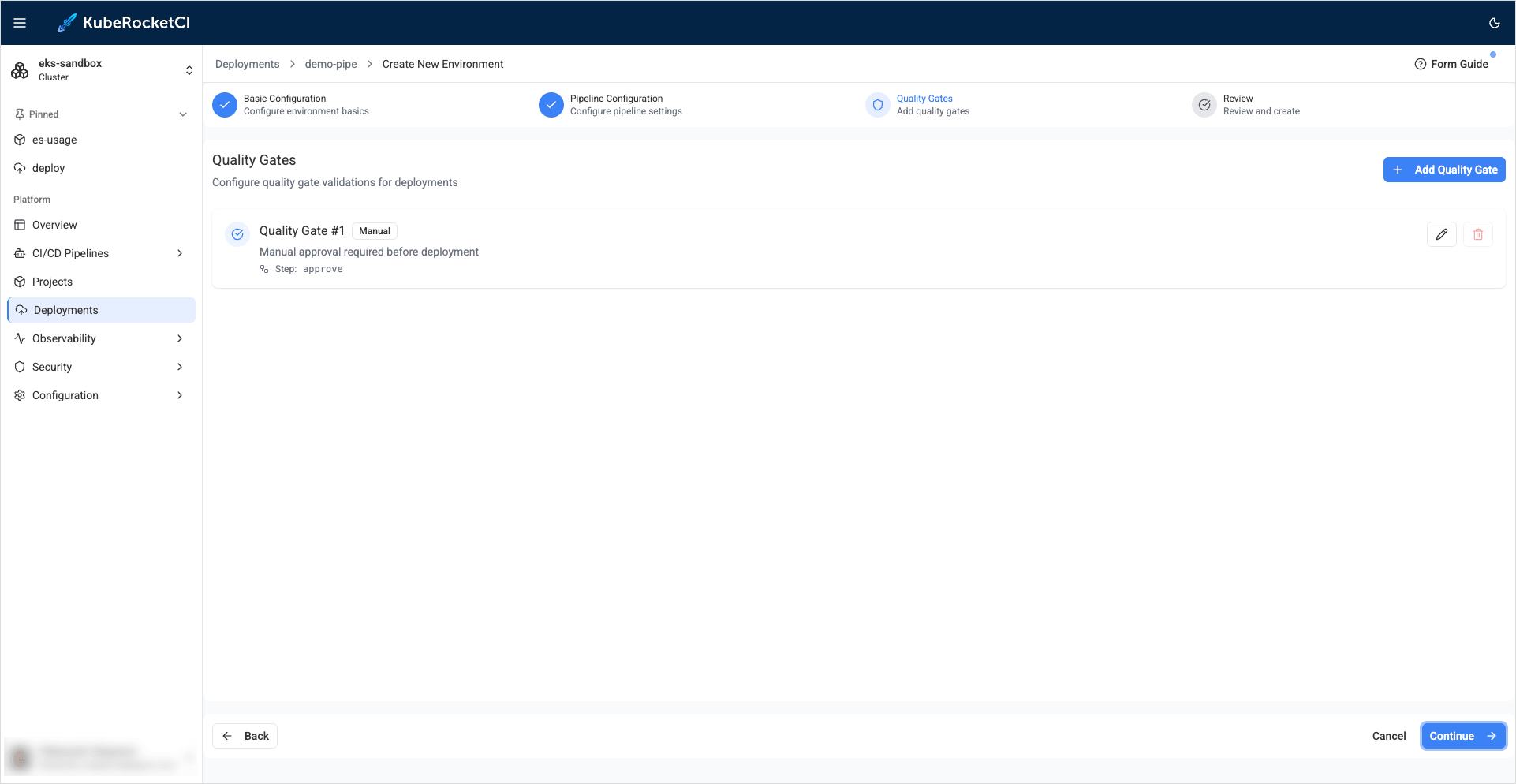

  7. On the Add quality gates tab, define the quality gates and click Create:

    • Quality gate type: Manual
    • Step name: dev

    Define quality gates window

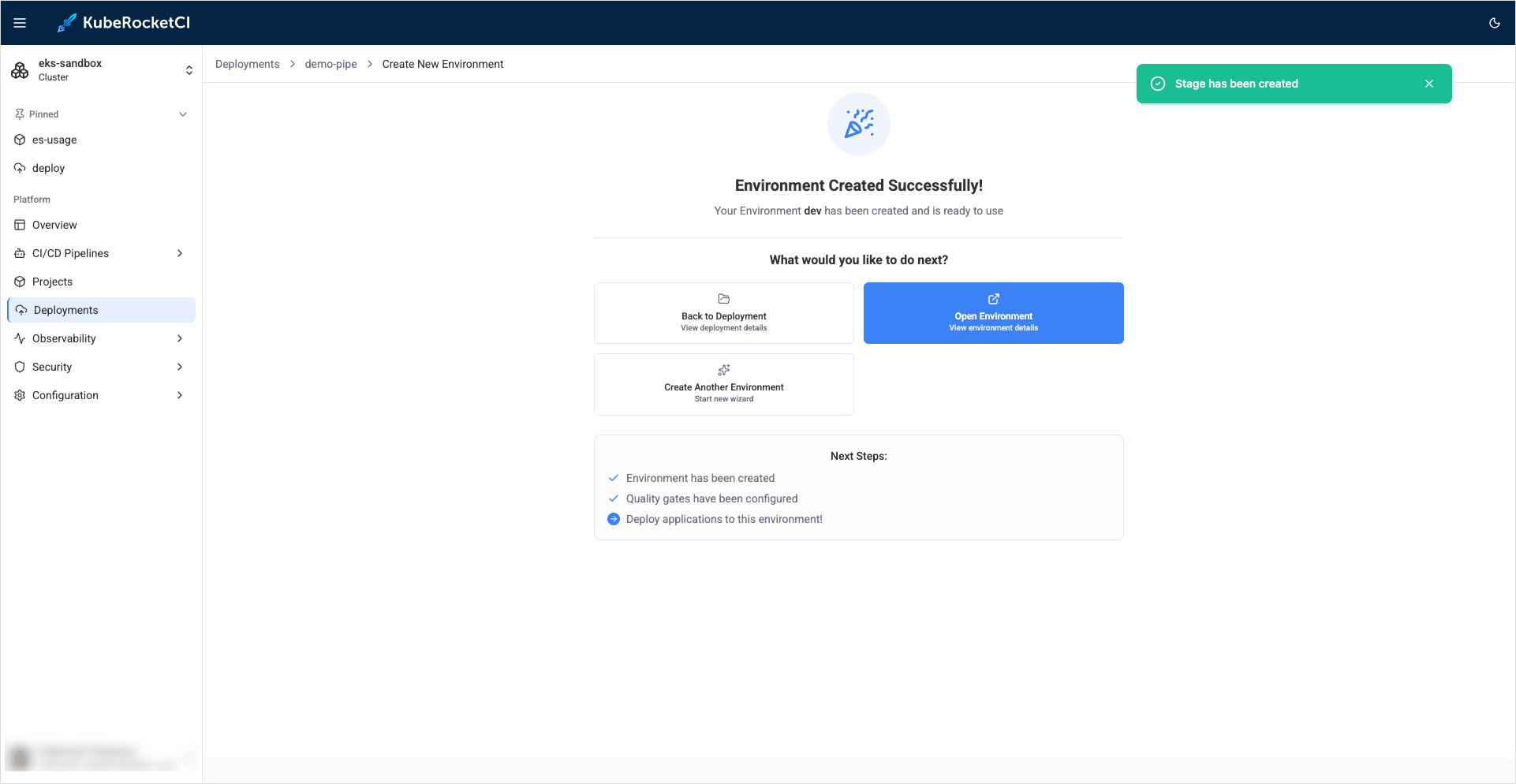

  8. On the congratulations window, click Go to environment:

    Go to environment

    The created deployment flow will be added to the deployment flows list.

Application Deployment​

To deploy application, follow the steps below:

  1. In the deployment flows section, click the deployment flow name:

    Deployment flows list

  2. In the deployment flow details page, click the environment name to enter the environment details page:

    Deployment flow details

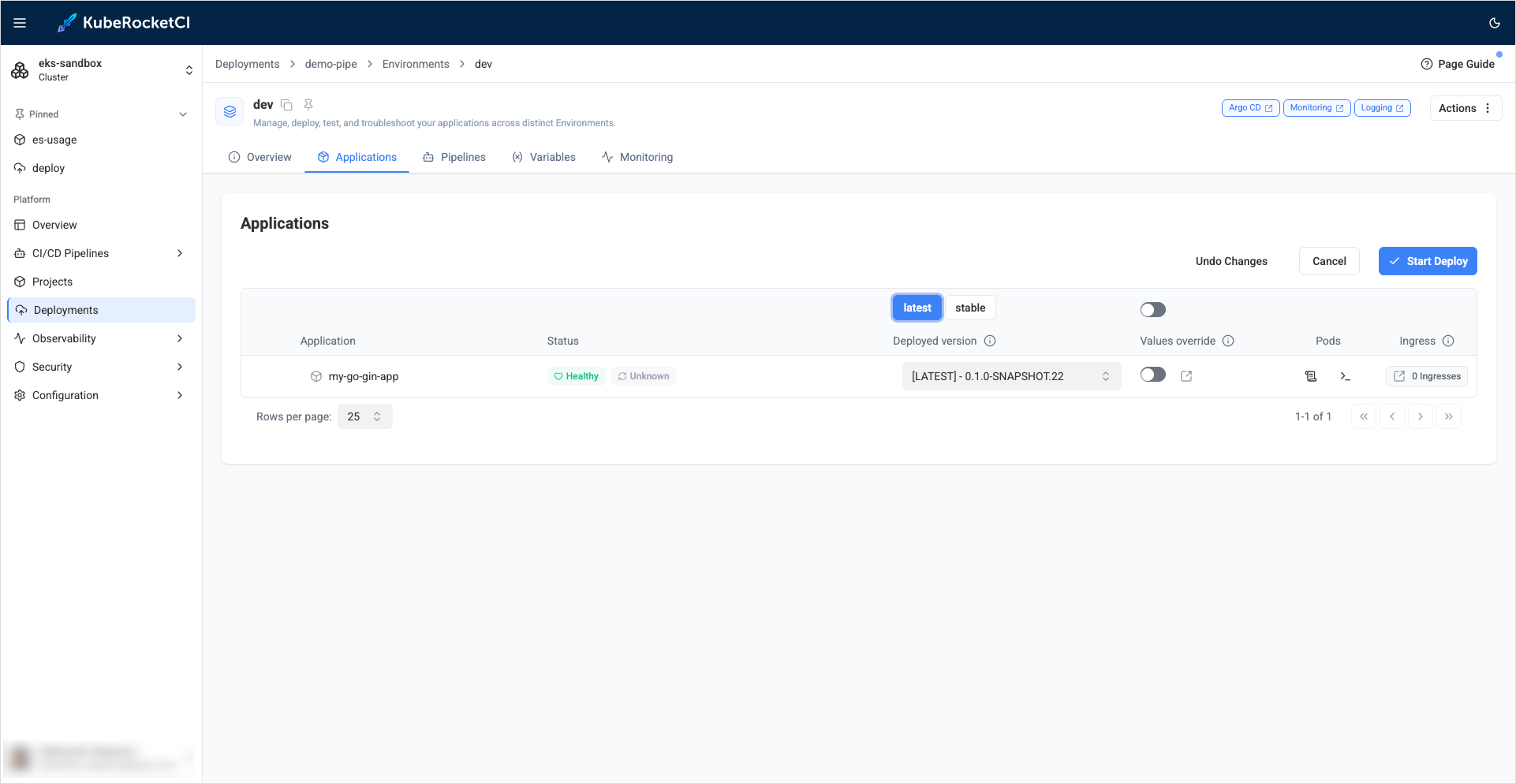

  3. Once you enter the environment details page, proceed to deploy the application:

    a. Click the Configure deploy button;

    b. Select the Image stream version;

    c. Click the Start deploy button.

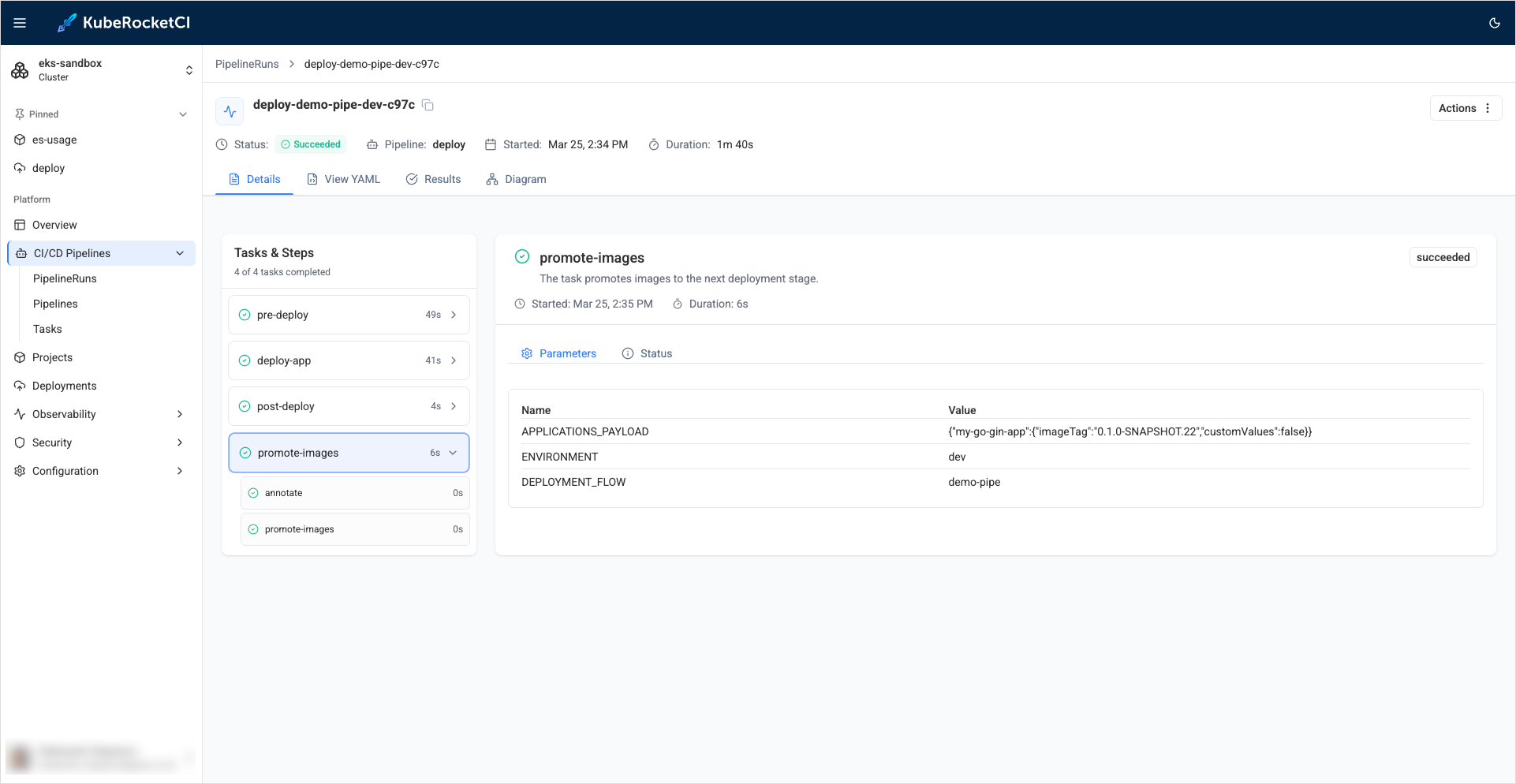

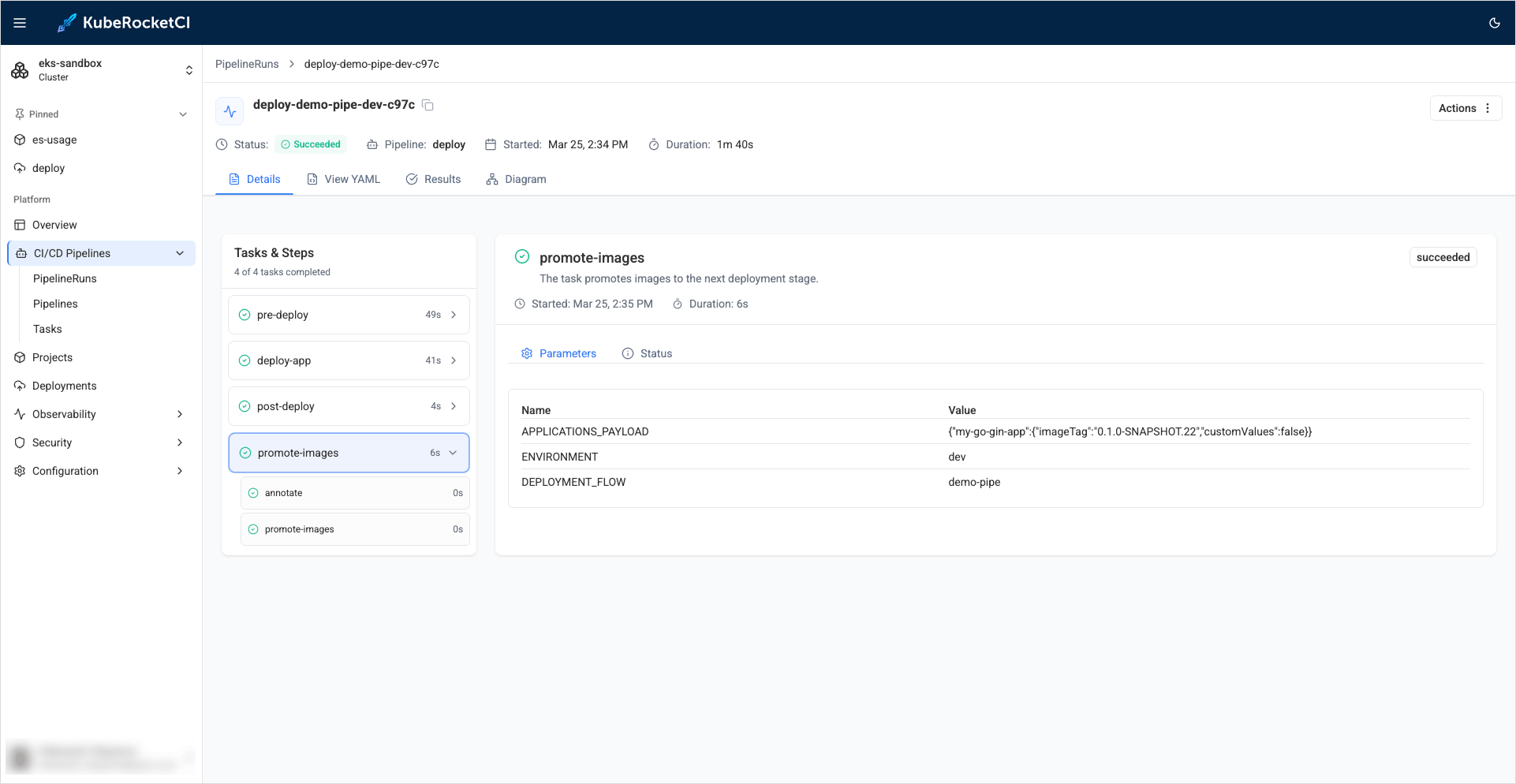

    Deploying application

Congratulations on completing the Quick Start guide! We hope you found this journey enjoyable.

Now that you have a good understanding of how KubeRocketCI works, you can further enhance its capabilities by integrating it with Nexus. Additionally, explore other functionalities detailed in our Use Cases section. If you're eager to unlock the full potential of KubeRocketCI, navigate to the Operator Guide to fine-tune your KubeRocketCI for your specific requirements!
