Argo CD Integration

KubeRocketCI uses Argo CD as a part of the Continuous Delivery/Continuous Deployment implementation. Argo CD follows the best GitOps practices, uses Kubernetes native approach for the Deployment Management, has rich UI and required RBAC capabilities.

Argo CD Deployment Approach in KubeRocketCI

Argo CD can be installed using two different approaches:

• Cluster-wide scope with the cluster-admin access
• Namespaced scope with the single namespace access

Both approaches can be deployed with High Availability (HA) or Non High Availability (non HA) installation manifests.

KubeRocketCI uses the HA deployment with the cluster-admin permissions, to minimize cluster resources consumption by sharing single Argo CD instance across multiple EDP Tenants. Please follow the installation instructions to deploy Argo CD.

Integration

See a diagram below for the details:

• Argo CD is deployed in a separate argocd namespace.
• Argo CD uses a cluster-admin role for managing cluster-scope resources.
• The control-plane application is created using the App of Apps approach, and its code is managed by the control-plane members.
• The control-plane is used to onboard new Argo CD Tenants (Argo CD Projects - AppProject).
• The KubeRocketCI Tenant Member manages Argo CD Applications using kind: Application in the edpTenant namespace.

The App Of Apps approach is used to manage the KubeRocketCI Tenants. Inspect the edp-grub repository structure that is used to provide the KubeRocketCI Tenants for the Argo CD Projects:

edp-grub
├── LICENSE
├── README.md
├── apps                      ### All Argo CD Applications are stored here
│   ├── grub-argocd.yaml      # Application that provisions Argo CD Resources - Argo Projects (KubeRocketCI Tenants)
│   └── grub-keycloak.yaml    # Application that provisions Keycloak Resources - Argo CD Groups (KubeRocketCI Tenants)
├── apps-configs
│   └── grub
│       ├── argocd            ### Argo CD resources definition
│       │   └── edp.yaml
│       └── keycloak          ### Keycloak resources definition
│           └── edp.yaml
├── bootstrap
│   └── root.yaml             ### Root application in App of Apps, which provision Applications from /apps
└── examples                  ### Examples
    └── tenant
        └── edp-petclinic.yaml

The Root Application must be created under the control-plane scope.

Argo CD Configuration

Now that Argo CD is integrated, it is time to configure it properly. To configure Argo CD for KubeRocketCI, follow the steps below:

1. Modify the argocd-cmd-params-cm ConfigMap in the argocd namespace and add the application.namespaces parameter to the subsection data:

   kubectl

   kubectl patch configmap argocd-cmd-params-cm -n argocd --type merge -p '{"data":{"application.namespaces":"edp"}}'

   manifest

   data:
     application.namespaces: edp

2. Add a credential template for GitHub, GitLab, Bitbucket, or Gerrit integrations. The credential template must be created for each Git Server.

   GitHub/GitLab/Bitbucket

   Generate an SSH key pair and add a public key to GitLab, GitHub, or Bitbucket account.

   warning

   Use an additional GitHub/GitLab User to access a repository. For example:


   • GitHub, add a User to a repository with a "Read" role.

   • GitLab, add a User to a repository with a "Guest" role.

   ssh-keygen -t ed25519 -C "email@example.com" -f argocd

   Copy SSH private key to Argo CD namespace.

   EDP_NAMESPACE="edp"
   VCS_HOST="<github.com_or_gitlab.com_or_bitbucket.org>"
   ACCOUNT_NAME="<ACCOUNT_NAME>"
   URL="ssh://git@${VCS_HOST}:22/${ACCOUNT_NAME}"

   kubectl create secret generic ${EDP_NAMESPACE} -n argocd \
     --from-file=sshPrivateKey=argocd \
     --from-literal=url="${URL}"
   kubectl label --overwrite secret ${EDP_NAMESPACE} -n argocd "argocd.argoproj.io/secret-type=repo-creds"

   Gerrit

   Copy existing SSH private key for Gerrit to Argo CD namespace.

   EDP_NAMESPACE="edp"
   GERRIT_PORT=$(kubectl get gerrit gerrit -n ${EDP_NAMESPACE} -o jsonpath='{.spec.sshPort}')
   GERRIT_ARGOCD_SSH_KEY_NAME="gerrit-ciuser-sshkey"
   GERRIT_URL=$(echo "ssh://edp-ci@gerrit.${EDP_NAMESPACE}:${GERRIT_PORT}" | base64)
   kubectl get secret ${GERRIT_ARGOCD_SSH_KEY_NAME} -n ${EDP_NAMESPACE} -o json | jq 'del(.data.username,.metadata.annotations,.metadata.creationTimestamp,.metadata.labels,.metadata.resourceVersion,.metadata.uid,.metadata.ownerReferences)' | jq '.metadata.namespace = "argocd"' | jq --arg name "${EDP_NAMESPACE}" '.metadata.name = $name' | jq --arg url "${GERRIT_URL}" '.data.url = $url' | jq '.data.sshPrivateKey = .data.id_rsa' | jq 'del(.data.id_rsa,.data."id_rsa.pub")' | kubectl apply -f -
   kubectl label --overwrite secret ${EDP_NAMESPACE} -n argocd "argocd.argoproj.io/secret-type=repo-creds"

3. Add SSH Known hosts for GitHub, GitLab, Bitbucket, or Gerrit integration.

   GitHub/GitLab/Bitbucket

   Add GitHub, GitLab, or Bitbucket host to Argo CD config map with known hosts.

   EDP_NAMESPACE="edp"
   VCS_HOST="<VCS_HOST>"
   KNOWN_HOSTS_FILE="/tmp/ssh_known_hosts"
   ARGOCD_KNOWN_HOSTS_NAME="argocd-ssh-known-hosts-cm"

   rm -f ${KNOWN_HOSTS_FILE}
   kubectl get cm ${ARGOCD_KNOWN_HOSTS_NAME} -n argocd -o jsonpath='{.data.ssh_known_hosts}' > ${KNOWN_HOSTS_FILE}
   ssh-keyscan ${VCS_HOST} >> ${KNOWN_HOSTS_FILE}
   kubectl create configmap ${ARGOCD_KNOWN_HOSTS_NAME} -n argocd --from-file ${KNOWN_HOSTS_FILE} -o yaml --dry-run=client | kubectl apply -f -

   Gerrit

   Add Gerrit host to Argo CD config map with known hosts

   EDP_NAMESPACE="edp"
   KNOWN_HOSTS_FILE="/tmp/ssh_known_hosts"
   ARGOCD_KNOWN_HOSTS_NAME="argocd-ssh-known-hosts-cm"
   GERRIT_PORT=$(kubectl get gerrit gerrit -n ${EDP_NAMESPACE} -o jsonpath='{.spec.sshPort}')

   rm -f ${KNOWN_HOSTS_FILE}
   kubectl get cm ${ARGOCD_KNOWN_HOSTS_NAME} -n argocd -o jsonpath='{.data.ssh_known_hosts}' > ${KNOWN_HOSTS_FILE}
   kubectl exec -it deployment/gerrit -n ${EDP_NAMESPACE} -- ssh-keyscan -p ${GERRIT_PORT} gerrit.${EDP_NAMESPACE} >> ${KNOWN_HOSTS_FILE}
   kubectl create configmap ${ARGOCD_KNOWN_HOSTS_NAME} -n argocd --from-file ${KNOWN_HOSTS_FILE} -o yaml --dry-run=client | kubectl apply -f -

4. Create an Argo CD Project (Tenant), for example, with the edp name:

   AppProject

   apiVersion: argoproj.io/v1alpha1
   kind: AppProject
   metadata:
     name: edp
     namespace: argocd
     # Finalizer that ensures that project is not deleted until it is not referenced by any application
     finalizers:
       - resources-finalizer.argocd.argoproj.io
   spec:
     destinations:
       # by default edp work with 'edp-*' namespace
       - namespace: 'edp-*'
       # allow to deploy to specific server (local in our case)
         name: in-cluster
     # Deny all cluster-scoped resources from being created, except for Namespace
     clusterResourceWhitelist:
     - group: ''
       kind: Namespace
     # Allow all namespaced-scoped resources to be created, except for ResourceQuota, LimitRange, NetworkPolicy
     namespaceResourceBlacklist:
     - group: ''
       kind: ResourceQuota
     - group: ''
       kind: LimitRange
     - group: ''
       kind: NetworkPolicy
     # we are ok to create any resources inside namespace
     namespaceResourceWhitelist:
     - group: '*'
       kind: '*'
     # enable access only for specific git server. The example below 'edp' - it is namespace where KubeRocketCI deployed
     sourceRepos:
       - ssh://git@github.com/*
     # enable capability to deploy objects from namespaces
     sourceNamespaces:
       - edp

5. Check that your new Repository, Known Hosts, and AppProject are added to the Argo CD UI.

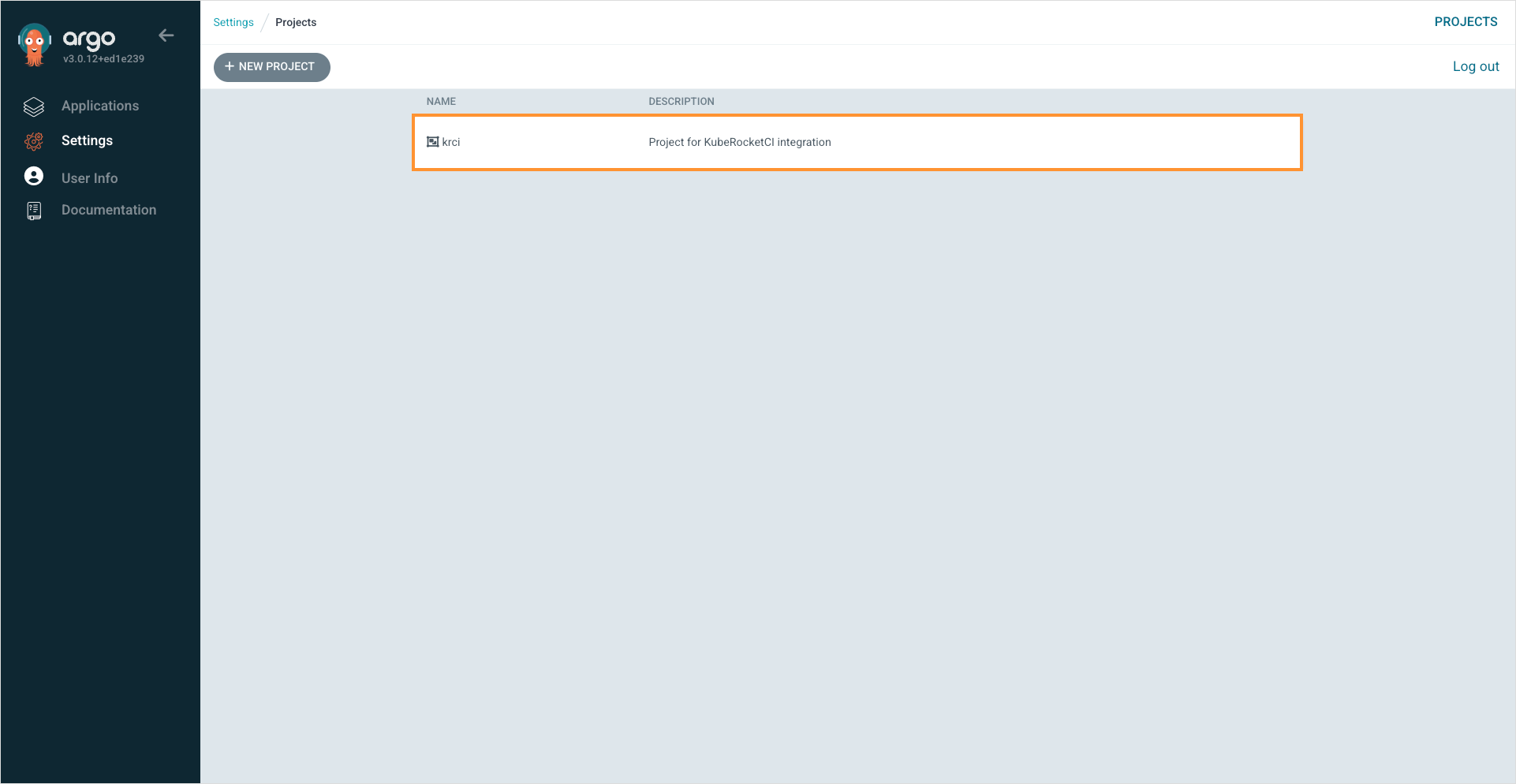

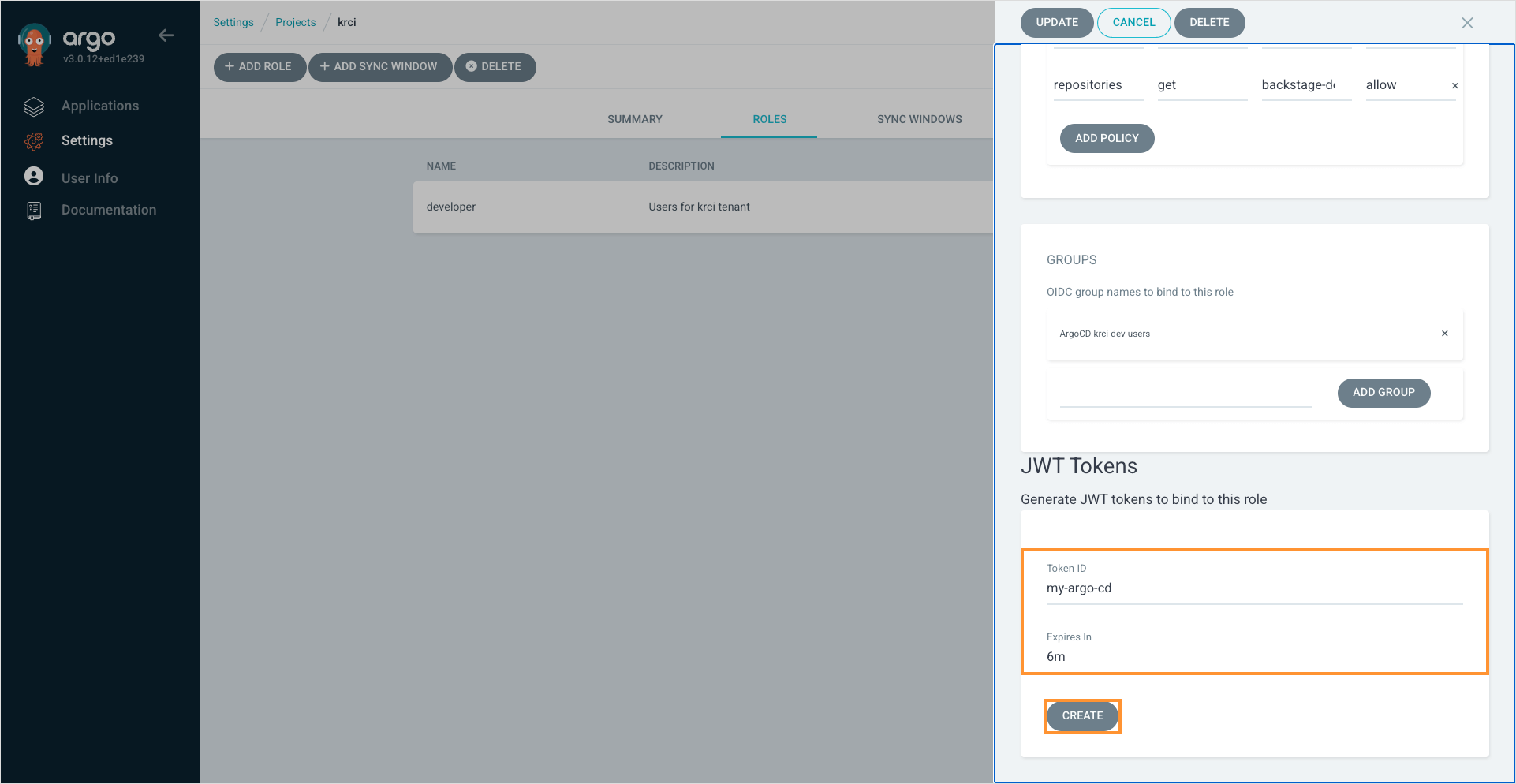

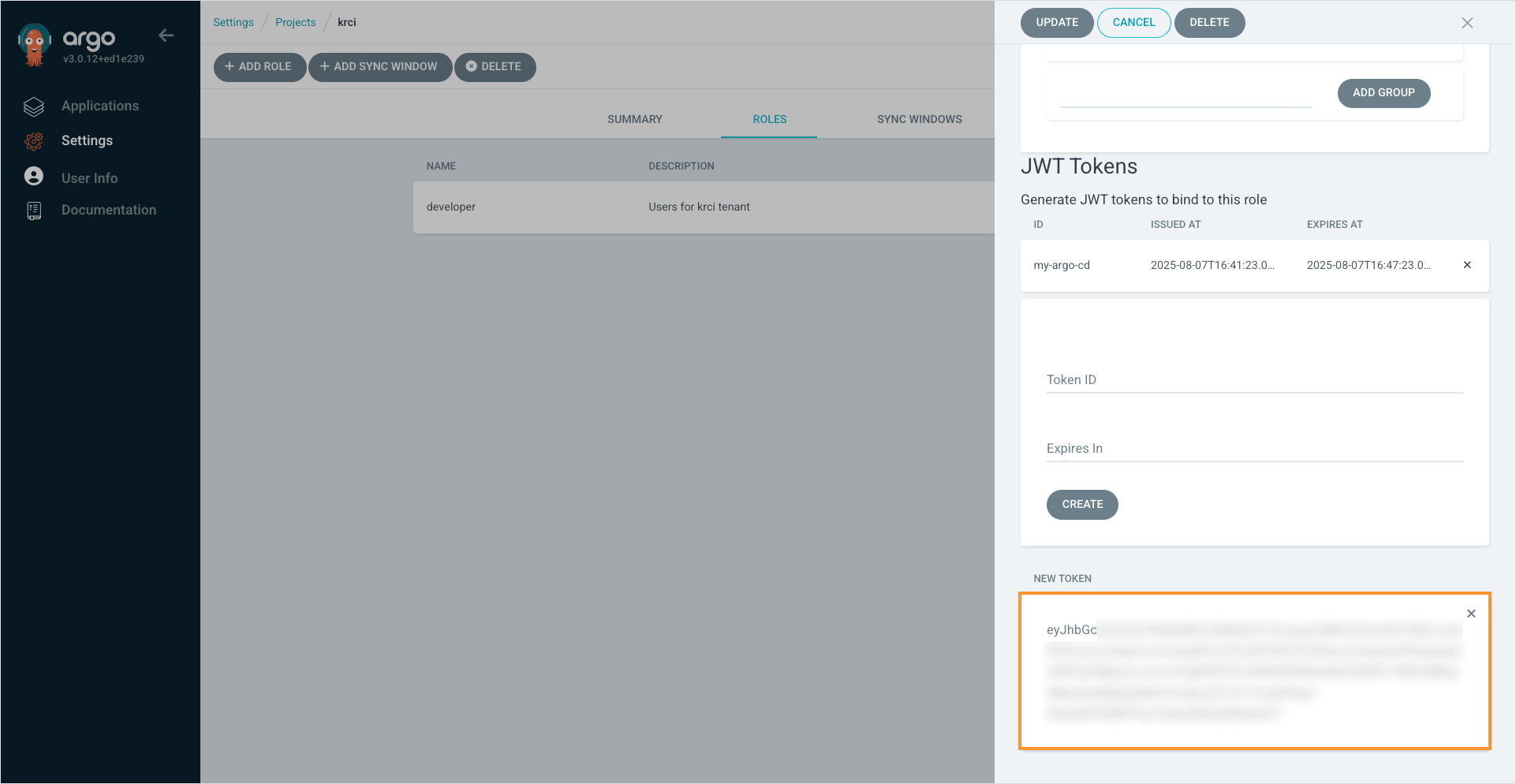

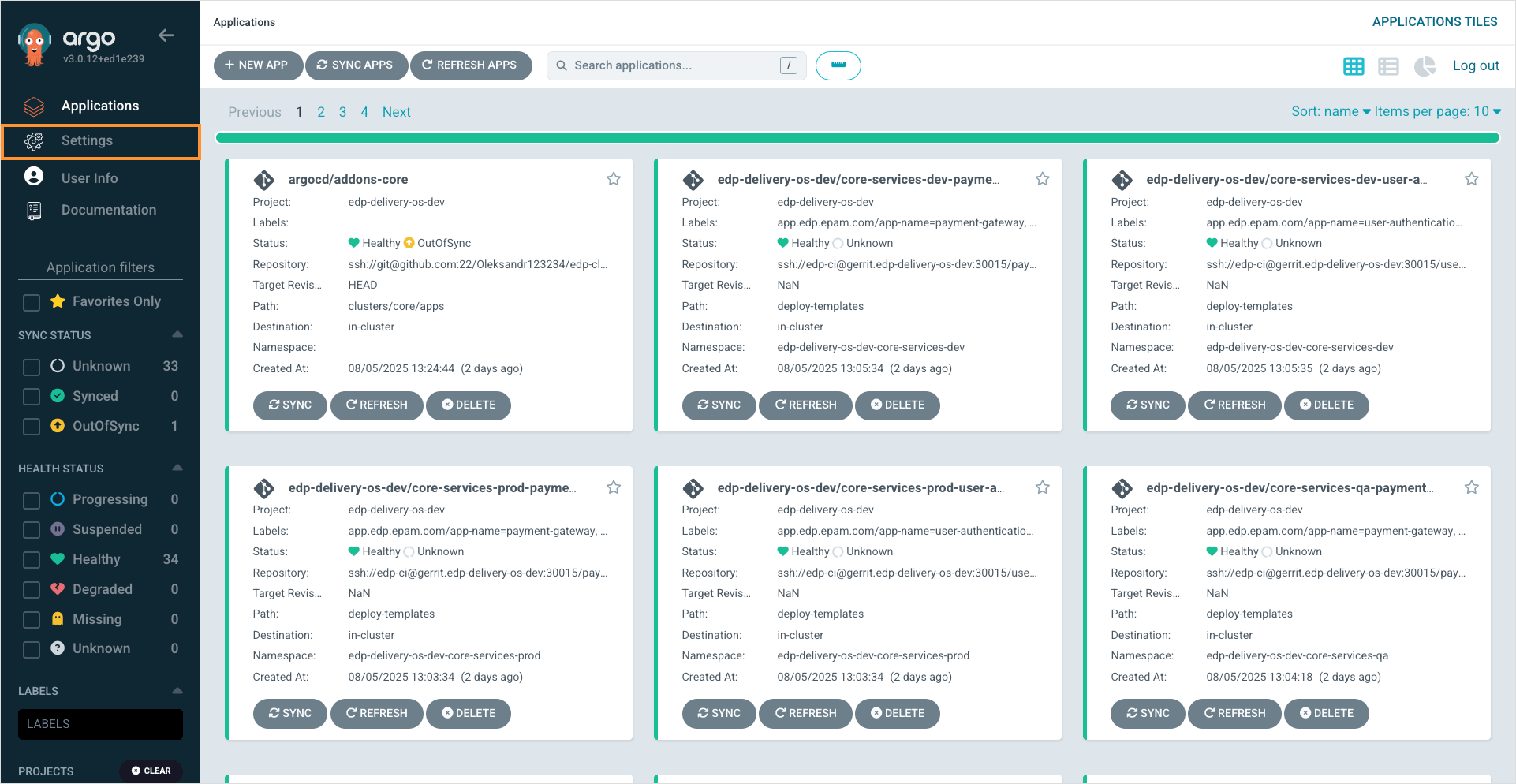

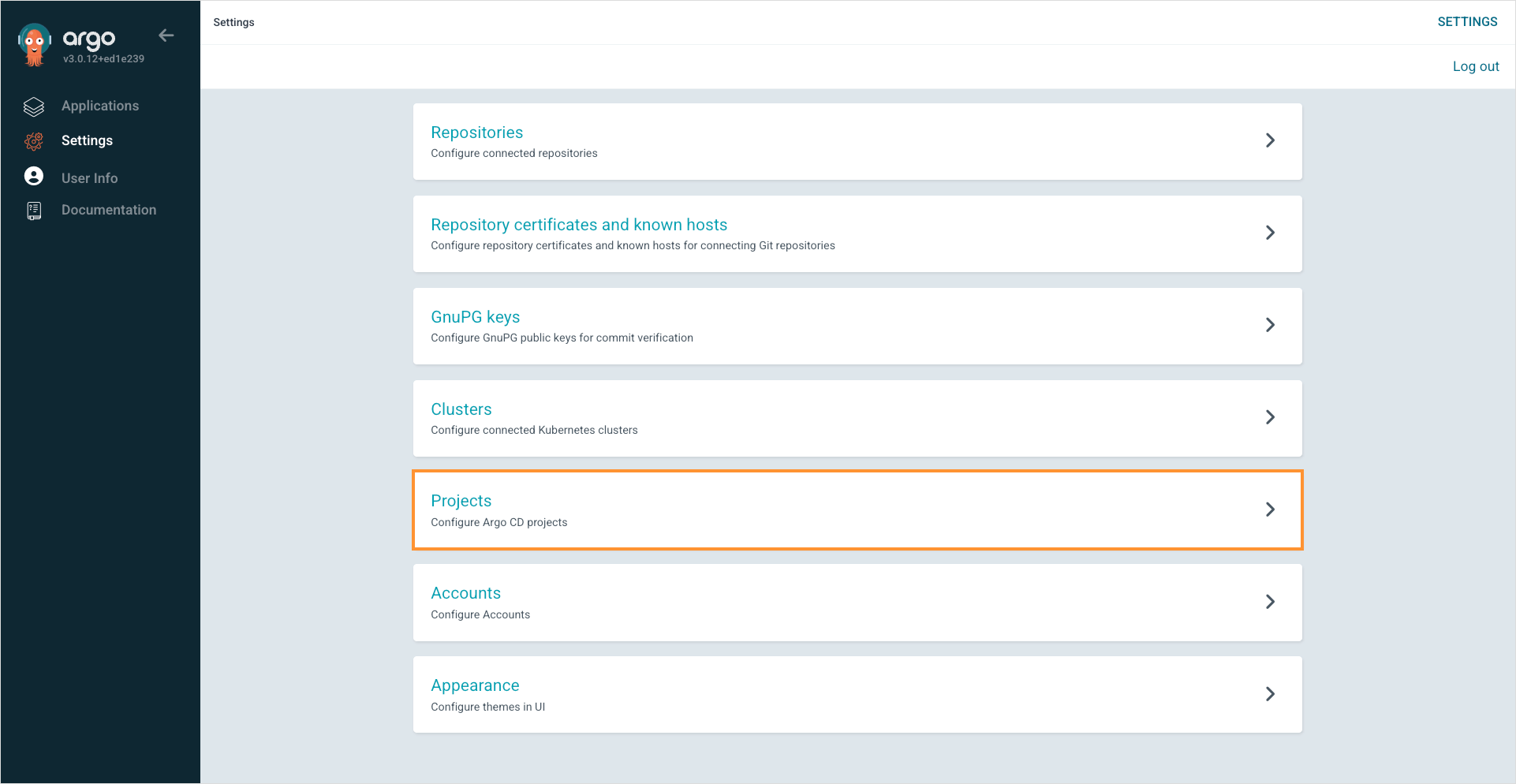

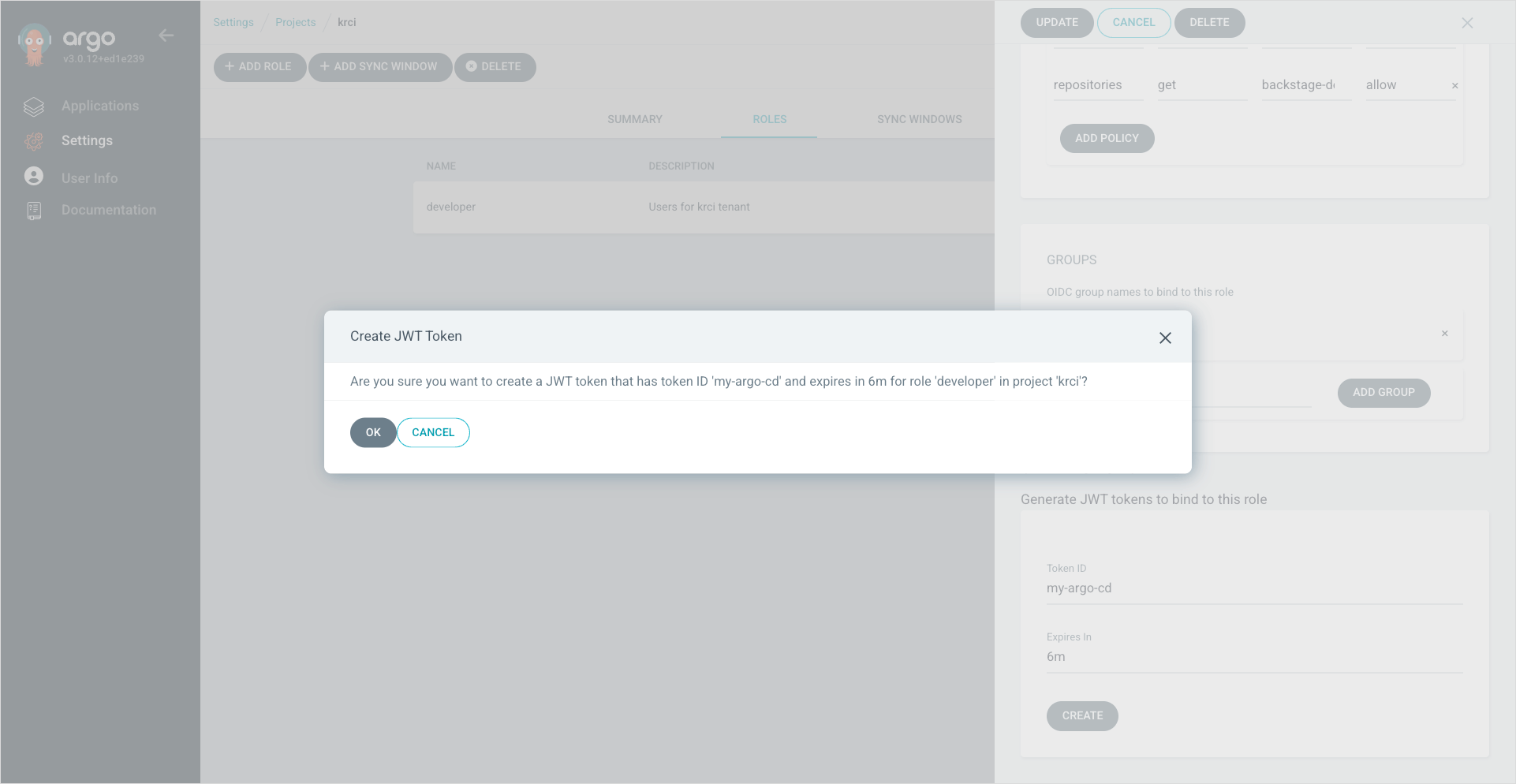

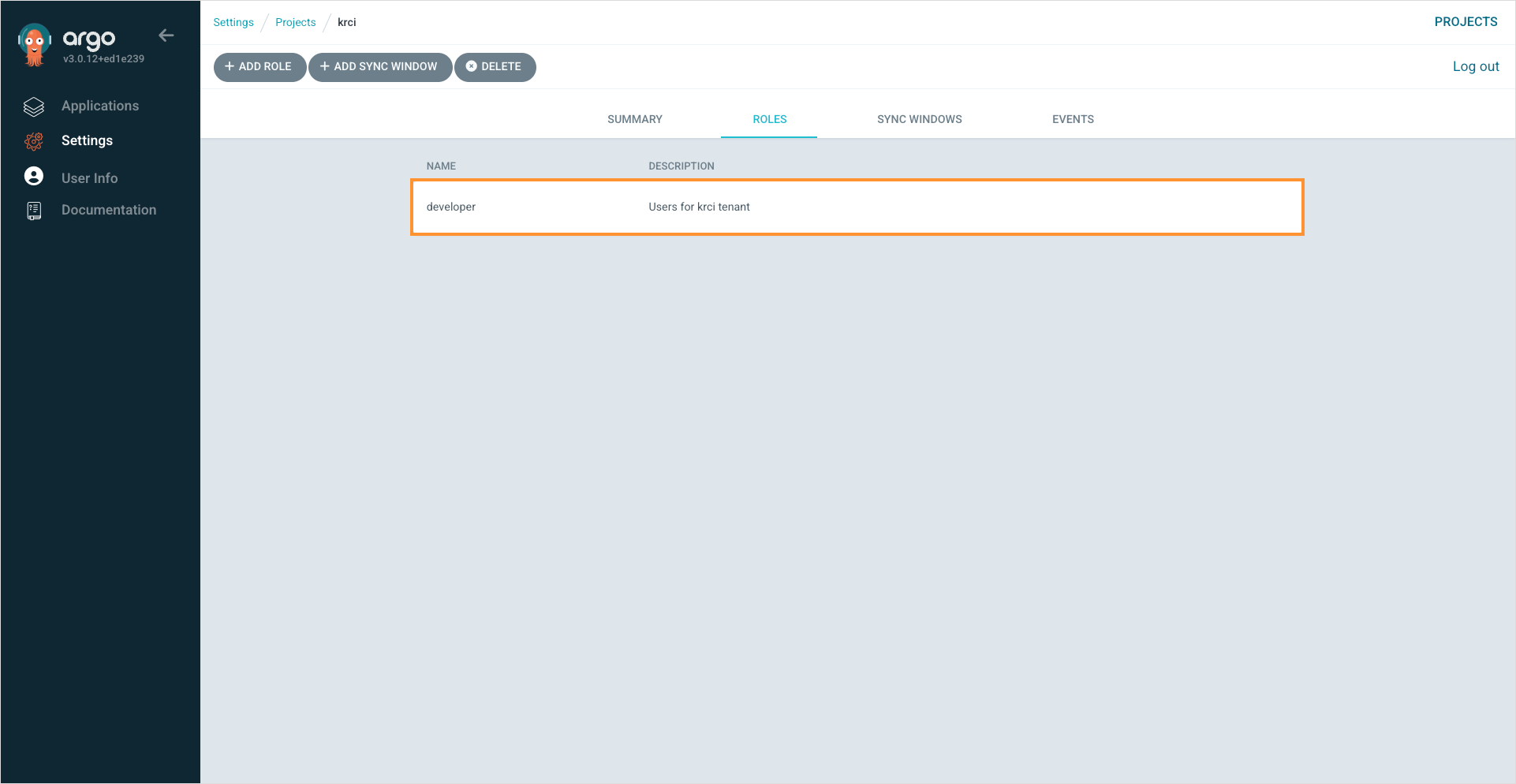

6. Generate Argo CD project token for deploy integration:

   URL=<ARGO CD URL>
   TOKEN=$(argocd proj role create-token edp developer -i argocd-ci -t)


   cat <<EOF | kubectl apply -f -
   apiVersion: v1
   kind: Secret
   metadata:
     name: argocd-ci
     namespace: edp
     labels:
       app.edp.epam.com/integration-secret: "true"
       app.edp.epam.com/secret-type: "argocd"
   type: Opaque
   stringData:
     token: $TOKEN
     url: $URL
   EOF

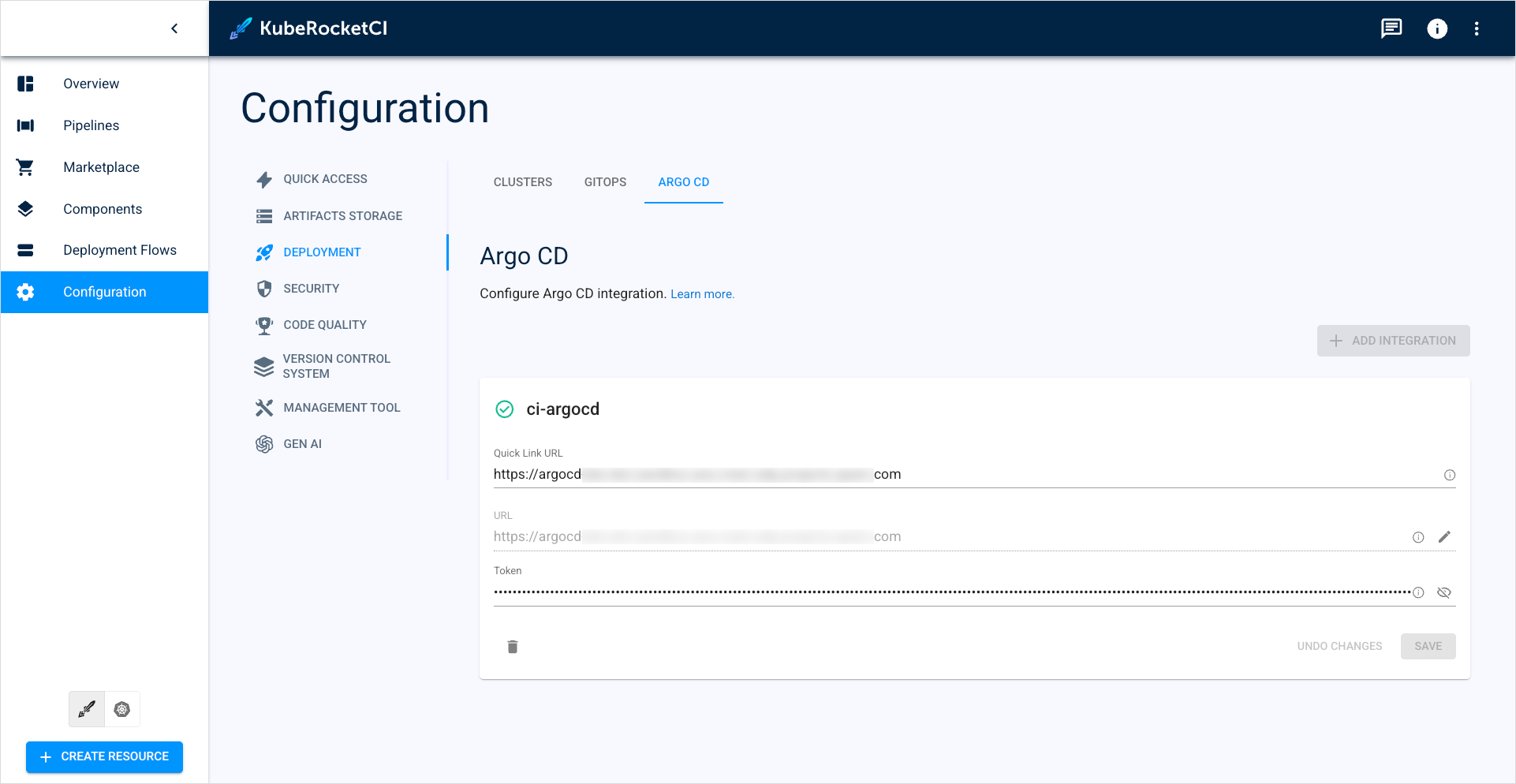

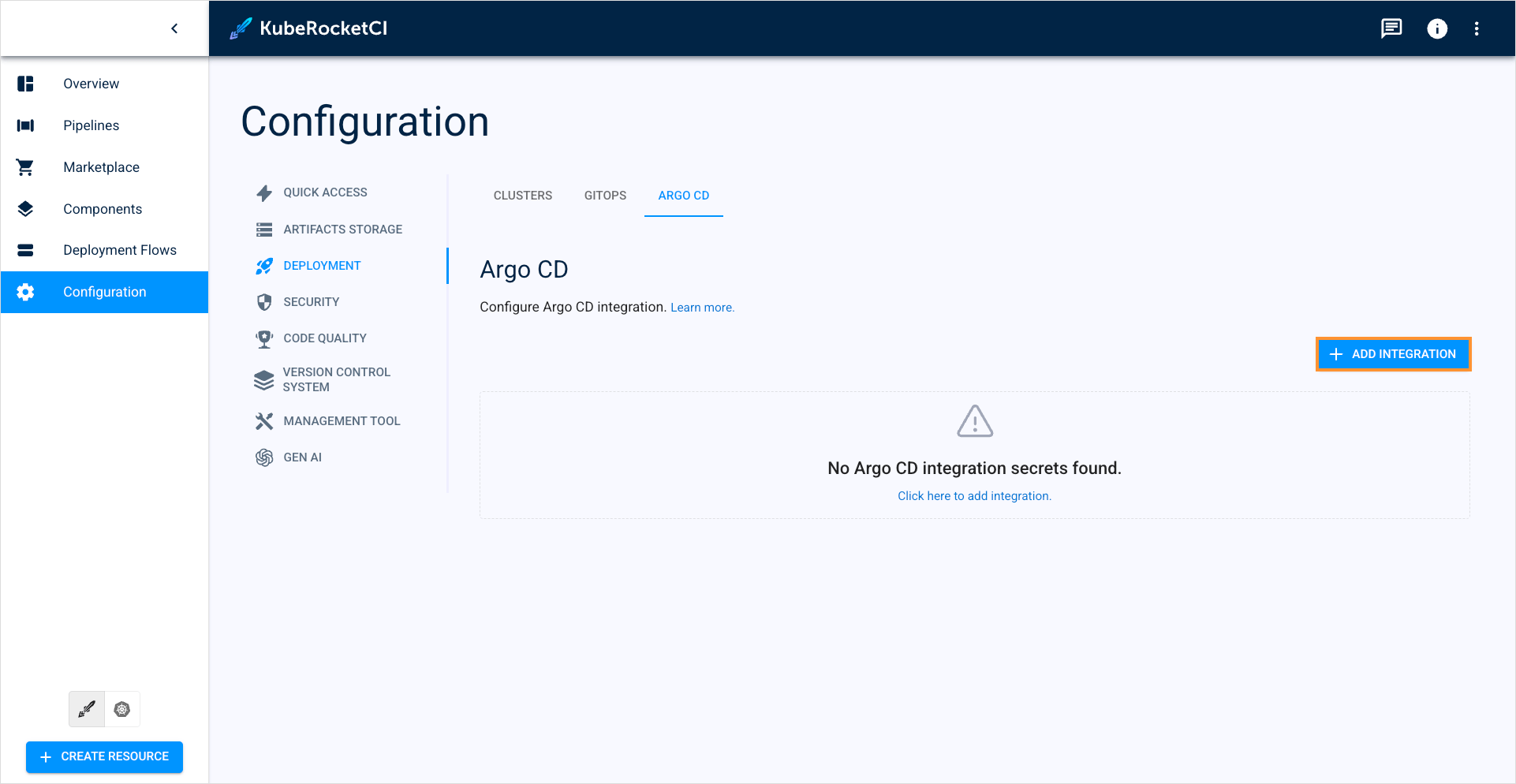

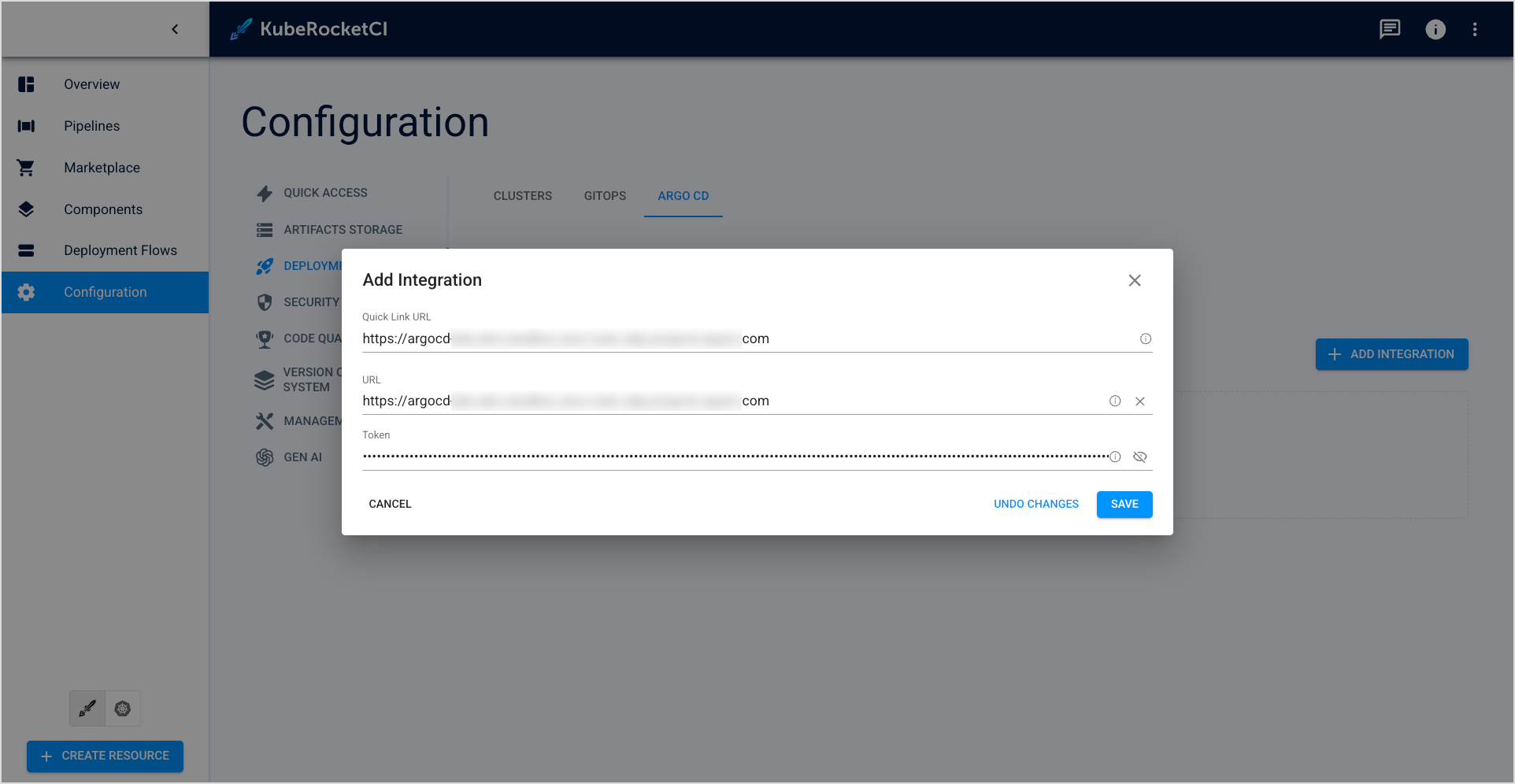

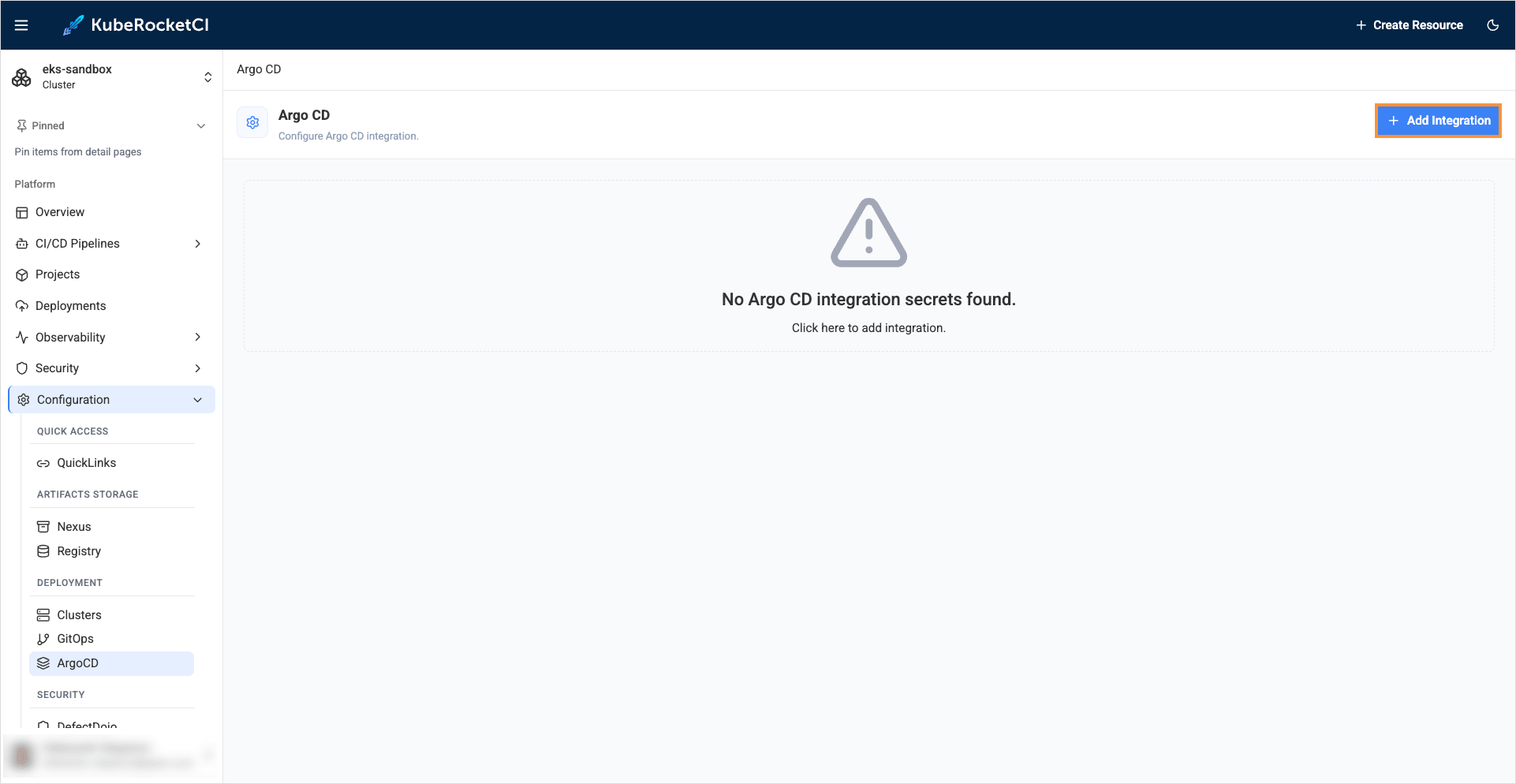

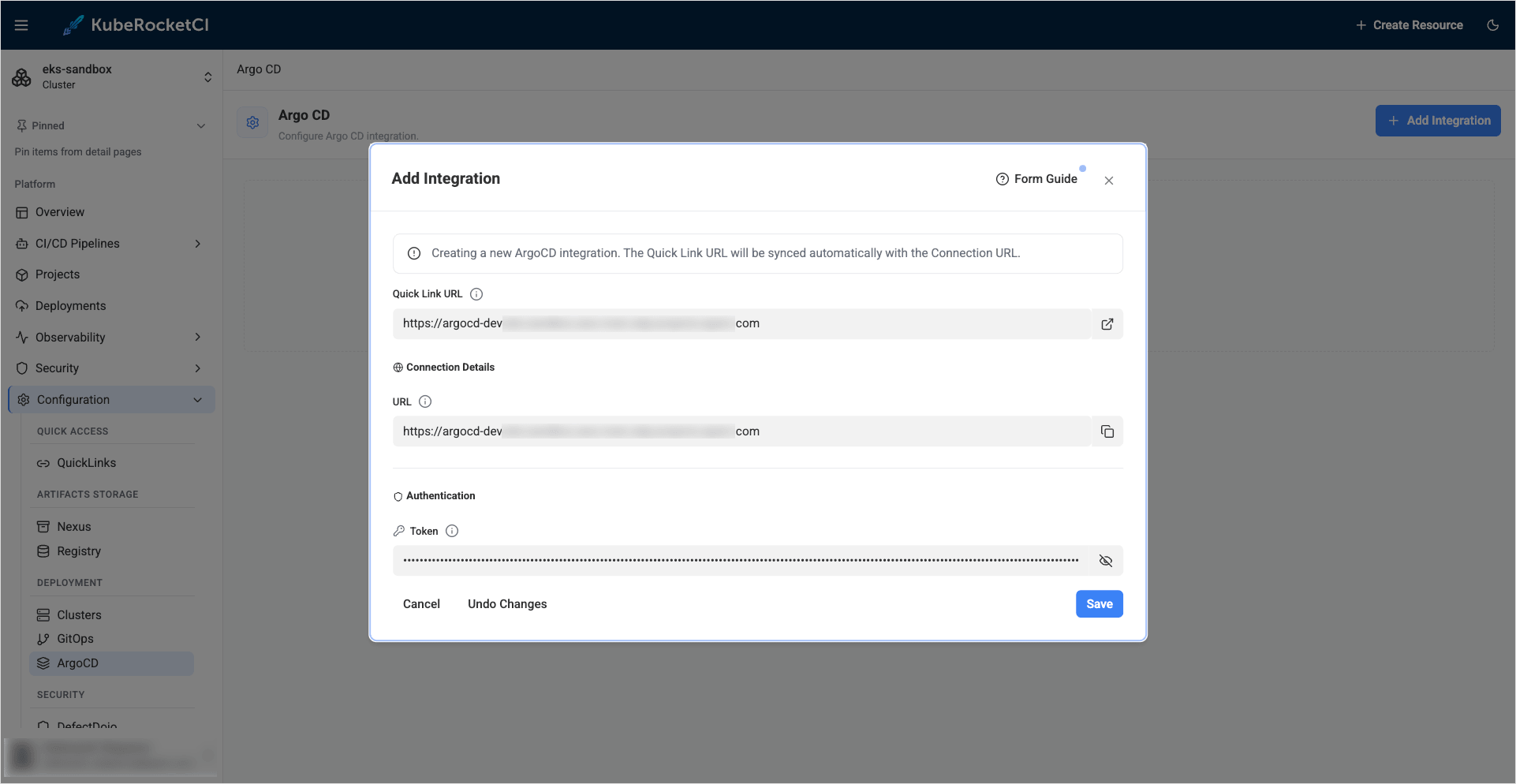

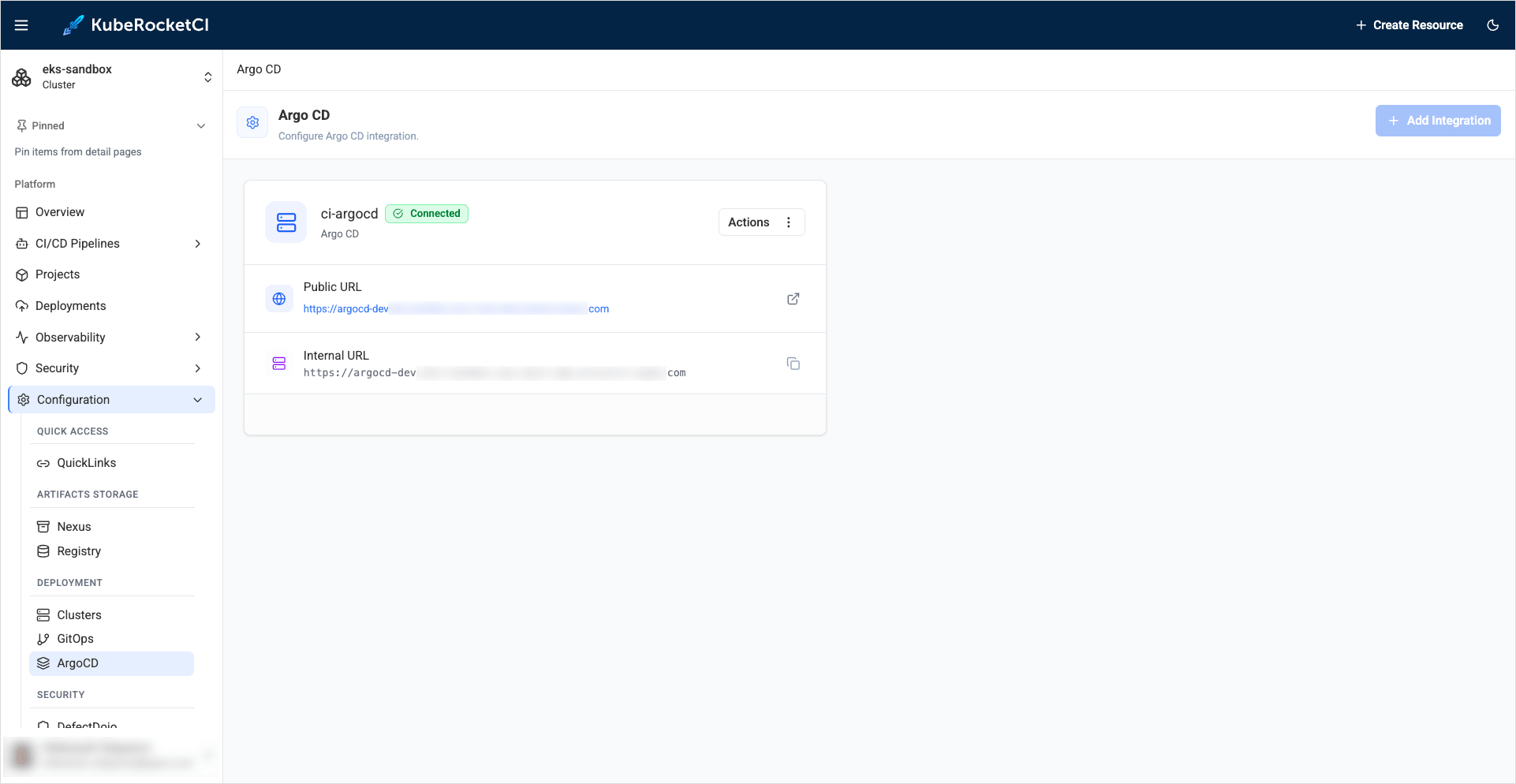

Once Argo CD is successfully integrated, KubeRocketCI user can utilize Argo CD to deploy CD pipelines.

Check Argo CD Integration (Optional)

This section provides the information on how to test the integration with Argo CD and is not mandatory to be followed.

1. Add an Argo CD application:

   View: argocd-values.yaml

   apiVersion: argoproj.io/v1alpha1
   kind: Application
   metadata:
     name: demo
   spec:
     project: edp
     destination:
       namespace: edp-demo
       server: https://kubernetes.default.svc
     source:
       helm:
         parameters:
           - name: image.tag
             value: master-0.1.0-1
           - name: image.repository
             value: image-repo
       path: deploy-templates
       # github/gitlab example ssh://git@github.com/<github_account_name>/<repository_name>.git
       # gerrit example ssh://<gerrit_user>@gerrit.edp:30007/<repository_name>.git
       repoURL: ssh://git@github.com/edp/demo.git
       targetRevision: master
     syncPolicy:
       syncOptions:
         - CreateNamespace=true
       automated:
         selfHeal: true
         prune: true

2. Check that your new Application is added to the Argo CD UI under the edp Project scope.

Deploy Argo CD Application to Remote Cluster (Optional)

KubeRocketCI also supports deploying Argo CD applications to a remote cluster. To deploy applications to remote clusters, follow the steps below:

1. Create ServiceAccount ClusterRoleBinding and Secret for that ServiceAccount.

2. Receive the bearer token:

   BEAR_TOKEN=$(kubectl get secret <serviceaccount-secret-name> -o jsonpath='{.data.token}' | base64 --decode)

3. Create ArgoCD secret for remote cluster:

   manifest

   apiVersion: v1
   kind: Secret
   metadata:
     name: edp-remote-cluster
     namespace: argocd
   data:
     # Remote cluster config
     config: {"bearerToken":"<BEAR_TOKEN>","tlsClientConfig":{"insecure":false,"caData":"<certificate-authority-data>"}}
     # Remote cluster name
     name: "edp-remote-cluster"
     # Cluster endpoint URL
     server: "https://xxxxxxxxxxxxxxxxxxxx.sk1.eu-central-1.eks.amazonaws.com"
   type: stringData

4. Update an Argo CD Project (EDP Tenant), with the edp name:

   AppProject

   apiVersion: argoproj.io/v1alpha1
   kind: AppProject
   metadata:
     name: edp
   spec:
     destinations:
         # Add block that allow deploy in remote cluster
         # by default edp work with 'edp-*' namespace
       - namespace: 'edp-*'
         # allow to deploy to specific server (remote in our case)
         name: edp-remote-cluster

5. Add a remote cluster in the KubeRocketCI portal. Please refer to the Add Cluster page for details.

Keycloak Integration (Optional)

note

To proceed with the steps below, you need the edp-keycloak-operator to be deployed.

To provide Argo CD with the Keycloak SSO authorization mechanism, follow the guidelines below:

1. Create secret keycloak-client-argocd-secret.

   kubectl create secret generic keycloak-client-argocd-secret \
   --from-literal=clientSecret=$(openssl rand -base64 32) \
   --namespace=argocd

2. Update the argocd-cm ConfigMap:

   kubectl

   kubectl patch configmap argocd-cm -n argocd --patch "$(cat <<EOF
   data:
     oidc.config: |
       name: Keycloak
       issuer: https://<keycloakEndpoint>/auth/realms/edp
       clientID: argocd-tenant
       clientSecret: $keycloak-client-argocd-secret:clientSecret
       requestedScopes:
         - openid
         - profile
         - email
         - groups
   EOF
   )"

   manifest

   data:
     oidc.config:
       url: "https://argocd.<.Values.global.dnsWildCard>"
       application.instanceLabelKey: argocd.argoproj.io/instance-edp
       oidc.config: |
         name: Keycloak
         issuer: https://<.Values.global.keycloakEndpoint>/auth/realms/edp
         clientID: argocd-tenant
         clientSecret: $keycloak-client-argocd-secret:clientSecret
         requestedScopes:
           - openid
           - profile
           - email
           - groups

3. Create a Keycloak Group:

   apiVersion: v1.edp.epam.com/v1
   kind: KeycloakRealmGroup
   metadata:
     name: argocd-edp-users
   spec:
     name: ArgoCD-edp-users
     realm: main

4. Create a Keycloak Client:

   apiVersion: v1.edp.epam.com/v1
   kind: KeycloakClient
   metadata:
     name: argocd
     namespace: argocd
   spec:
     advancedProtocolMappers: true
     attributes:
       post.logout.redirect.uris: +
     clientId: argocd-tenant
     defaultClientScopes:
       - groups
     realmRef:
       kind: ClusterKeycloakRealm
       name: main
     secret: keycloak-client-argocd-secret
     webUrl: "https://argocd.<.Values.global.dnsWildCard>"

5. In Keycloak, add users to the ArgoCD-edp-users Keycloak Group.

6. Update spec in project:

   AppProject

   spec:
     description: CD pipelines for edp
     roles:
       - name: developer
         description: Users for edp tenant
         policies:
           - p, proj:edp:developer, applications, create, edp/*, allow
           - p, proj:edp:developer, applications, delete, edp/*, allow
           - p, proj:edp:developer, applications, get, edp/*, allow
           - p, proj:edp:developer, applications, override, edp/*, allow
           - p, proj:edp:developer, applications, sync, edp/*, allow
           - p, proj:edp:developer, applications, update, edp/*, allow
           - p, proj:edp:developer, repositories, create, edp/*, allow
           - p, proj:edp:developer, repositories, delete, edp/*, allow
           - p, proj:edp:developer, repositories, update, edp/*, allow
           - p, proj:edp:developer, repositories, get, edp/*, allow
         groups:
           # Keycloak Group name
           - ArgoCD-edp-users

7. Then restart the deployment:

   kubectl -n argocd rollout restart deployment argo-argocd-server
