Install via Add-Ons

This page provides an overview of Cluster Add-Ons for KubeRocketCI, including their purpose, benefits, and usage.

What Are Add-Ons

KubeRocketCI Add-Ons is essentially a Kubernetes-based deployment pattern that allows users to easily install additional components for the platform using Argo CD applications.

Add-Ons have been introduced into KubeRocketCI starting from version 3.4.0. They empower users to seamlessly integrate the platform with various additional components, such as SonarQube, Nexus, Keycloak, Jira, and more. This eliminates the need for manual installations, as described in the Install KubeRocketCI page.

In a nutshell, Add-Ons are separate Helm Charts that can be installed with just one click using the Argo CD tool.

Add-Ons Repository Structure

All the Add-Ons for KubeRocketCI are stored in our GitHub repository following the GitOps approach. In addition to default Helm and Git files, the repository contains custom resources called Applications for Argo CD and application source code. The repository adheres to the GitOps approach, allowing for easy rollback of changes when necessary. The structure of the repository is as follows:

View: edp-cluster-add-ons repo structure

edp-cluster-add-ons
├── argo-cd
│   ├── Chart.yaml
│   ├── README.md
│   ├── templates
│   │   ├── appProjectCore.yaml
│   │   ├── appProjectKRCI.yaml
│   │   ├── ...
│   └── values.yaml
├── ...
├── clusters
│   ├── core
│   │   ├── addons
│   │   │   ├── atlantis
│   │   │   │   ├── Chart.yaml
│   │   │   │   ├── README.md
│   │   │   │   ├── templates
│   │   │   │   └── values.yaml
│   │   │   ├── aws-efs-csi-driver
│   │   │   │   ├── Chart.yaml
│   │   │   │   ├── README.md
│   │   │   │   ├── templates
│   │   │   │   └── values.yaml
│   │   │   ├── ...
│   │   ├── apps
│   │   │   ├── templates
│   │   │   │   ├── atlantis.yaml
│   │   │   │   ├── aws-efs-csi-driver.yaml
│   │   │   │   ├── ...
│   │   │   ├── Chart.yaml
│   │   │   ├── README.md
│   │   │   └── values.yaml
│   │   └── bootstrap-addons.yaml
│   └── prod
├── ...

• argo-cd - The directory containing the Helm chart for deploying the main Argo CD instance and prepared project templates.

• clusters - A directory for organizing configurations and Helm charts specific to individual clusters. Each subdirectory corresponds to a particular cluster environment (e.g., core, prod, or dev).

• addons - The directory containing subdirectories with Helm charts for applications to install, such as Nexus, SonarQube, Keycloak, etc. See the full add-ons list below.

• apps - Contains application templates directory used to create Argo CD application. The deployment of these applications is managed by modifying the apps/values.yaml file, where you can enable or disable specific applications.

• bootstrap-addons.yaml - The manifest file defining the app of apps application responsible for deploying all enabled application to the cluster. This manifest is applied manually.

Enable KubeRocketCI Add-Ons

To enable Add-Ons, it is necessary to have the configured Argo CD, and connect and synchronize the forked repository. To do this, follow the guidelines below:

1. Create a fork of the Add-Ons repository in your personal Git account.

2. Align repoUrl in /clusters/core/apps/values.yaml, /clusters/core/bootstrap-addons.yaml and repoSource in the /argo-cd/templates/appProjectCore.yaml, /argo-cd/templates/appProjectCore.yaml files of the repository, specify the SSH URL of your fork. For GitHub, replace kuberocketci with your <github_account_name>.

3. Clone a forked add-ons repository to your local machine and install preconfigured Argo CD Helm chart from /argo-cd folder using the command below:

helm install argocd argo-cd -n argocd --create-namespace

4. (Optional) If you don't have an ingress controller created in your Kubernetes cluster, enable port-forwarding for the Argo CD service using the command below:

kubectl port-forward -n argocd service/argo-cd-argocd-server 65080:80

This will forward the Argo CD service to http://localhost:65080 on your local machine. Open this URL in your browser to access the Argo CD interface.

5. As soon as Helm chart is deployed, open your Argo CD endpoint and navigate to Settings -> Repositories. Connect your repository where you have the values.yaml files changed by clicking the + CONNECT REPO button:



6. In the appeared window, fill in the following fields and click the CONNECT button:

   • Choose your connection method - VIA SSH;
   • Name - addons-demo (optional);
   • Project - select project;
   • Repository URL - enter the SSH URL of your forked repository (ssh://git@github.com:22/<github_account_name>/edp-cluster-add-ons.git);

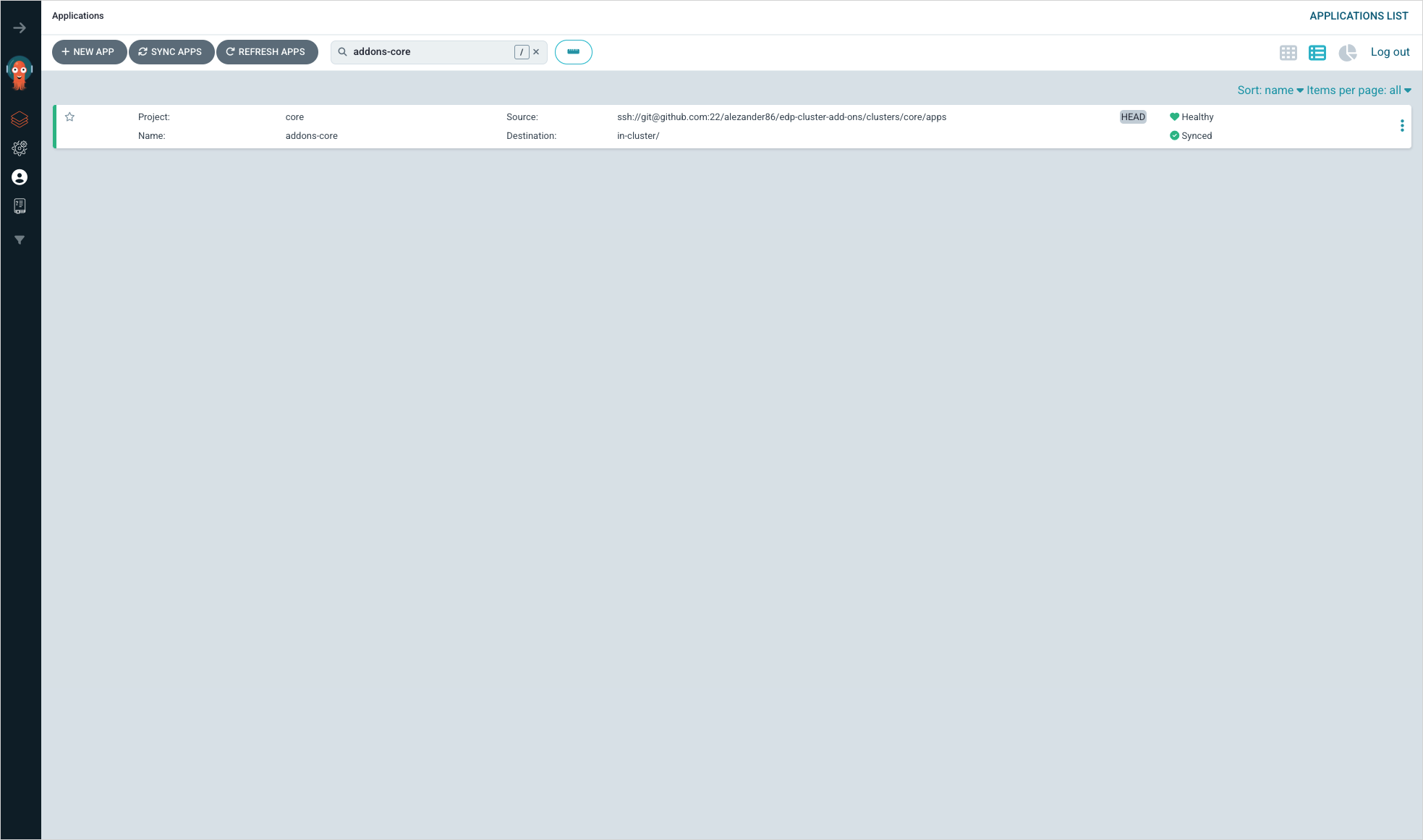

7. As soon as the repository is connected, the new item will appear in the repository list:



8. Apply the add-ons management application manifest and open Application tab:

   kubectl apply -f edp-cluster-add-ons/clusters/core/bootstrap-addons.yaml -n argocd

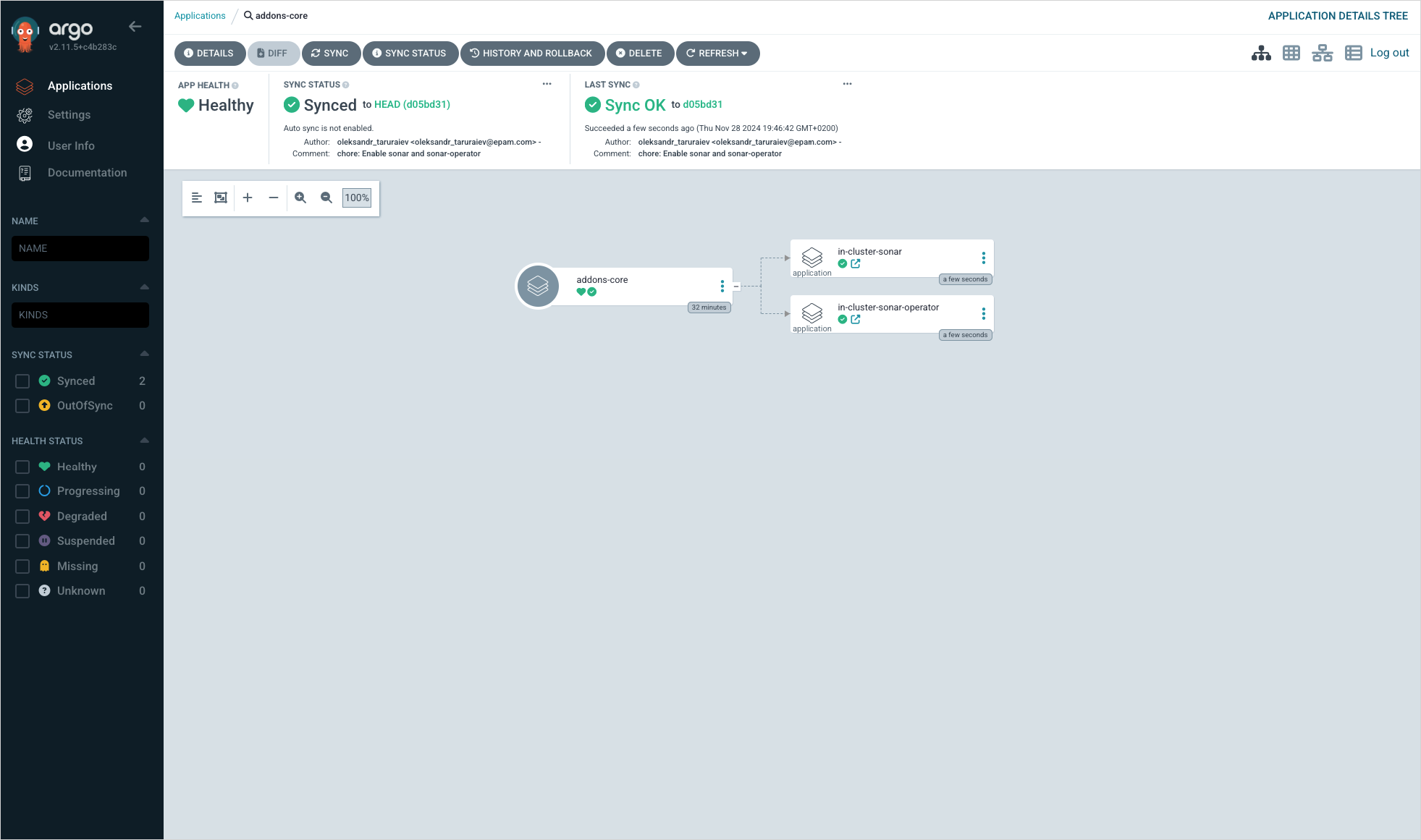

9. Click the addon-core application to open its details:



Install Add-Ons

Now that Add-Ons are enabled in Argo CD, they can be installed by following the steps below:

1. Choose the Add-On to install.

2. Enable the Add-Ons chosen in the /clusters/core/apps/values.yaml file. You can also re-define Add-On parameters. Refer to the example below:

sonar:
  createNamespace: true
  enable: true

sonar-operator:
  createNamespace: true
  enable: true

3. Navigate to the Argo CD Add-Ons application. On the chosen Add-On, click the ⋮ button and then Details:

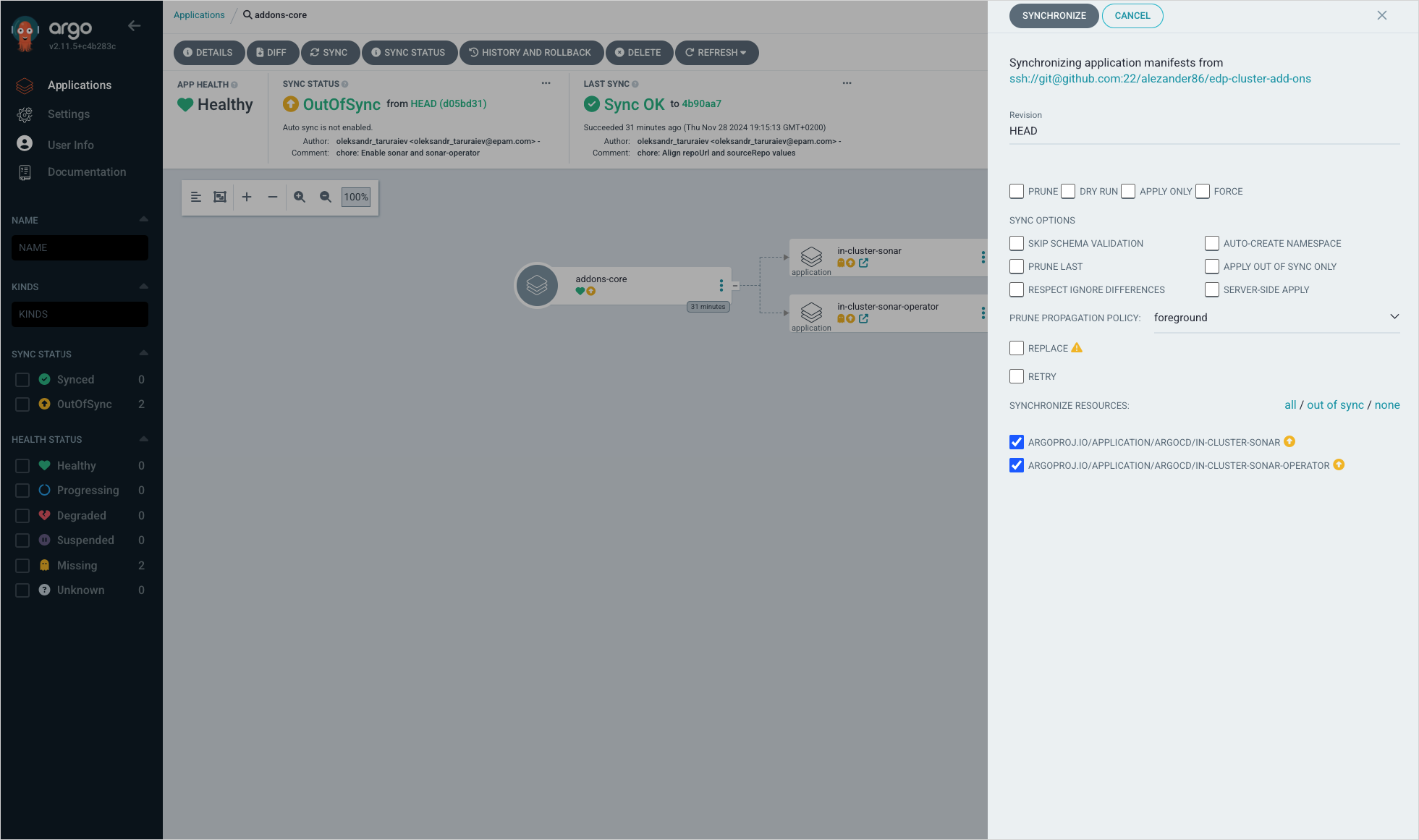

4. To install the Add-On, click the ⋮ button -> Sync:



5. Once the Add-On is installed, the Sync OK message will appear in the Add-On status bar:

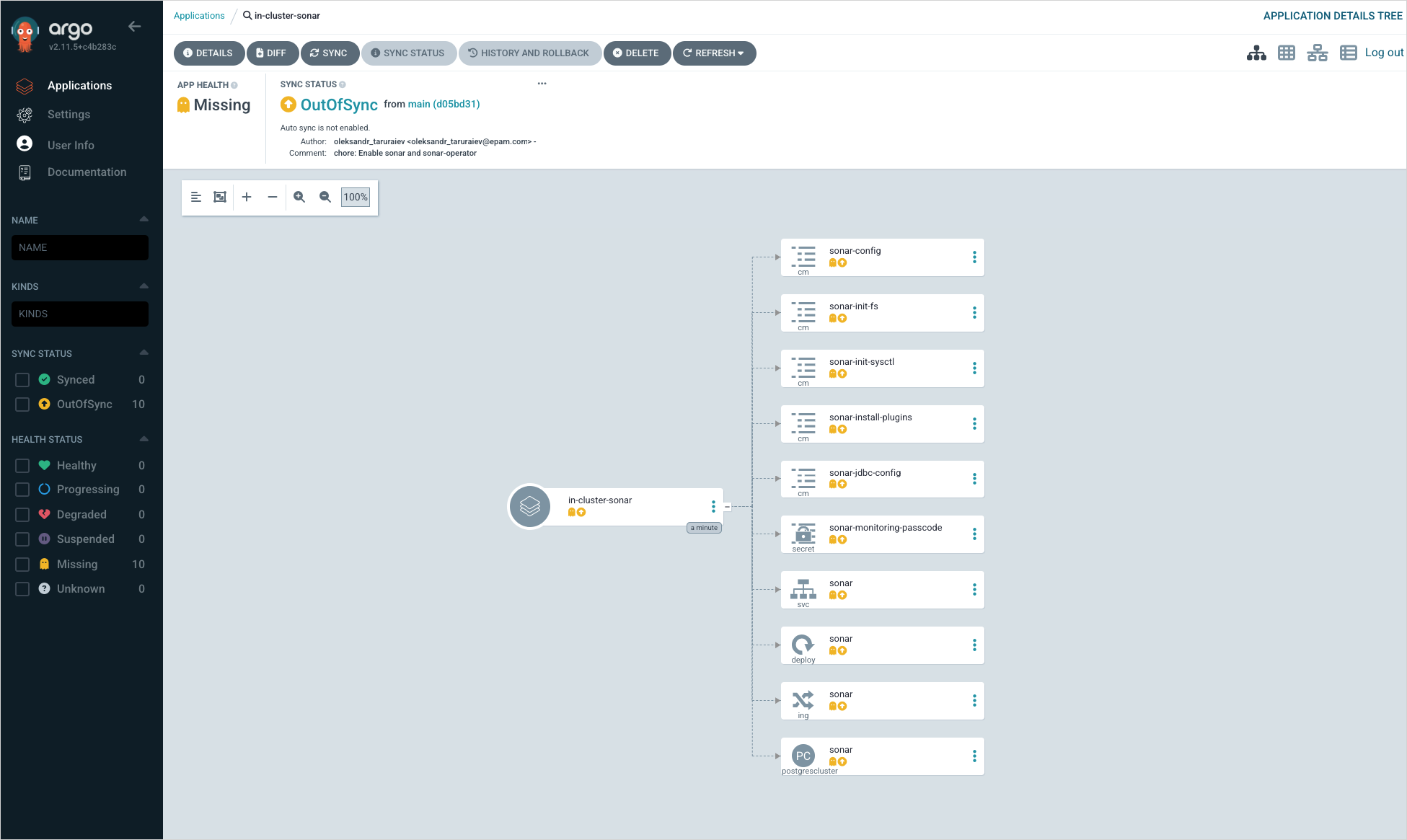

6. Open the application details by clicking on the little square with an arrow underneath the Add-On name:



7. By default in all addons application auto sync is not enabled to install application click Sync button.

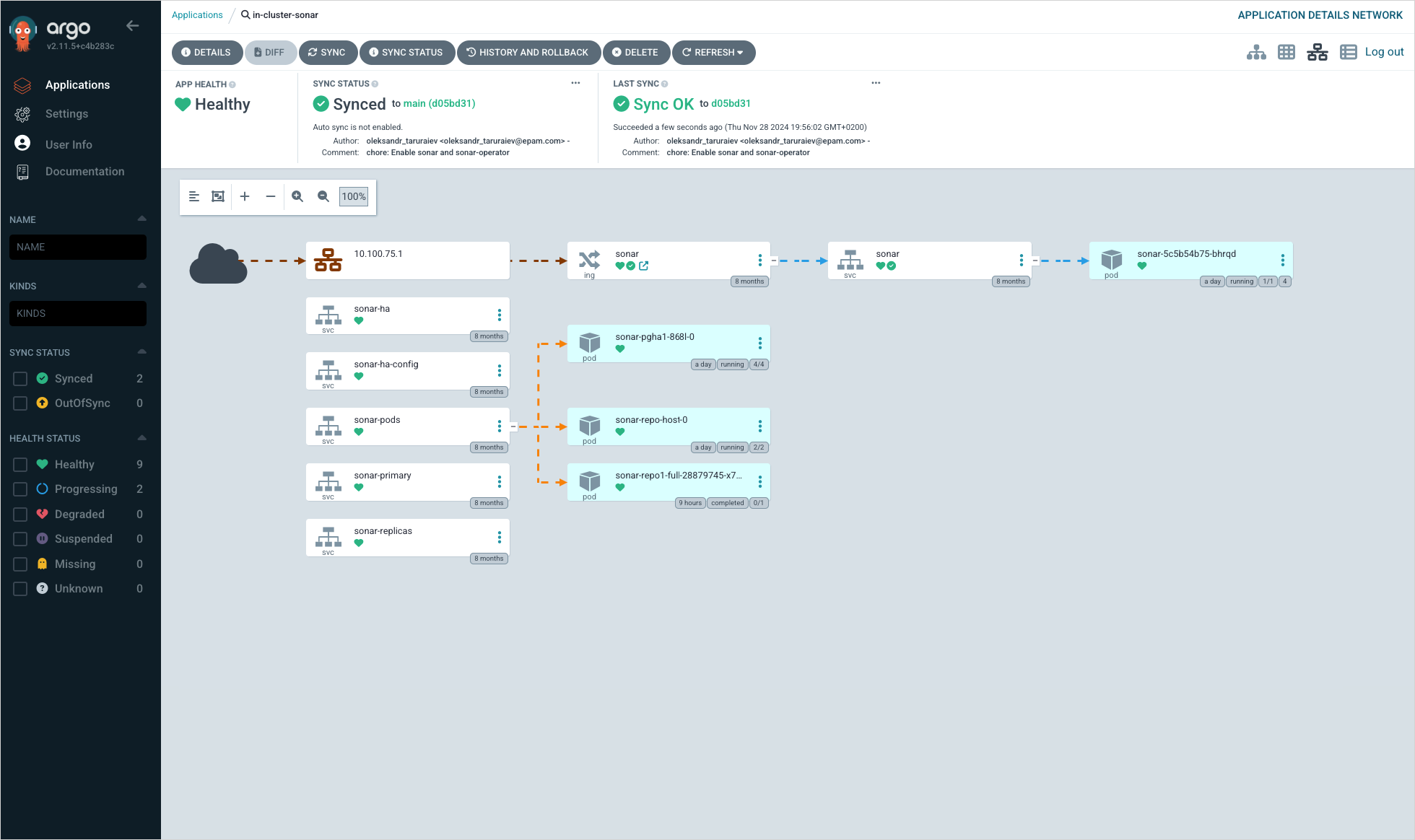

8. Track application resources and status in the App details menu:



Argo CD provides excellent observability and monitoring capabilities for its resources, which is particularly beneficial when utilizing KubeRocketCI Add-Ons.

Available Add-Ons List

The list of the available Add-Ons:

info

Consult repository README.md for the most up-to-date information.

Name	Description	Default
Argo CD	A GitOps continuous delivery tool that helps automate the deployment, configuration, and lifecycle management of applications in Kubernetes clusters.	false
AWS EFS CSI Driver	A Container Storage Interface (CSI) driver that enables the dynamic provisioning of Amazon Elastic File System (EFS) volumes in Kubernetes clusters.	false
Cert Manager	A native Kubernetes certificate management controller that automates the issuance and renewal of TLS certificates.	false
Capsule	A multi-tenancy solution for Kubernetes clusters that provides each tenant with a dedicated namespace where they can freely run their workloads with resource quotas.	false
Capsule tenant	A specific tenant within the Capsule multi-tenancy solution. Each tenant has its own isolated environment within the Kubernetes cluster.	false
DefectDojo	A security vulnerability management tool that allows tracking and managing security findings in applications.	false
DependencyTrack	A Software Composition Analysis (SCA) platform that helps identify and manage open-source dependencies and their associated vulnerabilities.	false
KubeRocketCI(EDP)	An internal platform created by EPAM to enhance software delivery processes using DevOps principles and tools.	false
Extensions OIDC	KubeRocketCI Helm chart to provision OIDC clients for different Add-Ons using EDP Keycloak Operator.	false
External Secrets	A Kubernetes Operator that fetches secrets from external secret management systems and injects them as Kubernetes Secrets.	false
Fluent Bit	A lightweight and efficient log processor and forwarder that collects and routes logs from various sources in Kubernetes clusters.	false
Harbor	A cloud-native container image registry that provides support for vulnerability scanning, policy-based image replication, and more.	false
Ingress nginx	An Ingress controller that provides external access to services running within a Kubernetes cluster using Nginx as the underlying server.	false
Jaeger Operator	An operator for deploying and managing Jaeger, an end-to-end distributed tracing system, in Kubernetes clusters.	false
Keycloak	An open-source Identity and Access Management (IAM) solution that enables authentication, authorization, and user management in Kubernetes clusters.	false
Keycloak PostgreSQL	A PostgreSQL database operator that simplifies the deployment and management of PostgreSQL instances in Kubernetes clusters.	false
MinIO Operator	An operator that simplifies the deployment and management of MinIO, a high-performance object storage server compatible with Amazon S3, in Kubernetes clusters.	false
Nexus	Serves as a repository manager, enabling the proxying, aggregation, and management of dependencies, as well as the storage of artifacts.	false
Nexus Operator	A tool designed to streamline the handling of Nexus resources and configurations, facilitating the proxying, collection, and management of dependencies within a repository manager.	false
OpenSearch	A community-driven, open-source search and analytics engine that provides scalable and distributed search capabilities for Kubernetes clusters.	false
OpenTelemetry Operator	An operator for automating the deployment and management of OpenTelemetry, a set of observability tools for capturing, analyzing, and exporting telemetry data.	false
PostgreSQL Operator	An operator for running and managing PostgreSQL databases in Kubernetes clusters with high availability and scalability.	false
Report Portal	An powered test automation dashboard that allows you to analyze test results, identify issues, and track testing progress.	false
Prometheus Operator	An operator that simplifies the deployment and management of Prometheus, a monitoring and alerting toolkit, in Kubernetes clusters.	false
Redis Operator	An operator for managing Redis, an in-memory data structure store, in Kubernetes clusters, providing high availability and horizontal scalability.	false
Sonar	A comprehensive open-source platform dedicated to the continuous evaluation of code quality, automatically scrutinizing code to identify bugs, code smells, and security vulnerabilities.	false
Sonar Operator	An operator that simplifies the management and configuration of SonarQube.	false
StorageClass	A Kubernetes resource that provides a way to define different classes of storage with different performance characteristics for persistent volumes.	false
Tekton	A flexible and cloud-native framework for building, testing, and deploying applications using Kubernetes-native workflows.	false
Tekton-cache		false
Vault	An open-source secrets management solution that provides secure storage, encryption, and access control for sensitive data in Kubernetes clusters.	false
