Portal OIDC Configuration

This page provides instructions for configuring the OIDC authorization for the KubeRocketCI Portal UI, enabling the use of Single Sign-On (SSO) for authorization in the Portal. This configuration allows for centralized control of user access and rights from a single configuration point.

Prerequisites​

Ensure the following values are set first before starting the Portal OIDC configuration:

  1. realm_id = shared

  2. client_id = eks

  3. keycloak_client_key= keycloak_client_secret_key (received from: Shared realm -> clients -> eks -> Credentials -> Client secret)

note

The values indicated above are the result of the Keycloak configuration as an OIDC identity provider. To obtain these values, please refer to the guidelines on the Keycloak OIDC EKS Configuration page.

Configure Keycloak​

To proceed with the Keycloak configuration, perform the following:

  1. Add the URL of the Headlamp to the valid_redirect_uris variable in Keycloak:

    keycloak_openid_client
      redirectUris:
        - "https://portal.<dns_wildcard>/*"
        - "http://localhost:8000/*"

    Make sure to define the following Keycloak client values as indicated:

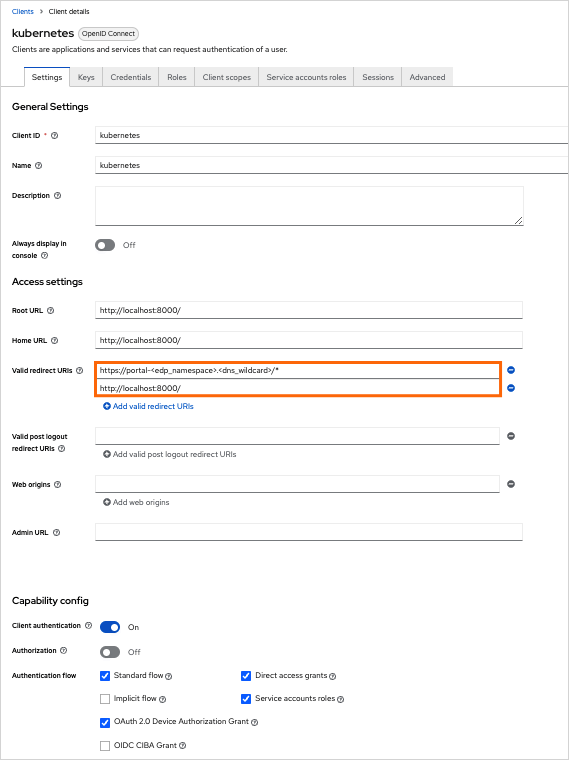

    Keycloak client configuration

  2. Configure the Keycloak client key in Kubernetes using the Kubernetes secrets or the External Secrets Operator:

    apiVersion: v1
    kind: Secret
    metadata:
      name: keycloak-client-headlamp-secret
      namespace: edp
    type: Opaque
    stringData:
      clientSecret: <keycloak_client_secret_key>

  3. Assign user to one or more groups in Keycloak.

Integrate Portal With Kubernetes​

Portal is integrated in Kubernetes in three steps:

  1. Update the values.yaml file by enabling OIDC:

    values.yaml
    edp-headlamp:
      config:
        oidc:
          enabled: true

  2. Navigate to Portal UI and log in by clicking the Sign In button:

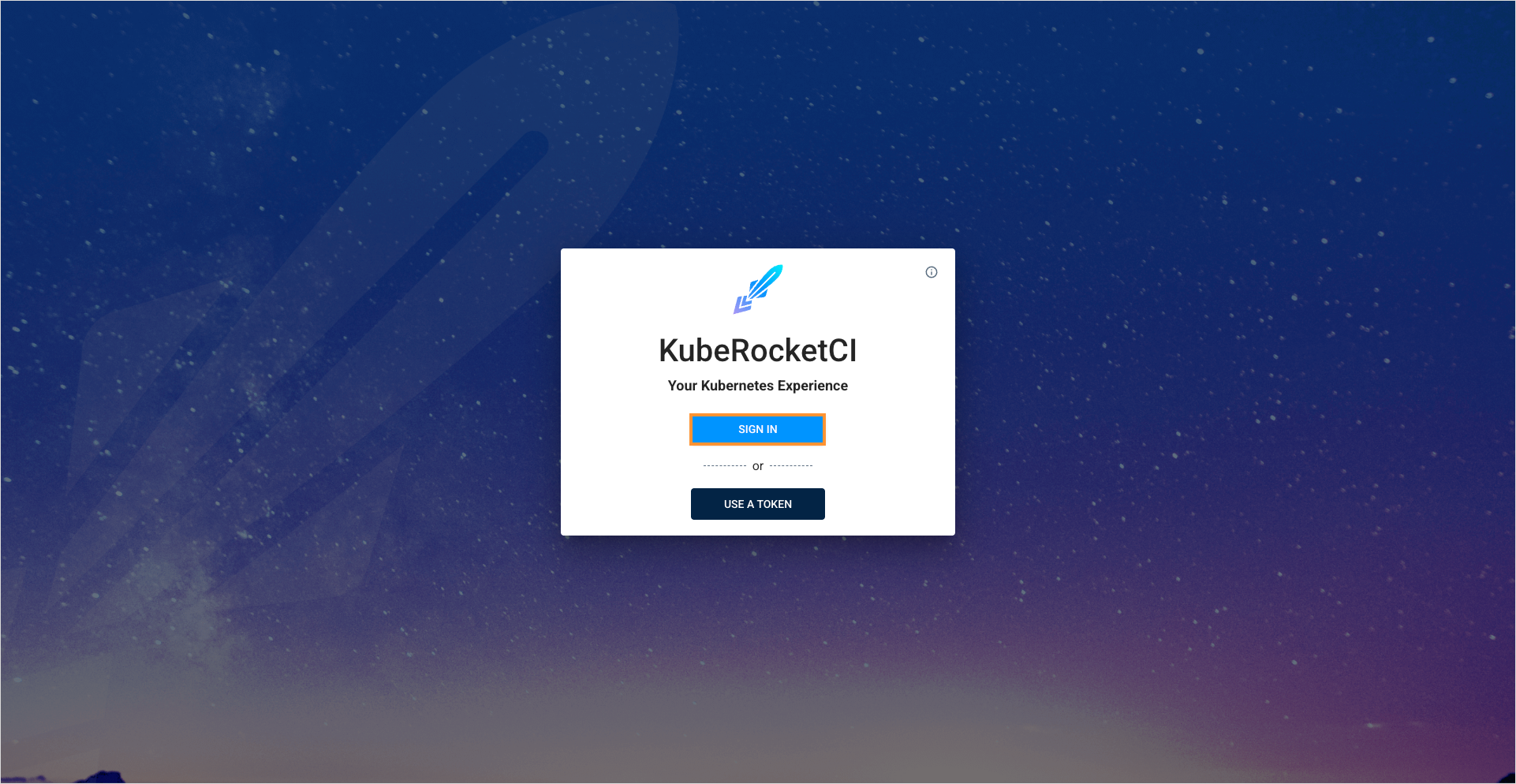

    Portal login page

  3. Upon logging in, specify the namespace for KubeRocketCI where platform is deployed by clicking the cluster settings link in the bottom left corner of the UI:

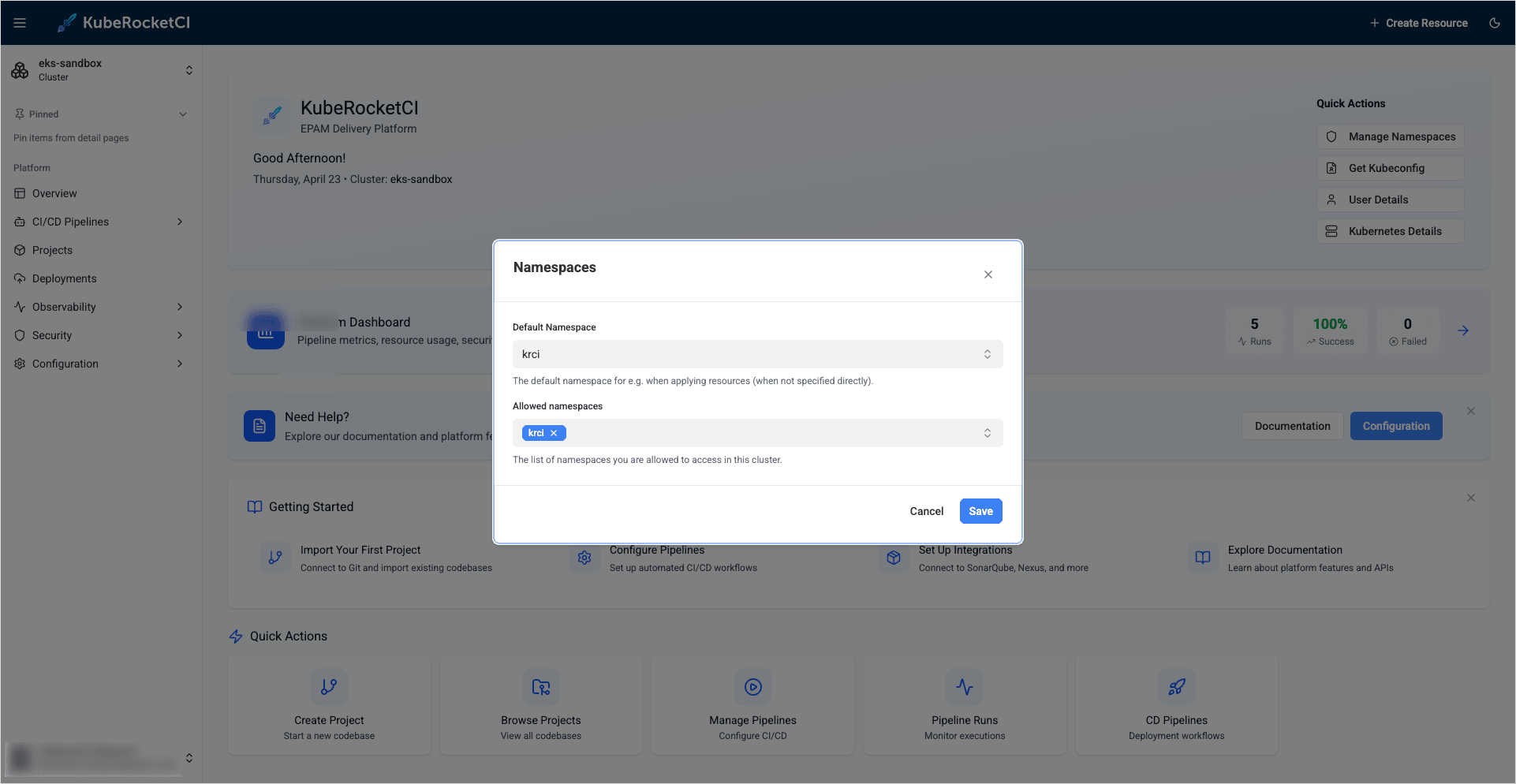

    Portal namespace settings

As a result, it is possible to control access and rights from the Keycloak endpoint.

Configure User Profile Picture​

To enhance account personalization, a profile picture can be configured in the Portal using Keycloak. This requires setting up the Keycloak client scope with the necessary user attributes.

Follow the steps below to configure the user profile picture in Keycloak:

  1. Open the Keycloak admin console and navigate to the Broker realm. In the left sidebar menu, select Client scopes and choose the profile scope.

    Keycloak profile scope

  2. Navigate to the Mappers tab and ensure that the picture attribute is created. If the attribute is not present, click Add mapper button. In the dropdown menu, select By configuration.

    note

    If the picture user attribute is already present, skip to step 5.

    Keycloak create mapper

  3. In the Configure a new mapper dialog, choose the User Attribute type.

    Keycloak user attribute

  4. Fill in the following fields to configure the user attribute:

    • Name: picture
    • User Attribute: picture
    • Token Claim Name: picture
    • Claim JSON Type: String

    Keycloak user attribute configuration

    Click Save to apply the changes.

  5. After configuring the user attribute, navigate to the Users tab in the left sidebar menu and select the user you want to set a profile picture for.

    Keycloak user profile

  6. In the user profile, click Attributes and add the picture attribute with the URL of the desired profile picture.

    note

    The profile picture URL should refer to an image accessible via a public URL.

    Keycloak user picture

    Click Save to apply the changes.

  7. After configuring the user profile picture in Keycloak, the profile picture will be displayed in the Portal UI.

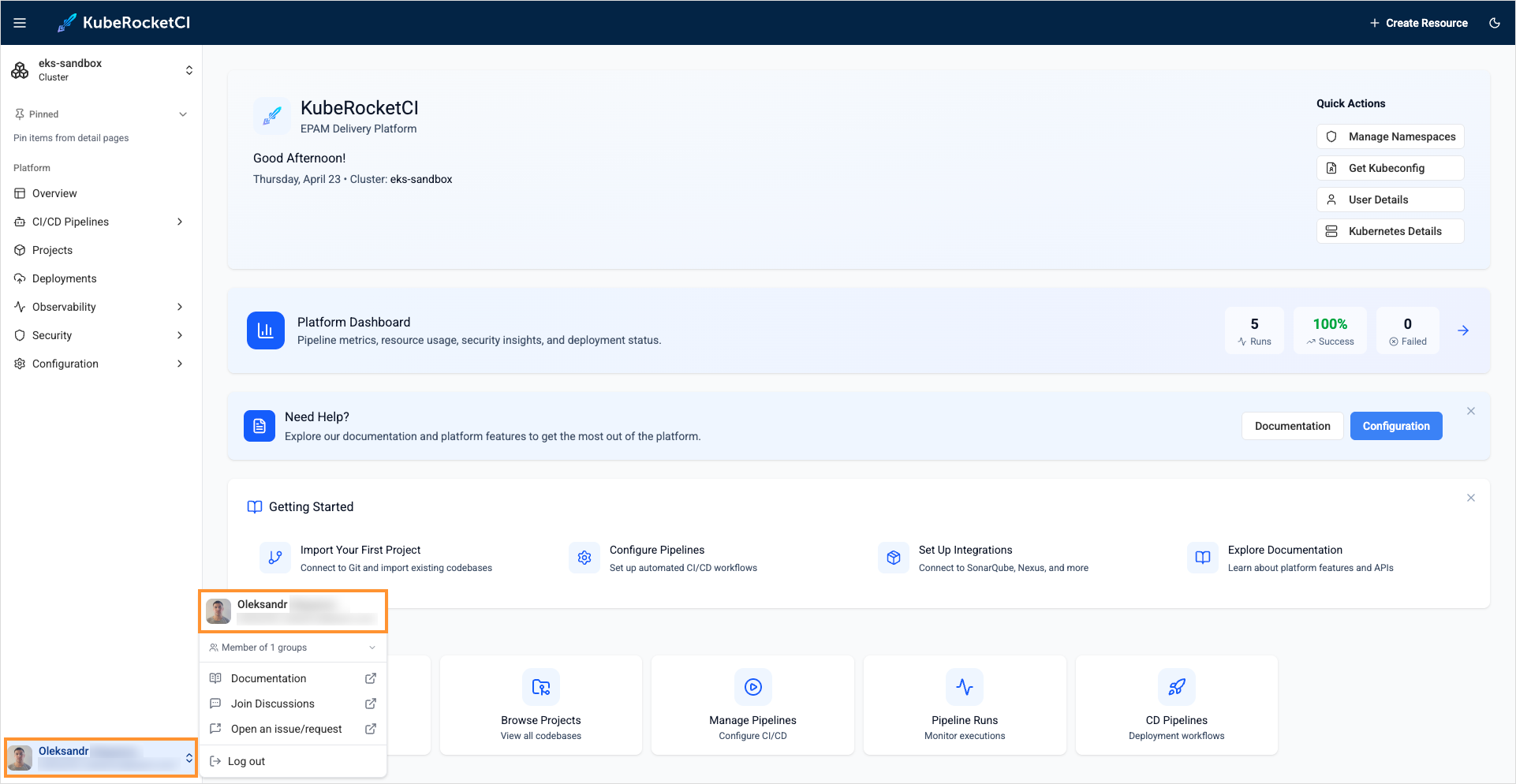

    Portal user profile picture

Configure Default Namespace​

After logging into the Portal, it is necessary to manually configure account settings like Default namespace and Allowed namespaces. To simplify this process, the default_namespace user attribute can be added to the user profile in Keycloak. This will ensure that the account settings are automatically configured during login.

Follow the steps below to configure the default_namespace user attribute in Keycloak:

  1. Open the Keycloak admin console and navigate to the Broker realm. In the left sidebar menu, select Client scopes and choose the profile scope.

    Keycloak profile scope

  2. Navigate to the Mappers tab and click the Add mapper button. In the dropdown menu, select By configuration.

    Keycloak create mapper

  3. In the Configure a new mapper dialog, choose the User Attribute type.

    Keycloak user attribute

  4. Fill in the following fields to configure the user attribute:

    • Name: default_namespace
    • User Attribute: default_namespace
    • Token Claim Name: default_namespace
    • Claim JSON Type: String

    Keycloak user attribute configuration

    Click Save to apply the changes.

  5. After configuring the user attribute, navigate to the Users tab in the left sidebar menu and select the user you want to set a default namespace for.

    Keycloak user profile

  6. In the user profile, click Attributes and add the default_namespace attribute with the name of the desired default namespace.

    Keycloak user default namespace

    Click Save to apply the changes.

  7. After configuring the user attribute with the default namespace in Keycloak, the account settings, such as the Default namespace and Allowed namespaces, will be automatically configured during login.

    Portal user default namespace

Changing the Lifespan of an Access Token​

Change the Access Token Lifespan: go to your Keycloak and select Openshift realm > Realm settings > Tokens > Access Token Lifespan > set a new value to the field and save this change.

By default, "Access Token Lifespan" value is 5 minutes.

Access Token Lifespan
