Use Cert-Manager in OpenShift

The following material covers Let's Encrypt certificate automation with cert-manager using AWS Route53.

The cert-manager is a Kubernetes/OpenShift operator that allows to issue and automatically renew SSL certificates. In this tutorial, the steps to secure DNS Name will be demonstrated.

Below is an instruction on how to automatically issue and install wildcard certificates on OpenShift Ingress Controller and API Server covering all cluster Routes. To secure separate OpenShift Routes, please refer to the OpenShift Route Support project for cert-manager.

Prerequisites

The cert-manager;
OpenShift v4.7 - v4.11;
Connection to the OpenShift Cluster;
Enabled AWS IRSA;
The latest oc utility. The kubectl tool can also be used for most of the commands.

Install Cert-Manager Operator

Install the cert-manager operator via OpenShift OperatorHub that uses Operator Lifecycle Manager (OLM):

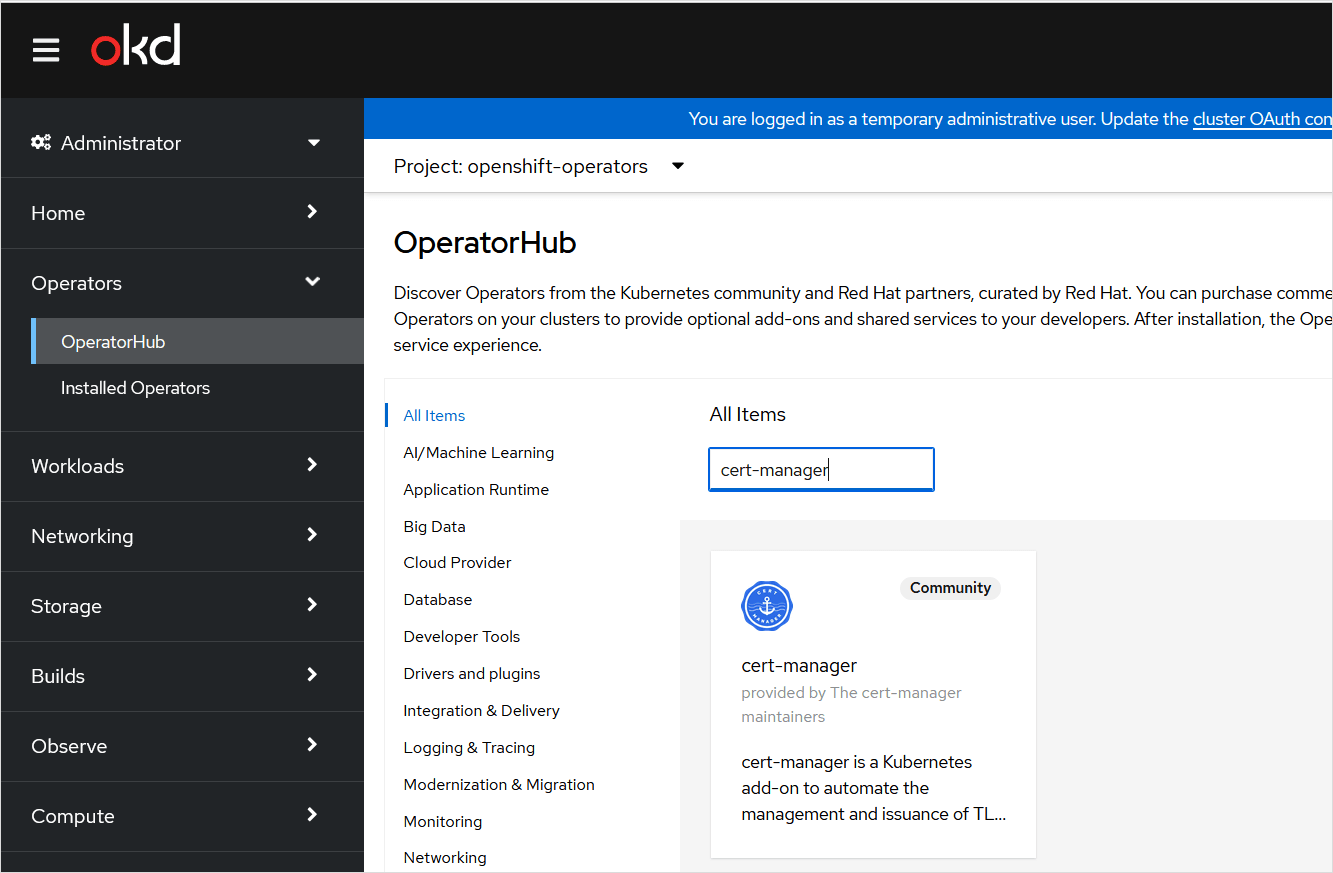

Go to the OpenShift Admin Console → OperatorHub, search for the cert-manager, and click Install:

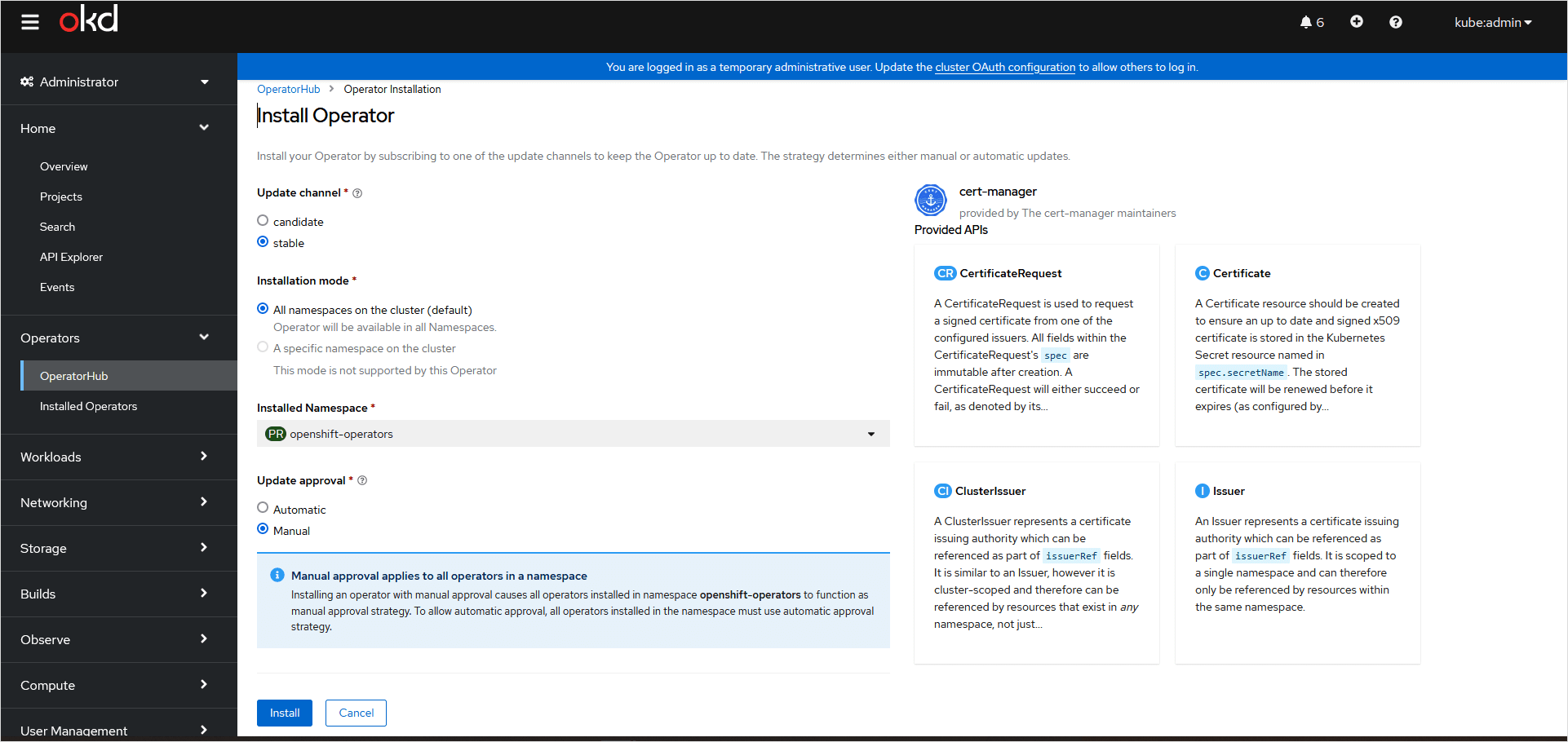

Modify the ClusterServiceVersion OLM resource, by selecting the Update approval → Manual. If selecting Update approval → Automatic after the automatic operator update, the parameters in the ClusterServiceVersion will be reset to default.

note
Installing an operator with Manual approval causes all operators installed in namespace openshift-operators to function as manual approval strategy. In case the Manual approval is chosen, review the manual installation plan and approve it.

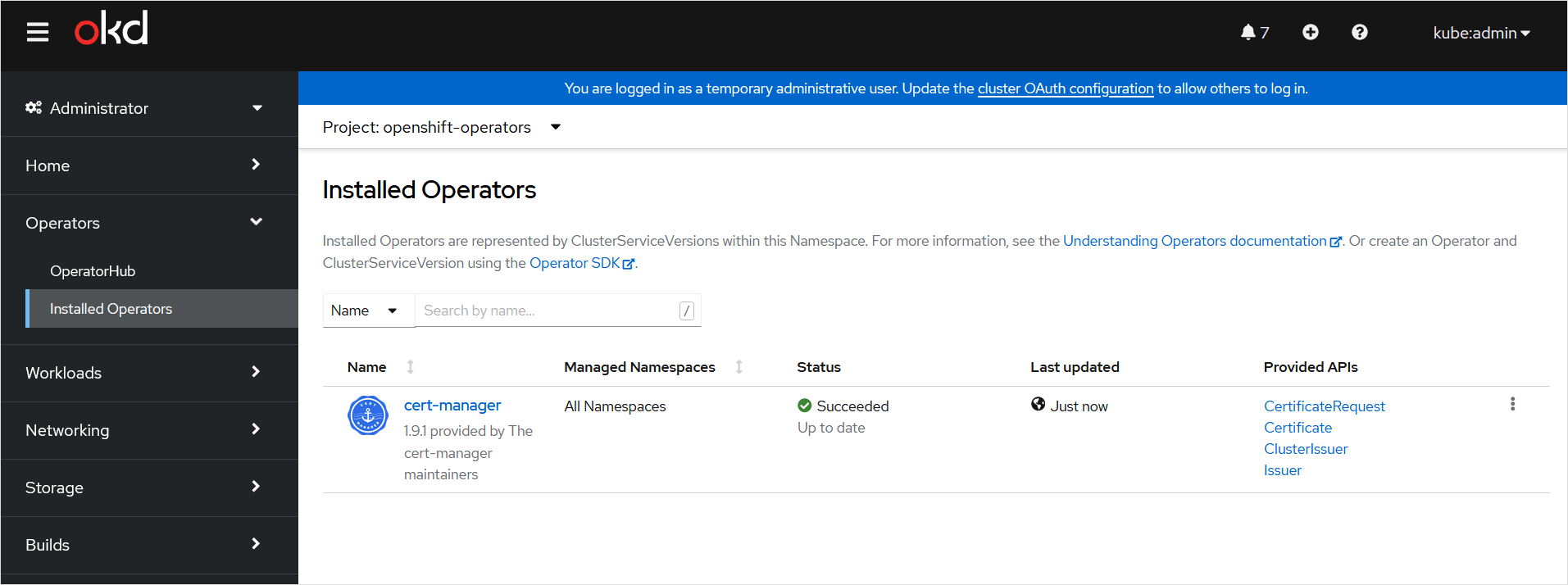

Navigate to Operators → Installed Operators and check the operator status to be Succeeded:

In case of errors, troubleshoot the Operator issues:

oc describe operator cert-manager -n openshift-operators
oc describe sub cert-manager -n openshift-operators

Create AWS Role for Route53

The cert-manager should be configured to validate Wildcard certificates using the DNS-based method.

Check the DNS Hosted zone ID in AWS Route53 for your domain.

Create Route53 Permissions policy in AWS for cert-manager to be able to create DNS TXT records for the certificate validation. In this example, cert-manager permissions are given for a particular DNS zone only. Replace Hosted zone ID XXXXXXXX in the "Resource": "arn:aws:route53:::hostedzone/XXXXXXXXXXXX".

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": "route53:GetChange",
      "Resource": "arn:aws:route53:::change/*"
    },
    {
      "Effect": "Allow",
      "Action": [
        "route53:ChangeResourceRecordSets",
        "route53:ListResourceRecordSets"
      ],
      "Resource": "arn:aws:route53:::hostedzone/XXXXXXXXXXXX"
    }
  ]
}

Create an AWS Role with Custom trust policy for the cert-manager service account to use the AWS IRSA feature and then attach the created policy. Replace the following:
- ${aws-account-id} with the AWS account ID of the EKS cluster.
- ${aws-region} with the region where the EKS cluster is located.
- ${eks-hash} with the hash in the EKS API URL; this will be a random 32 character hex string, for example, 45DABD88EEE3A227AF0FA468BE4EF0B5.
- ${namespace} with the namespace where cert-manager is running.
- ${service-account-name} with the name of the ServiceAccount object created by cert-manager.
- By default, it is "system:serviceaccount:openshift-operators:cert-manager" if cert-manager is installed via OperatorHub.
- Attach the created Permission policy for Route53 to the Role.
- Optionally, add Permissions boundary to the Role.
```
{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": "sts:AssumeRoleWithWebIdentity",
      "Principal": {
        "Federated": "arn:aws:iam::* ${aws-account-id}:oidc-provider/oidc.eks.${aws-region}.amazonaws.com/id/${eks-hash}"
      },
      "Condition": {
        "StringEquals": {
          "oidc.eks.${aws-region}.amazonaws.com/id/${eks-hash}:sub": "system:serviceaccount:${namespace}:${service-account-name}"
        }
      }
    }
  ]
}
```
Copy the created Role ARN.

Configure Cert-Manager Integration With AWS Route53

Annotate the ServiceAccount created by cert-manager (required for AWS IRSA), and restart the cert-manager pod.

Replace the eks.amazonaws.com/role-arn annotation value with your own Role ARN.

oc edit sa cert-manager -n openshift-operators

apiVersion: v1
kind: ServiceAccount
metadata:
  annotations:
    eks.amazonaws.com/role-arn: arn:aws:iam::XXXXXXXXXXXX:role/cert-manager

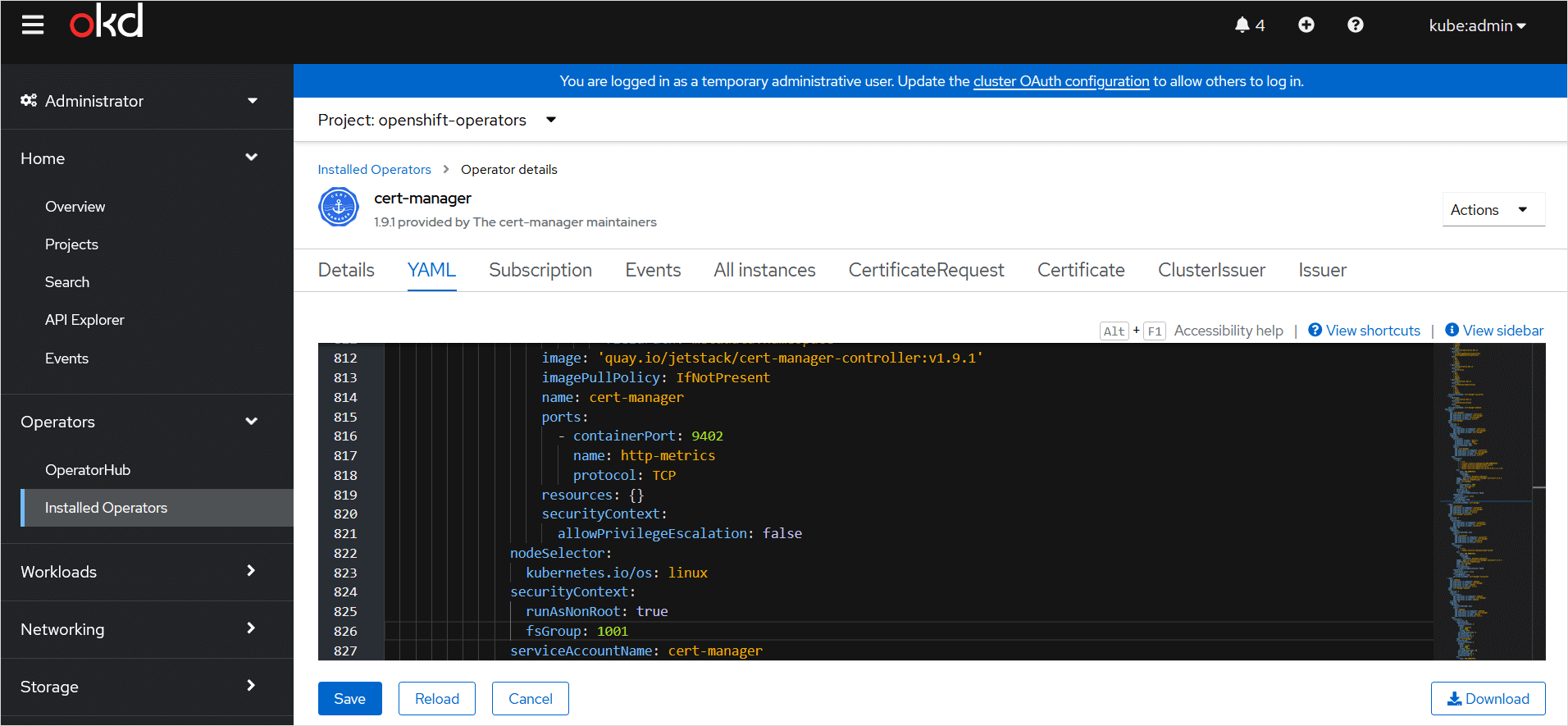

Modify the cert-manager Deployment with the correct file system permissions fsGroup: 1001, so that the ServiceAccount token can be read.

note

In case the ServiceAccount token cannot be read and the operator is installed using the OperatorHub, add fsGroup: 1001 via OpenShift ClusterServiceVersion OLM resource. It should be a cert-manager controller spec. These actions are not required for OpenShift v4.10.

oc get csv
oc edit csv cert-manager.${VERSION}

spec:
  template:
    spec:
      securityContext:
        fsGroup: 1001
      serviceAccountName: cert-manager

Cert-Manager System Permissions

info

A mutating admission controller will automatically modify all pods running with the service account:

cert-manager controller pod

apiVersion: apps/v1
kind: Pod
# ...
spec:
  # ...
  serviceAccountName: cert-manager
  serviceAccount: cert-manager
  containers:
  - name: ...
    # ...
    env:
      - name: AWS_ROLE_ARN
        value: >-
          arn:aws:iam::XXXXXXXXXXX:role/cert-manager
      - name: AWS_WEB_IDENTITY_TOKEN_FILE
        value: /var/run/secrets/eks.amazonaws.com/serviceaccount/token
    volumeMounts:
      - name: aws-iam-token
        readOnly: true
        mountPath: /var/run/secrets/eks.amazonaws.com/serviceaccount
  volumes:
    - name: aws-iam-token
      projected:
        sources:
          - serviceAccountToken:
              audience: sts.amazonaws.com
              expirationSeconds: 86400
              path: token
        defaultMode: 420

If you have separate public and private DNS zones for the same domain (split-horizon DNS), modify the cert-manager Deployment in order to validate DNS TXT records via public recursive nameservers.
note
Otherwise, you will be getting an error during a record validation:
Waiting for DNS-01 challenge propagation: NS ns-123.awsdns-00.net.:53 returned REFUSED for `_acme-challenge`.

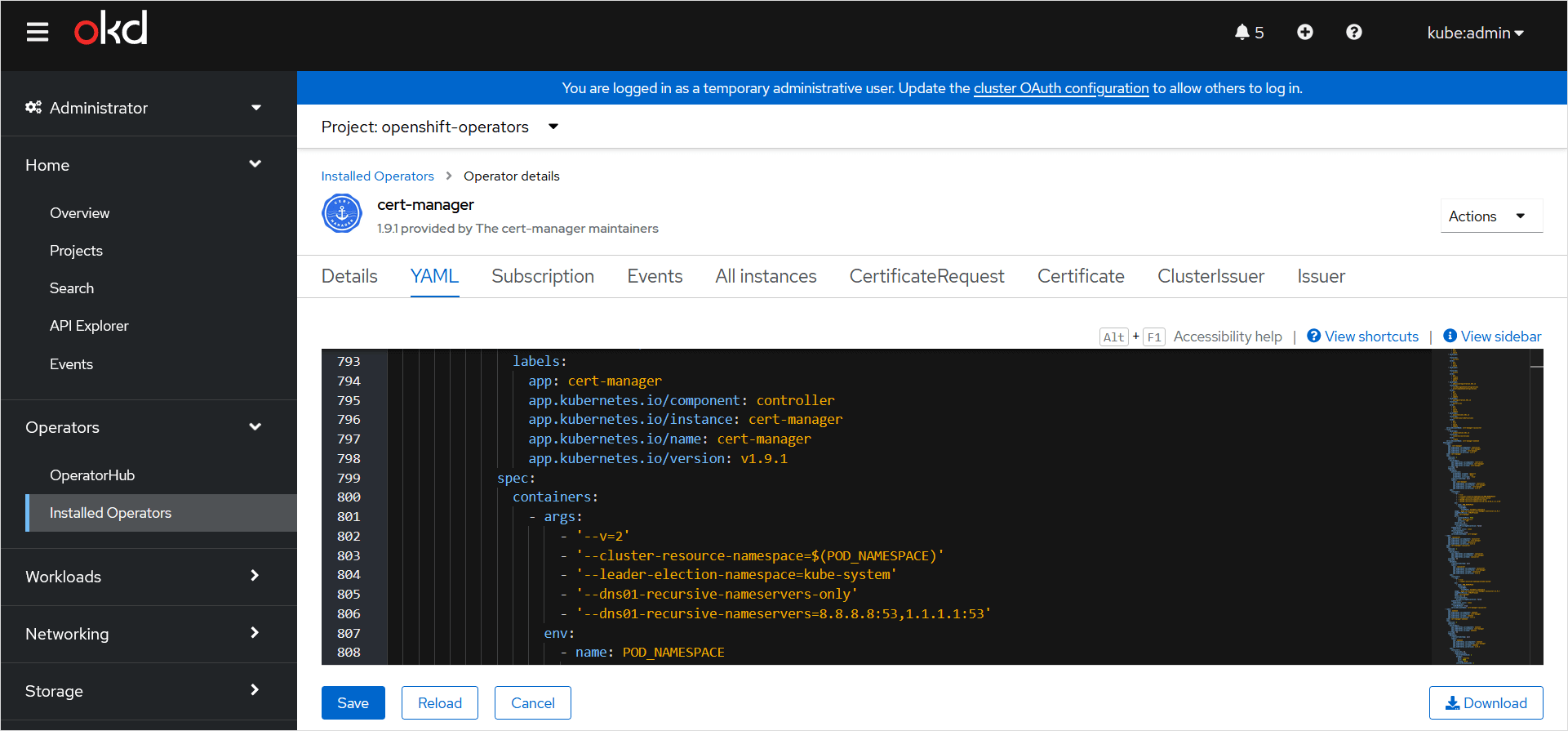

To avoid the error, add --dns01-recursive-nameservers-only --dns01-recursive-nameservers=8.8.8.8:53,1.1.1.1:53 as ARGs to the cert-manager controller Deployment.
```
oc get csv
oc edit csv cert-manager.${VERSION}
```
```
  labels:
    app: cert-manager
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: cert-manager
    app.kubernetes.io/name: cert-manager
    app.kubernetes.io/version: v1.9.1
spec:
  containers:
    - args:
        - '--v=2'
        - '--cluster-resource-namespace=$(POD_NAMESPACE)'
        - '--leader-election-namespace=kube-system'
        - '--dns01-recursive-nameservers-only'
        - '--dns01-recursive-nameservers=8.8.8.8:53,1.1.1.1:53'
```
note
The Deployment must be modified via OpenShift ClusterServiceVersion OLM resource if the operator was installed using the OperatorHub. The OpenShift ClusterServiceVersion OLM resource includes several Deployments, and the ARGs must be modified only for the cert-manager controller.
- Save the resource. After that, OLM will try to reload the resource automatically and save it to the YAML file. If OLM resets the config file, double-check the entered values.

Configure ClusterIssuers

ClusterIssuer is available on the whole cluster.

Create the ClusterIssuer resource for Let's Encrypt Staging and Prod environments that signs a Certificate using cert-manager.

note

Let's Encrypt has a limit of duplicate certificates in the Prod environment. Therefore, a ClusterIssuer has been created for Let's Encrypt Staging environment. By default, Let's Encrypt Staging certificates will not be trusted in your browser. The certificate validation cannot be tested in the Let's Encrypt Staging environment.

Change user@example.com with your contact email.
Replace hostedZoneID XXXXXXXXXXX with the DNS Hosted zone ID in AWS for your domain.
Replace the region value ${region}.
The secret under privateKeySecretRef will be created automatically by the cert-manager operator.

apiVersion: cert-manager.io/v1
kind: ClusterIssuer
metadata:
  name: letsencrypt-staging
spec:
  acme:
    email: user@example.com
    server: https://acme-staging-v02.api.letsencrypt.org/directory
    privateKeySecretRef:
      name: letsencrypt-staging-issuer-account-key
    solvers:
    - dns01:
        route53:
          region: ${region}
          hostedZoneID: XXXXXXXXXXX

apiVersion: cert-manager.io/v1
kind: ClusterIssuer
metadata:
  name: letsencrypt-prod
spec:
  acme:
    email: user@example.com
    server: https://acme-v02.api.letsencrypt.org/directory
    privateKeySecretRef:
      name: letsencrypt-prod-issuer-account-key
    solvers:
    - dns01:
        route53:
          region: ${region}
          hostedZoneID: XXXXXXXXXXX

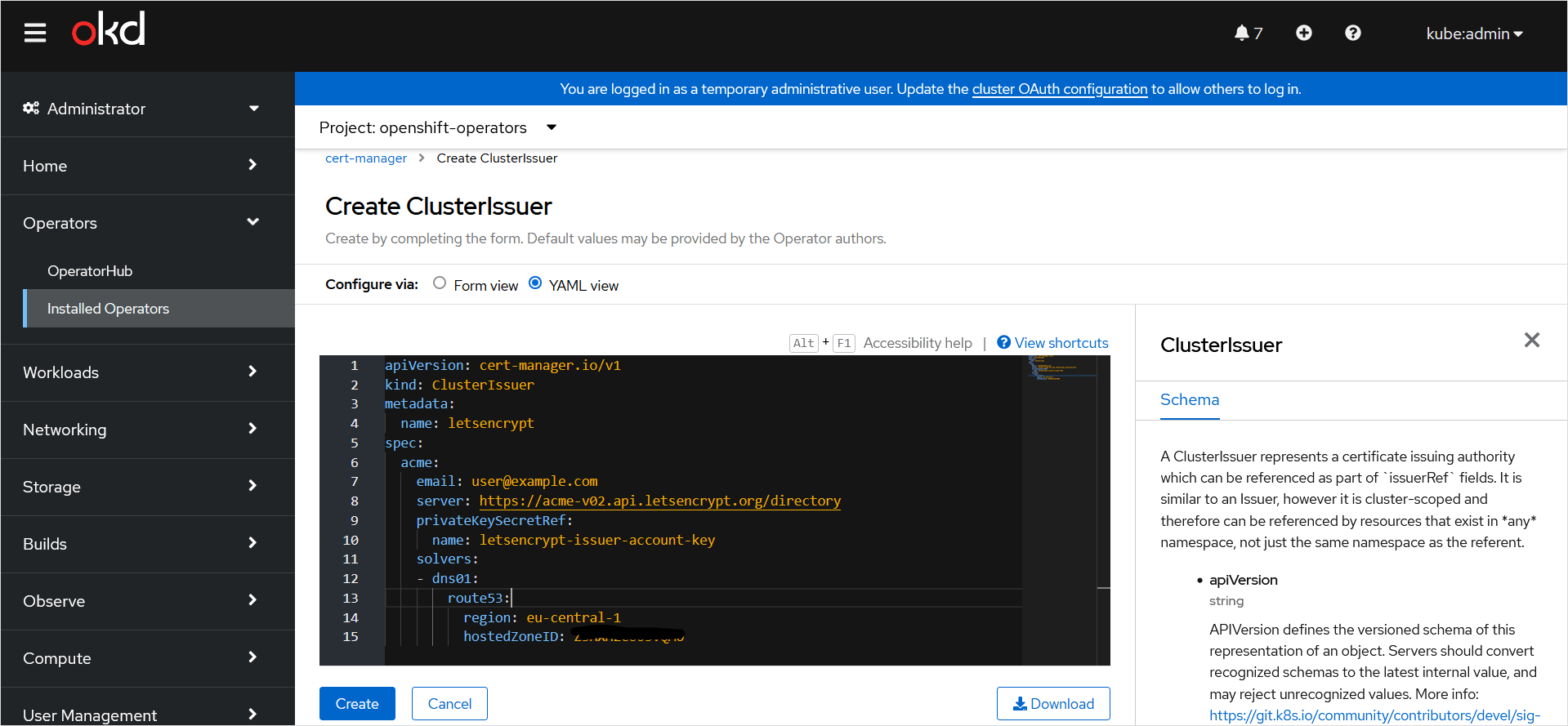

Cert-Manager ClusterIssuer

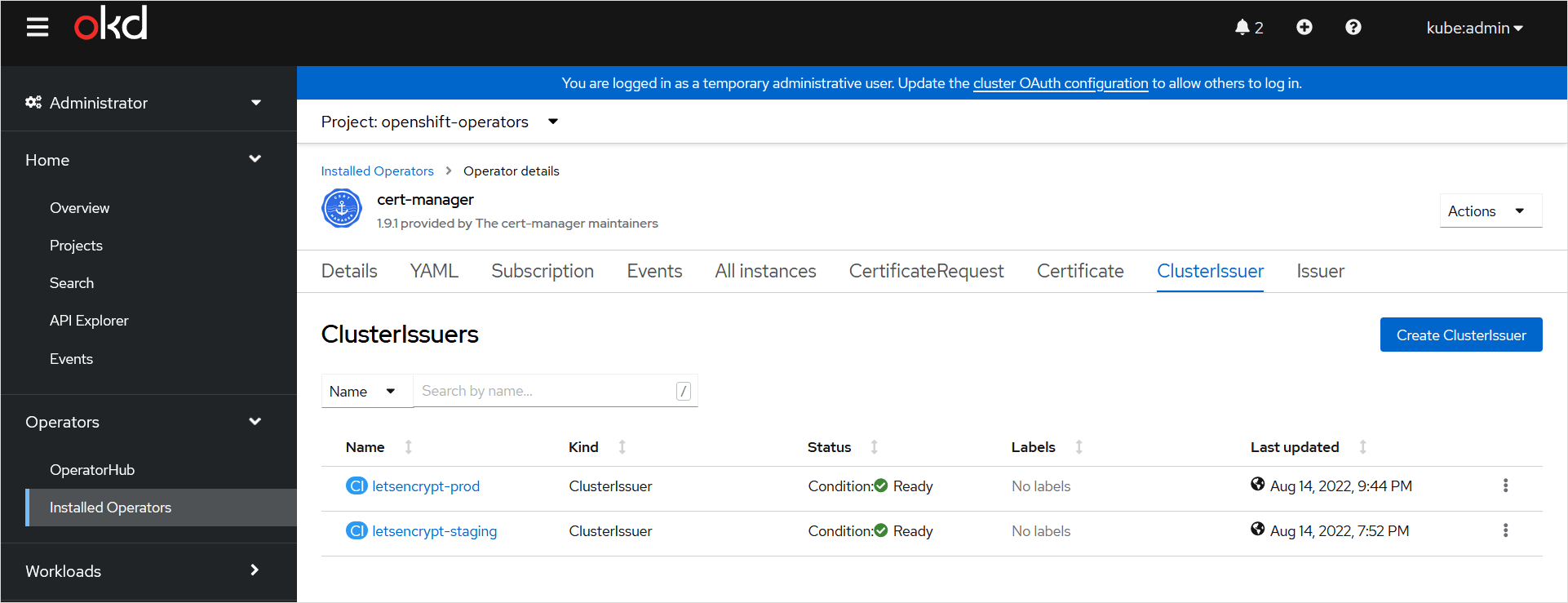

Check the ClusterIssuer status:

Cert-Manager ClusterIssuer

oc describe clusterissuer letsencrypt-prod
oc describe clusterissuer letsencrypt-staging

If the ClusterIssuer state is not ready, investigate cert-manager controller pod logs:

oc get pod -n openshift-operators | grep 'cert-manager'
oc logs -f cert-manager-${replica_set}-${random_string} -n openshift-operators

Configure Certificates

In two different namespaces, create a Certificate resource for the OpenShift Router (Ingress controller for OpenShift) and for the OpenShift APIServer.

OpenShift Router supports a single wildcard certificate for Ingress/Route resources in different namespaces (so called, default SSL certificate). The Ingress controller expects the certificates in a Secret to be created in the openshift-ingress namespace; the API Server, in the openshift-config namespace. The cert-manager operator will automatically create these secrets from the Certificate resource.
Replace ${DOMAIN} with your domain name. It can be checked with oc whoami --show-server. Put domain names in quotes.

The certificate for OpenShift Router in the openshift-ingress namespace

apiVersion: cert-manager.io/v1
kind: Certificate
metadata:
  name: router-certs
  namespace: openshift-ingress
  labels:
    app: cert-manager
spec:
  secretName: router-certs
  secretTemplate:
    labels:
      app: cert-manager
  duration: 2160h # 90d
  renewBefore: 360h # 15d
  subject:
    organizations:
      - Org Name
  commonName: '*.${DOMAIN}'
  privateKey:
    algorithm: RSA
    encoding: PKCS1
    size: 2048
    rotationPolicy: Always
  usages:
    - server auth
    - client auth
  dnsNames:
    - '*.${DOMAIN}'
    - '*.apps.${DOMAIN}'
  issuerRef:
    name: letsencrypt-staging
    kind: ClusterIssuer

The certificate for OpenShift APIServer in the openshift-config namespace

apiVersion: cert-manager.io/v1
kind: Certificate
metadata:
  name: api-certs
  namespace: openshift-config
  labels:
    app: cert-manager
spec:
  secretName: api-certs
  secretTemplate:
    labels:
      app: cert-manager
  duration: 2160h # 90d
  renewBefore: 360h # 15d
  subject:
    organizations:
      - Org Name
  commonName: '*.${DOMAIN}'
  privateKey:
    algorithm: RSA
    encoding: PKCS1
    size: 2048
    rotationPolicy: Always
  usages:
    - server auth
    - client auth
  dnsNames:
    - '*.${DOMAIN}'
    - '*.apps.${DOMAIN}'
  issuerRef:
    name: letsencrypt-staging
    kind: ClusterIssuer

info

cert-manager supports ECDSA key pairs in the Certificate resource. To use it, change RSA privateKey to ECDSA:
```
privateKey:
  algorithm: ECDSA
  encoding: PKCS1
  size: 256
  rotationPolicy: Always
```
rotationPolicy: Always is highly recommended since cert-manager does not rotate private keys by default.
Full Certificate spec is described in the cert-manager API documentation.

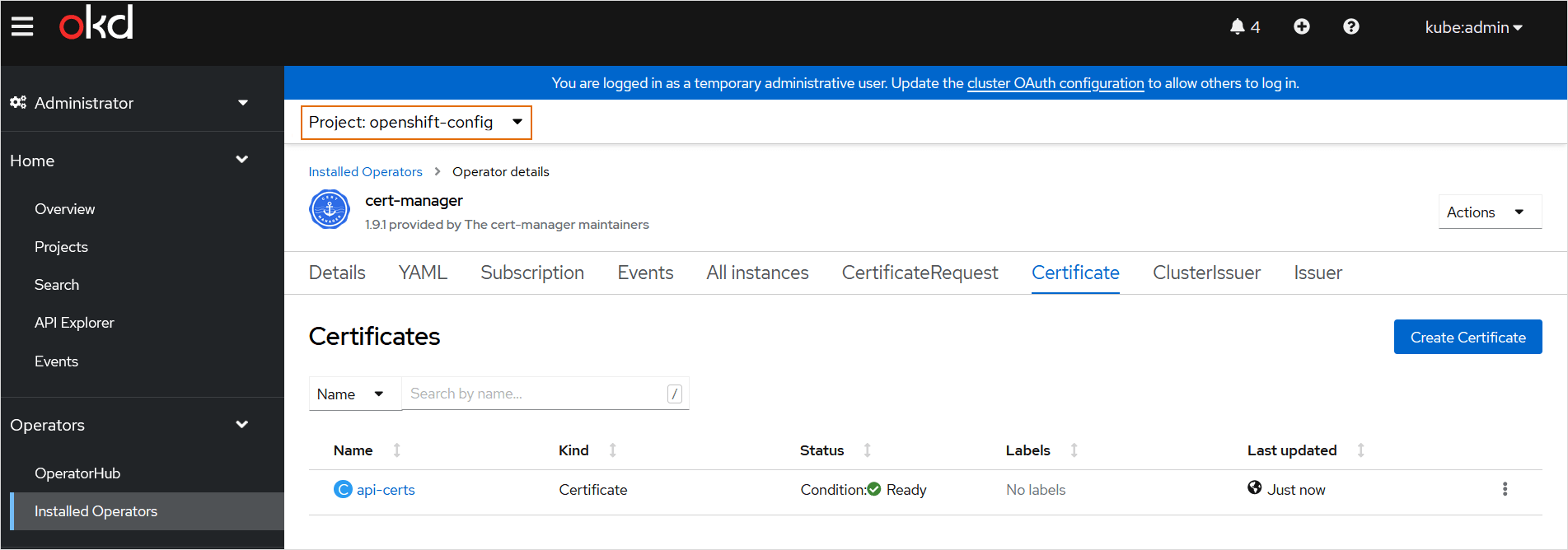

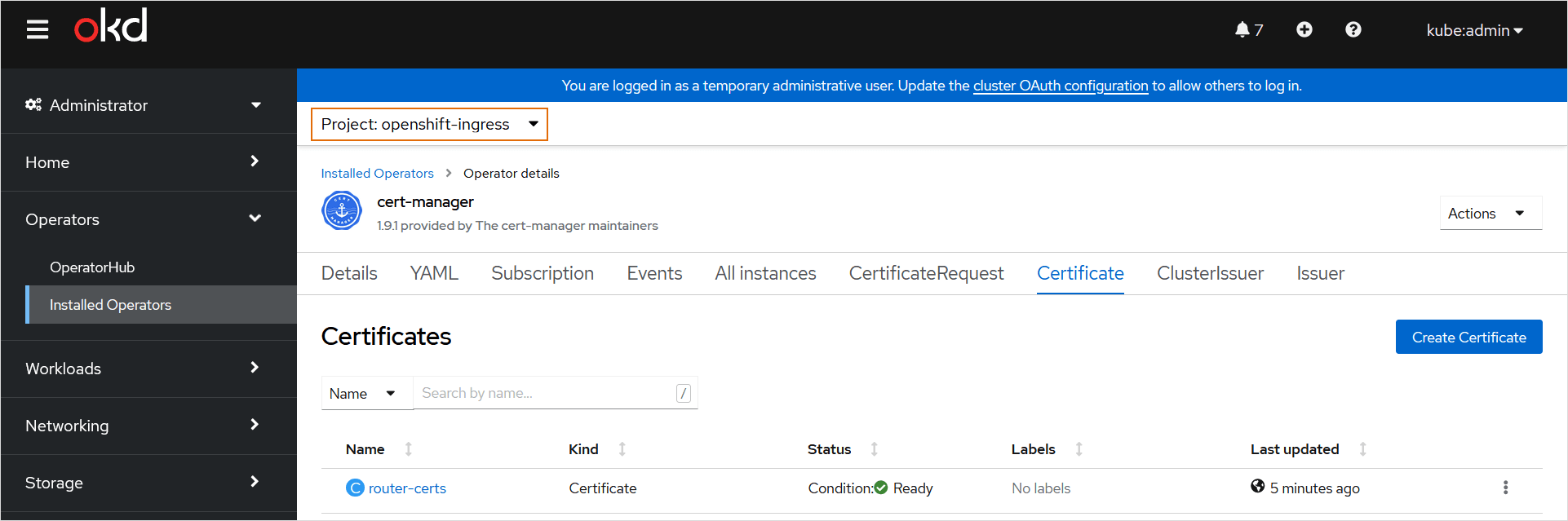

Check that the certificates in the namespaces are ready:

Check the details of the certificates via CLI:

oc describe certificate api-certs -n openshift-config
oc describe certificate router-certs -n openshift-ingress

Check the cert-manager controller pod logs if the Staging Certificate condition is not ready for more than 7 minutes:

oc get pod -n openshift-operators | grep 'cert-manager'
oc logs -f cert-manager-${replica_set}-${random_string} -n openshift-operators

When the certificate is ready, its private key will be put into the OpenShift Secret in the namespace indicated in the Certificate resource:
```
oc describe secret api-certs -n openshift-config
oc describe secret router-certs -n openshift-ingress
```

Modify OpenShift Router and API Server Custom Resources

Update the Custom Resource of your Router (Ingress controller). Patch the defaultCertificate object value with { "name": "router-certs" }:
```
oc patch ingresscontroller default -n openshift-ingress-operator --type=merge --patch='{"spec": { "defaultCertificate": { "name": "router-certs" }}}' --insecure-skip-tls-verify
```
info
After updating the IngressController object, the OpenShift Ingress operator redeploys the router.

Update the Custom Resource for the OpenShift API Server:

Export the name of APIServer:

export OKD_API=$(oc whoami --show-server --insecure-skip-tls-verify | cut -f 2 -d ':' | cut -f 3 -d '/' | sed 's/-api././')

Patch the servingCertificate object value with { "name": "api-certs" }:

oc patch apiserver cluster --type merge --patch="{\"spec\": {\"servingCerts\": {\"namedCertificates\": [ { \"names\": [  \"$OKD_API\"  ], \"servingCertificate\": {\"name\": \"api-certs\" }}]}}}" --insecure-skip-tls-verify

Move From Let's Encrypt Staging Environment to Prod

Test the Staging certificate on the OpenShift Admin Console. The --insecure flag is used because Let's Encrypt Staging certificates are not trusted in browsers by default:
```
curl -v --insecure https://console-openshift-console.apps.${DOMAIN}
```
Change issuerRef to letsencrypt-prod in both Certificate resources:
```
oc edit certificate api-certs -n openshift-config
oc edit certificate router-certs -n openshift-ingress
```
```
issuerRef:
  name: letsencrypt-prod
  kind: ClusterIssuer
```
note
In case the certificate reissue is not triggered after that, try to force the certificate renewal with cmctl:
cmctl renew router-certs -n openshift-ingress cmctl renew api-certs -n openshift-config
If this won't work, delete the api-certs and router-certs secrets. It should trigger the Prod certificates issuance:
oc delete secret router-certs -n openshift-ingress oc delete secret api-certs -n openshift-config
Please note that these actions will lead to logging your account out of the OpenShift Admin Console, since certificates will be deleted. Accept the certificate warning in the browser and log in again after that.

Check the status of the Prod certificates:

oc describe certificate api-certs -n openshift-config
oc describe certificate router-certs -n openshift-ingress

cmctl status certificate api-certs -n openshift-config
cmctl status certificate router-certs -n openshift-ingress

Check the web console and make sure it has secure connection:
```
curl -v https://console-openshift-console.apps.${DOMAIN}
```

Troubleshoot Certificates

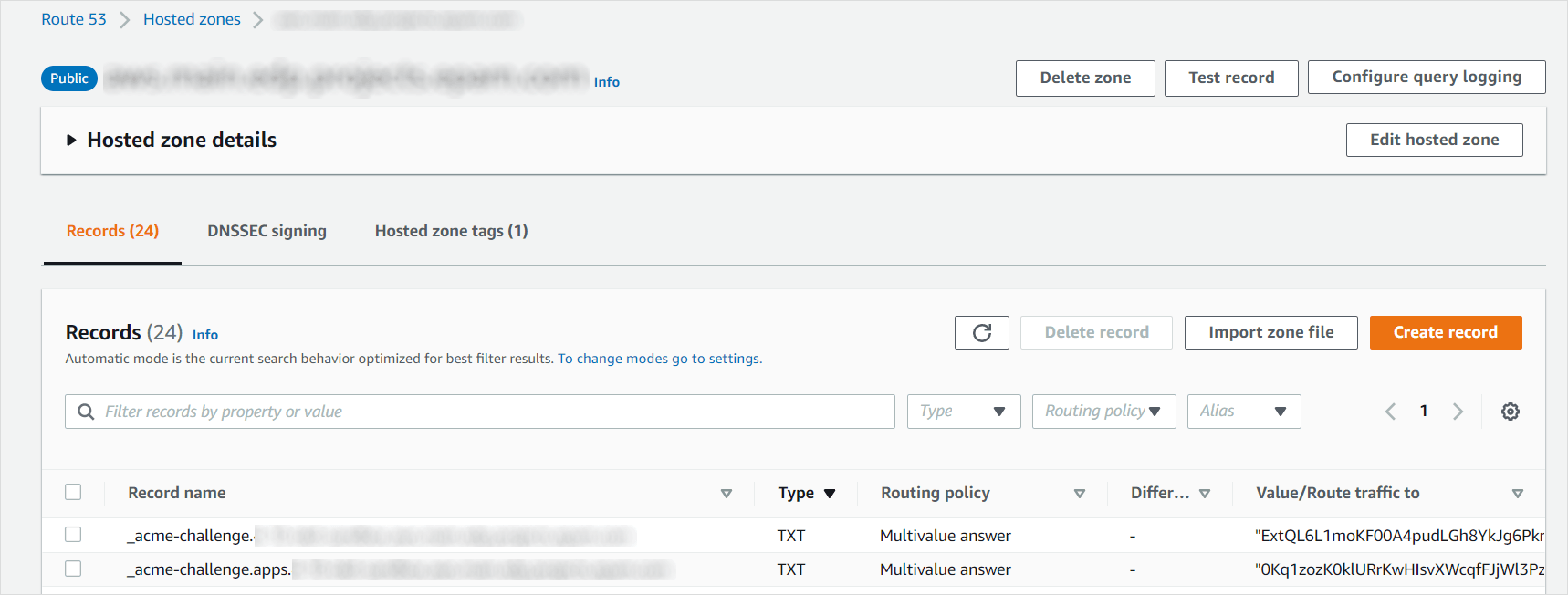

Below is an example of the DNS TXT challenge record created by the cert-manager operator:

DNS Validation

Use nslookup or dig tools to check if the DNS propagation for the TXT record is complete:

nslookup -type=txt _acme-challenge.${DOMAIN}
dig txt _acme-challenge.${DOMAIN}

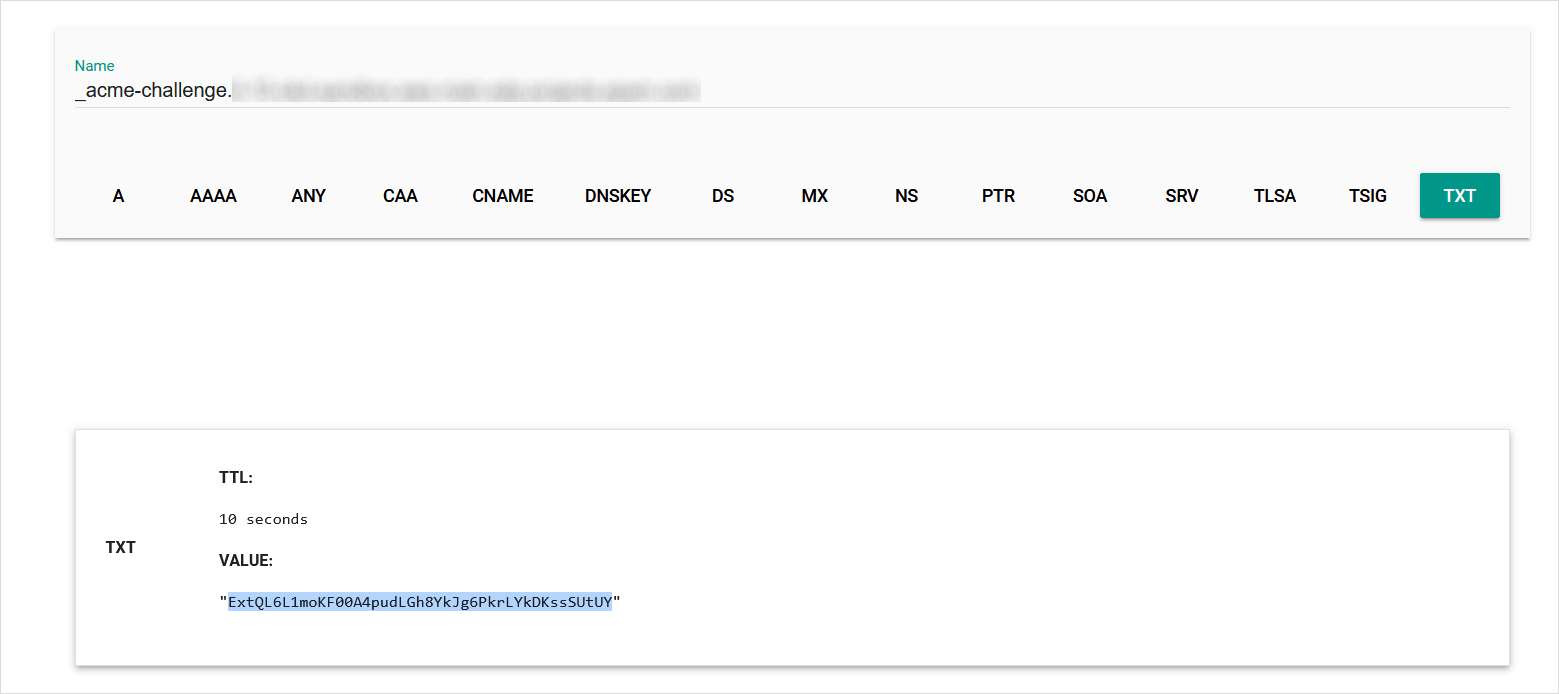

Otherwise, use web tools like Google Admin Toolbox:

DNS Validation

If the correct TXT value is shown (the value corresponds to the current TXT value in the DNS zone), it means that the DNS propagation is complete and Let's Encrypt is able to access the record in order to validate it and issue a trusted certificate.

note

If the DNS validation challenge self check fails, cert-manager will retry the self check with a fixed 10-second retry interval. Challenges that do not ever complete the self check will continue retrying until the user intervenes by either retrying the Order (by deleting the Order resource) or amending the associated Certificate resource to resolve any configuration errors.

As soon as the domain ownership has been verified, any cert-manager affected validation TXT records in the AWS Route53 DNS zone will be cleaned up.

Please find below the issues that may occur and their troubleshooting:

When certificates are not issued for a long time, or a cert-manager resource is not in a Ready state, describing a resource may show the reason for the error.
Basically, the cert-manager creates the following resources during a Certificate issuance: CertificateRequest, Order, and Challenge. Investigate each of them in case of errors.
Use the cmctl tool to show the state of a Certificate and its associated resources.

Check the cert-manager controller pod logs:

oc get pod -n openshift-operators | grep 'cert-manager'
oc logs -f cert-manager-${replica_set}-${random_string} -n openshift-operators

Certificate error debugging: a. Decode certificate chain located in the secrets:

oc get secret router-certs -n openshift-ingress -o 'go-template={{index .data "tls.crt"}}' | base64 -d | while openssl x509 -noout -text; do :; done 2>/dev/null
oc get secret api-certs -n openshift-config -o 'go-template={{index .data "tls.crt"}}' | base64 -d | while openssl x509 -noout -text; do :; done 2>/dev/null

cmctl inspect secret router-certs -n openshift-ingress
cmctl inspect secret api-certs -n openshift-config

b. Check the SSL RSA private key consistency:

oc get secret router-certs -n openshift-ingress -o 'go-template={{index .data "tls.key"}}' | base64 -d | openssl rsa -check -noout
oc get secret api-certs -n openshift-config -o 'go-template={{index .data "tls.key"}}' | base64 -d | openssl rsa -check -noout

c. Match the SSL certificate public key against its RSA private key. Their modulus must be identical:

diff <(oc get secret api-certs -n openshift-config -o 'go-template={{index .data "tls.crt"}}' | base64 -d | openssl x509 -noout -modulus | openssl md5) <(oc get secret api-certs -n openshift-config -o 'go-template={{index .data "tls.key"}}' | base64 -d | openssl rsa -noout -modulus | openssl md5)
diff <(oc get secret router-certs -n openshift-ingress -o 'go-template={{index .data "tls.crt"}}' | base64 -d | openssl x509 -noout -modulus | openssl md5) <(oc get secret router-certs -n openshift-ingress -o 'go-template={{index .data "tls.key"}}' | base64 -d | openssl rsa -noout -modulus | openssl md5)

Remove Obsolete Certificate Authority Data From Kubeconfig

After updating the certificates, the access to the cluster via Lens or CLI will be denied because of the untrusted certificate errors:

$ oc whoami
Unable to connect to the server: x509: certificate signed by unknown authority

Such behavior appears because the oc tool references an old CA data in the kubeconfig file.

note

Examine the Certificate Authority data using the following command:

oc config view --minify --raw -o jsonpath='{.clusters[].cluster.certificate-authority-data}' | base64 -d | openssl x509 -text

This certificate has the CA:TRUE parameter, which means that this is a self-signed root CA certificate.

To fix the error, remove the old CA data from your OpenShift kubeconfig file:

sed -i "/certificate-authority-data/d" $KUBECONFIG

Since this field will be absent in the kubeconfig file, system root SSL certificate will be used to validate the cluster certificate trust chain. On Ubuntu, Let's Encrypt OpenShift cluster certificates will be validated against Internet Security Research Group root in /etc/ssl/certs/ca-certificates.crt.

Certificate Renewals

The cert-manager automatically renews the certificates based on the X.509 certificate's duration and the renewBefore value. The minimum value for the spec.duration is 1 hour; for spec.renewBefore, 5 minutes. It is also required that spec.duration > spec.renewBefore.

Use the cmctl tool to manually trigger a single instant certificate renewal:

cmctl renew router-certs -n openshift-ingress
cmctl renew api-certs -n openshift-config

Otherwise, manually renew all certificates in all namespaces with the app=cert-manager label:

cmctl renew --all-namespaces -l app=cert-manager

Run the cmctl renew --help command to get more details.

Prerequisites​

Install Cert-Manager Operator​

Create AWS Role for Route53​

Configure Cert-Manager Integration With AWS Route53​

Configure ClusterIssuers​

Configure Certificates​

Modify OpenShift Router and API Server Custom Resources​

Move From Let's Encrypt Staging Environment to Prod​

Troubleshoot Certificates​

Remove Obsolete Certificate Authority Data From Kubeconfig​

Certificate Renewals​

Related Articles​

Prerequisites

Install Cert-Manager Operator

Create AWS Role for Route53

Configure Cert-Manager Integration With AWS Route53

Configure ClusterIssuers

Configure Certificates

Modify OpenShift Router and API Server Custom Resources

Move From Let's Encrypt Staging Environment to Prod

Troubleshoot Certificates

Remove Obsolete Certificate Authority Data From Kubeconfig

Certificate Renewals

Related Articles
